Imaginary Picture of Kepler-1348 b

Display orbital revolution of Kepler-1348 b around the hoststar Kepler-1348
/
Exoplanet Name : Kepler-1348 b
Alternate Name : "2MASS J19282099+4947195 b, K02791.01, KIC 11662184 b, KOI-2791 b, KOI-2791.01, WISE J192820.98+494719.4 b"
Status : Confirmed
Radius (Rjup / Re): 0.1730 (Rjup) 1.9392 (Rearth)
Mass (Mjup / Me): 0.0154 (Mjup) 4.8842 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1810 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0755
Orbital Period(Observed/Estimated) 27.57 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.2989
Star Radiation at Atmospheric Boundary: 69724.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 725.3 (K)
Blackbody T 0.3(K) 681.1 (K)
Blackbody T 0.7(K) 551.1 (K)
Tidally Locked Blackbody T 0.1(K) 862.5 (K)
Tidally Locked Blackbody T 0.3(K) 810.0 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1348
Alternate Name : "2MASS J19282099+4947195, KIC 11662184, KOI-2791, WISE J192820.98+494719.4"
Star Distance(LY) : 3958.6
Stellar Radius(Rsun) : 1.2 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 3.7 (GY)
Temperature : 5911 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.0
Absolute Magnitude: 3.2
Apparent Magnitude: 13.6
Right Ascension(RA) 292.0875
Declination (DEC) 49.7888
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1348+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1348%20b/
Kepler-1348 b
Kepler-1348 b

  • Kepler-1348 b is an exoplanet orbiting the star Kepler-1348, located about 3958.6 light-years (1213.7 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1348 has apparent magnitude of 13.6, with absolute magnitude of 3.2.
  • It is 1.0 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 5911 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-1348 b orbits around the star Kepler-1348 every 27.6 days with its orbital distance of 0.18 AU ( 27072275.9 km)

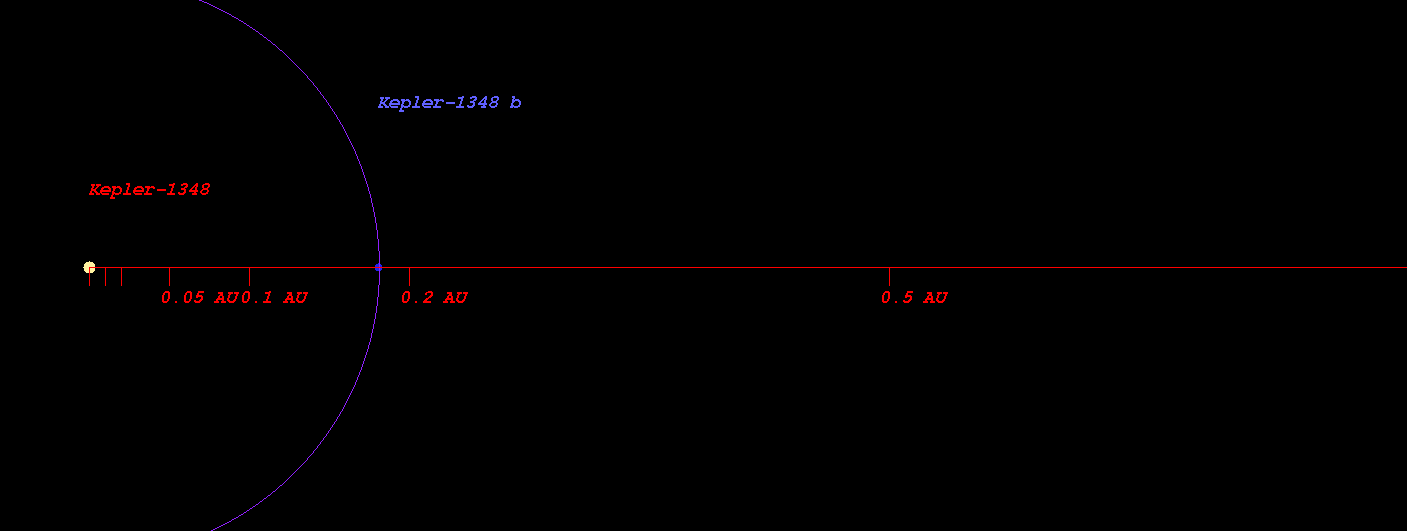

  • (Projected orbit of Kepler-1348 b around its host star Kepler-1348)


  • The Star Kepler-1348 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.935 AU ( 139845014.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.292 AU ( 193302356.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.969 AU ( 294550013.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.897 AU ( 433443247.5 km)
  • Radiation at Planetary Boundary of Kepler-1348 b : 69724.25 W/m2

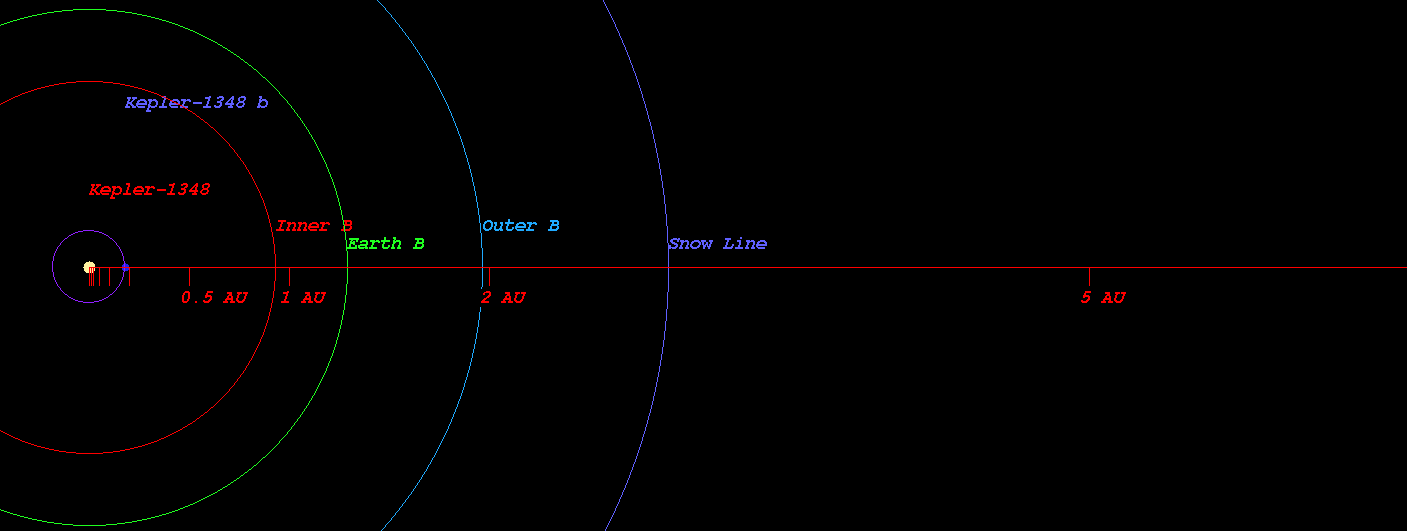

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1348)



  • Kopparapu Recent Venus for Star Kepler-1348 distance : 0.961 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1348 distance : 1.217 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1348 distance : 1.175 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1348 distance : 1.289 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1348 distance : 2.142 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1348 distance : 2.259 AU

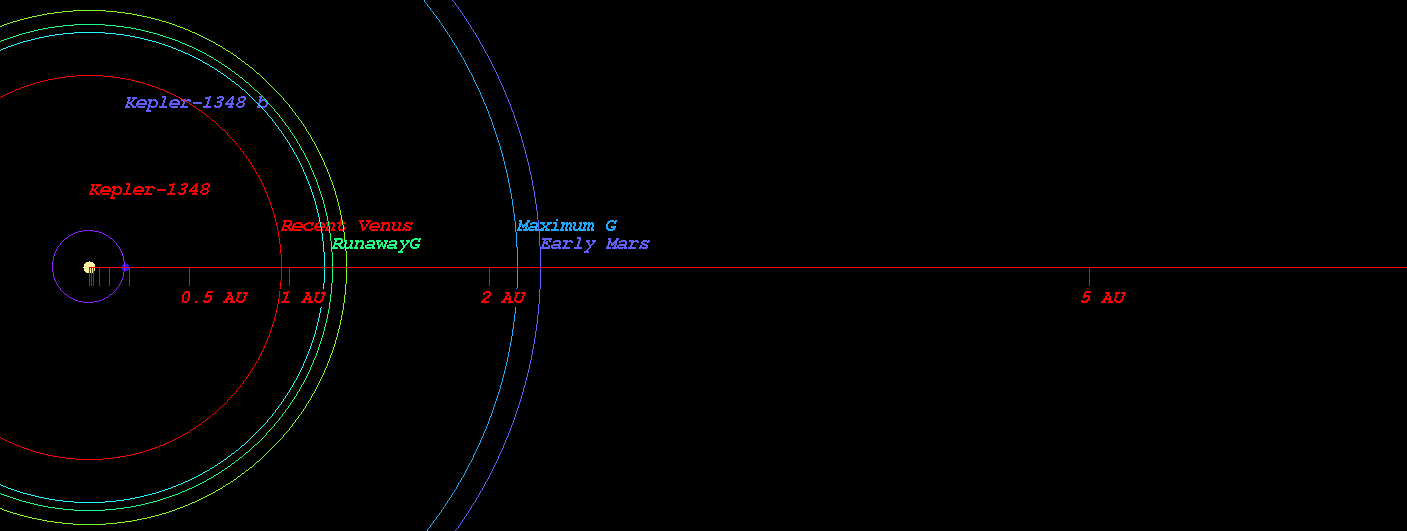

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1348)



  • Original Kopparapu Recent Venus for Star Kepler-1348 distance : 0.965 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1348 distance : 1.250 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1348 distance : 1.277 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1348 distance : 2.180 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1348 distance : 2.267 AU

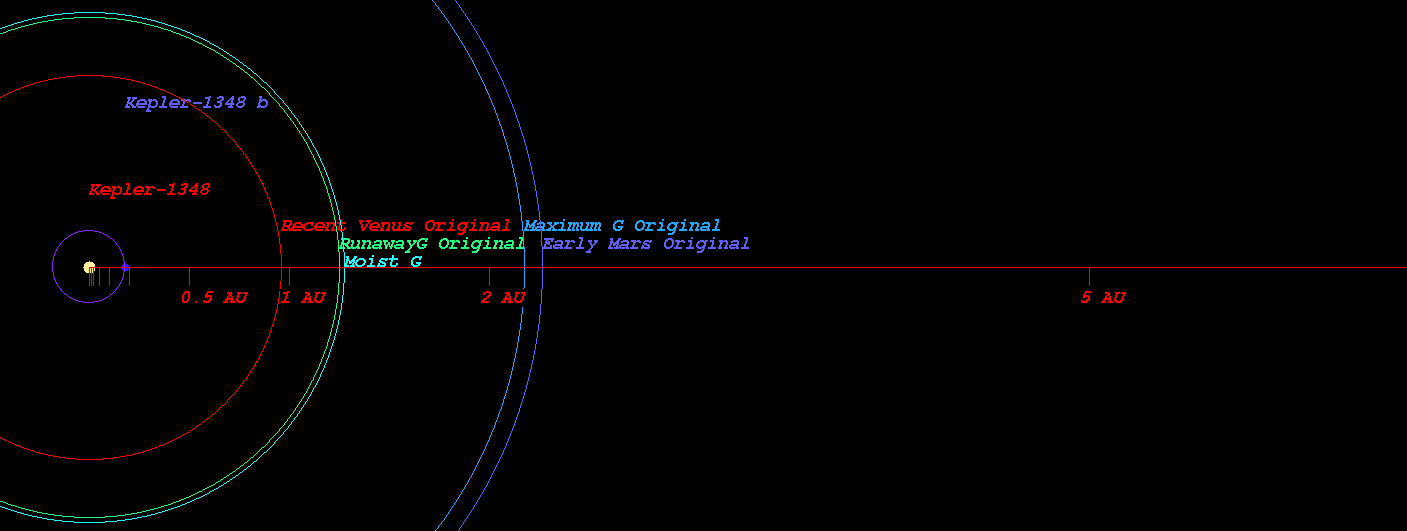

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1348)

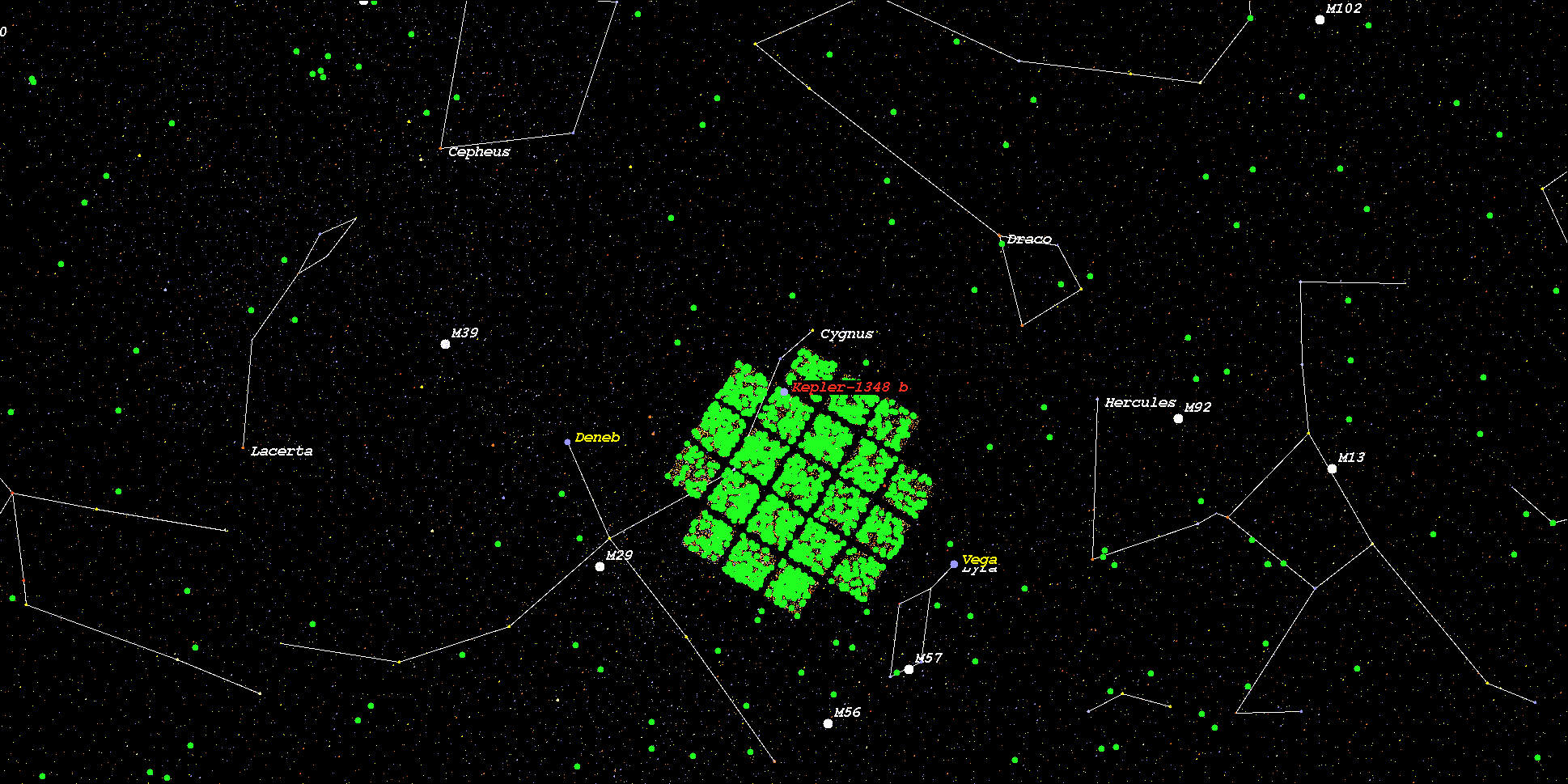

    (Position in Stellar Map of star Kepler-1348 and its Exoplanet Kepler-1348 b)



    (Zoomed position in Stellar Map of star Kepler-1348 and its Exoplanet Kepler-1348 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1348*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
