Imaginary Picture of Kepler-1330 b

Display orbital revolution of Kepler-1330 b around the hoststar Kepler-1330
/
Exoplanet Name : Kepler-1330 b
Alternate Name : "2MASS J19221841+3957248 b, K02739.01, KIC 4831728 b, KOI-2739 b, KOI-2739.01, WISE J192218.40+395724.8 b"
Status : Confirmed
Radius (Rjup / Re): 0.1470 (Rjup) 1.6477 (Rearth)
Mass (Mjup / Me): 0.0132 (Mjup) 4.1977 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0906 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0277
Orbital Period(Observed/Estimated) 10.11 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.5461
Star Radiation at Atmospheric Boundary: 424189.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1139.0 (K)
Blackbody T 0.3(K) 1069.7 (K)
Blackbody T 0.7(K) 865.5 (K)
Tidally Locked Blackbody T 0.1(K) 1354.5 (K)
Tidally Locked Blackbody T 0.3(K) 1272.0 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1330
Alternate Name : "2MASS J19221841+3957248, KIC 4831728, KOI-2739, WISE J192218.40+395724.8"
Star Distance(LY) : 5619.8
Stellar Radius(Rsun) : 1.8 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.9 (GY)
Temperature : 5478 (K)
Spectral type : G6
UV portion[%]: 7.3
Visible portion[%]: 43.9
IR portion[%]: 48.8
Metalicity : 0.1
Absolute Magnitude: 2.6
Apparent Magnitude: 13.8
Right Ascension(RA) 290.5767
Declination (DEC) 39.9569
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1330+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1330%20b/
Kepler-1330 b
Kepler-1330 b

  • Kepler-1330 b is an exoplanet orbiting the star Kepler-1330, located about 5619.8 light-years (1723.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1330 has apparent magnitude of 13.8, with absolute magnitude of 2.6.
  • It is 1.0 times more massive and 1.8 times bigger compared with our Sun. The surface temperature is 5478 with its spectral types of G6
  • In this planetary system, the extrasolar planet Kepler-1330 b orbits around the star Kepler-1330 every 10.1 days with its orbital distance of 0.09 AU ( 13548476.7 km)

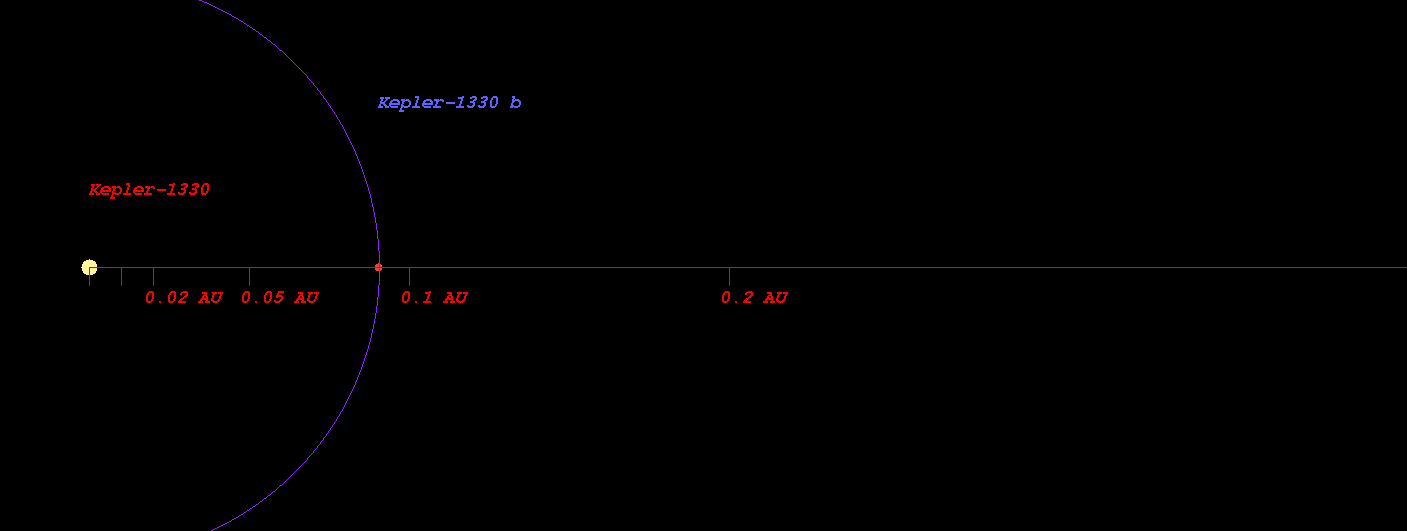

  • (Projected orbit of Kepler-1330 b around its host star Kepler-1330)


  • The Star Kepler-1330 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.154 AU ( 172623741.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.595 AU ( 238611122.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.430 AU ( 363590546.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.577 AU ( 535039417.4 km)
  • Radiation at Planetary Boundary of Kepler-1330 b : 424189.12 W/m2

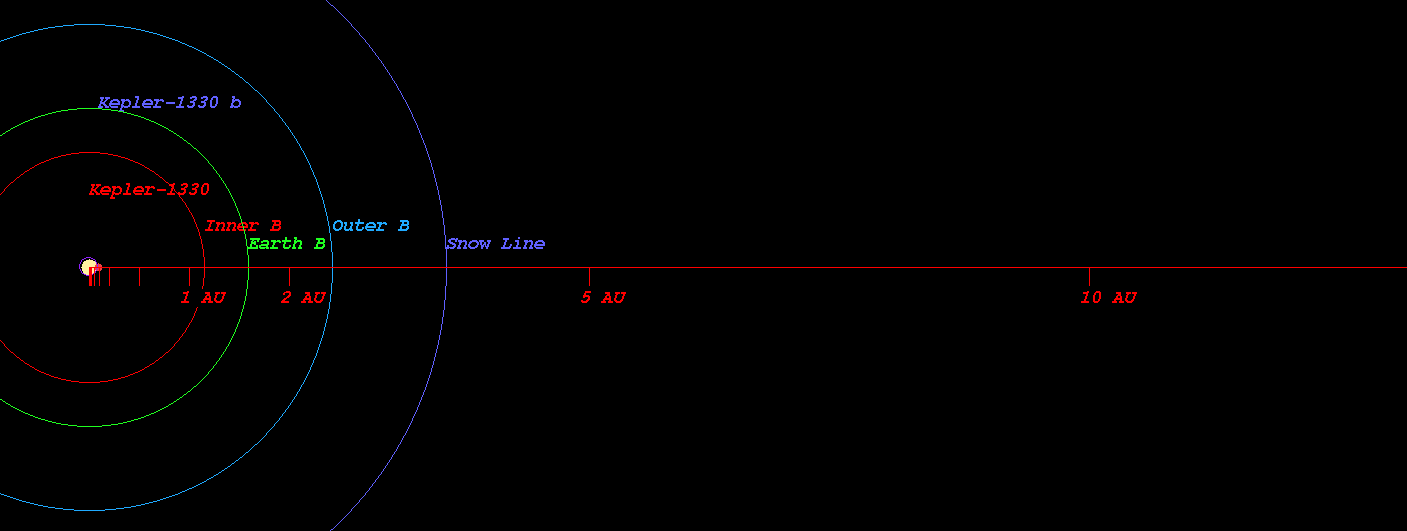

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1330)



  • Kopparapu Recent Venus for Star Kepler-1330 distance : 1.217 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1330 distance : 1.541 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1330 distance : 1.489 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1330 distance : 1.633 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1330 distance : 2.746 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1330 distance : 2.896 AU

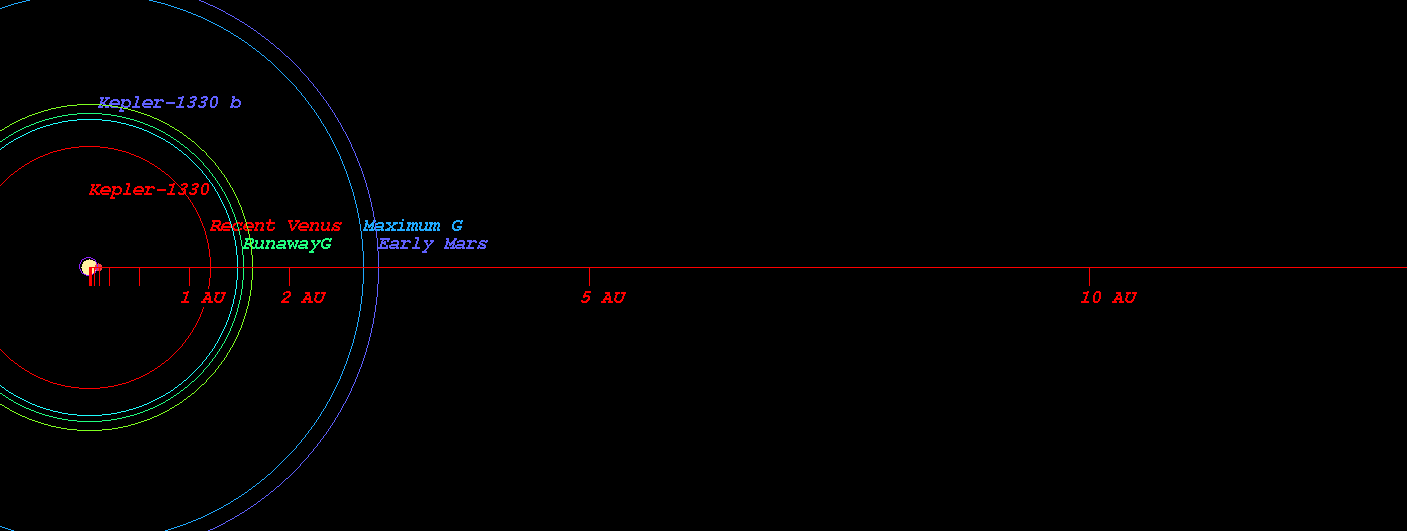

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1330)



  • Original Kopparapu Recent Venus for Star Kepler-1330 distance : 1.212 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1330 distance : 1.586 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1330 distance : 1.604 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1330 distance : 2.793 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1330 distance : 2.905 AU

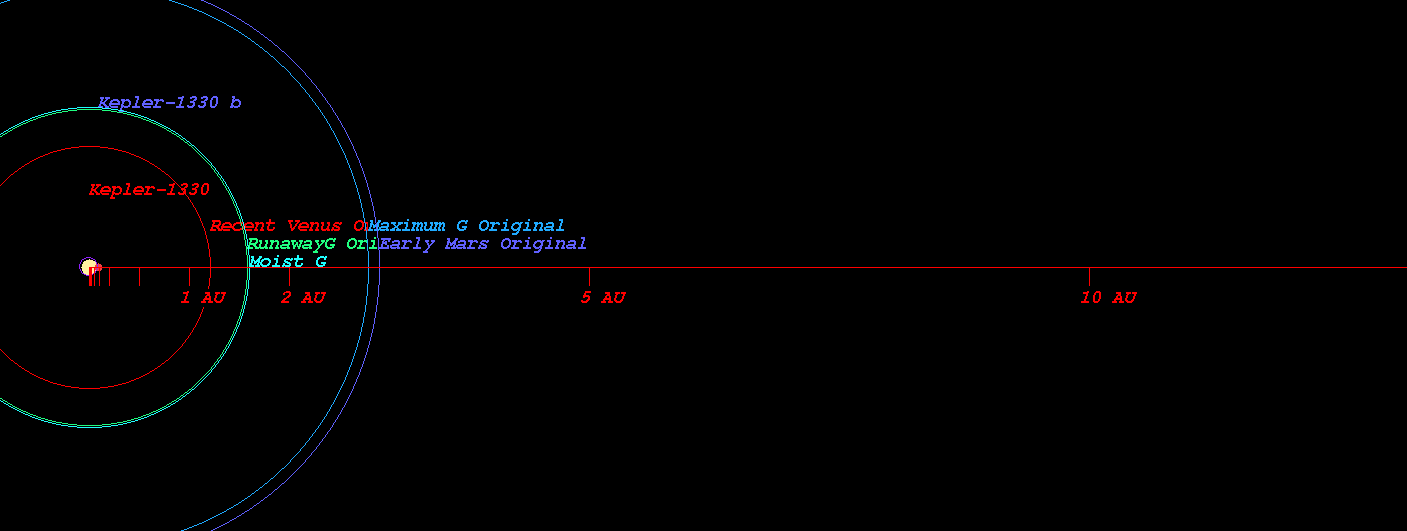

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1330)

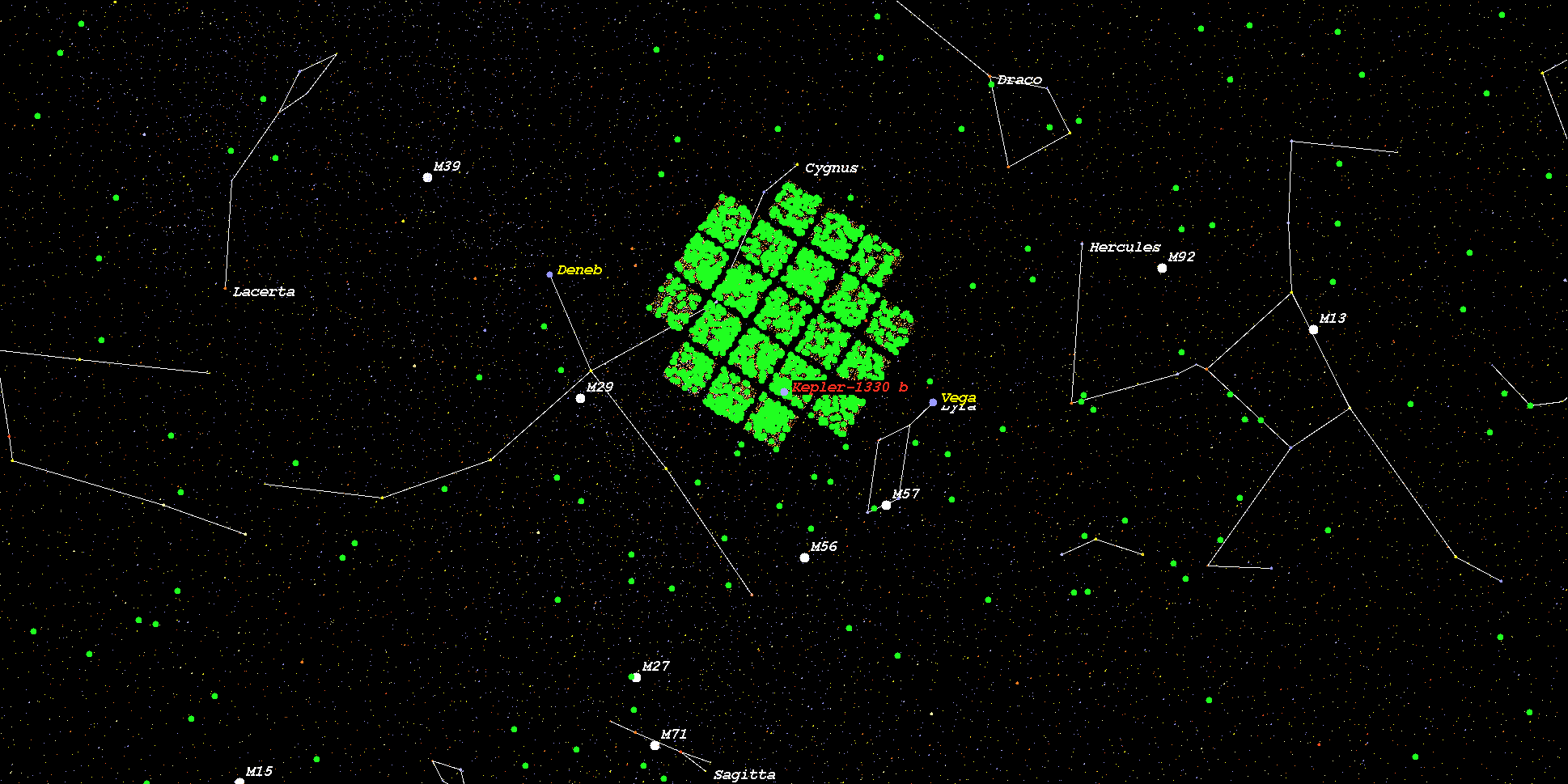

    (Position in Stellar Map of star Kepler-1330 and its Exoplanet Kepler-1330 b)



    (Zoomed position in Stellar Map of star Kepler-1330 and its Exoplanet Kepler-1330 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1330*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
