Imaginary Picture of Kepler-132 d

Display orbital revolution of Kepler-132 d around the hoststar Kepler-132
/
Exoplanet Name : Kepler-132 d
Alternate Name : "Kepler-132 d, 2MASS J18525659+4120349 d, K00284.01, KIC 6021275 d, KOI-284 d, KOI-284.01, Kepler-132 A d, WISE J185256.
Status : Confirmed
Radius (Rjup / Re): 0.1380 (Rjup) 1.5468 (Rearth)
Mass (Mjup / Me): 0.0124 (Mjup) 3.9582 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1360 (AU) 0.1360 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0493
Orbital Period(Observed/Estimated) 18.01 (Days Obs.) 21.15 (Days Est.)
Surface Gravity (G Earth) 1.6543
Star Radiation at Atmospheric Boundary: 99452.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 792.6 (K)
Blackbody T 0.3(K) 744.3 (K)
Blackbody T 0.7(K) 602.2 (K)
Tidally Locked Blackbody T 0.1(K) 942.5 (K)
Tidally Locked Blackbody T 0.3(K) 885.2 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-132
Alternate Name : "Kepler-132, 2MASS J18525659+4120349, KIC 6021275, KOI-284, Kepler-132 A, WISE J185256.57+412034.9"
Star Distance(LY) : 904.2
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5931 (K)
Spectral type : G0
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.1
Absolute Magnitude: 3.6
Apparent Magnitude: 10.8
Right Ascension(RA) 283.2358
Declination (DEC) 41.3430
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-132+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-132%20d/
Kepler-132 d
Kepler-132 d

  • Kepler-132 d is an exoplanet orbiting the star Kepler-132, located about 904.2 light-years (277.2 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-132 has apparent magnitude of 10.8, with absolute magnitude of 3.6.
  • It is 0.8 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5931 with its spectral types of G0
  • In this planetary system, the extrasolar planet Kepler-132 d orbits around the star Kepler-132 every 18.0 days with its orbital distance of 0.14 AU ( 20345310.4 km)

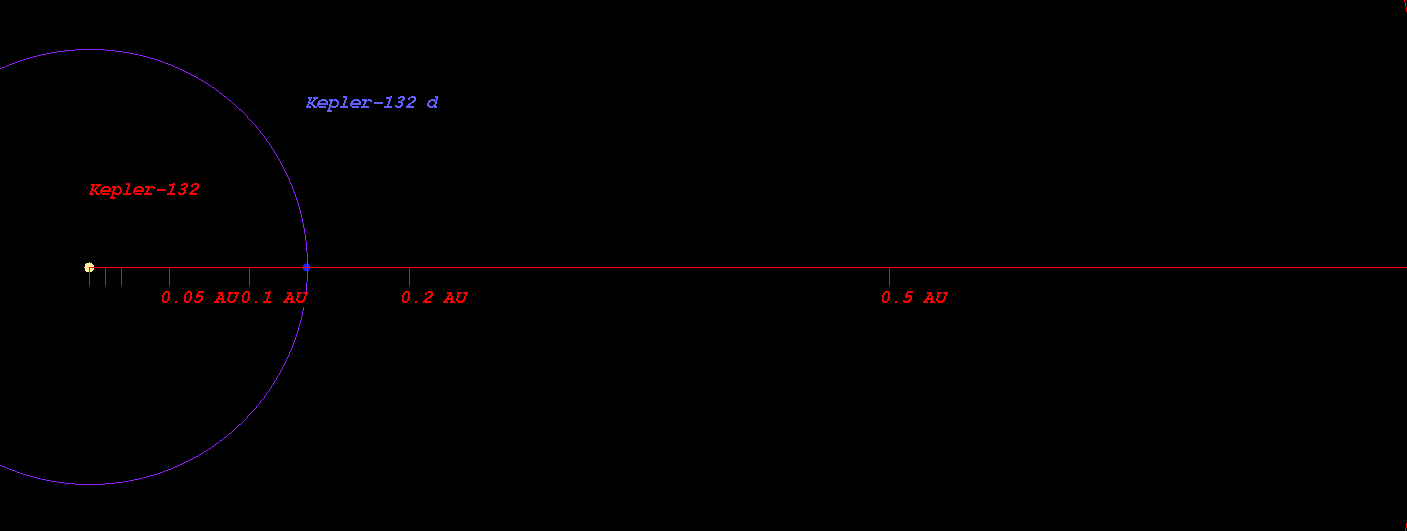

  • (Projected orbit of Kepler-132 d around its host star Kepler-132)


  • The Star Kepler-132 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.839 AU ( 125516632.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.160 AU ( 173496787.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.767 AU ( 264370709.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.601 AU ( 389033080.7 km)
  • Radiation at Planetary Boundary of Kepler-132 d : 99451.96 W/m2

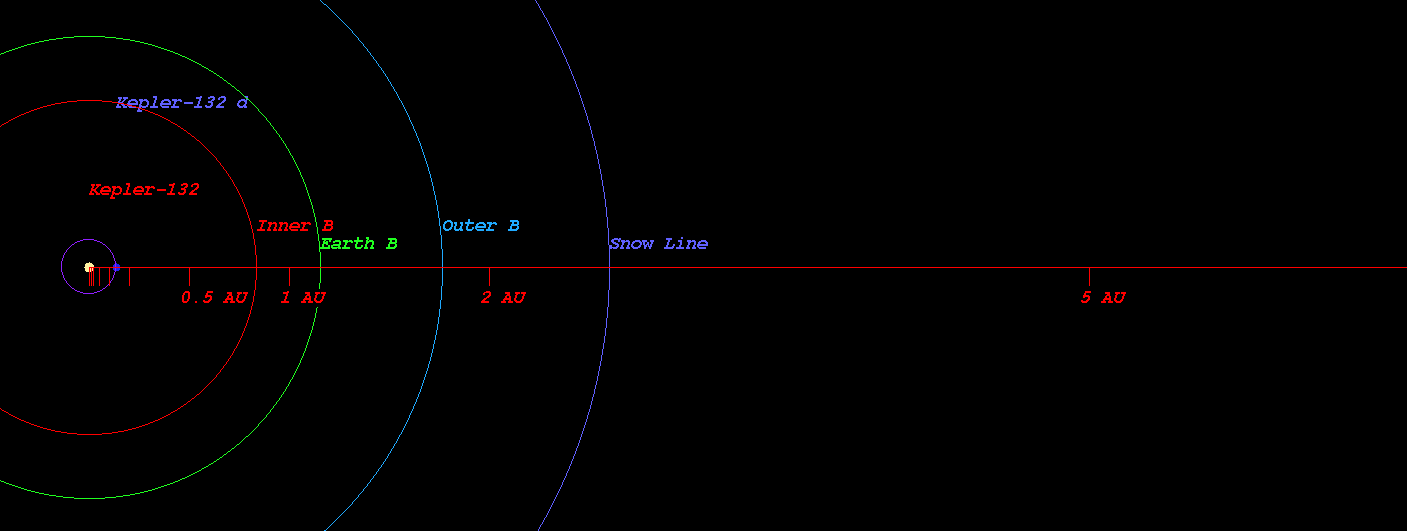

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-132)



  • Kopparapu Recent Venus for Star Kepler-132 distance : 0.862 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-132 distance : 1.091 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-132 distance : 1.054 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-132 distance : 1.155 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-132 distance : 1.919 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-132 distance : 2.024 AU

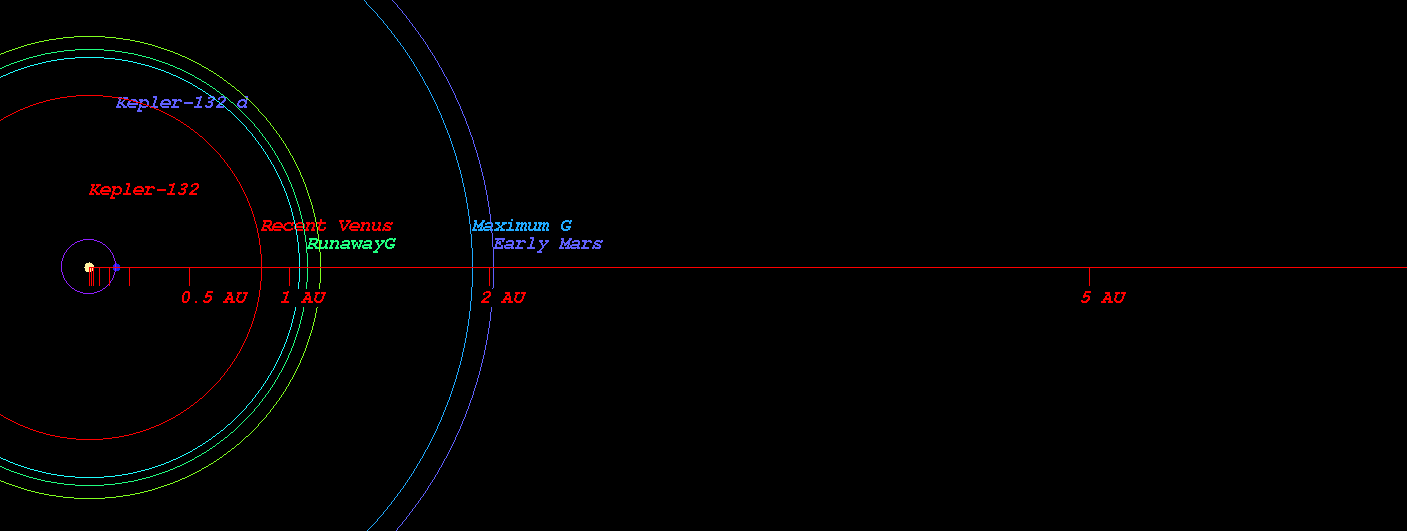

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-132)



  • Original Kopparapu Recent Venus for Star Kepler-132 distance : 0.865 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-132 distance : 1.121 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-132 distance : 1.145 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-132 distance : 1.953 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-132 distance : 2.031 AU

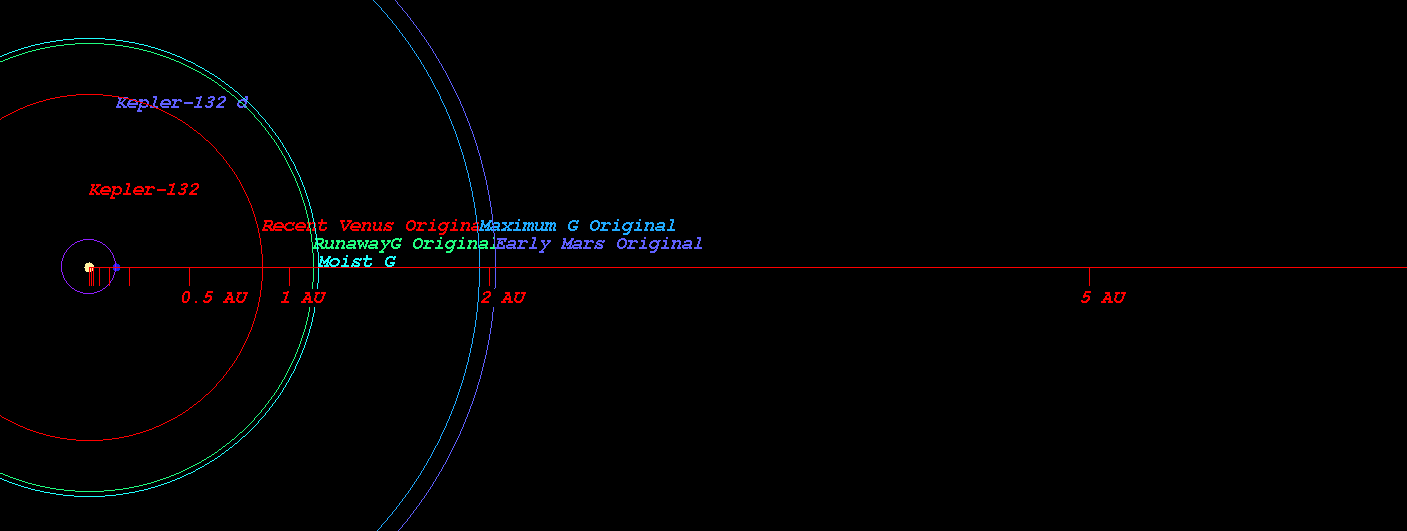

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-132)

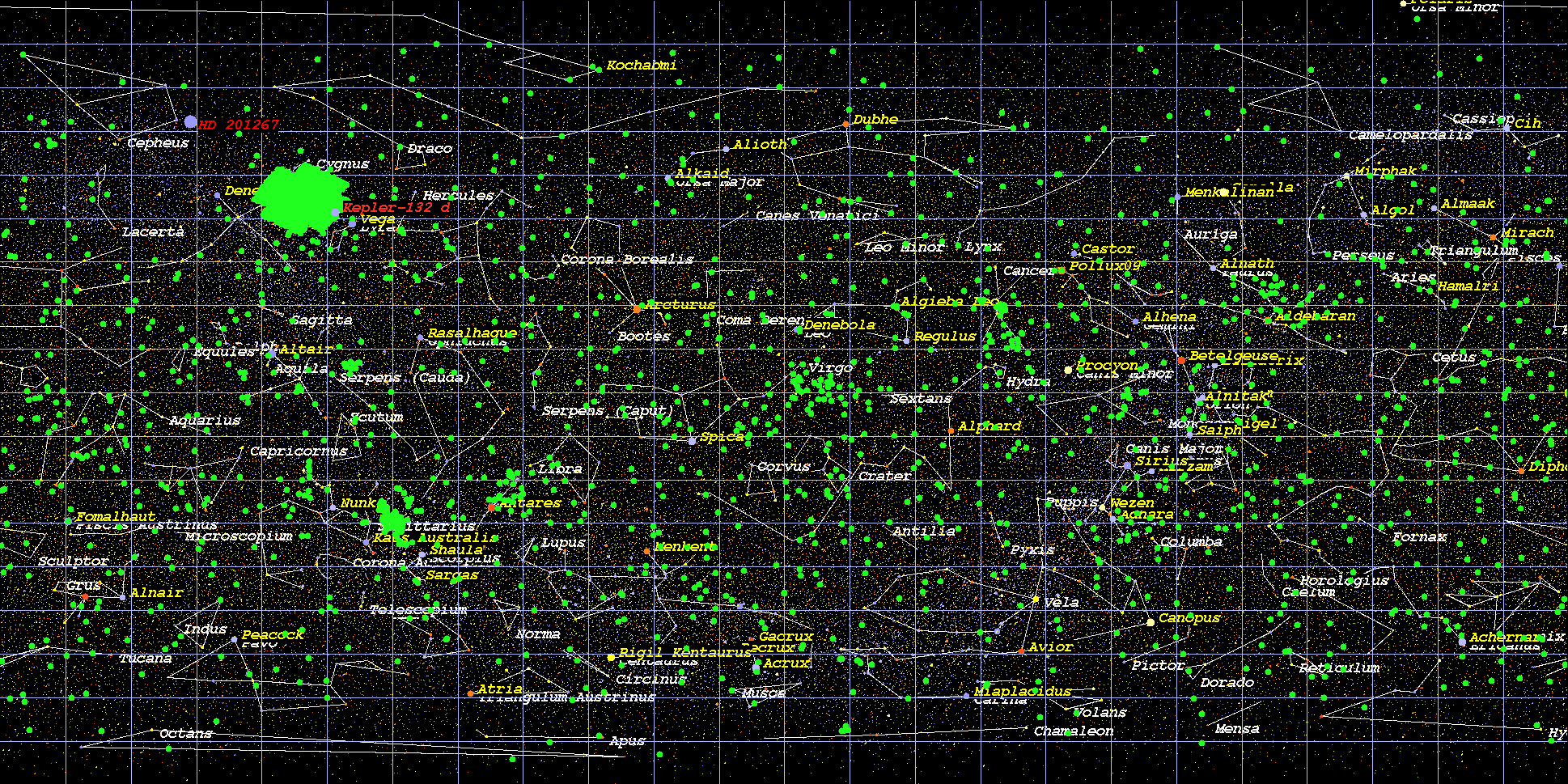

    (Position in Stellar Map of star Kepler-132 and its Exoplanet Kepler-132 d)

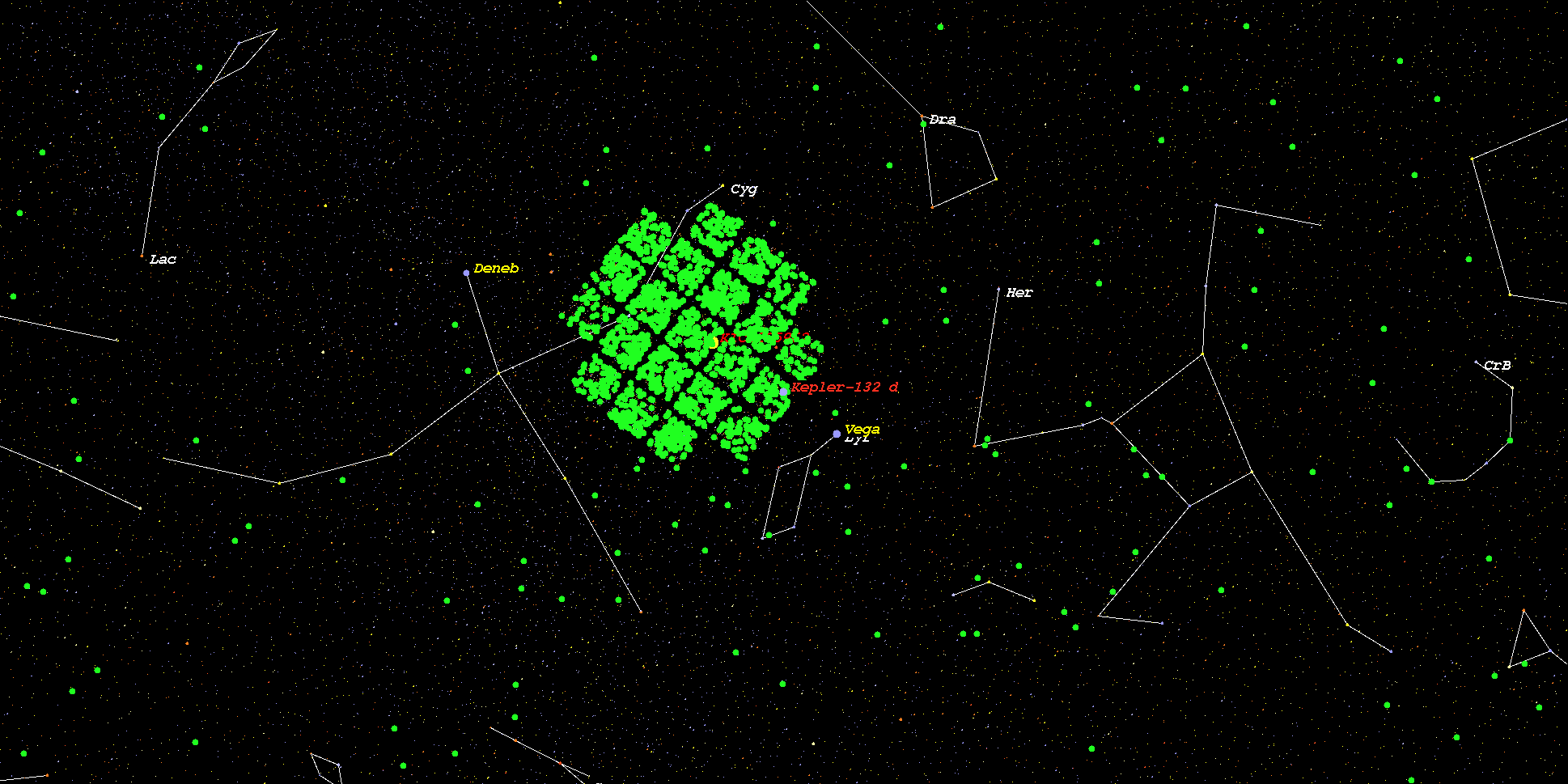

    (Zoomed position in Stellar Map of star Kepler-132 and its Exoplanet Kepler-132 d (zoom level 3))

    (Synthetic Spectrum of star Kepler-132*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
