Imaginary Picture of Kepler-130 d
/
Exoplanet Name : Kepler-130 d
Alternate Name :
Radius (Rjup / Re): 0.1170 (Rjup) 1.3115 (Rearth)
Mass (Mjup / Me): 0.0082 (Mjup) 2.6041 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.3770 (AU) 0.3770 (AU Est.)
Eccentricity : 0.8000
Orbital Period(Yrs) 0.2396
Orbital Period(Observed/Estimated) 87.52 (Days Obs.) 84.55 (Days Est.)
Star Radiation at Atmospheric Boundary: 13610.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 482.1 (K)
Blackbody T 0.3(K) 452.7 (K)
Blackbody T 0.7(K) 366.3 (K)
Tidally Locked Blackbody T 0.1(K) 573.3 (K)
Tidally Locked Blackbody T 0.3(K) 538.4 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-130
Alternate Name :
Star Distance(LY) : 1032.6
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5887 (K)
Spectral type : G1
Metalicity : 0.0
Absolute Magnitude: 3.3
Apparent Magnitude: 10.8
Right Ascension(RA) 288.4507
Declination (DEC) 40.2453
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Rowe, Jason F.; Bryson, Stephen T.; Marcy, Geoffrey W.; Lissauer, Jack J.; Jontof-Hutter, Daniel; Mullally, Fergal; Gilliland, Ronald L.; Issacson, Howard; Ford, Eric; Howell, Steve B.; Borucki, William J.; Haas, Michael; Huber, Daniel; Steffen, Jason H.; Thompson, Susan E.; Quintana, Elisa; Barclay, Thomas; Still, Martin; Fortney, Jonathan; Gautier, T. N., III; Hunter, Roger; Caldwell, Douglas A.; Ciardi, David R.; Devore, Edna; Cochran, William; Jenkins, Jon; Agol, Eric; Carter, Joshua A.; Geary, John"
Discovery Paper - Title Validation of Kepler's Multiple Planet Candidates. III. Light Curve Analysis and Announcement of Hundreds of New Multi-planet Systems
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-130%20d/
Kepler-130 d
Kepler-130 d

  • Kepler-130 d is an exoplanet orbiting the star Kepler-130, located about 1032.6 light-years (316.6 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-130 has apparent magnitude of 10.8, with absolute magnitude of 3.3.
  • It is 1.0 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5887 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-130 d orbits around the star Kepler-130 every 87.5 days with its orbital distance of 0.38 AU ( 56398397.3 km)

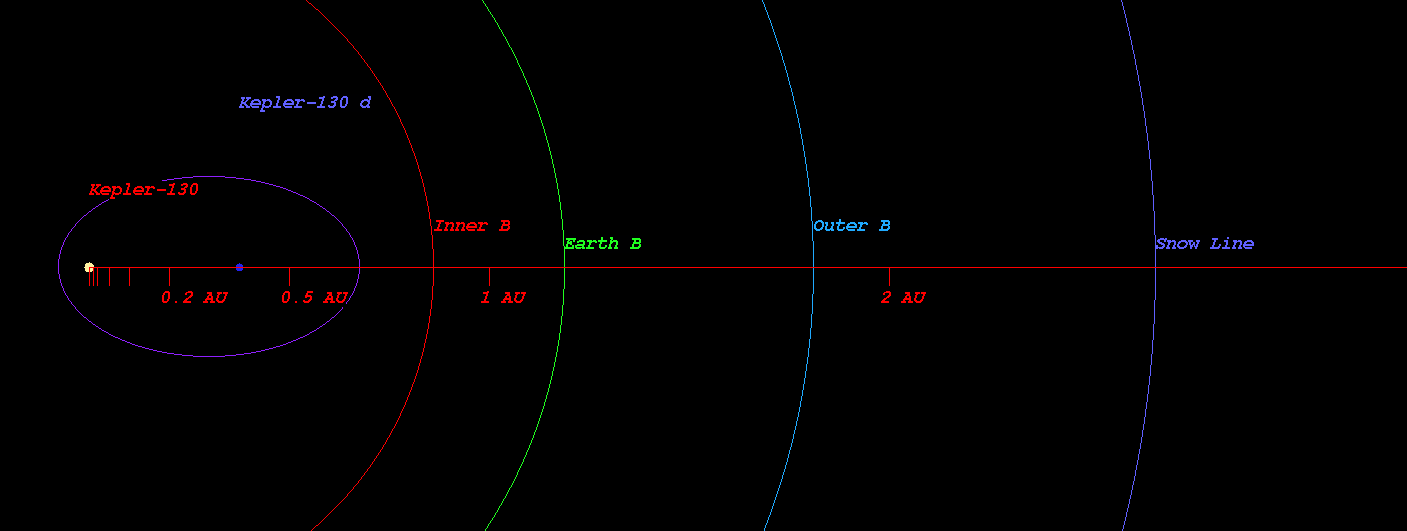

  • (Projected orbit of Kepler-130 d around its host star Kepler-130)


  • The Star Kepler-130 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.860 AU ( 128715486.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.189 AU ( 177918439.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.812 AU ( 271108328.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.667 AU ( 398947781.7 km)
  • Radiation at Planetary Boundary of Kepler-130 d : 13610.29 W/m2

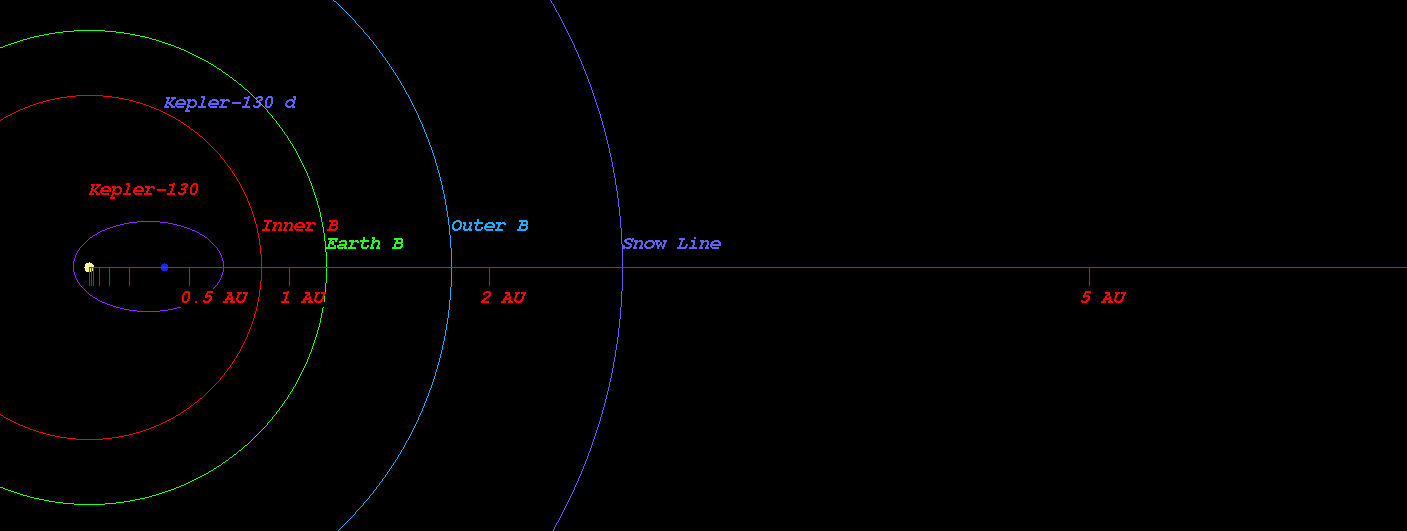

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-130)



  • Kopparapu Recent Venus for Star Kepler-130 distance : 0.886 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-130 distance : 1.122 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-130 distance : 1.084 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-130 distance : 1.188 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-130 distance : 1.976 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-130 distance : 2.084 AU

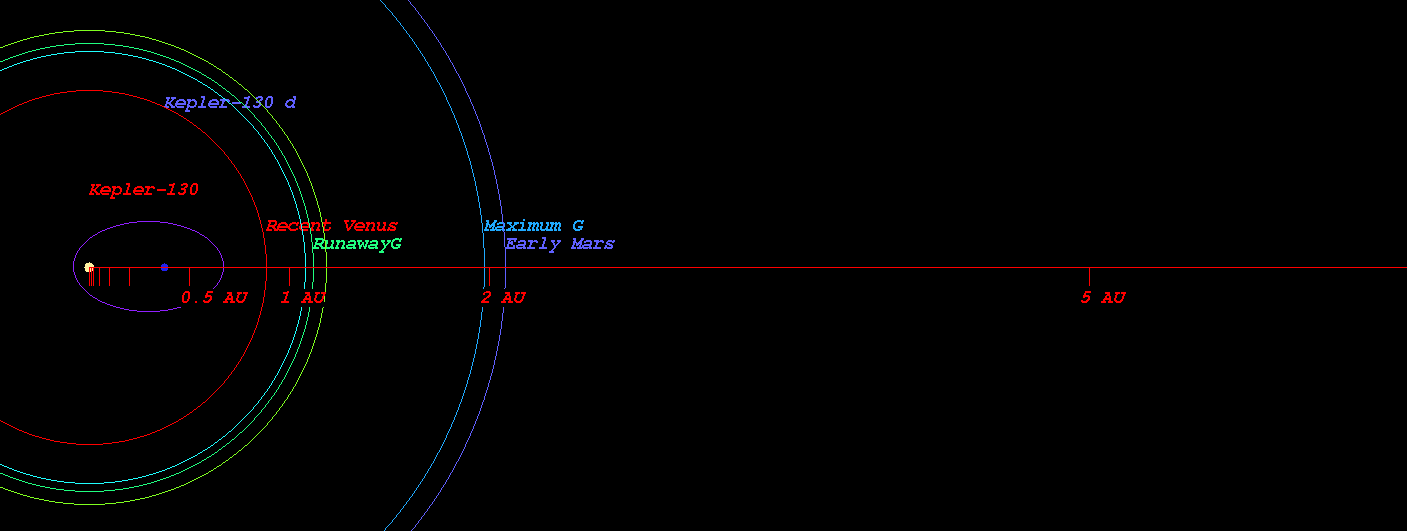

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-130)



  • Original Kopparapu Recent Venus for Star Kepler-130 distance : 0.889 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-130 distance : 1.152 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-130 distance : 1.176 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-130 distance : 2.011 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-130 distance : 2.091 AU

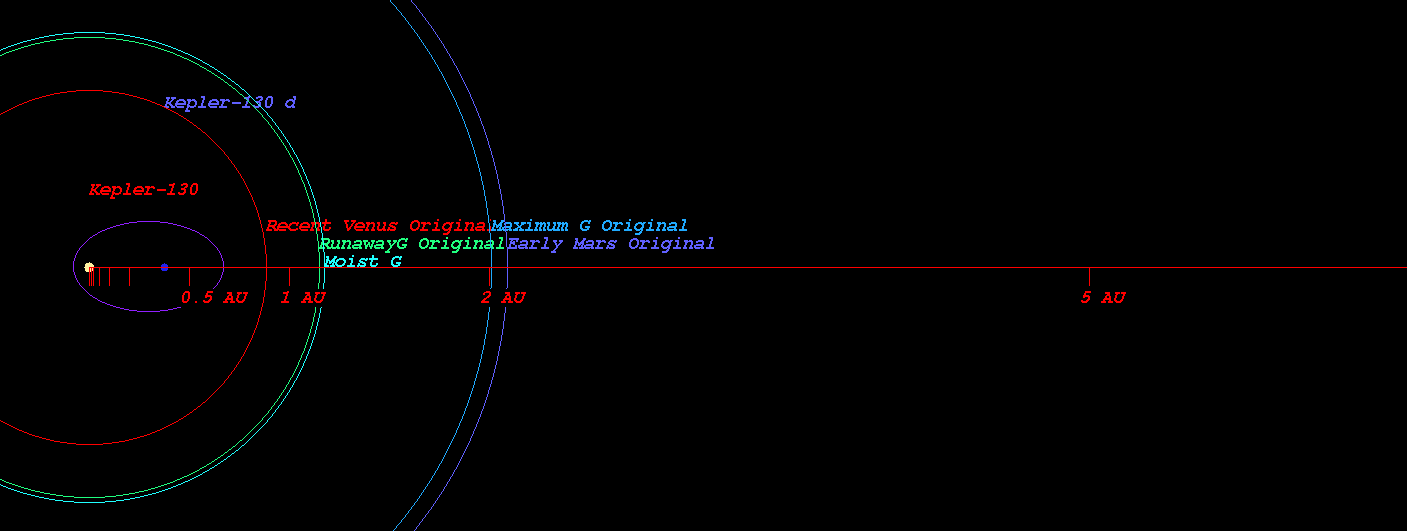

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-130)



    (Position in Stellar Map of star Kepler-130 and its Exoplanet Kepler-130 d)

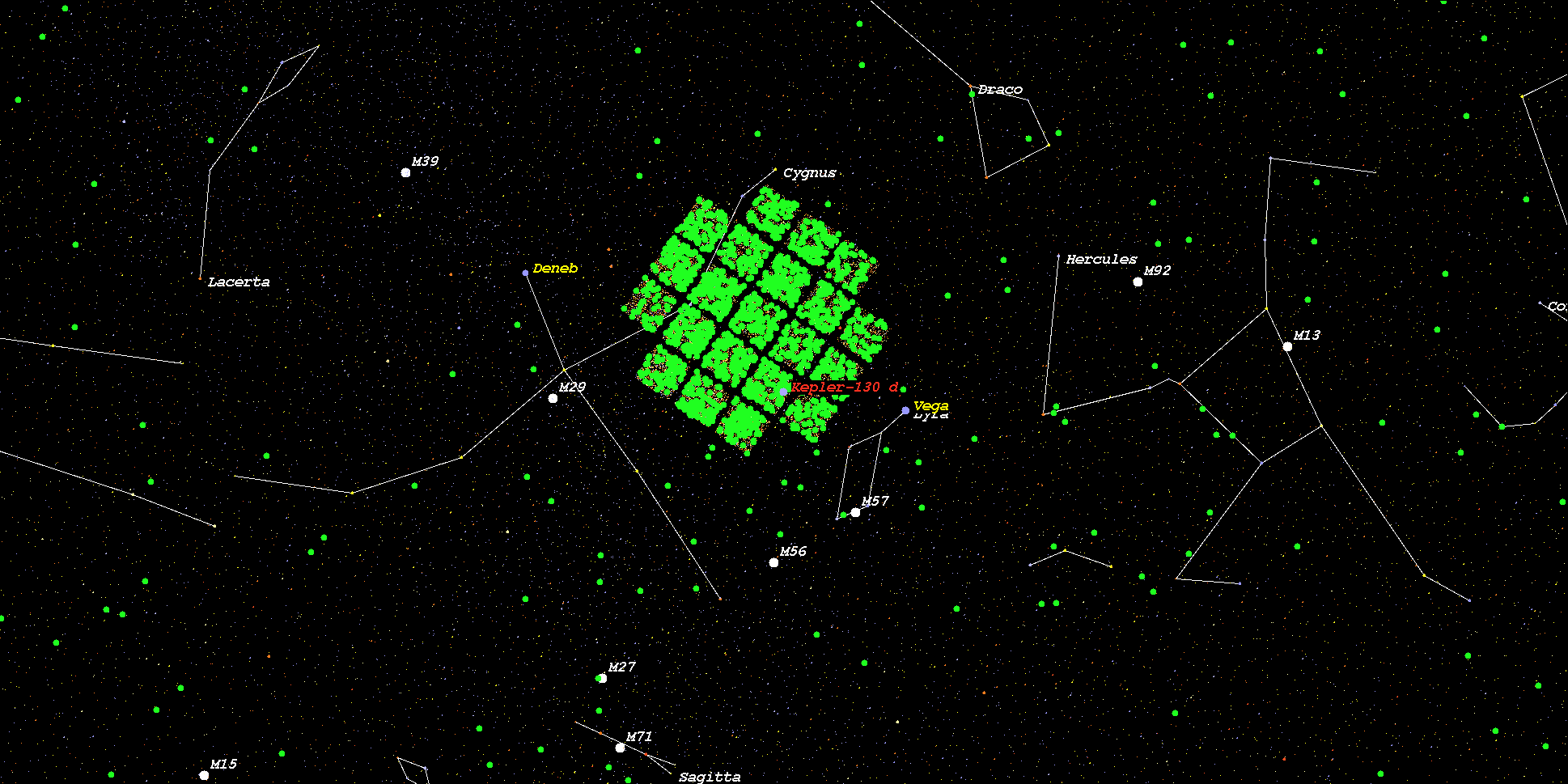

    (Zoomed position in Stellar Map of star Kepler-130 and its Exoplanet Kepler-130 d (zoom level 3))
