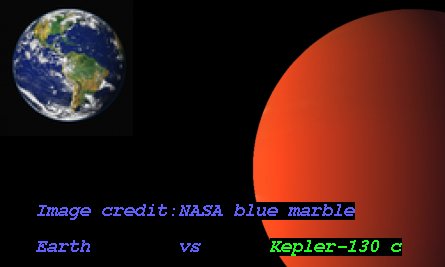

Imaginary Picture of Kepler-130 c

Display orbital revolution of Kepler-130 c around the hoststar Kepler-130
/
Exoplanet Name : Kepler-130 c
Alternate Name : "2MASS J19134816+4014431 c, K00282.01, KIC 5088536 c, KOI-282 c, KOI-282.01, Kepler-130 A c, WISE J191348.14+401442.7 c
Status : Confirmed
Radius (Rjup / Re): 0.2590 (Rjup) 2.9031 (Rearth)
Mass (Mjup / Me): 0.0224 (Mjup) 7.1085 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.1780 (AU) 0.1780 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0753
Orbital Period(Observed/Estimated) 27.51 (Days Obs.) 27.43 (Days Est.)
Surface Gravity (G Earth) 0.8434
Star Radiation at Atmospheric Boundary: 61053.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 701.6 (K)
Blackbody T 0.3(K) 658.8 (K)
Blackbody T 0.7(K) 533.1 (K)
Tidally Locked Blackbody T 0.1(K) 834.3 (K)
Tidally Locked Blackbody T 0.3(K) 783.5 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-130
Alternate Name : "2MASS J19134816+4014431, KIC 5088536, KOI-282, Kepler-130 A, WISE J191348.14+401442.7"
Star Distance(LY) : 950.9
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5887 (K)
Spectral type : G1
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 3.5
Apparent Magnitude: 10.8
Right Ascension(RA) 288.4507
Declination (DEC) 40.2453
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Rowe, Jason F.; Bryson, Stephen T.; Marcy, Geoffrey W.; Lissauer, Jack J.; Jontof-Hutter, Daniel; Mullally, Fergal; Gilliland, Ronald L.; Issacson, Howard; Ford, Eric; Howell, Steve B.; Borucki, William J.; Haas, Michael; Huber, Daniel; Steffen, Jason H.; Thompson, Susan E.; Quintana, Elisa; Barclay, Thomas; Still, Martin; Fortney, Jonathan; Gautier, T. N., III; Hunter, Roger; Caldwell, Douglas A.; Ciardi, David R.; Devore, Edna; Cochran, William; Jenkins, Jon; Agol, Eric; Carter, Joshua A.; Geary, John"
Discovery Paper - Title Validation of Kepler's Multiple Planet Candidates. III. Light Curve Analysis and Announcement of Hundreds of New Multi-planet Systems
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-130+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-130%20c/
Kepler-130 c
Kepler-130 c

  • Kepler-130 c is an exoplanet orbiting the star Kepler-130, located about 950.9 light-years (291.5 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-130 has apparent magnitude of 10.8, with absolute magnitude of 3.5.

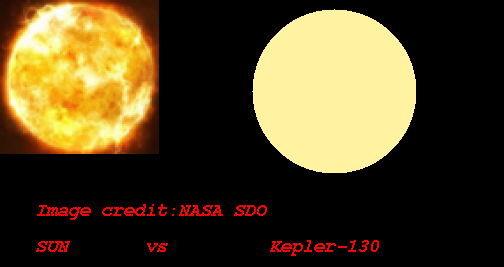

  • It is 1.0 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5887 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-130 c orbits around the star Kepler-130 every 27.5 days with its orbital distance of 0.18 AU ( 26628421.0 km)

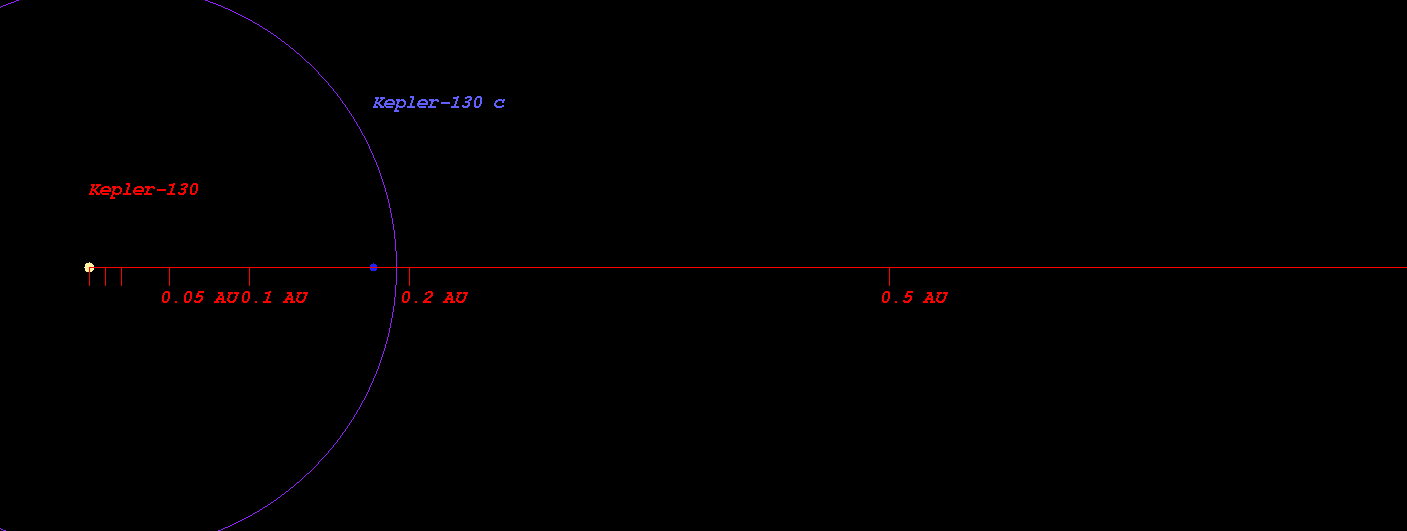

  • (Projected orbit of Kepler-130 c around its host star Kepler-130)


  • The Star Kepler-130 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.860 AU ( 128715486.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.189 AU ( 177918439.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.812 AU ( 271108328.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.667 AU ( 398947781.7 km)
  • Radiation at Planetary Boundary of Kepler-130 c : 61053.45 W/m2

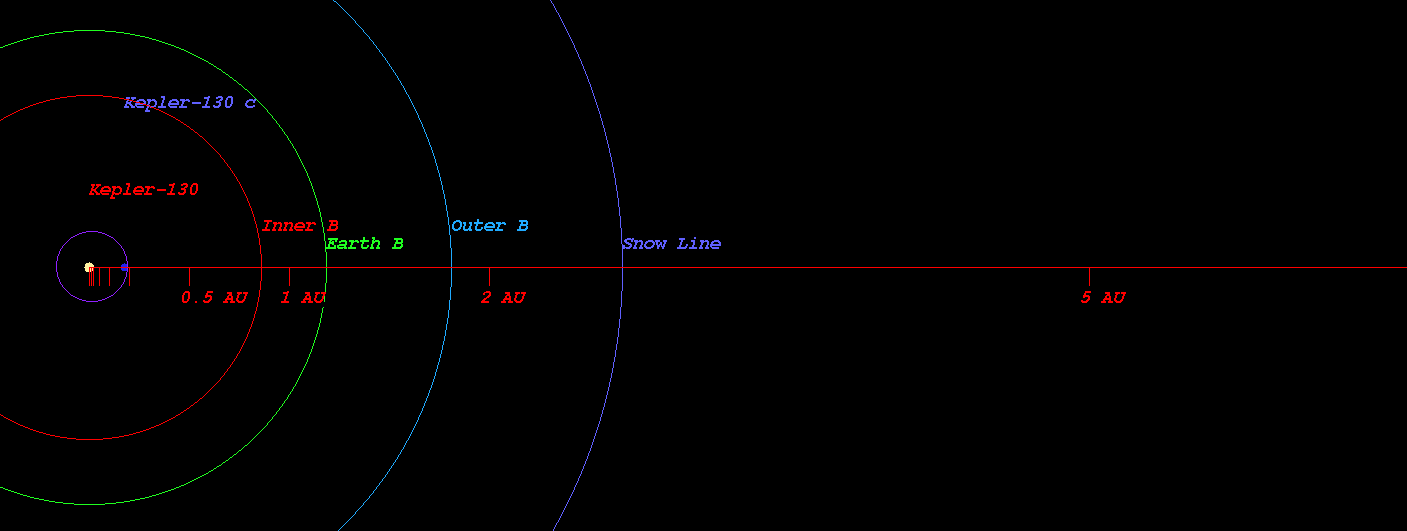

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-130)



  • Kopparapu Recent Venus for Star Kepler-130 distance : 0.886 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-130 distance : 1.122 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-130 distance : 1.084 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-130 distance : 1.188 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-130 distance : 1.976 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-130 distance : 2.084 AU

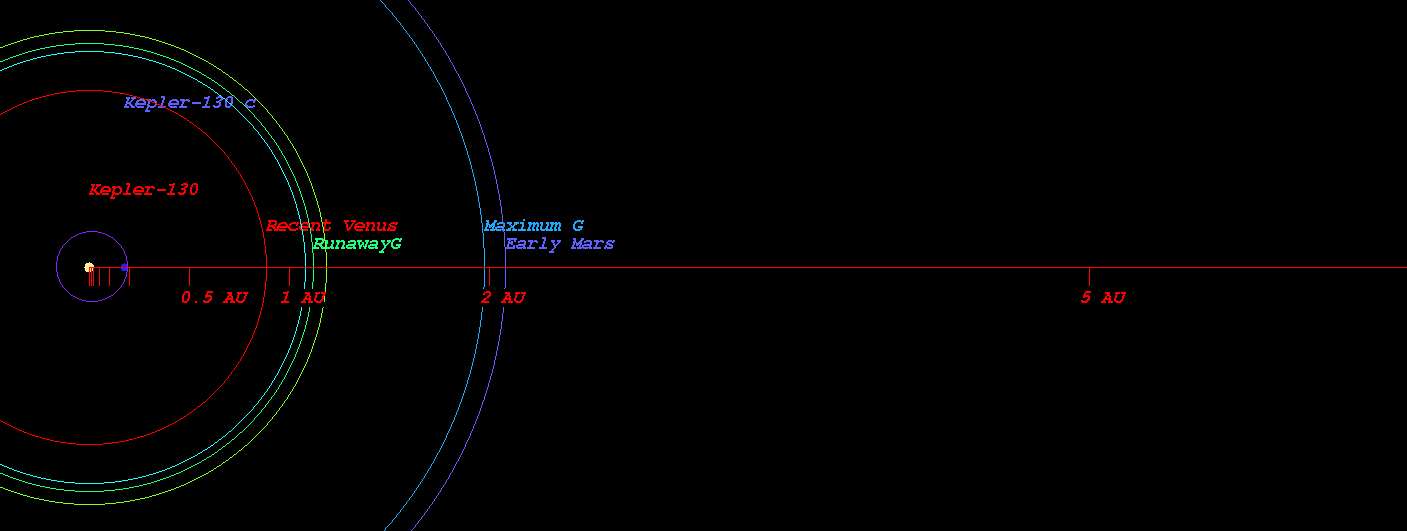

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-130)



  • Original Kopparapu Recent Venus for Star Kepler-130 distance : 0.889 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-130 distance : 1.152 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-130 distance : 1.176 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-130 distance : 2.011 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-130 distance : 2.091 AU

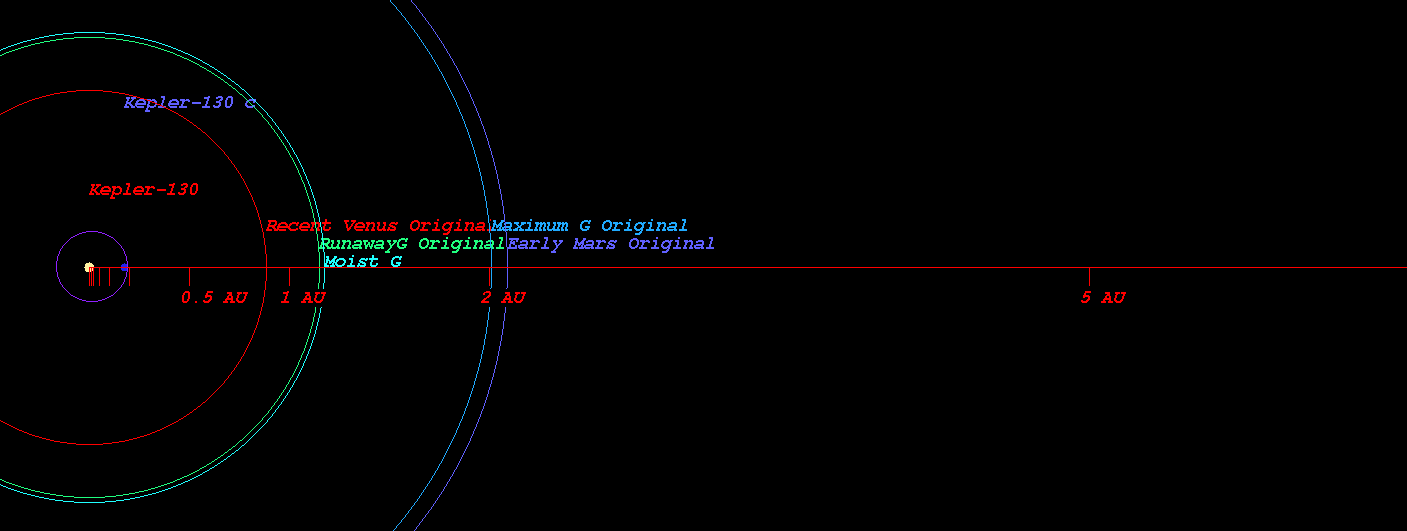

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-130)

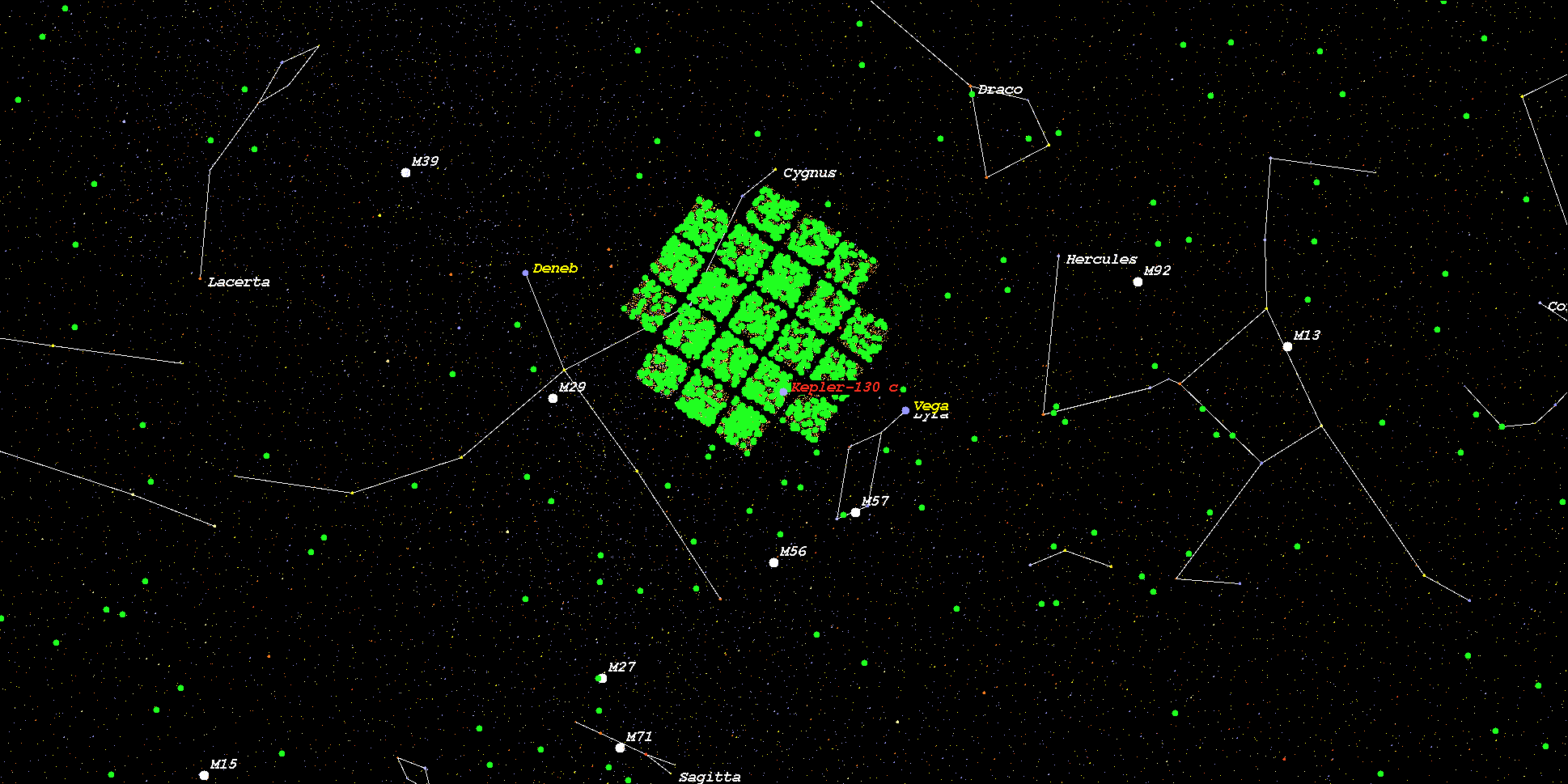

    (Position in Stellar Map of star Kepler-130 and its Exoplanet Kepler-130 c)



    (Zoomed position in Stellar Map of star Kepler-130 and its Exoplanet Kepler-130 c (zoom level 3))

    (Synthetic Spectrum of star Kepler-130*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
