Imaginary Picture of Kepler-1306 b

Display orbital revolution of Kepler-1306 b around the hoststar Kepler-1306
/
Exoplanet Name : Kepler-1306 b
Alternate Name : "2MASS J19375480+4656451 b, K02655.01, KIC 10018233 b, KOI-2655 b, KOI-2655.01, WISE J193754.80+465645.1 b"
Status : Confirmed
Radius (Rjup / Re): 0.1700 (Rjup) 1.9055 (Rearth)
Mass (Mjup / Me): 0.0151 (Mjup) 4.8054 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1249 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0446
Orbital Period(Observed/Estimated) 16.30 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.3234
Star Radiation at Atmospheric Boundary: 68959.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 723.3 (K)
Blackbody T 0.3(K) 679.2 (K)
Blackbody T 0.7(K) 549.6 (K)
Tidally Locked Blackbody T 0.1(K) 860.1 (K)
Tidally Locked Blackbody T 0.3(K) 807.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1306
Alternate Name : "2MASS J19375480+4656451, KIC 10018233, KOI-2655, WISE J193754.80+465645.1"
Star Distance(LY) : 3613.3
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5493 (K)
Spectral type : G3
UV portion[%]: 7.7
Visible portion[%]: 44.5
IR portion[%]: 47.8
Metalicity : 0.0
Absolute Magnitude: 3.8
Apparent Magnitude: 14.1
Right Ascension(RA) 294.4783
Declination (DEC) 46.9459
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton1, Stephen T. Bryson2, Jeffrey L. Coughlin2,3, Jason F. Rowe4, Ganesh Ravichandran5, Erik A. Petigura6,7, Michael R. Haas2, and Natalie M. Batalha30"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 447 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1306+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1306%20b/
Kepler-1306 b
Kepler-1306 b

  • Kepler-1306 b is an exoplanet orbiting the star Kepler-1306, located about 3613.3 light-years (1107.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1306 has apparent magnitude of 14.1, with absolute magnitude of 3.8.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5493 with its spectral types of G3
  • In this planetary system, the extrasolar planet Kepler-1306 b orbits around the star Kepler-1306 every 16.3 days with its orbital distance of 0.12 AU ( 18692202.5 km)

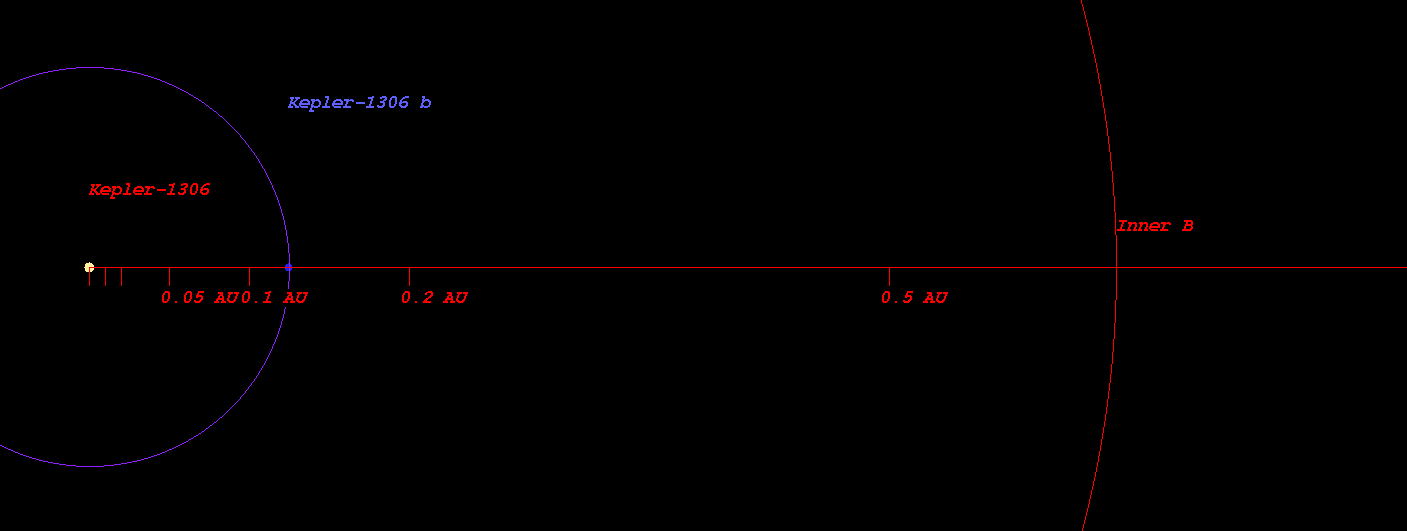

  • (Projected orbit of Kepler-1306 b around its host star Kepler-1306)


  • The Star Kepler-1306 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.642 AU ( 96025991.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.887 AU ( 132733014.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.352 AU ( 202255740.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.990 AU ( 297628181.7 km)
  • Radiation at Planetary Boundary of Kepler-1306 b : 68959.81 W/m2

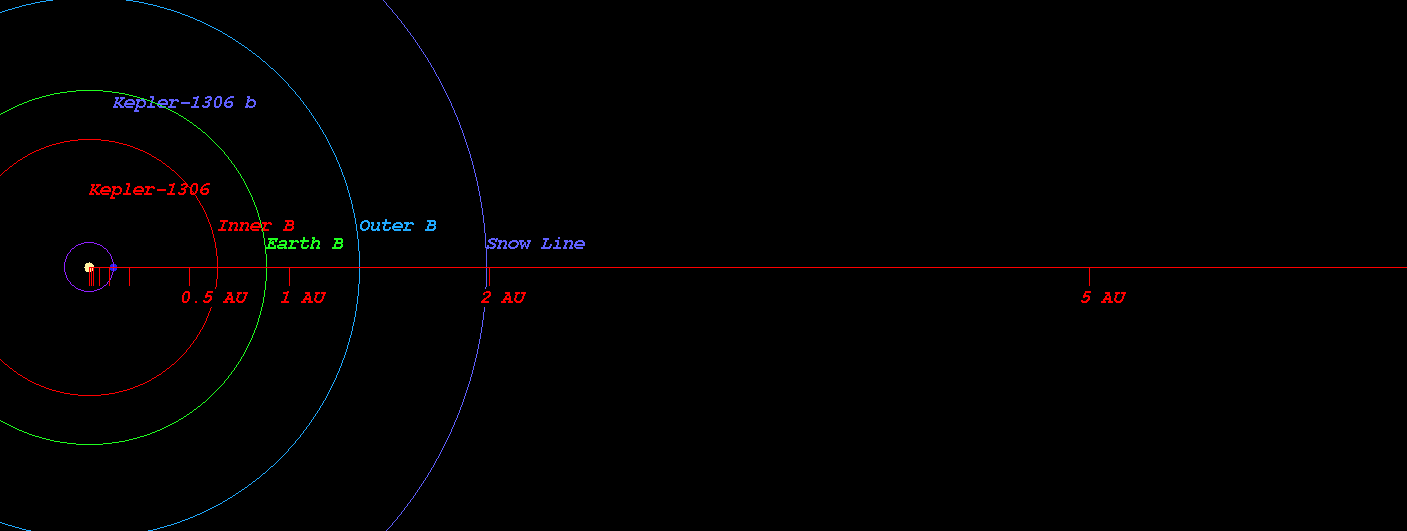

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1306)



  • Kopparapu Recent Venus for Star Kepler-1306 distance : 0.677 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1306 distance : 0.857 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1306 distance : 0.827 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1306 distance : 0.907 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1306 distance : 1.525 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1306 distance : 1.609 AU

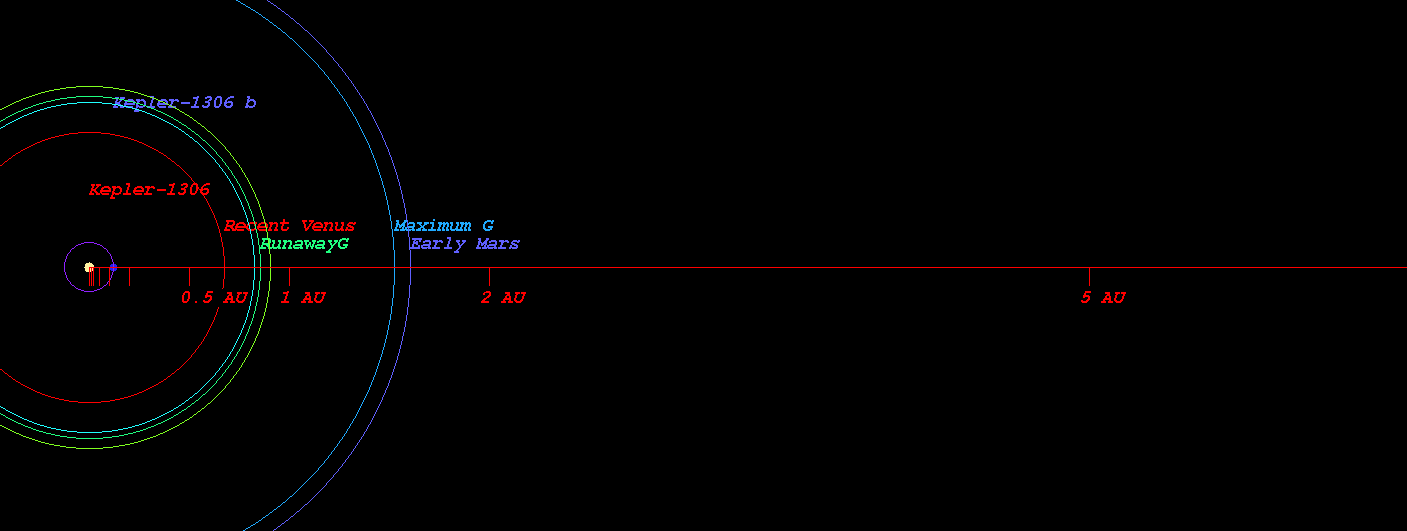

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1306)



  • Original Kopparapu Recent Venus for Star Kepler-1306 distance : 0.674 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1306 distance : 0.881 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1306 distance : 0.892 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1306 distance : 1.552 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1306 distance : 1.614 AU

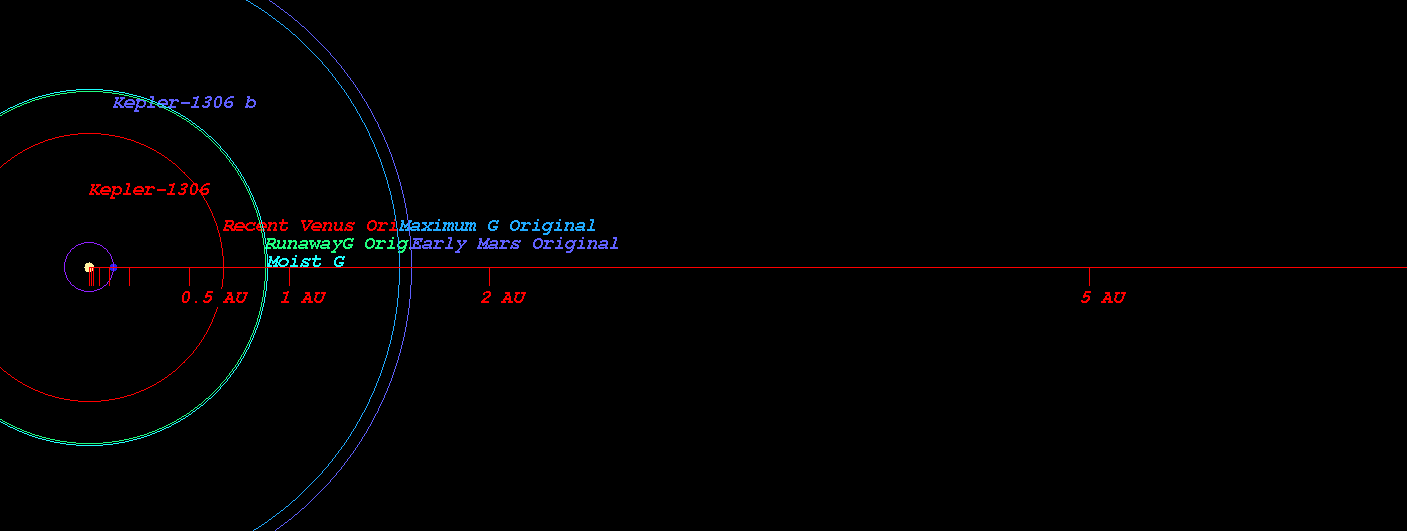

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1306)

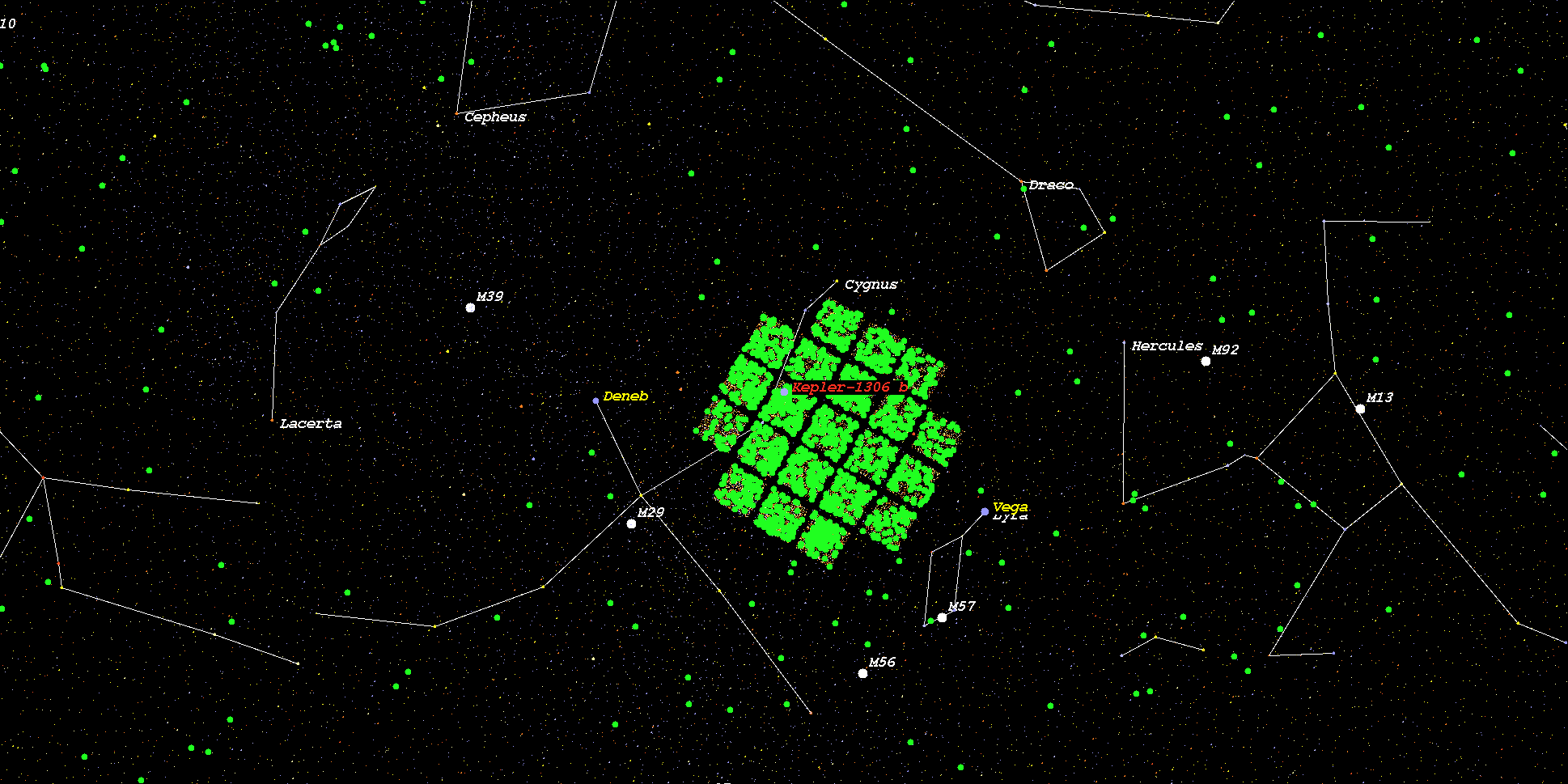

    (Position in Stellar Map of star Kepler-1306 and its Exoplanet Kepler-1306 b)



    (Zoomed position in Stellar Map of star Kepler-1306 and its Exoplanet Kepler-1306 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1306*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
