Imaginary Picture of Kepler-1132 b

Display orbital revolution of Kepler-1132 b around the hoststar Kepler-1132
/
Exoplanet Name : Kepler-1132 b
Alternate Name : "2MASS J19052819+4825261 b, K02177.01, KIC 10965588 b, KOI-2177 b, KOI-2177.01, WISE J190528.20+482526.0 b"
Status : Confirmed
Radius (Rjup / Re): 0.2100 (Rjup) 2.3539 (Rearth)
Mass (Mjup / Me): 0.0184 (Mjup) 5.8489 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.2955 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1722
Orbital Period(Observed/Estimated) 62.89 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0556
Star Radiation at Atmospheric Boundary: 5912.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 391.4 (K)
Blackbody T 0.3(K) 367.5 (K)
Blackbody T 0.7(K) 297.4 (K)
Tidally Locked Blackbody T 0.1(K) 465.4 (K)
Tidally Locked Blackbody T 0.3(K) 437.1 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1132
Alternate Name : "2MASS J19052819+4825261, KIC 10965588, KOI-2177, WISE J190528.20+482526.0"
Star Distance(LY) : 2832.1
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.6 (GY)
Temperature : 5042 (K)
Spectral type : K0
UV portion[%]: 5.8
Visible portion[%]: 41.4
IR portion[%]: 52.8
Metalicity : -0.0
Absolute Magnitude: 4.5
Apparent Magnitude: 14.2
Right Ascension(RA) 286.3675
Declination (DEC) 48.4239
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1132+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1132%20b/
Kepler-1132 b
Kepler-1132 b

  • Kepler-1132 b is an exoplanet orbiting the star Kepler-1132, located about 2832.1 light-years (868.3 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1132 has apparent magnitude of 14.2, with absolute magnitude of 4.5.

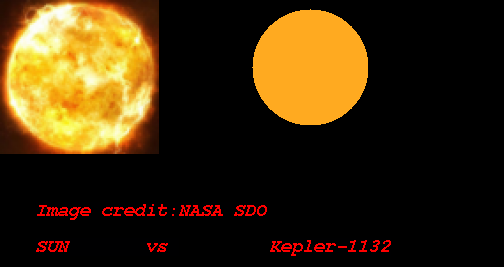

  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5042 with its spectral types of K0
  • In this planetary system, the extrasolar planet Kepler-1132 b orbits around the star Kepler-1132 every 62.9 days with its orbital distance of 0.30 AU ( 44201147.8 km)

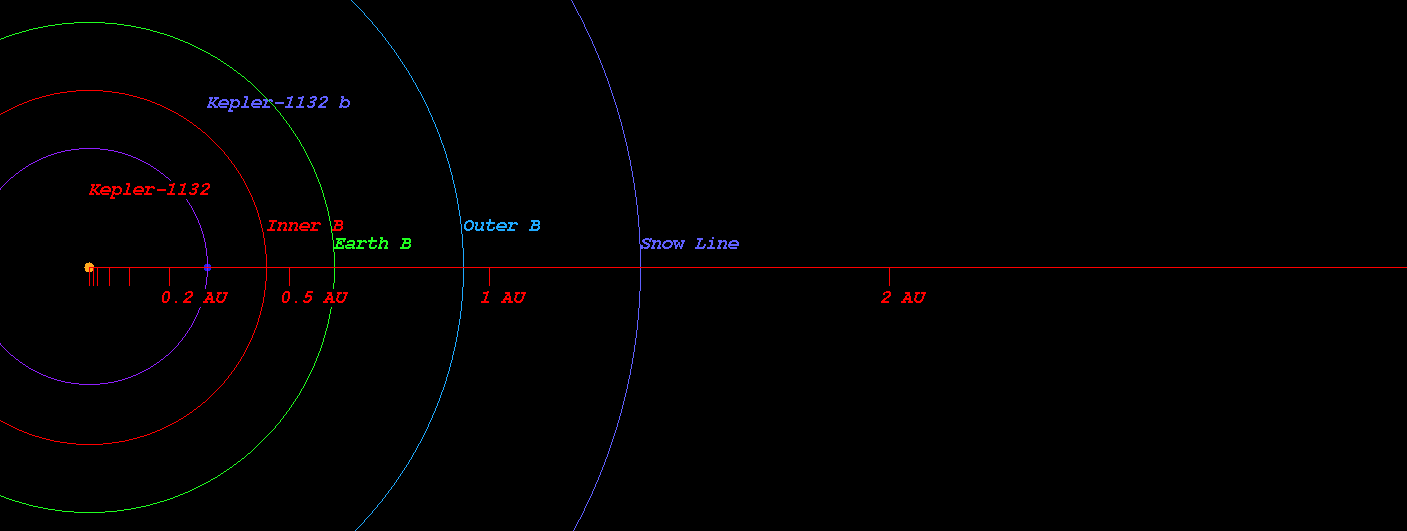

  • (Projected orbit of Kepler-1132 b around its host star Kepler-1132)


  • The Star Kepler-1132 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.444 AU ( 66487090.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.614 AU ( 91902534.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.936 AU ( 140039124.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.378 AU ( 206073706.6 km)
  • Radiation at Planetary Boundary of Kepler-1132 b : 5912.17 W/m2

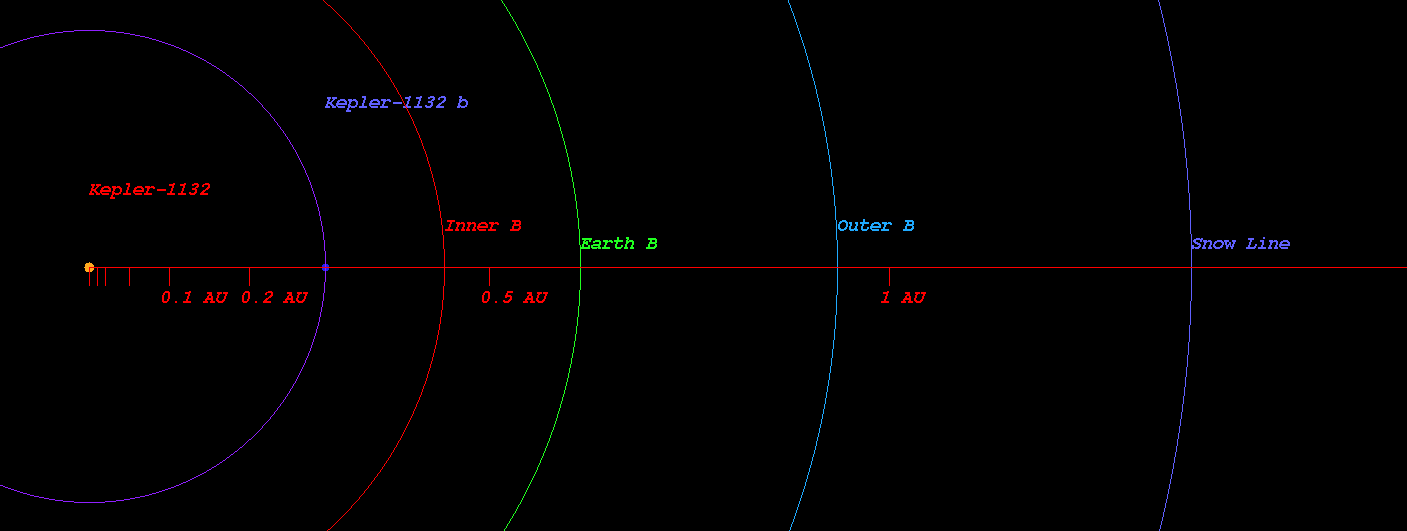

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1132)



  • Kopparapu Recent Venus for Star Kepler-1132 distance : 0.480 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1132 distance : 0.607 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1132 distance : 0.587 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1132 distance : 0.644 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1132 distance : 1.099 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1132 distance : 1.159 AU

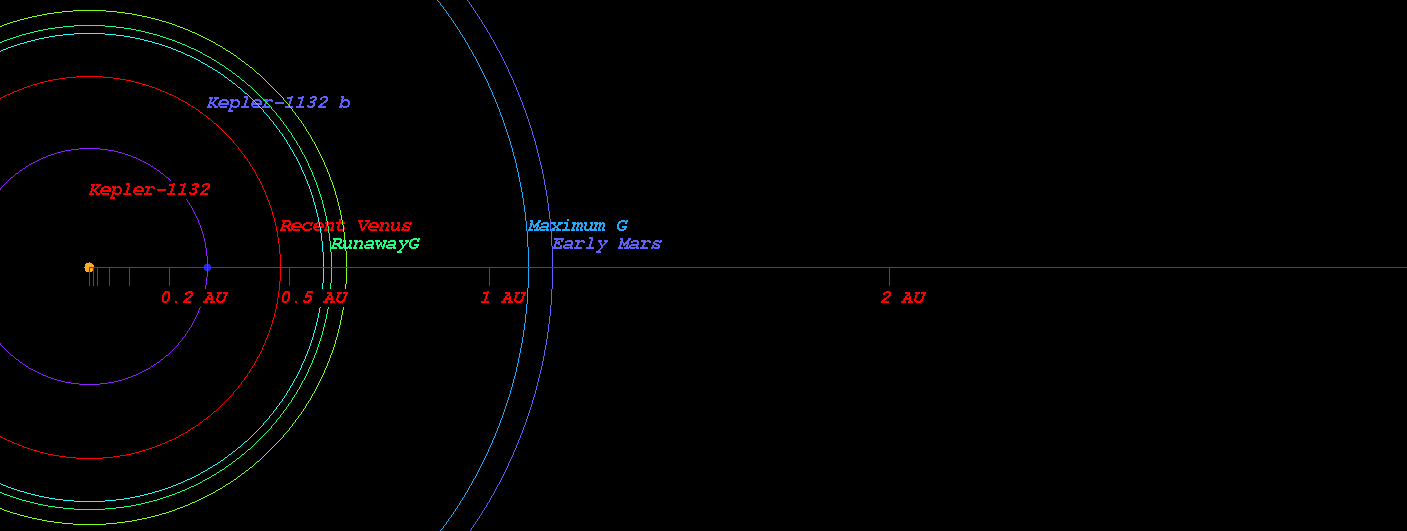

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1132)



  • Original Kopparapu Recent Venus for Star Kepler-1132 distance : 0.475 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1132 distance : 0.626 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1132 distance : 0.628 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1132 distance : 1.118 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1132 distance : 1.162 AU

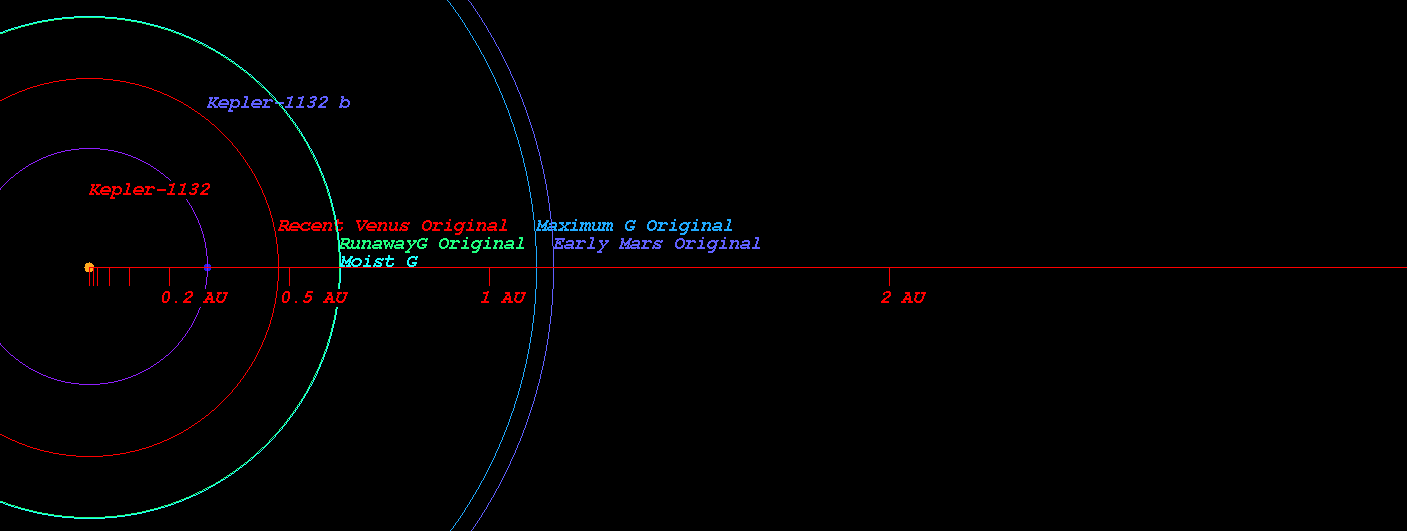

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1132)

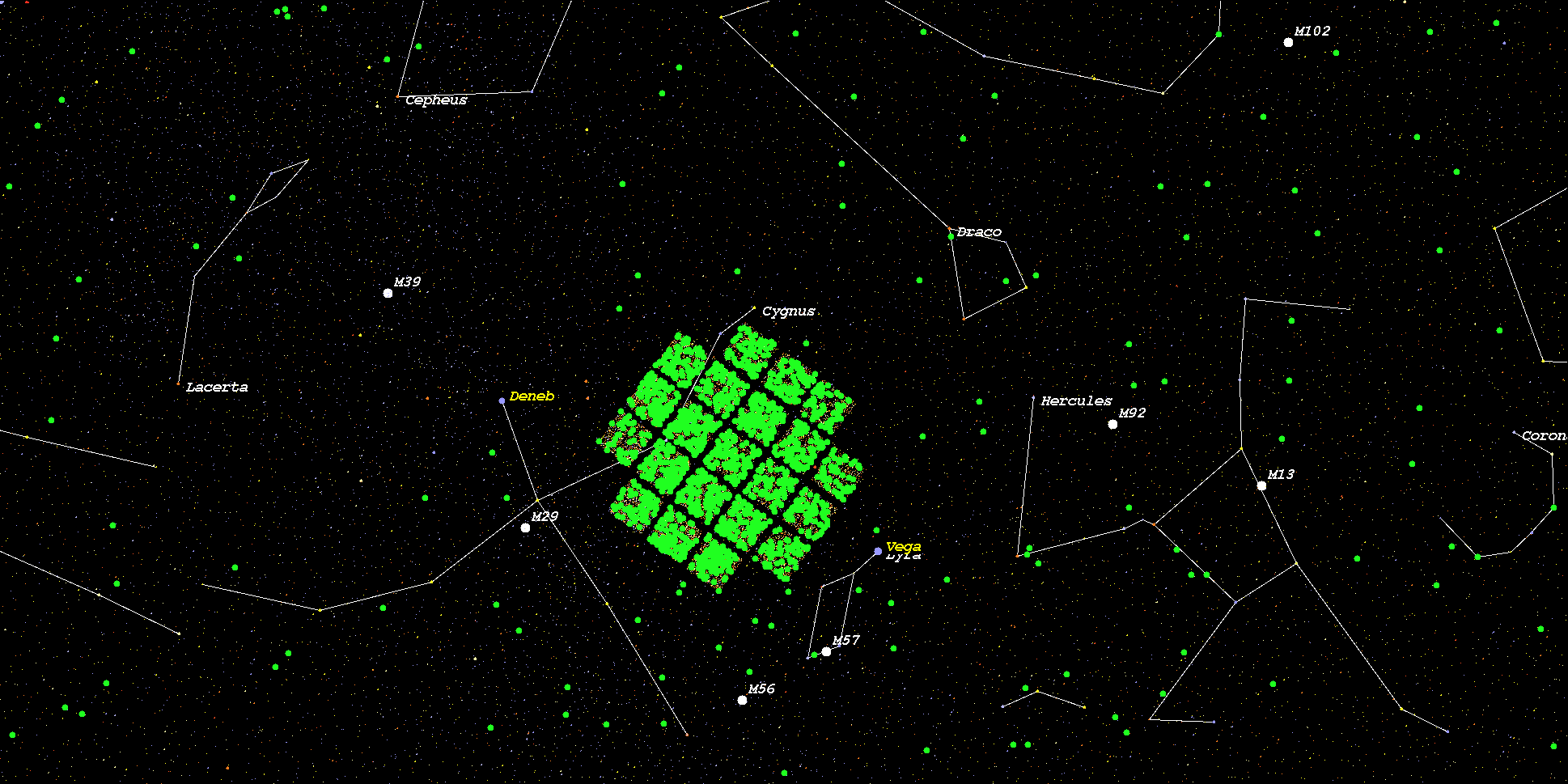

    (Position in Stellar Map of star Kepler-1132 and its Exoplanet Kepler-1132 b)



    (Zoomed position in Stellar Map of star Kepler-1132 and its Exoplanet Kepler-1132 b (zoom level 3))

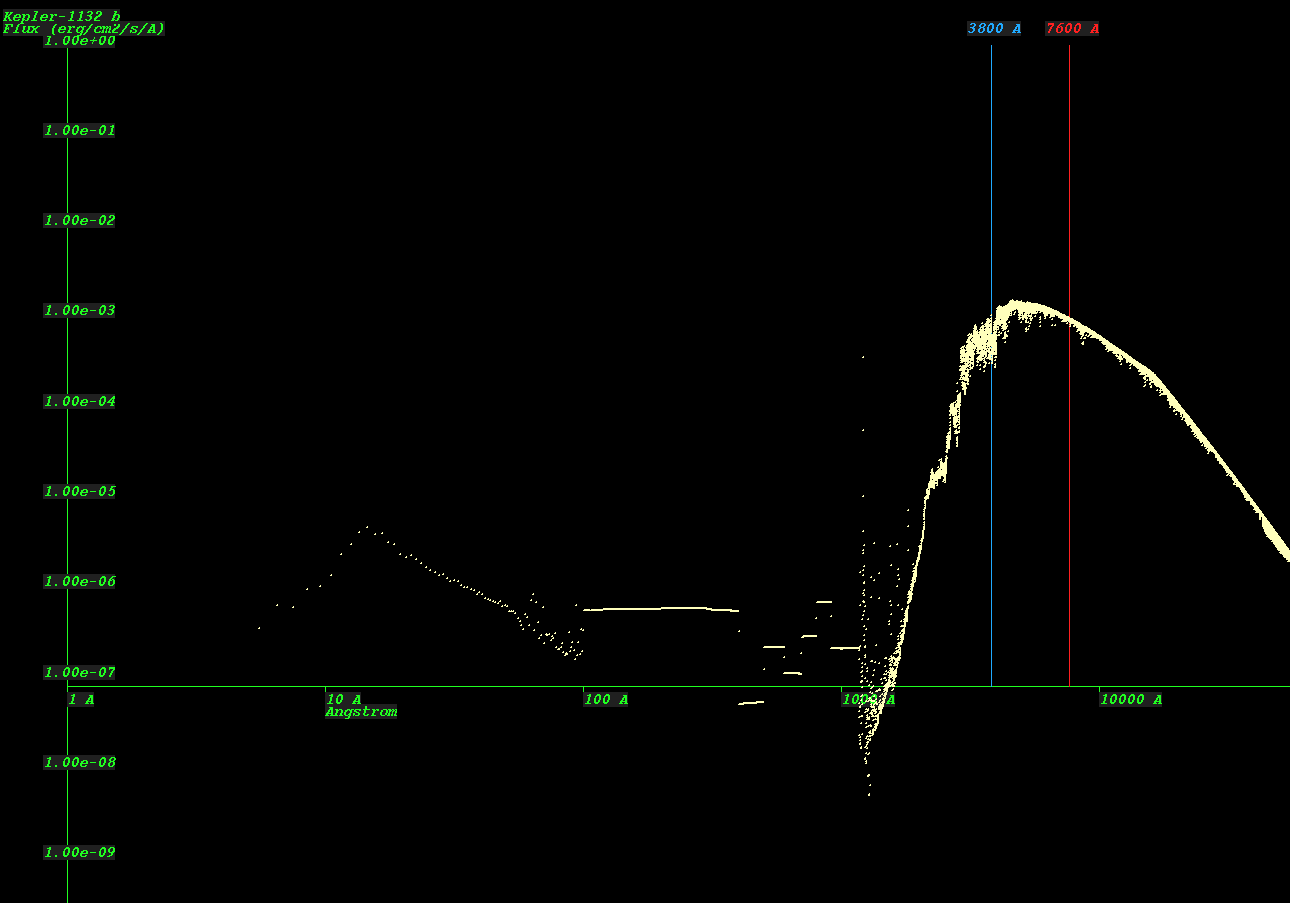

    (Synthetic Spectrum of star Kepler-1132*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
