Imaginary Picture of Kepler-1112 b

Display orbital revolution of Kepler-1112 b around the hoststar Kepler-1112
/
Exoplanet Name : Kepler-1112 b
Alternate Name : "2MASS J19475251+4745053 b, K02131.01, KIC 10549023 b, KOI-2131 b, KOI-2131.01, WISE J194752.50+474505.4 b"
Status : Confirmed
Radius (Rjup / Re): 0.2690 (Rjup) 3.0152 (Rearth)
Mass (Mjup / Me): 0.0232 (Mjup) 7.3634 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1275 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0393
Orbital Period(Observed/Estimated) 14.36 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.8099
Star Radiation at Atmospheric Boundary: 329078.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1069.0 (K)
Blackbody T 0.3(K) 1003.9 (K)
Blackbody T 0.7(K) 812.2 (K)
Tidally Locked Blackbody T 0.1(K) 1271.2 (K)
Tidally Locked Blackbody T 0.3(K) 1193.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1112
Alternate Name : "2MASS J19475251+4745053, KIC 10549023, KOI-2131, WISE J194752.50+474505.4"
Star Distance(LY) : 5458.3
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.3 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 2.1 (GY)
Temperature : 6662 (K)
Spectral type : F6
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 2.6
Apparent Magnitude: 13.7
Right Ascension(RA) 296.9688
Declination (DEC) 47.7515
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1112+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1112%20b/
Kepler-1112 b
Kepler-1112 b

  • Kepler-1112 b is an exoplanet orbiting the star Kepler-1112, located about 5458.3 light-years (1673.5 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1112 has apparent magnitude of 13.7, with absolute magnitude of 2.6.
  • It is 1.3 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 6662 with its spectral types of F6
  • In this planetary system, the extrasolar planet Kepler-1112 b orbits around the star Kepler-1112 every 14.4 days with its orbital distance of 0.13 AU ( 19071748.3 km)

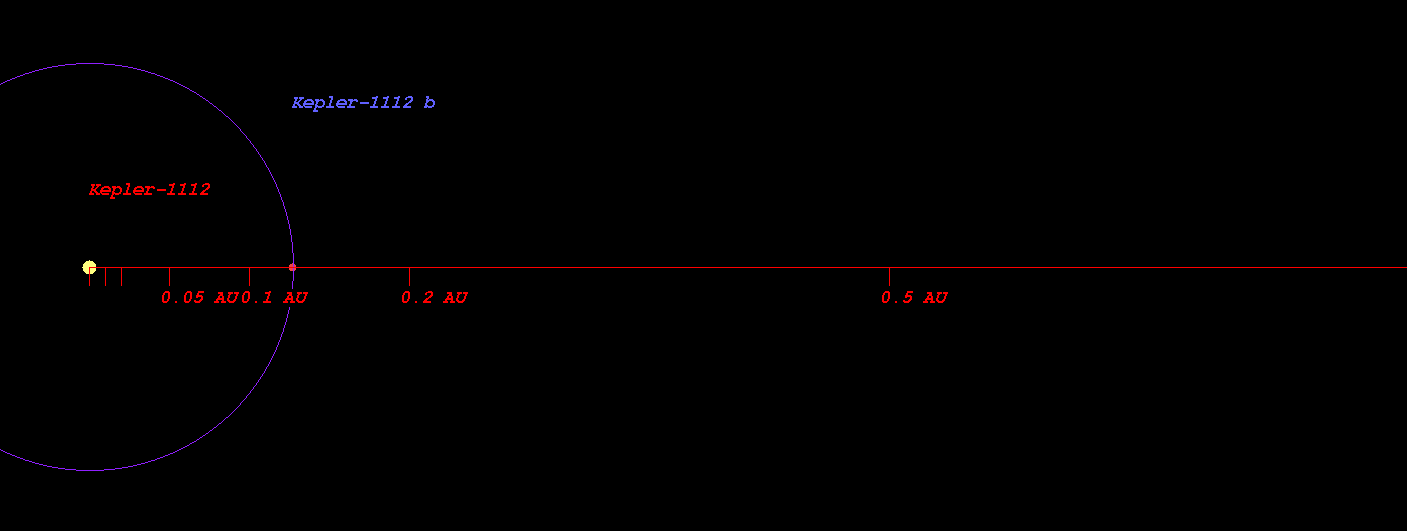

  • (Projected orbit of Kepler-1112 b around its host star Kepler-1112)


  • The Star Kepler-1112 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.431 AU ( 214027855.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.978 AU ( 295842428.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 3.013 AU ( 450798391.6 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.434 AU ( 663369581.4 km)
  • Radiation at Planetary Boundary of Kepler-1112 b : 329078.11 W/m2

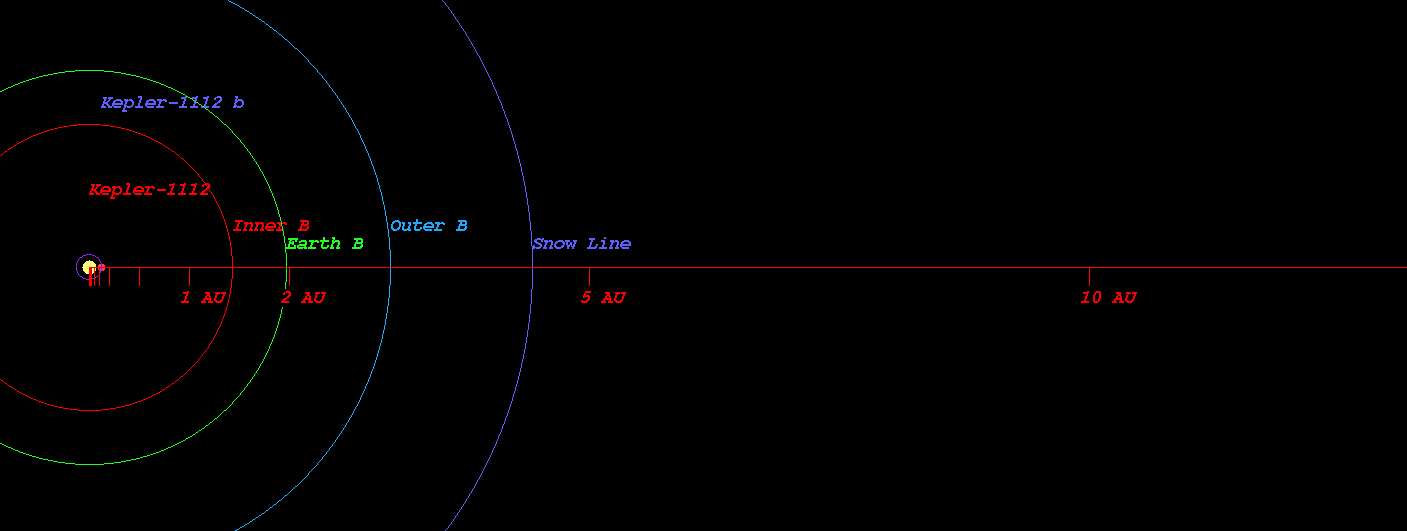

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1112)



  • Kopparapu Recent Venus for Star Kepler-1112 distance : 1.407 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1112 distance : 1.782 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1112 distance : 1.720 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1112 distance : 1.885 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1112 distance : 3.092 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1112 distance : 3.261 AU

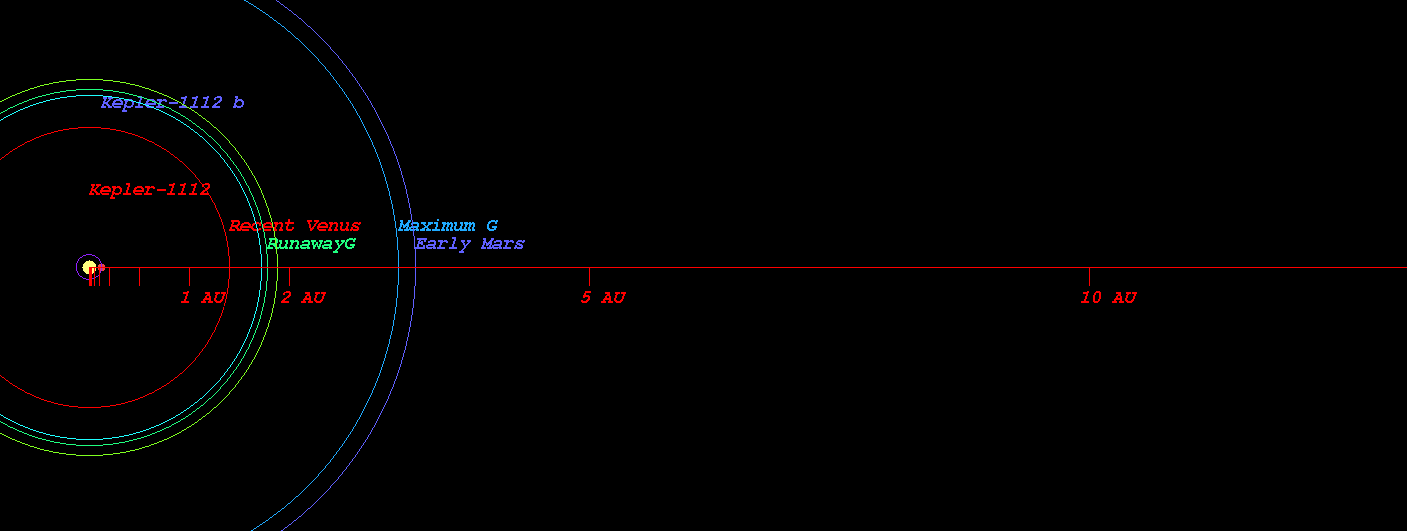

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1112)



  • Original Kopparapu Recent Venus for Star Kepler-1112 distance : 1.436 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1112 distance : 1.825 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1112 distance : 1.900 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1112 distance : 3.149 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1112 distance : 3.274 AU

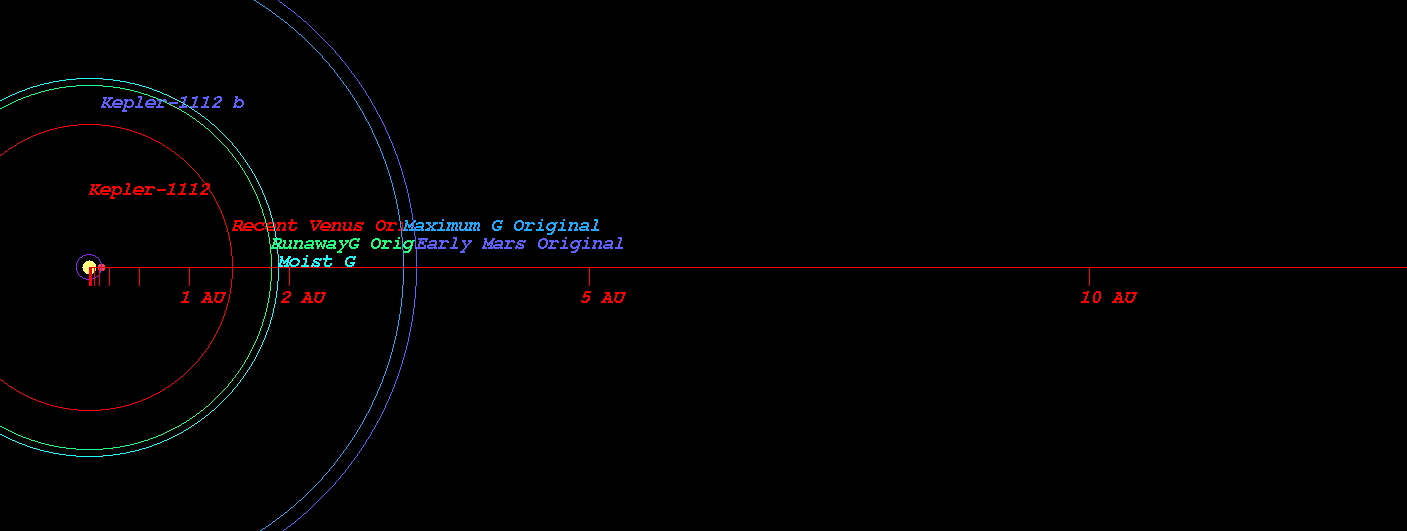

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1112)

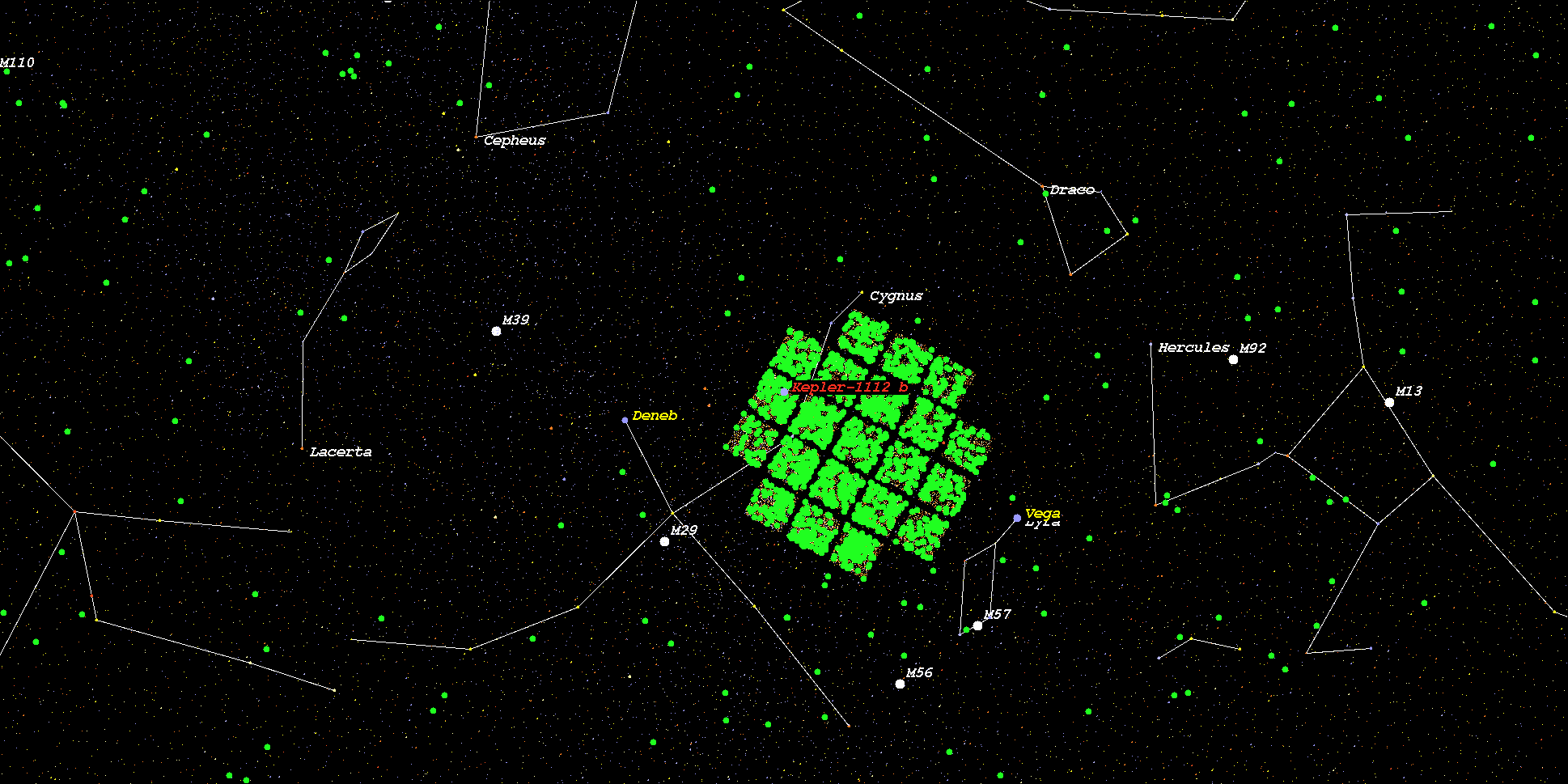

    (Position in Stellar Map of star Kepler-1112 and its Exoplanet Kepler-1112 b)



    (Zoomed position in Stellar Map of star Kepler-1112 and its Exoplanet Kepler-1112 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1112*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
