Imaginary Picture of Kepler-1104 b

Display orbital revolution of Kepler-1104 b around the hoststar Kepler-1104
/
Exoplanet Name : Kepler-1104 b
Alternate Name : "2MASS J19375245+4919516 b, K02110.01, KIC 11460462 b, KOI-2110 b, KOI-2110.01, WISE J193752.45+491951.5 b"
Status : Confirmed
Radius (Rjup / Re): 0.1100 (Rjup) 1.2330 (Rearth)
Mass (Mjup / Me): 0.0065 (Mjup) 2.0811 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0628 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0138
Orbital Period(Observed/Estimated) 5.04 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.3689
Star Radiation at Atmospheric Boundary: 1112632.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1449.5 (K)
Blackbody T 0.3(K) 1361.3 (K)
Blackbody T 0.7(K) 1101.4 (K)
Tidally Locked Blackbody T 0.1(K) 1723.8 (K)
Tidally Locked Blackbody T 0.3(K) 1618.8 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1104
Alternate Name : "2MASS J19375245+4919516, KIC 11460462, KOI-2110, WISE J193752.45+491951.5"
Star Distance(LY) : 1731.7
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.3 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 2.0 (GY)
Temperature : 6386 (K)
Spectral type : F7
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.1
Absolute Magnitude: 2.6
Apparent Magnitude: 11.2
Right Ascension(RA) 294.4686
Declination (DEC) 49.3310
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1104+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1104%20b/
Kepler-1104 b
Kepler-1104 b

  • Kepler-1104 b is an exoplanet orbiting the star Kepler-1104, located about 1731.7 light-years (530.9 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1104 has apparent magnitude of 11.2, with absolute magnitude of 2.6.
  • It is 1.3 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 6386 with its spectral types of F7
  • In this planetary system, the extrasolar planet Kepler-1104 b orbits around the star Kepler-1104 every 5.0 days with its orbital distance of 0.06 AU ( 9389528.5 km)

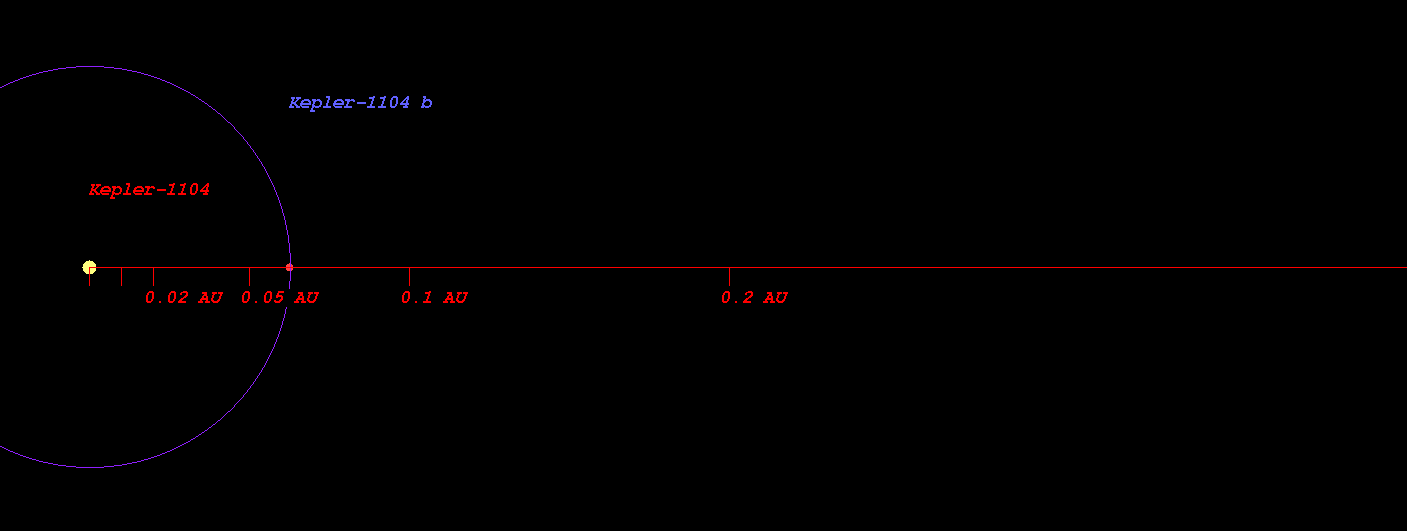

  • (Projected orbit of Kepler-1104 b around its host star Kepler-1104)


  • The Star Kepler-1104 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.295 AU ( 193753658.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.790 AU ( 267818189.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.728 AU ( 408095652.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.014 AU ( 600530630.8 km)
  • Radiation at Planetary Boundary of Kepler-1104 b : 1112632.31 W/m2

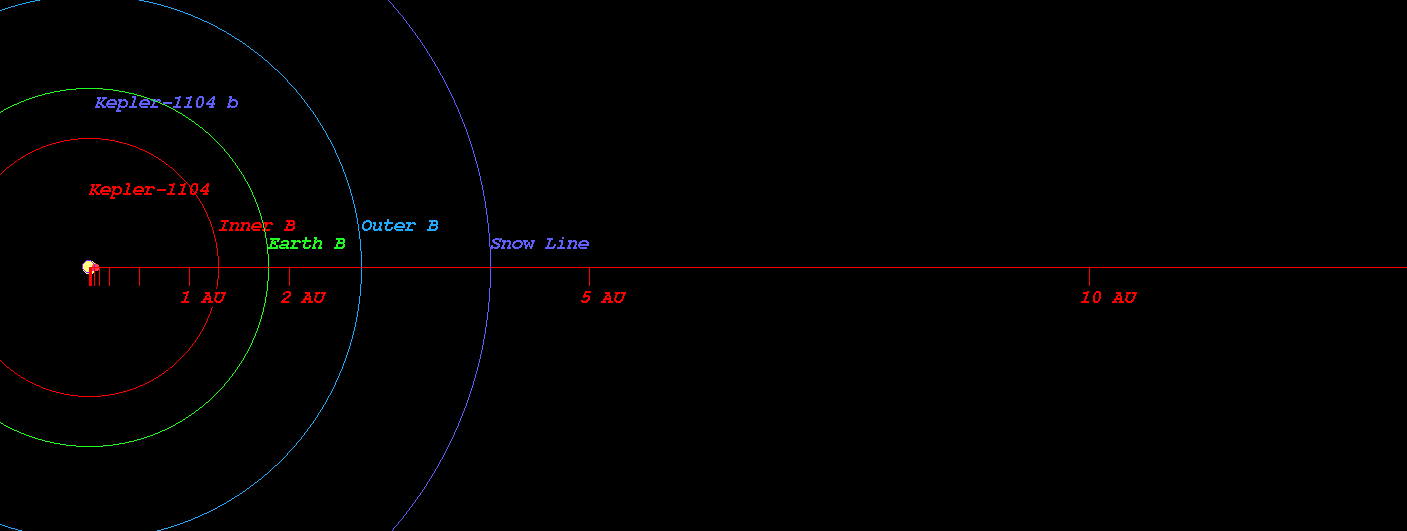

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1104)



  • Kopparapu Recent Venus for Star Kepler-1104 distance : 1.294 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1104 distance : 1.639 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1104 distance : 1.582 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1104 distance : 1.734 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1104 distance : 2.856 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1104 distance : 3.012 AU

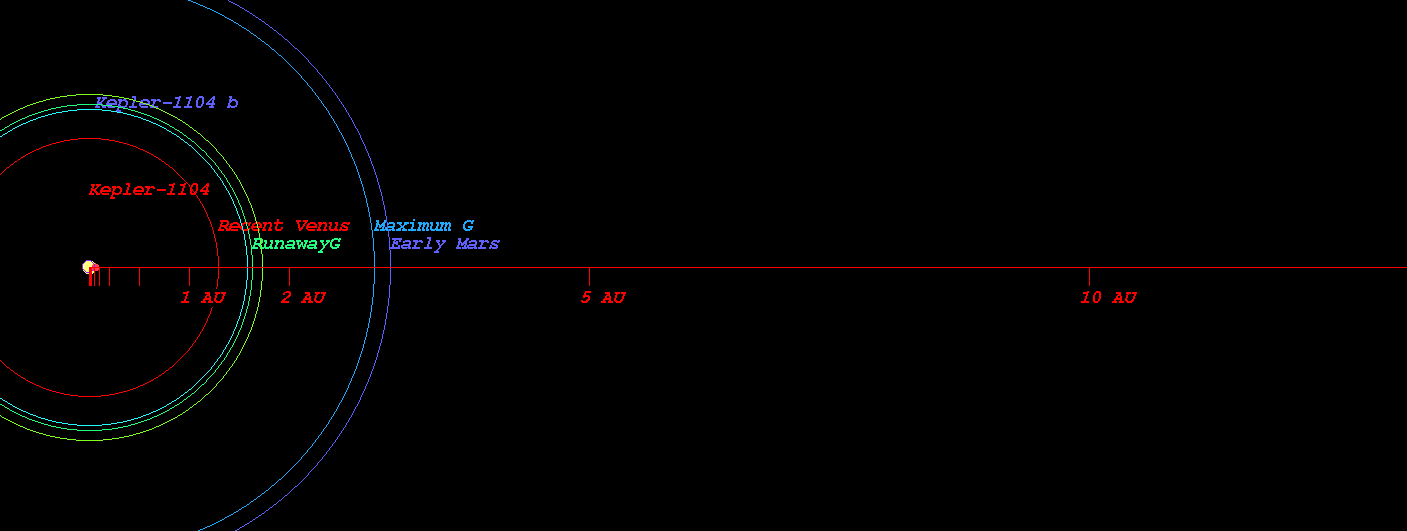

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1104)



  • Original Kopparapu Recent Venus for Star Kepler-1104 distance : 1.313 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1104 distance : 1.680 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1104 distance : 1.737 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1104 distance : 2.907 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1104 distance : 3.023 AU

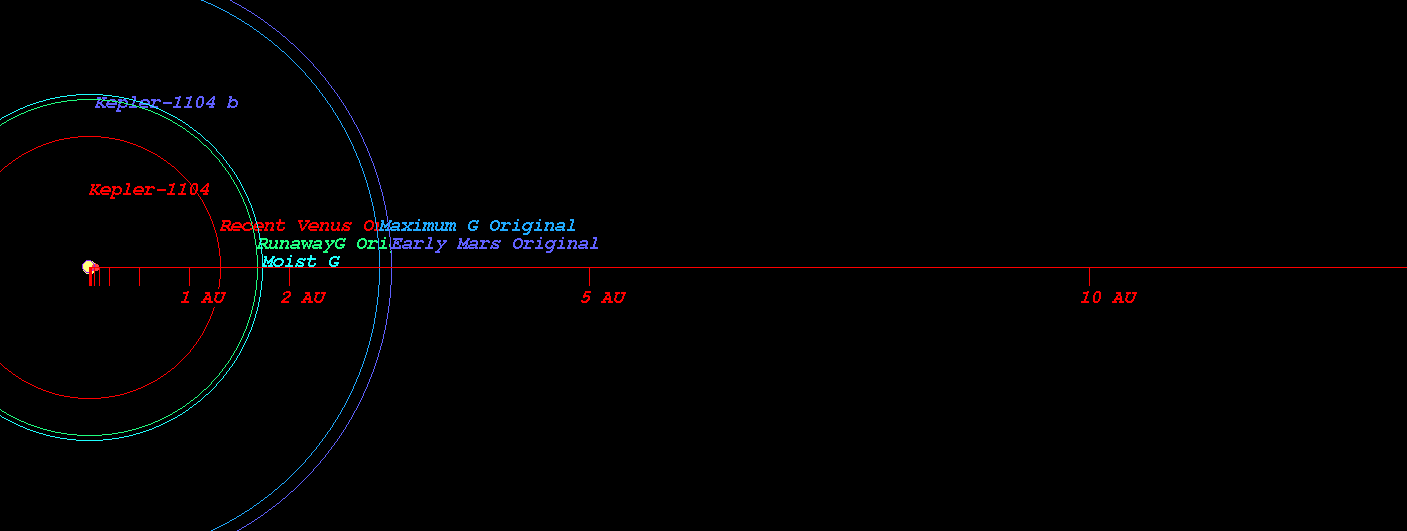

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1104)

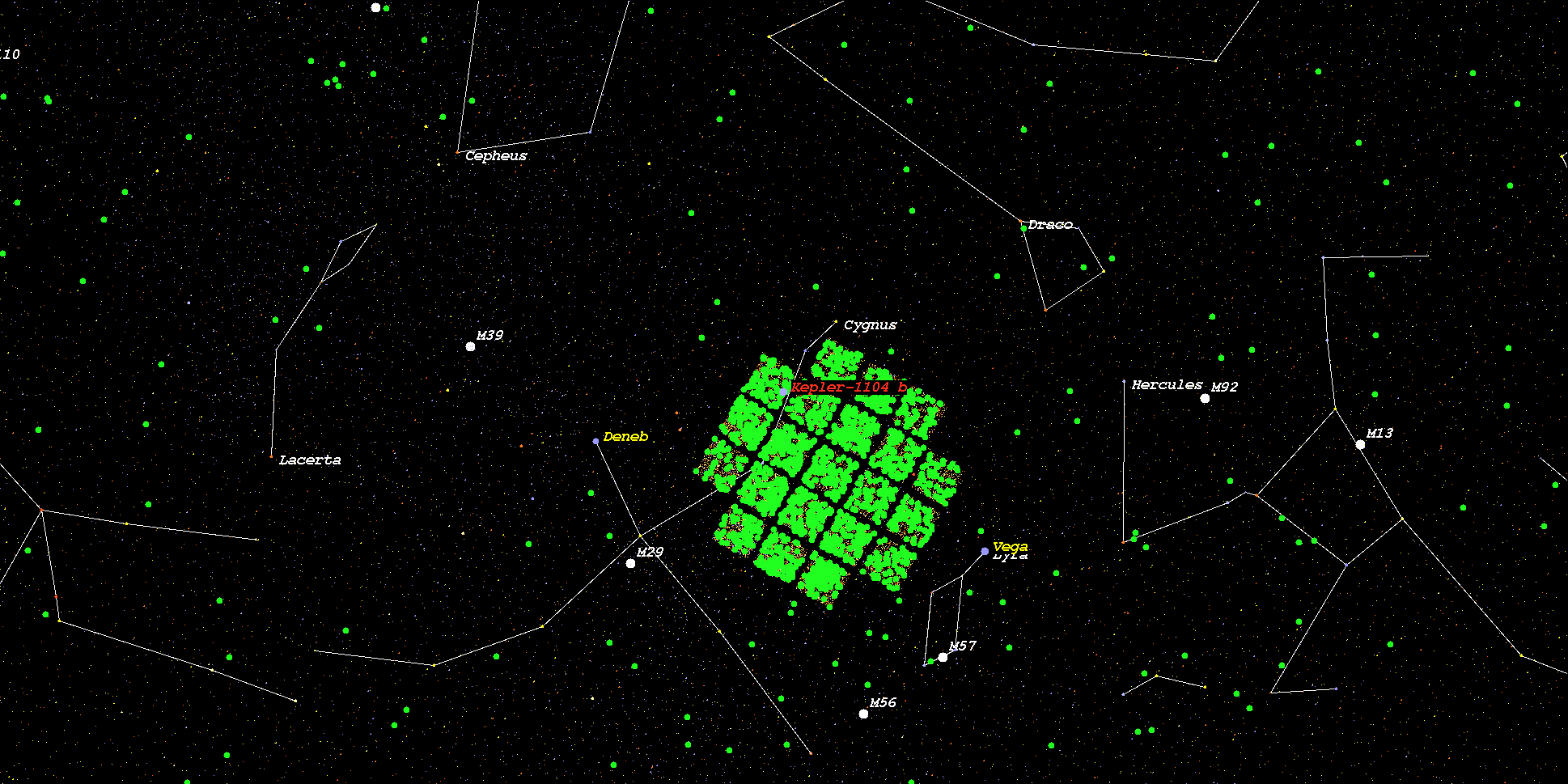

    (Position in Stellar Map of star Kepler-1104 and its Exoplanet Kepler-1104 b)



    (Zoomed position in Stellar Map of star Kepler-1104 and its Exoplanet Kepler-1104 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1104*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
