Imaginary Picture of Kepler-1101 b

Display orbital revolution of Kepler-1101 b around the hoststar Kepler-1101
/
Exoplanet Name : Kepler-1101 b
Alternate Name : "2MASS J19381665+4540165 b, K02107.01, KIC 9225395 b, KOI-2107 b, KOI-2107.01, WISE J193816.64+454016.2 b"
Status : Confirmed
Radius (Rjup / Re): 0.2200 (Rjup) 2.4660 (Rearth)
Mass (Mjup / Me): 0.0192 (Mjup) 6.1075 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.3598 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.2226
Orbital Period(Observed/Estimated) 81.32 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0043
Star Radiation at Atmospheric Boundary: 4576.3 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 367.1 (K)
Blackbody T 0.3(K) 344.7 (K)
Blackbody T 0.7(K) 278.9 (K)
Tidally Locked Blackbody T 0.1(K) 436.5 (K)
Tidally Locked Blackbody T 0.3(K) 410.0 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1101
Alternate Name : "2MASS J19381665+4540165, KIC 9225395, KOI-2107, WISE J193816.64+454016.2"
Star Distance(LY) : 2421.2
Stellar Radius(Rsun) : 0.8 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 4.3 (GY)
Temperature : 5312 (K)
Spectral type : G6
UV portion[%]: 7.3
Visible portion[%]: 43.9
IR portion[%]: 48.7
Metalicity : -0.0
Absolute Magnitude: 4.4
Apparent Magnitude: 13.8
Right Ascension(RA) 294.5694
Declination (DEC) 45.6713
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1101%20b/
Kepler-1101 b
Kepler-1101 b

  • Kepler-1101 b is an exoplanet orbiting the star Kepler-1101, located about 2421.2 light-years (742.3 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1101 has apparent magnitude of 13.8, with absolute magnitude of 4.4.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 5312 with its spectral types of G6
  • In this planetary system, the extrasolar planet Kepler-1101 b orbits around the star Kepler-1101 every 81.3 days with its orbital distance of 0.36 AU ( 53829709.3 km)

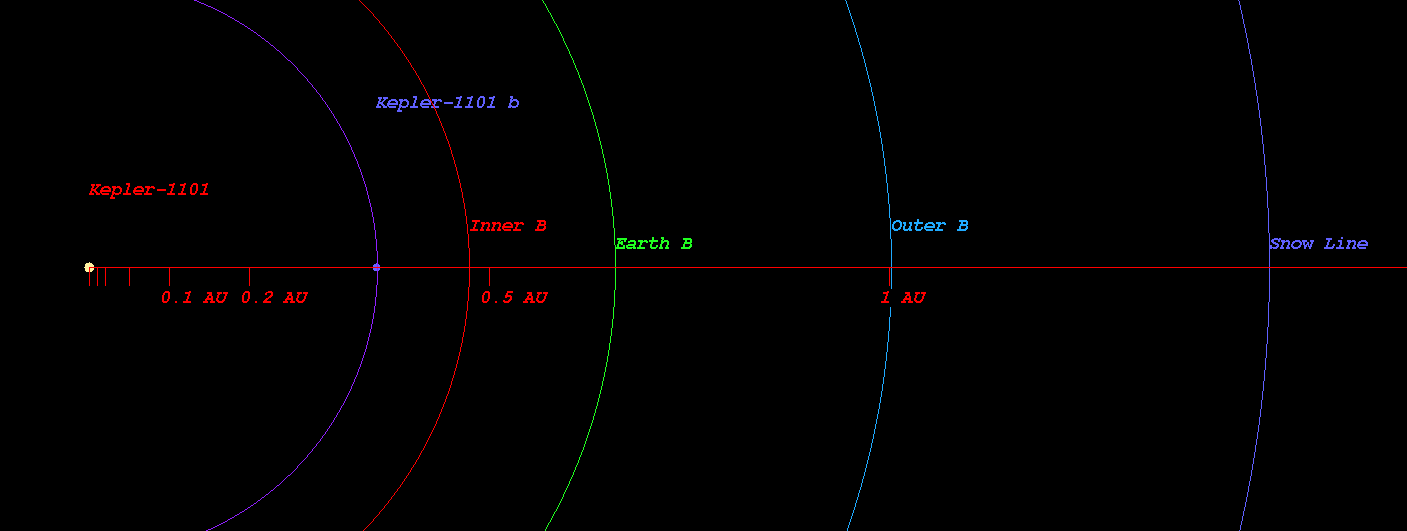

  • (Projected orbit of Kepler-1101 b around its host star Kepler-1101)


  • The Star Kepler-1101 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.476 AU ( 71237997.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.658 AU ( 98469529.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.003 AU ( 150045771.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.476 AU ( 220798925.6 km)
  • Radiation at Planetary Boundary of Kepler-1101 b : 4576.34 W/m2

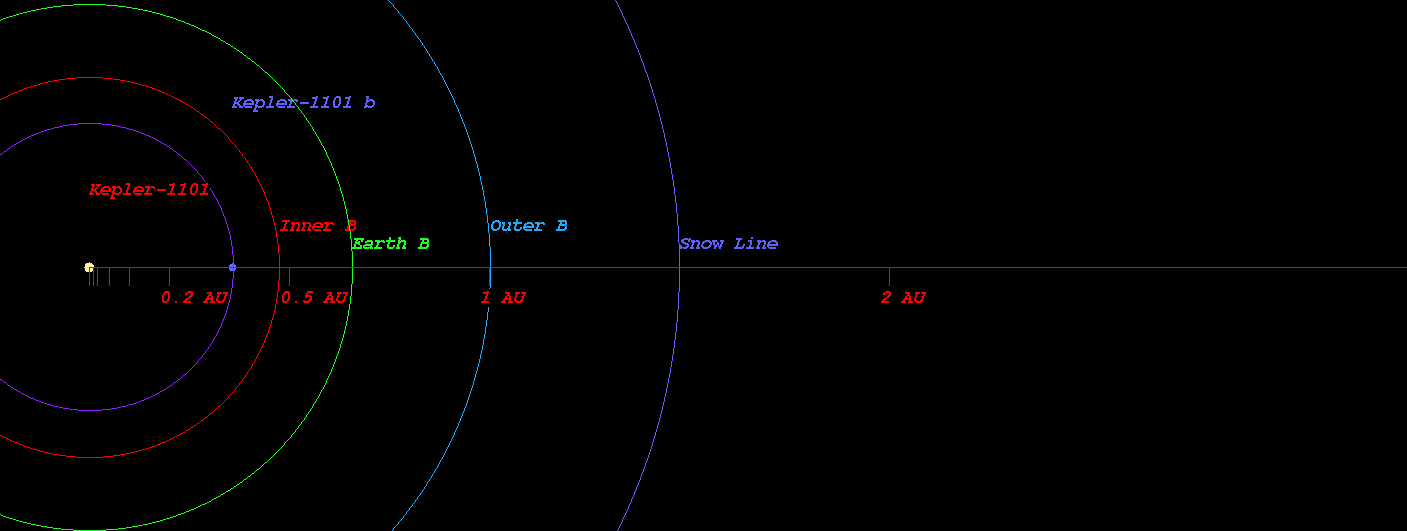

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1101)



  • Kopparapu Recent Venus for Star Kepler-1101 distance : 0.507 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1101 distance : 0.642 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1101 distance : 0.620 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1101 distance : 0.680 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1101 distance : 1.150 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1101 distance : 1.213 AU

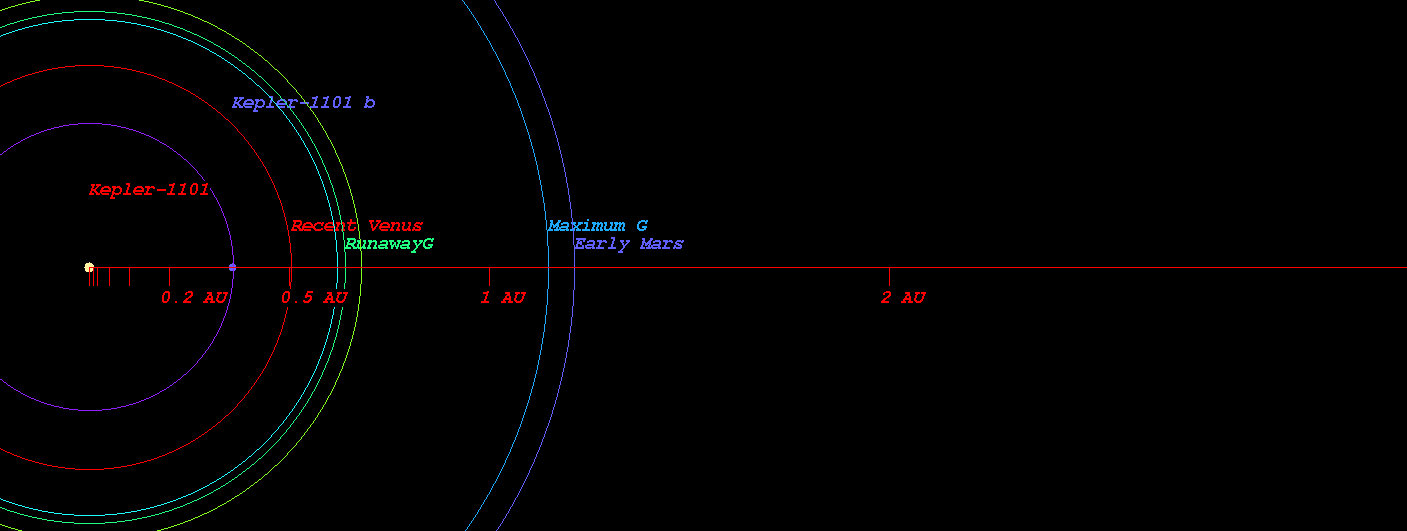

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1101)



  • Original Kopparapu Recent Venus for Star Kepler-1101 distance : 0.504 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1101 distance : 0.661 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1101 distance : 0.666 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1101 distance : 1.170 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1101 distance : 1.216 AU

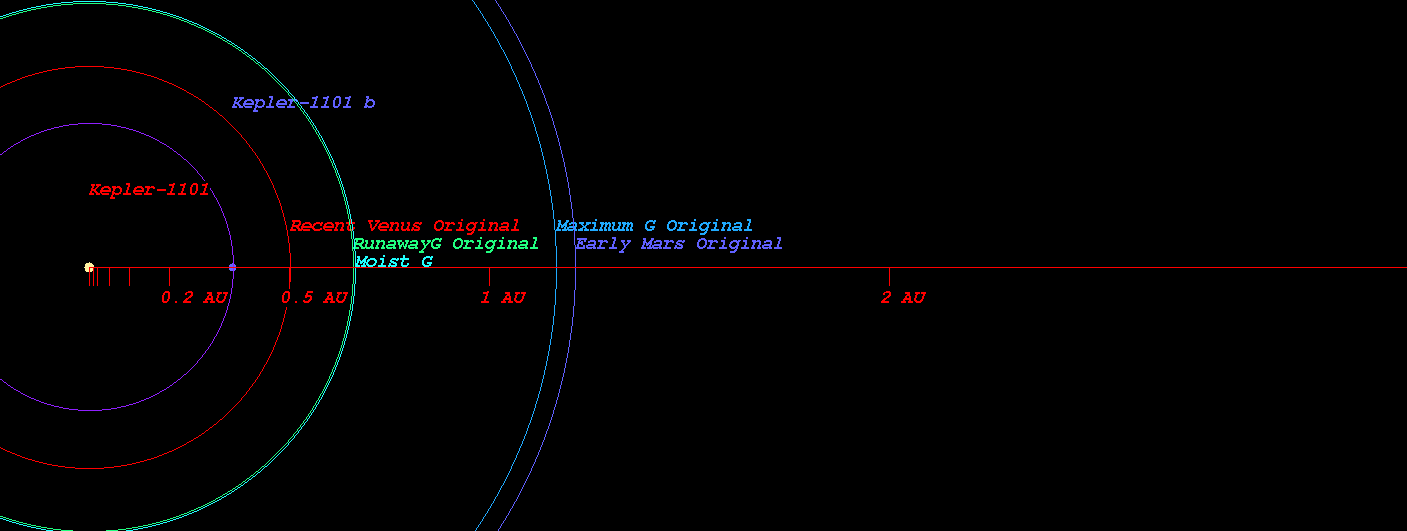

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1101)

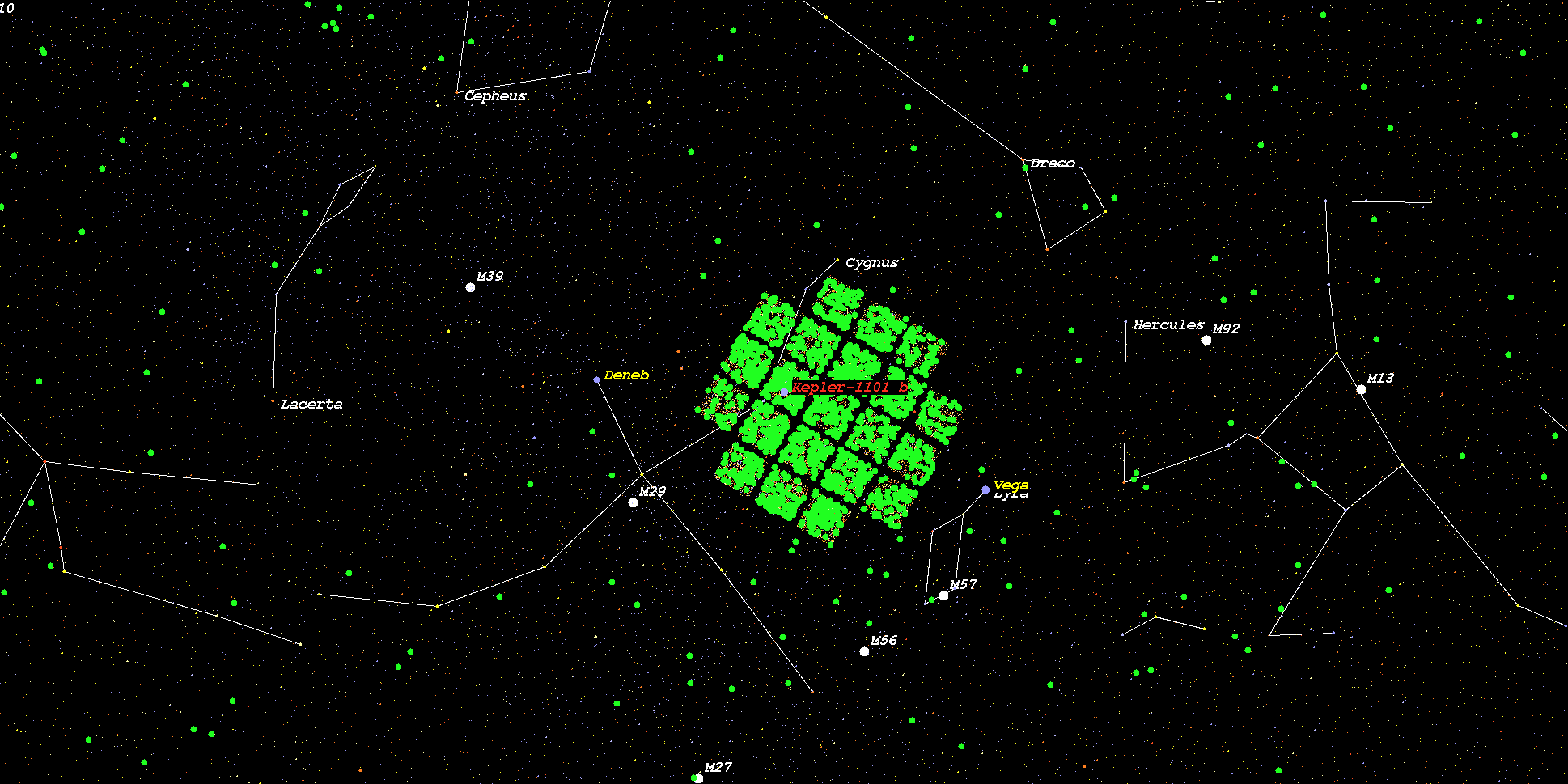

    (Position in Stellar Map of star Kepler-1101 and its Exoplanet Kepler-1101 b)



    (Zoomed position in Stellar Map of star Kepler-1101 and its Exoplanet Kepler-1101 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1101*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
