Imaginary Picture of Kepler-109 b
/
Exoplanet Name : Kepler-109 b
Alternate Name :
Radius (Rjup / Re): 0.2086 (Rjup) 2.3382 (Rearth)
Mass (Mjup / Me): 0.0041 (Mjup) 1.3035 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0696 (AU Est.)
Eccentricity : 0.2100
Orbital Period(Yrs) 0.0177
Orbital Period(Observed/Estimated) 6.48 (Days Obs.) 0.00 (Days Est.)
Star Radiation at Atmospheric Boundary: 570216.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1226.5 (K)
Blackbody T 0.3(K) 1151.8 (K)
Blackbody T 0.7(K) 931.9 (K)
Tidally Locked Blackbody T 0.1(K) 1458.5 (K)
Tidally Locked Blackbody T 0.3(K) 1369.7 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-109
Alternate Name : "KOI-123, KIC 5094751"
Star Distance(LY) : 1515.7
Stellar Radius(Rsun) : 1.3 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 6.3 (GY)
Temperature : 5952 (K)
Spectral type : G1
Metalicity : -0.1
Absolute Magnitude: 4.0
Apparent Magnitude: 12.4
Right Ascension(RA) 290.3927
Declination (DEC) 40.2849
Hubble Space Telescope Guide Star Catalog (GSC) ID 0
Discovered by
Discovery Paper - Authors "Geoffrey W. Marcy, Howard Isaacson, Andrew W. Howard, Jason F. Rowe, Jon M. Jenkins, Stephen T. Bryson, David W. Latham, Steve B. Howell, Thomas N. Gautier III, Natalie M. Batalha, Leslie A. Rogers, David Ciardi, Debra A. Fischer, Ronald L. Gilliland, Hans Kjeldsen, J_rgen Christensen-Dalsgaard, Daniel Huber, William J. Chaplin, Sarbani Basu, Lars A. Buchhave, Samuel N. Quinn, William J. Borucki, David G. Koch, Roger Hunter, Douglas A. Caldwell, Jeffrey Van Cleve, Rea Kolbl, Lauren M. Weiss, Erik Petigura, Sara Seager, Timothy Morton, John Asher Johnson, Sarah Ballard, Chris Burke, William D. Cochran, Michael Endl, Phillip MacQueen, Mark E. Everett, Jack J. Lissauer, Eric B. Ford, Guillermo Torres, Francois Fressin, Timothy M. Brown, Jason H. Steffen, David Charbonneau, Gibor S. Basri, et al. (57 additional authors not shown) "
Discovery Paper - Title "Masses, Radii, and Orbits of Small Kepler Planets: The Transition from Gaseous to Rocky Planets"
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-109+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-109%20b/
Kepler-109 b
Kepler-109 b

  • Kepler-109 b is an exoplanet orbiting the star Kepler-109, located about 1515.7 light-years (464.7 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-109 has apparent magnitude of 12.4, with absolute magnitude of 4.0.
  • It is 1.1 times more massive and 1.3 times bigger compared with our Sun. The surface temperature is 5952 with its spectral types of G1
  • In this planetary system, the extrasolar planet Kepler-109 b orbits around the star Kepler-109 every 6.5 days with its orbital distance of 0.07 AU ( 10406730.3 km)

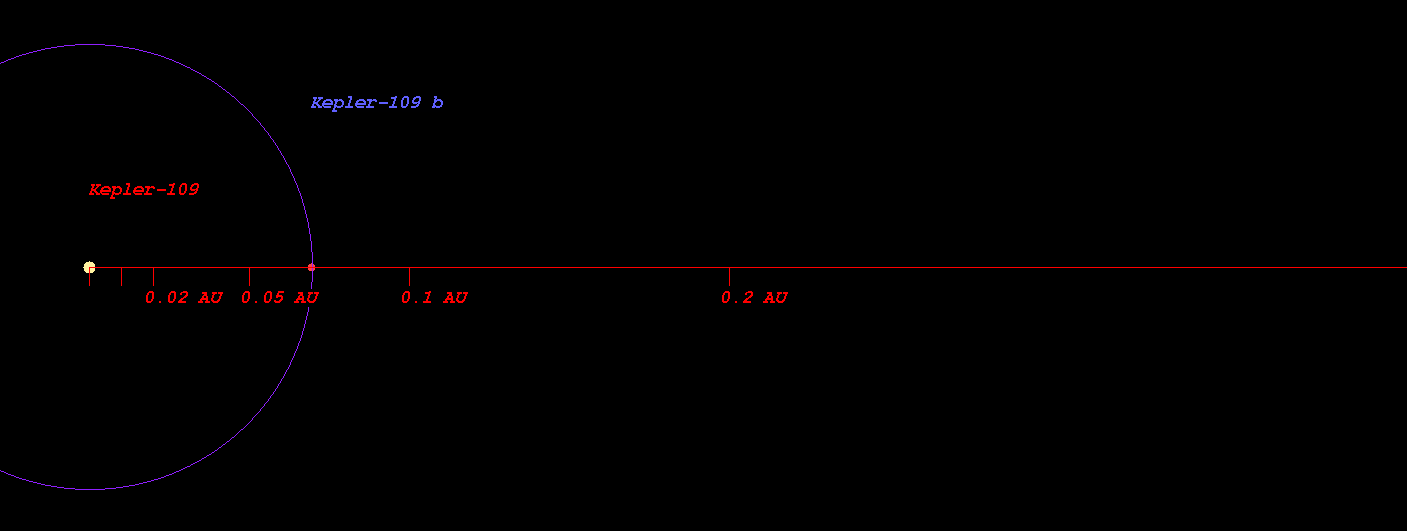

  • (Projected orbit of Kepler-109 b around its host star Kepler-109)


  • The Star Kepler-109 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.028 AU ( 153732091.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.420 AU ( 212497924.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.164 AU ( 323799811.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.185 AU ( 476485607.9 km)
  • Radiation at Planetary Boundary of Kepler-109 b : 570216.63 W/m2

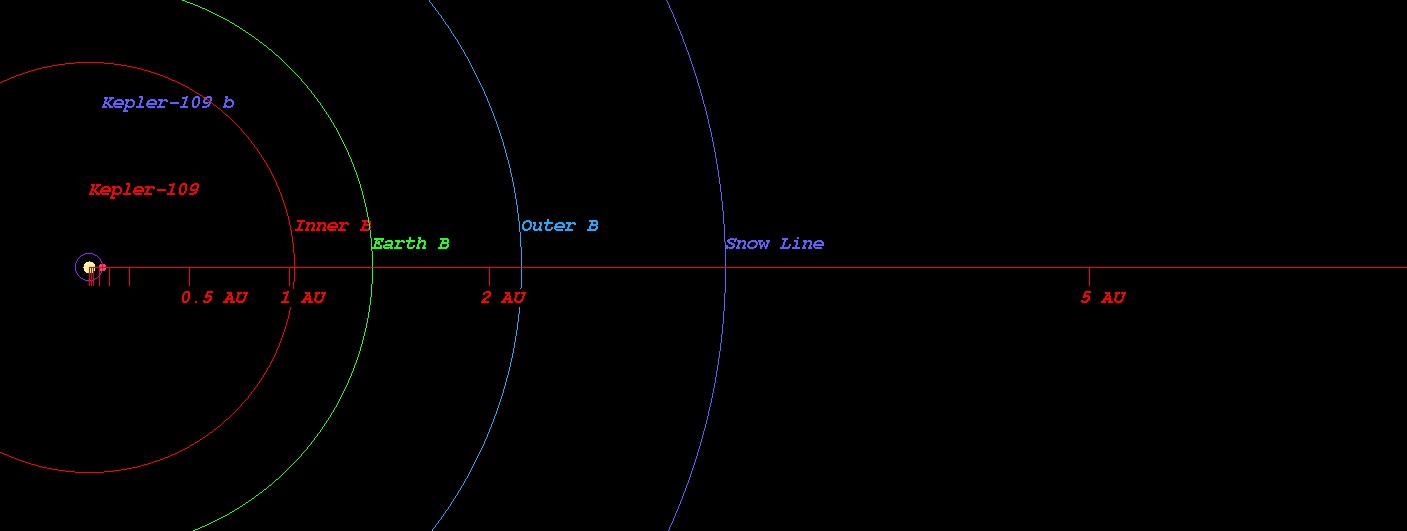

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-109)



  • Kopparapu Recent Venus for Star Kepler-109 distance : 1.054 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-109 distance : 1.335 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-109 distance : 1.289 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-109 distance : 1.413 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-109 distance : 2.347 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-109 distance : 2.475 AU

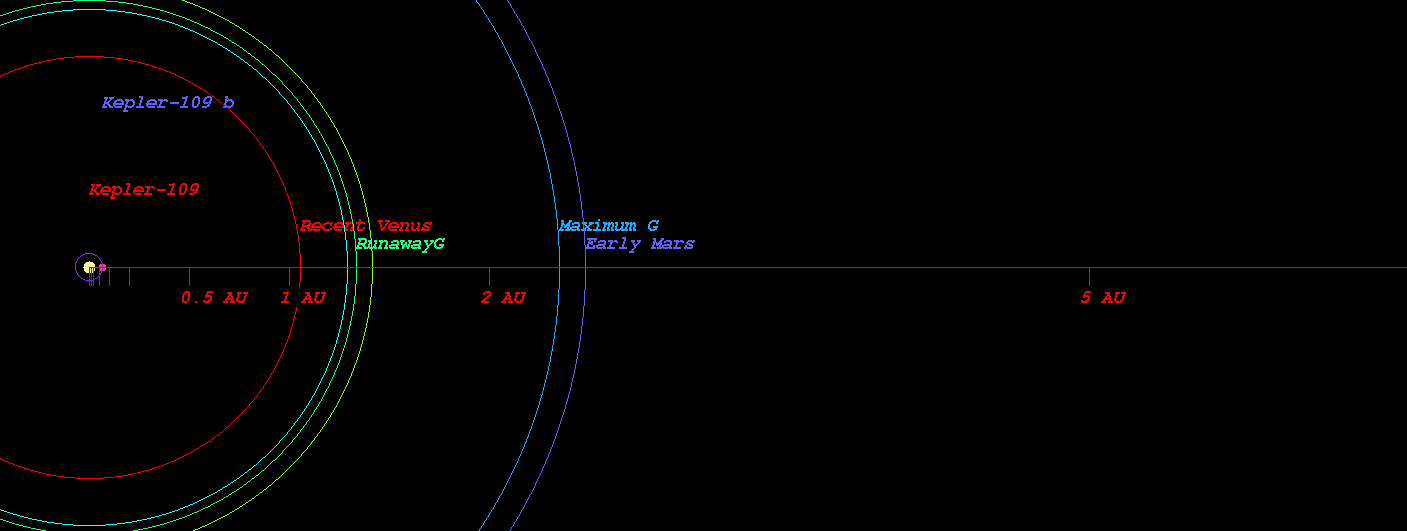

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-109)



  • Original Kopparapu Recent Venus for Star Kepler-109 distance : 1.059 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-109 distance : 1.371 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-109 distance : 1.401 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-109 distance : 2.388 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-109 distance : 2.484 AU

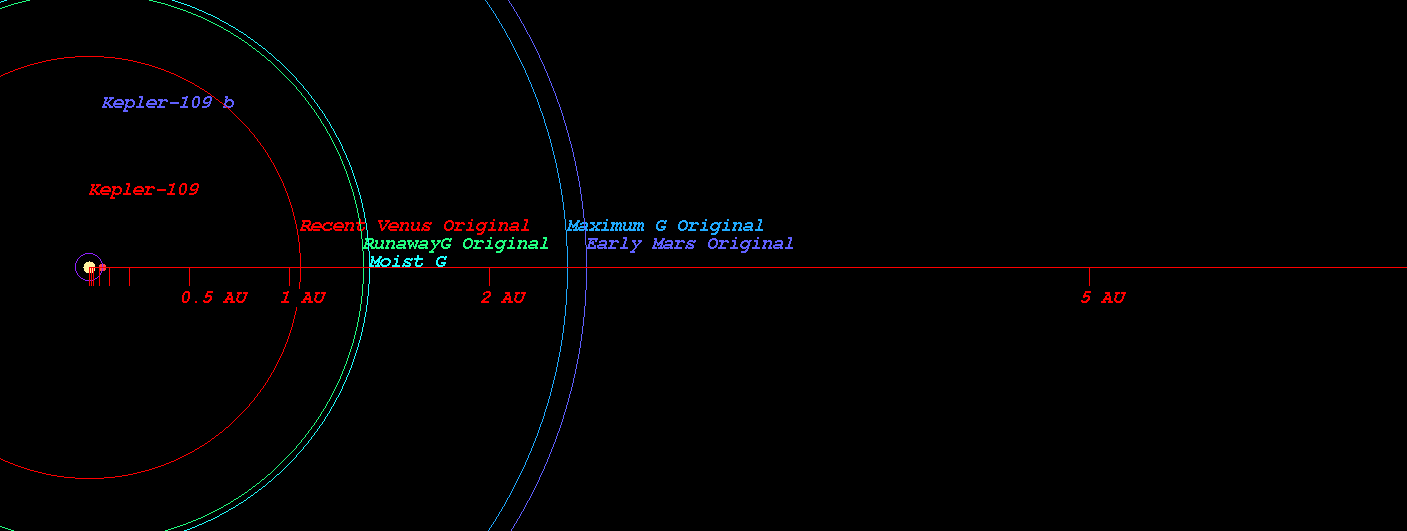

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-109)



    (Position in Stellar Map of star Kepler-109 and its Exoplanet Kepler-109 b)

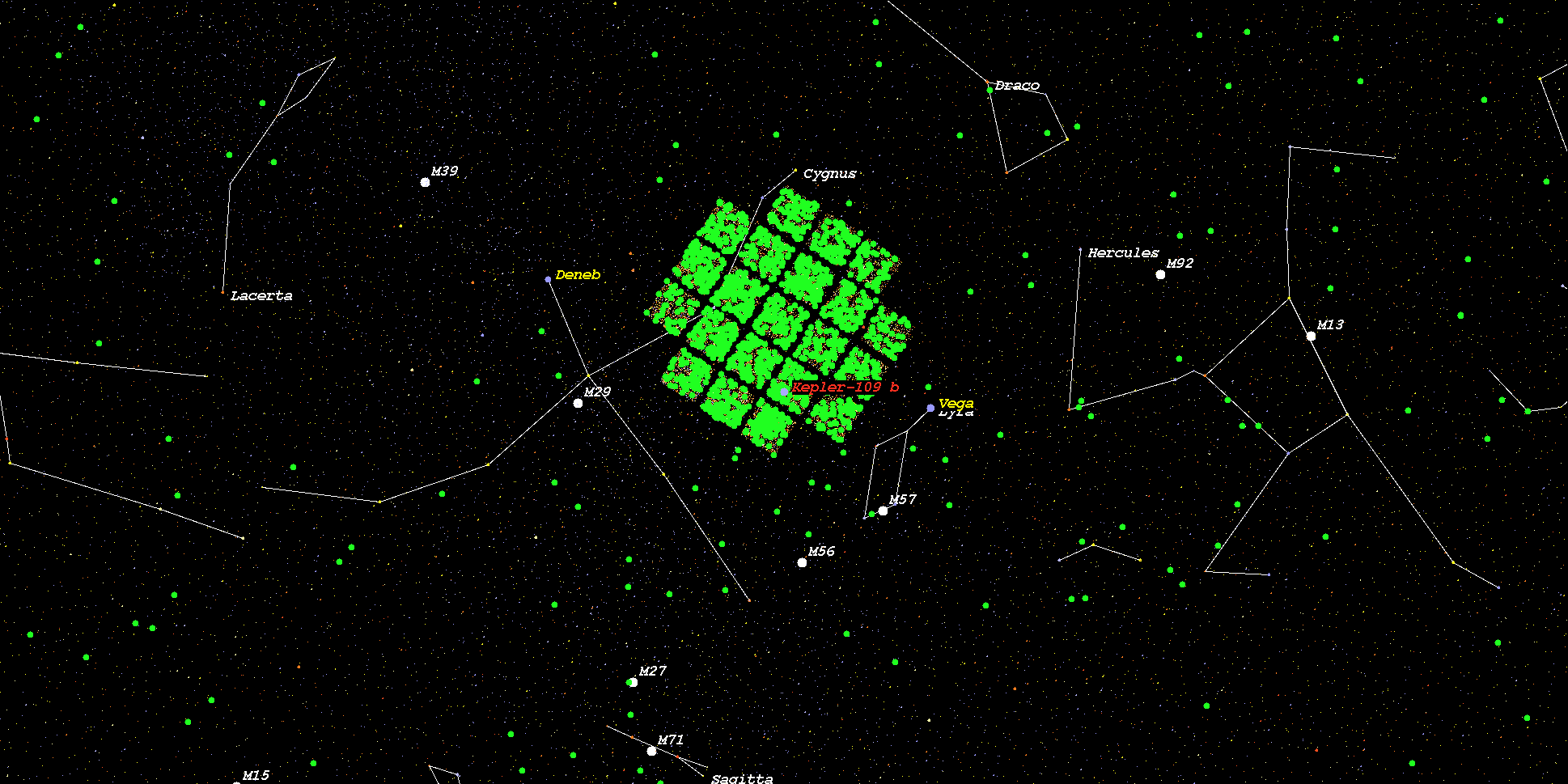

    (Zoomed position in Stellar Map of star Kepler-109 and its Exoplanet Kepler-109 b (zoom level 3))
