Imaginary Picture of Kepler-1092 b

Display orbital revolution of Kepler-1092 b around the hoststar Kepler-1092
/
Exoplanet Name : Kepler-1092 b
Alternate Name : "2MASS J19505355+4706455 b, K02097.01, KIC 10158729 b, KOI-2097 b, KOI-2097.01, WISE J195053.57+470645.3 b"
Status : Confirmed
Radius (Rjup / Re): 0.1850 (Rjup) 2.0737 (Rearth)
Mass (Mjup / Me): 0.0164 (Mjup) 5.1985 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.2943 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1604
Orbital Period(Observed/Estimated) 58.60 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.2089
Star Radiation at Atmospheric Boundary: 24063.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 555.9 (K)
Blackbody T 0.3(K) 522.0 (K)
Blackbody T 0.7(K) 422.4 (K)
Tidally Locked Blackbody T 0.1(K) 661.1 (K)
Tidally Locked Blackbody T 0.3(K) 620.8 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1092
Alternate Name : "2MASS J19505355+4706455, KIC 10158729, KOI-2097, WISE J195053.57+470645.3"
Star Distance(LY) : 3198.9
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 3.8 (GY)
Temperature : 6245 (K)
Spectral type : G2
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.1
Absolute Magnitude: 3.5
Apparent Magnitude: 13.5
Right Ascension(RA) 297.7231
Declination (DEC) 47.1127
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1092+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1092%20b/
Kepler-1092 b
Kepler-1092 b

  • Kepler-1092 b is an exoplanet orbiting the star Kepler-1092, located about 3198.9 light-years (980.8 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1092 has apparent magnitude of 13.5, with absolute magnitude of 3.5.
  • It is 1.0 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 6245 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-1092 b orbits around the star Kepler-1092 every 58.6 days with its orbital distance of 0.29 AU ( 44023468.9 km)

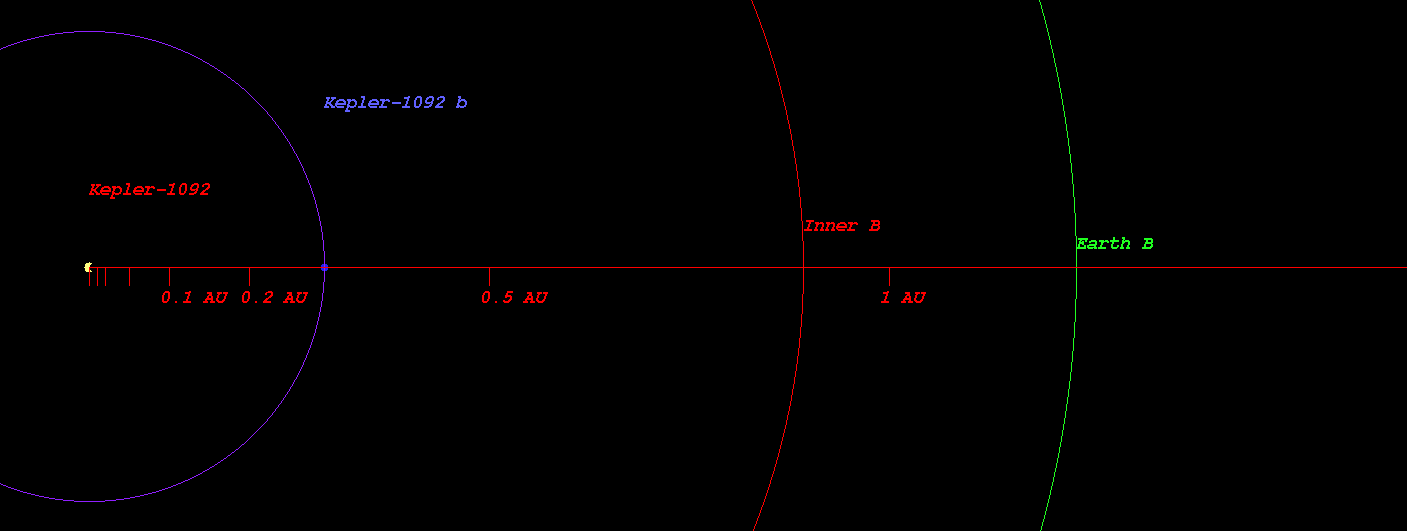

  • (Projected orbit of Kepler-1092 b around its host star Kepler-1092)


  • The Star Kepler-1092 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.893 AU ( 133597393.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.234 AU ( 184666511.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.881 AU ( 281390896.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.768 AU ( 414079030.7 km)
  • Radiation at Planetary Boundary of Kepler-1092 b : 24063.95 W/m2

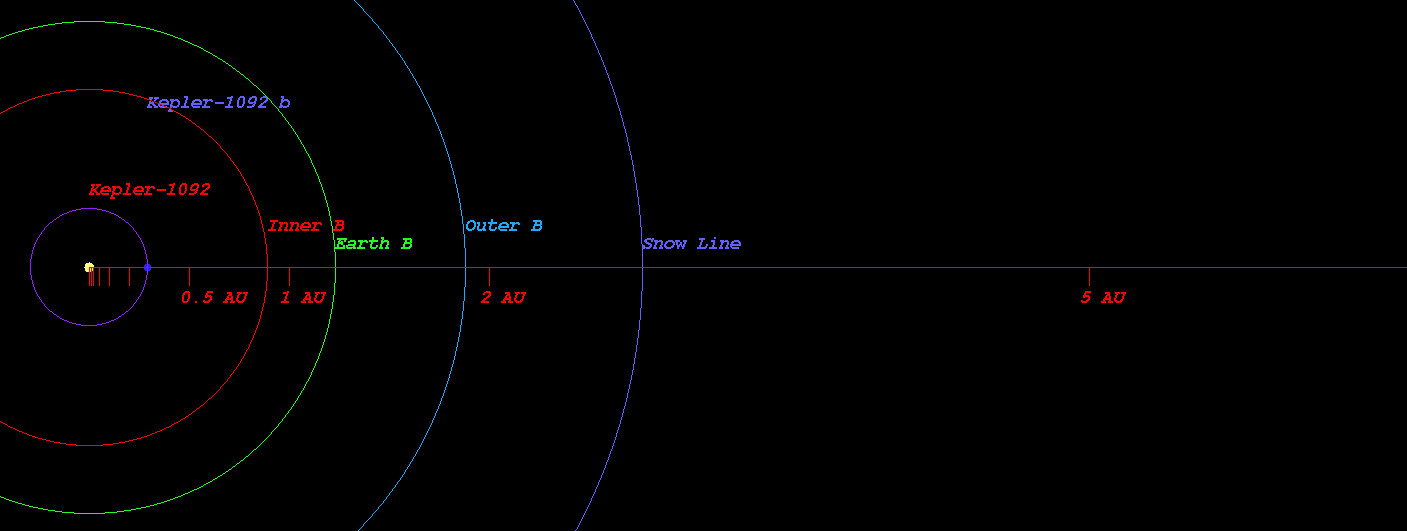

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1092)



  • Kopparapu Recent Venus for Star Kepler-1092 distance : 0.900 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1092 distance : 1.139 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1092 distance : 1.100 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1092 distance : 1.206 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1092 distance : 1.991 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1092 distance : 2.100 AU

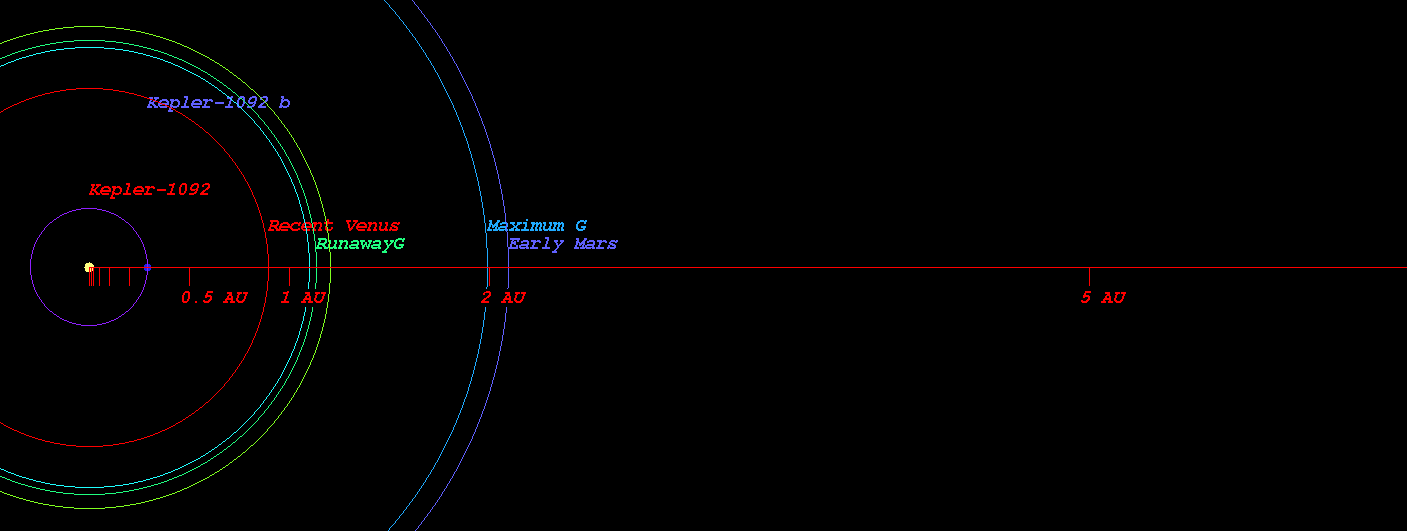

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1092)



  • Original Kopparapu Recent Venus for Star Kepler-1092 distance : 0.910 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1092 distance : 1.169 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1092 distance : 1.204 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1092 distance : 2.027 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1092 distance : 2.107 AU

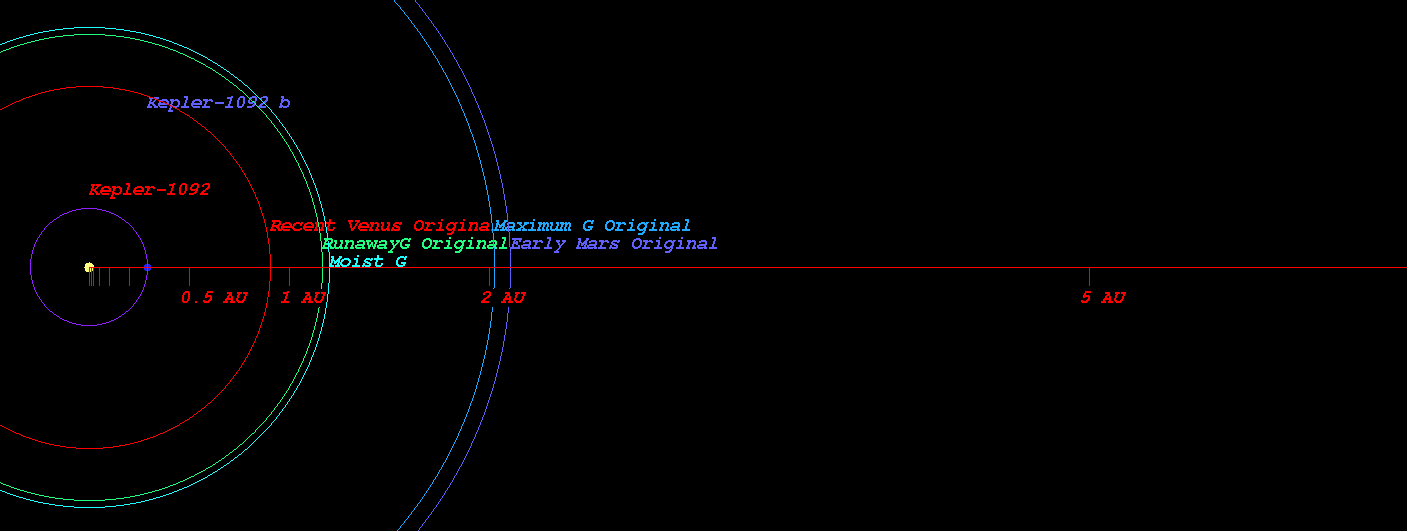

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1092)

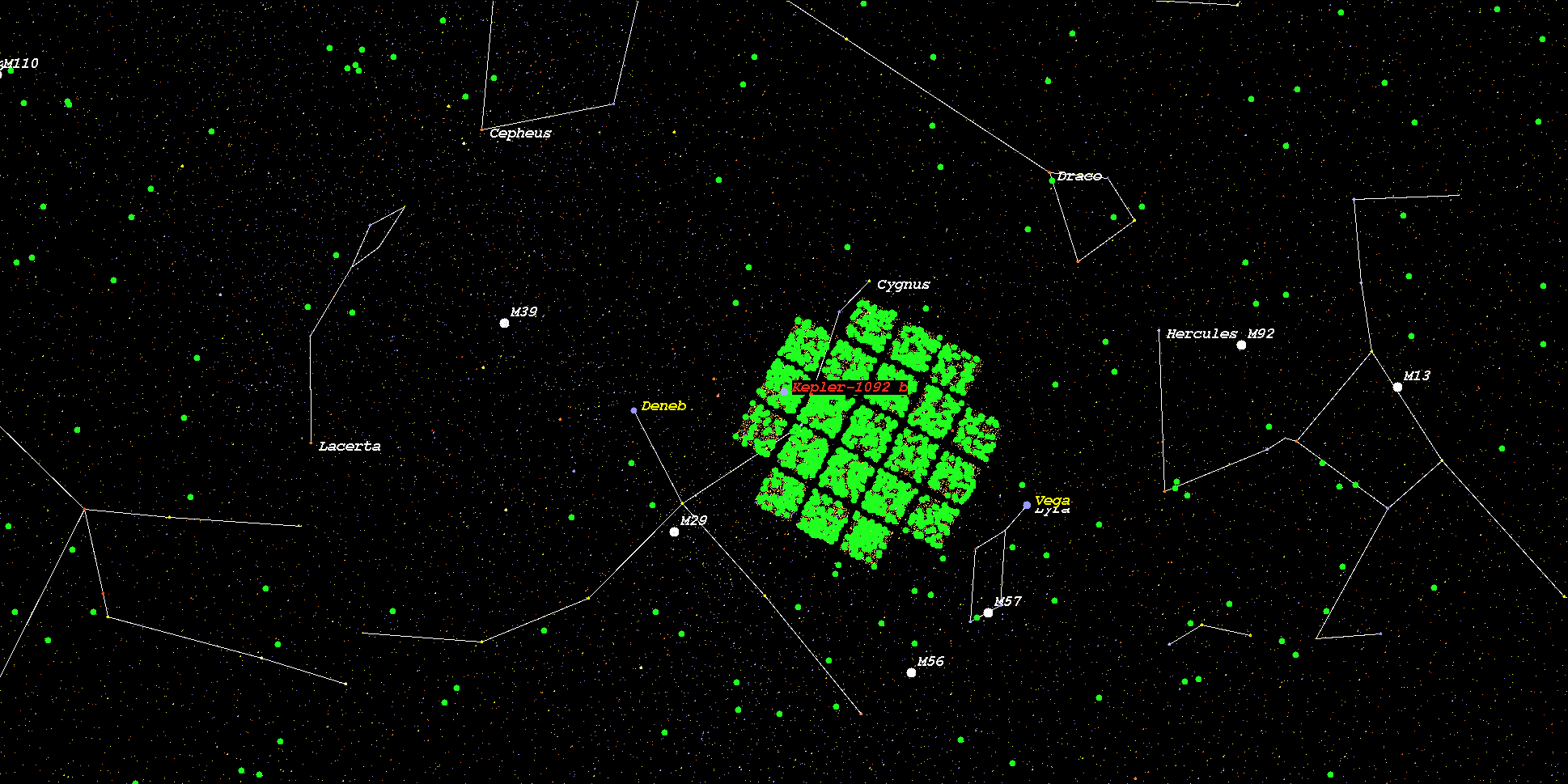

    (Position in Stellar Map of star Kepler-1092 and its Exoplanet Kepler-1092 b)



    (Zoomed position in Stellar Map of star Kepler-1092 and its Exoplanet Kepler-1092 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1092*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
