Imaginary Picture of Kepler-1060 b

Display orbital revolution of Kepler-1060 b around the hoststar Kepler-1060
/
Exoplanet Name : Kepler-1060 b
Alternate Name : "2MASS J19040604+3937513 b, K02024.01, KIC 4544907 b, KOI-2024 b, KOI-2024.01, WISE J190406.03+393751.6 b"
Status : Confirmed
Radius (Rjup / Re): 0.2120 (Rjup) 2.3763 (Rearth)
Mass (Mjup / Me): 0.0186 (Mjup) 5.9007 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.2536 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.1283
Orbital Period(Observed/Estimated) 46.88 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.0450
Star Radiation at Atmospheric Boundary: 23037.5 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 549.9 (K)
Blackbody T 0.3(K) 516.4 (K)
Blackbody T 0.7(K) 417.8 (K)
Tidally Locked Blackbody T 0.1(K) 653.9 (K)
Tidally Locked Blackbody T 0.3(K) 614.1 (K)
Size Class: sub-Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-1060
Alternate Name : "2MASS J19040604+3937513, KIC 4544907, KOI-2024, WISE J190406.03+393751.6"
Star Distance(LY) : 3087.5
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.3 (GY)
Temperature : 5500 (K)
Spectral type : G2
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.0
Absolute Magnitude: 3.6
Apparent Magnitude: 13.4
Right Ascension(RA) 286.0252
Declination (DEC) 39.6309
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha2"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 428 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-1060+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-1060%20b/
Kepler-1060 b
Kepler-1060 b

  • Kepler-1060 b is an exoplanet orbiting the star Kepler-1060, located about 3087.5 light-years (946.6 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-1060 has apparent magnitude of 13.4, with absolute magnitude of 3.6.
  • It is 1.0 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5500 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-1060 b orbits around the star Kepler-1060 every 46.9 days with its orbital distance of 0.25 AU ( 37936388.7 km)

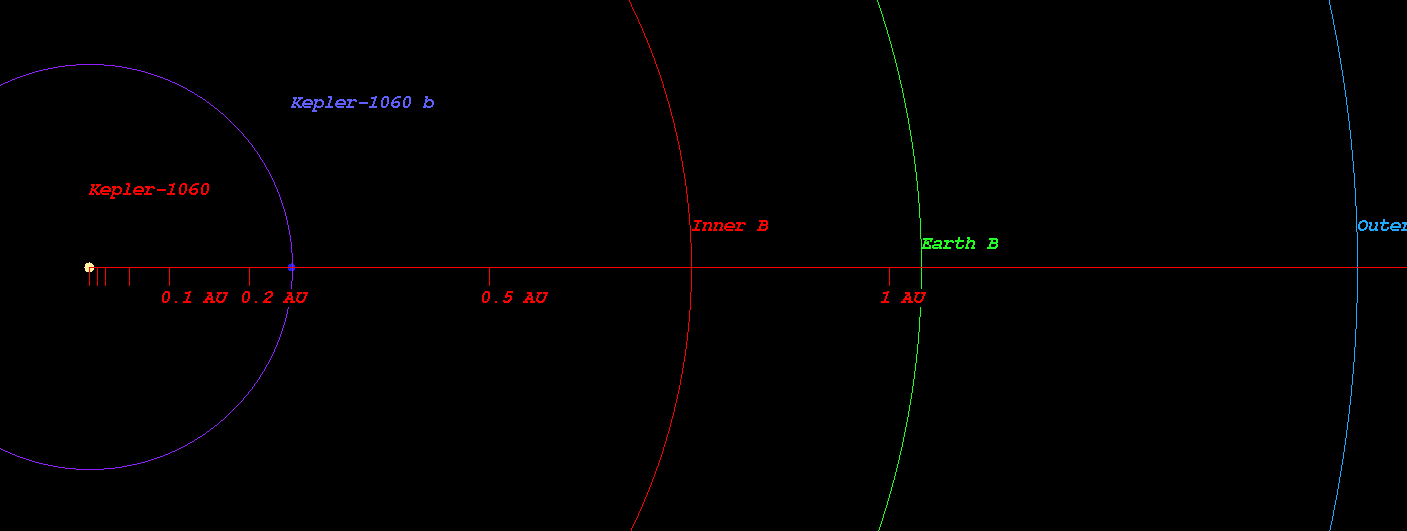

  • (Projected orbit of Kepler-1060 b around its host star Kepler-1060)

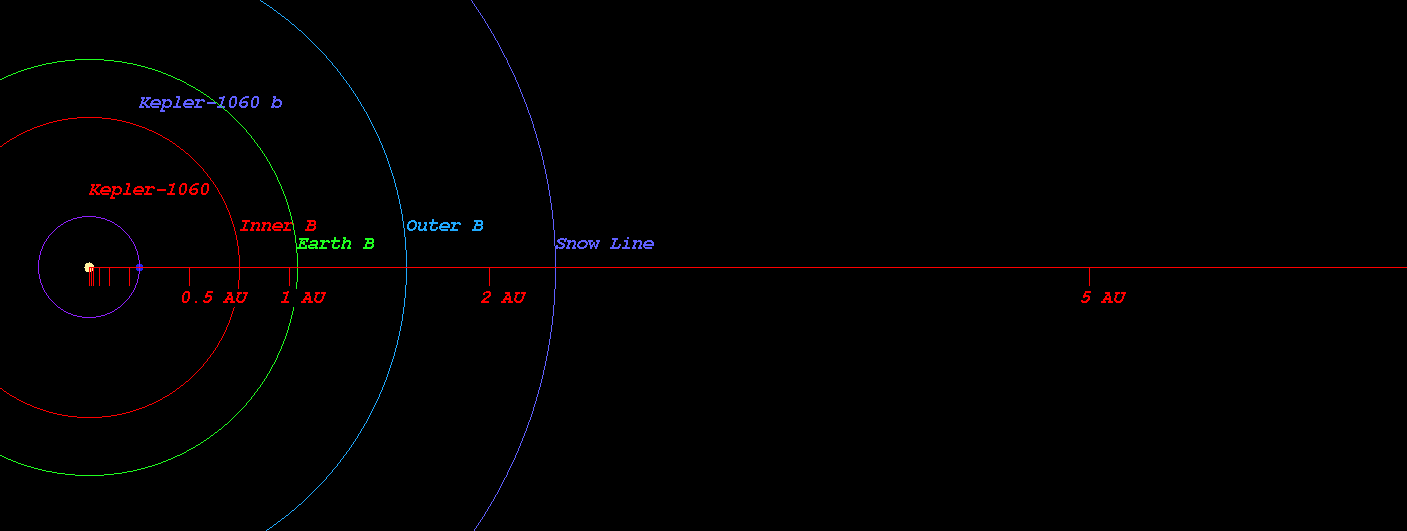

  • The Star Kepler-1060 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.753 AU ( 112642821.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.041 AU ( 155701816.4 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.586 AU ( 237255111.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.334 AU ( 349131289.9 km)
  • Radiation at Planetary Boundary of Kepler-1060 b : 23037.45 W/m2

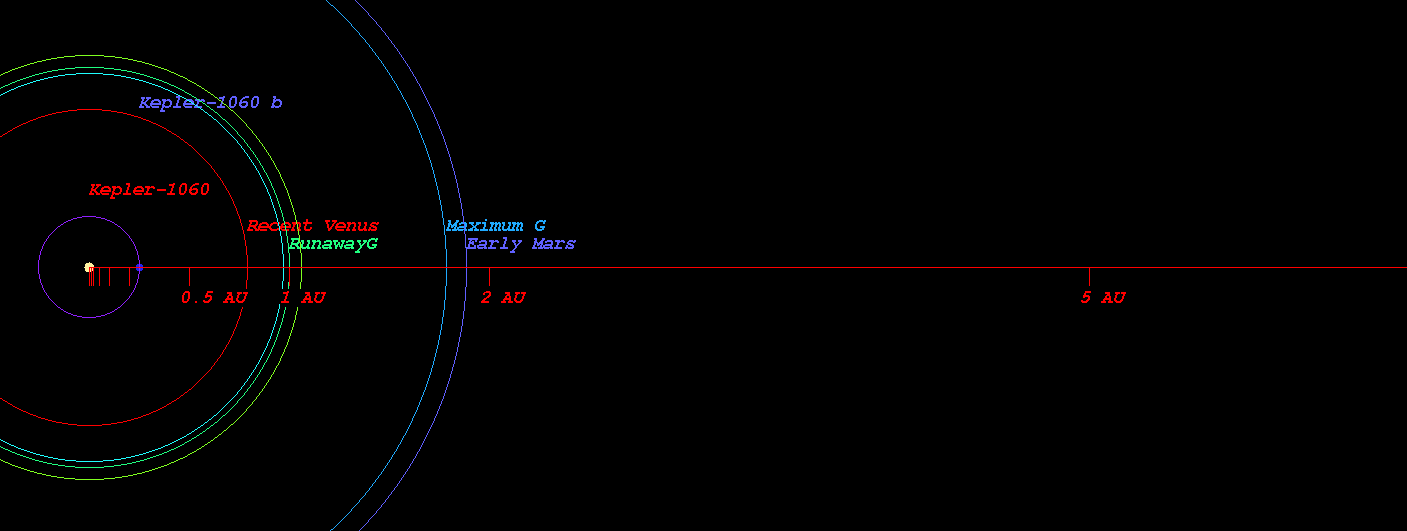

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-1060)



  • Kopparapu Recent Venus for Star Kepler-1060 distance : 0.793 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-1060 distance : 1.005 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-1060 distance : 0.970 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-1060 distance : 1.064 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1060 distance : 1.788 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-1060 distance : 1.886 AU

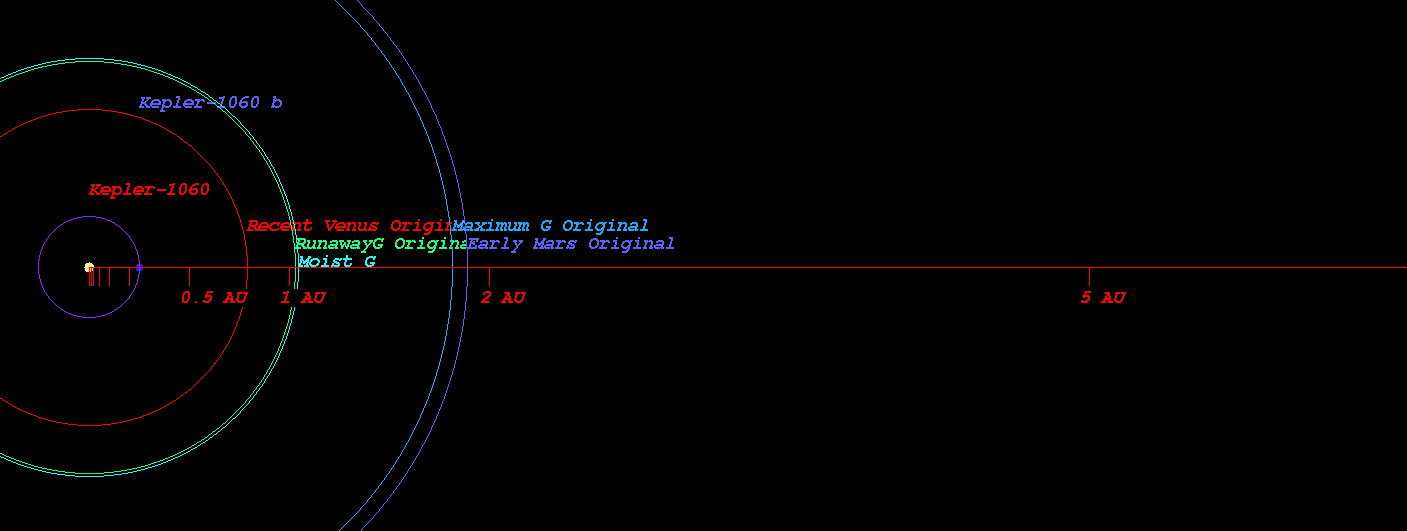

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-1060)



  • Original Kopparapu Recent Venus for Star Kepler-1060 distance : 0.790 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-1060 distance : 1.033 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-1060 distance : 1.046 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-1060 distance : 1.819 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-1060 distance : 1.892 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-1060)



    (Position in Stellar Map of star Kepler-1060 and its Exoplanet Kepler-1060 b)

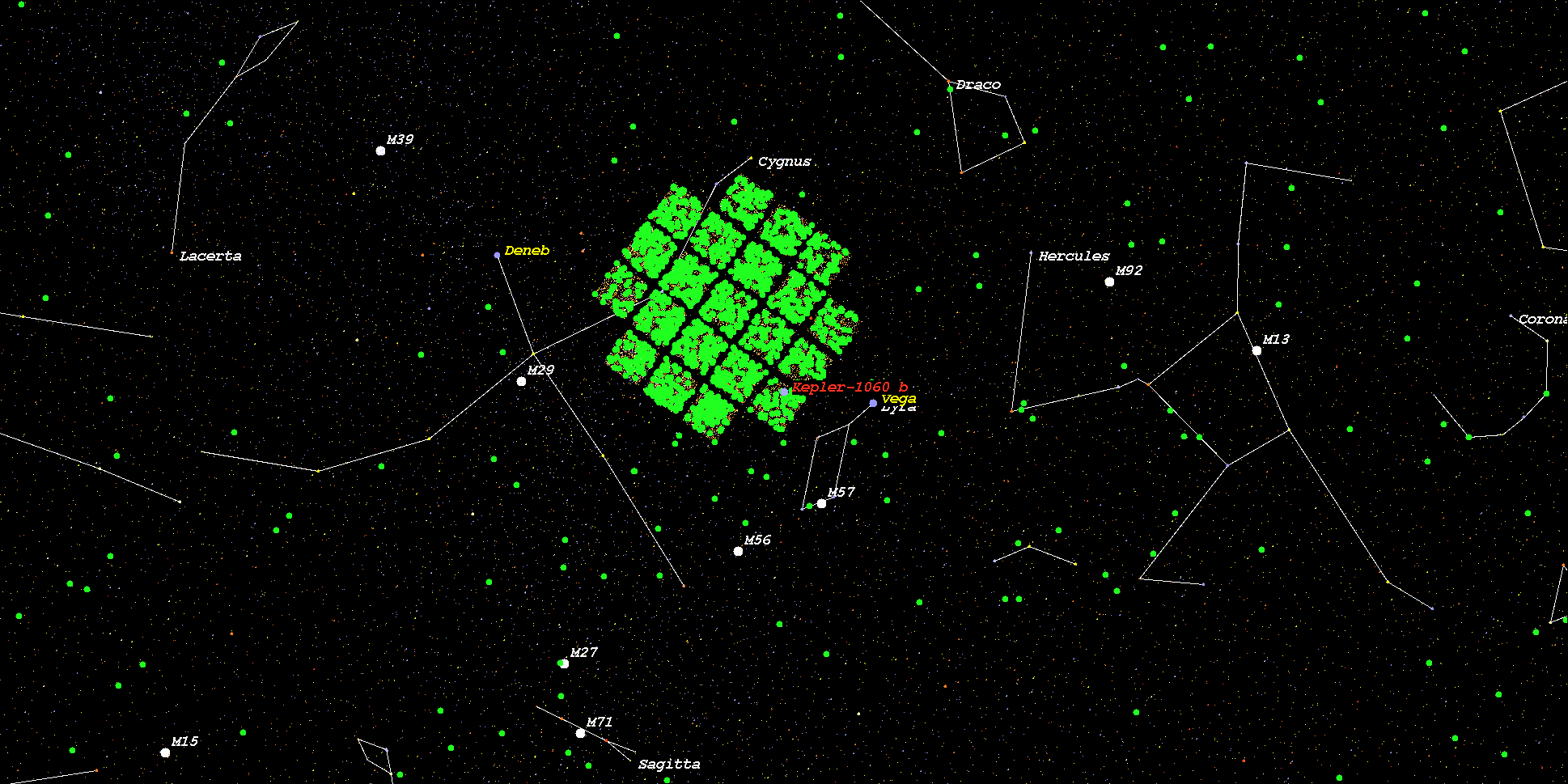

    (Zoomed position in Stellar Map of star Kepler-1060 and its Exoplanet Kepler-1060 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-1060*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
