Imaginary Picture of Kepler-100 d

Display orbital revolution of Kepler-100 d around the hoststar Kepler-100
/
Exoplanet Name : Kepler-100 d
Alternate Name : "2MASS J19253263+4159249 d, K00041.03, KIC 6521045 d, KOI-41 d, KOI-41.03, WISE J192532.66+415924.6 d"
Status : Confirmed
Radius (Rjup / Re): 0.1440 (Rjup) 1.6141 (Rearth)
Mass (Mjup / Me): 0.0094 (Mjup) 3.0013 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.2162 (AU Est.)
Eccentricity : 0.3800
Orbital Period(Yrs) 0.0967
Orbital Period(Observed/Estimated) 35.33 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.1520
Star Radiation at Atmospheric Boundary: 72403.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 732.1 (K)
Blackbody T 0.3(K) 687.5 (K)
Blackbody T 0.7(K) 556.3 (K)
Tidally Locked Blackbody T 0.1(K) 870.6 (K)
Tidally Locked Blackbody T 0.3(K) 817.6 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-100
Alternate Name : "KOI-41, 2MASS J19253263+4159249, KIC 6521045, WISE J192532.66+415924.6"
Star Distance(LY) : 1035.4
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 6.5 (GY)
Temperature : 5854 (K)
Spectral type : G2
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.0
Absolute Magnitude: 2.6
Apparent Magnitude: 10.1
Right Ascension(RA) 291.3860
Declination (DEC) 41.9903
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Geoffrey W. Marcy, Howard Isaacson, Andrew W. Howard et al. The Astrophysical Journal, Supplement Series 210:20(70pp) 2014 February, doi:10.1088/0067-0049/210/2/20"
Discovery Paper - Title "Masses, Radii, and Orbits of Small Kepler Planets: The Transition from Gaseous to Rocky Planets"
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-100%20d/
Kepler-100 d
Kepler-100 d

  • Kepler-100 d is an exoplanet orbiting the star Kepler-100, located about 1035.4 light-years (317.5 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star Kepler-100 has apparent magnitude of 10.1, with absolute magnitude of 2.6.
  • It is 1.1 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 5854 with its spectral types of G2
  • In this planetary system, the extrasolar planet Kepler-100 d orbits around the star Kepler-100 every 35.3 days with its orbital distance of 0.22 AU ( 32344045.7 km)

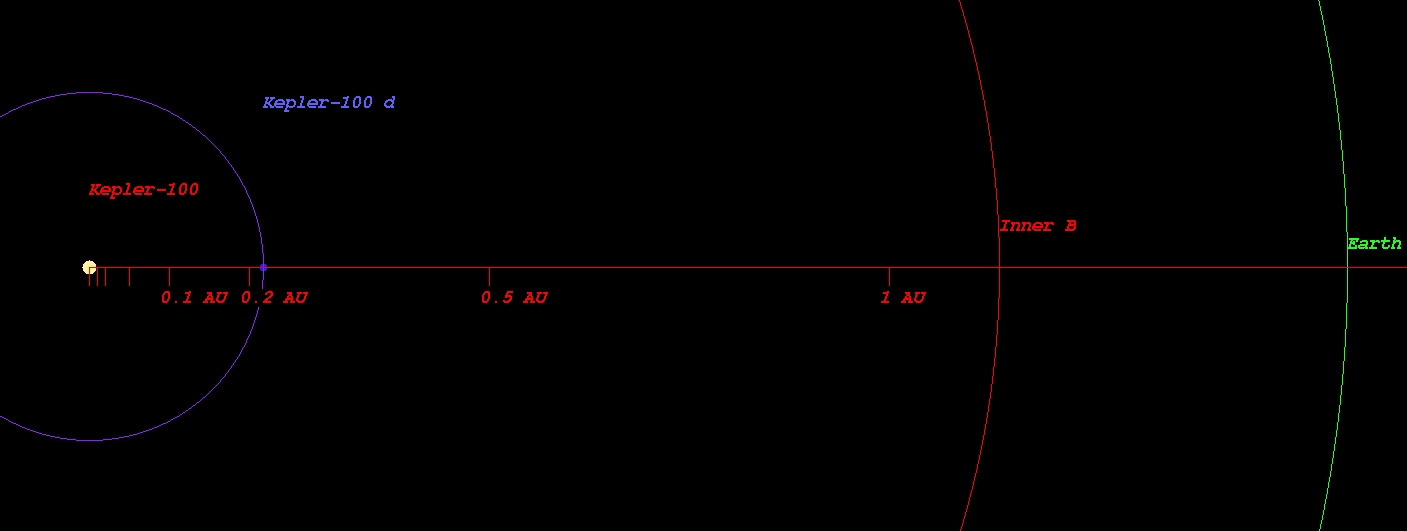

  • (Projected orbit of Kepler-100 d around its host star Kepler-100)


  • The Star Kepler-100 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.138 AU ( 170257284.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.573 AU ( 235340061.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.397 AU ( 358606172.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.527 AU ( 527704692.9 km)
  • Radiation at Planetary Boundary of Kepler-100 d : 72403.93 W/m2

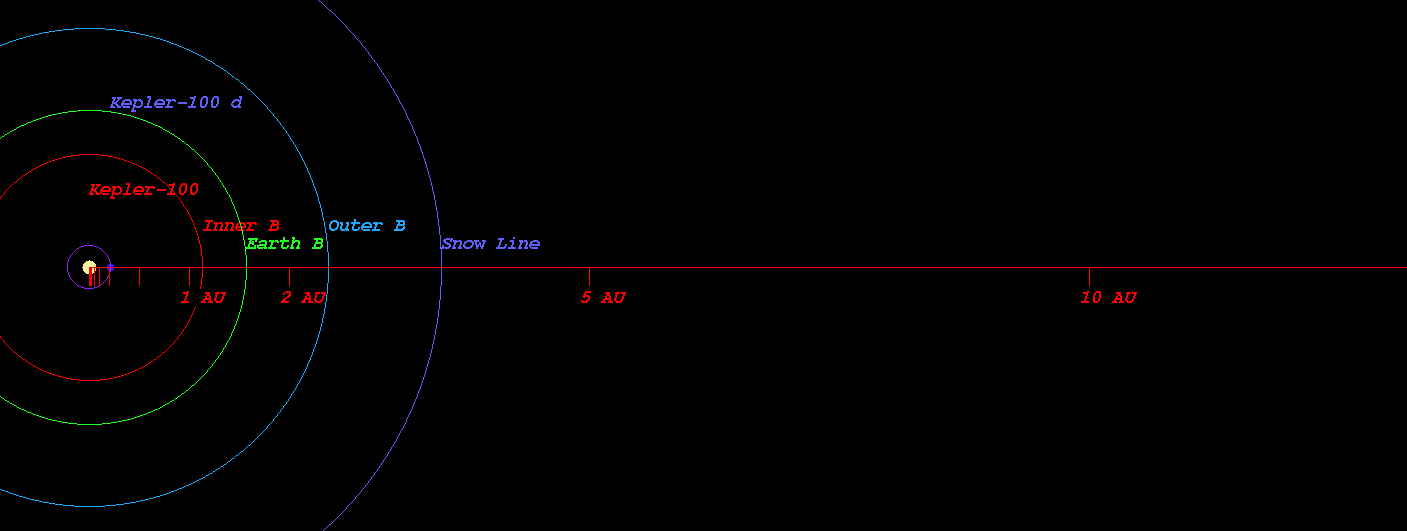

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-100)



  • Kopparapu Recent Venus for Star Kepler-100 distance : 1.174 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-100 distance : 1.487 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-100 distance : 1.436 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-100 distance : 1.574 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-100 distance : 2.621 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-100 distance : 2.764 AU

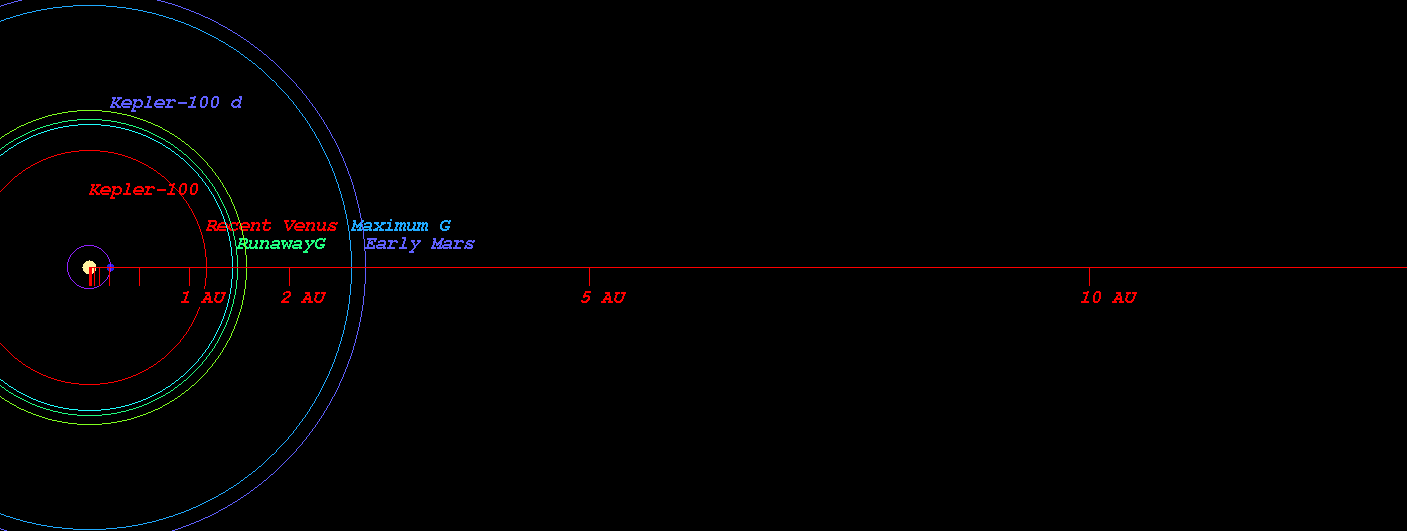

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-100)



  • Original Kopparapu Recent Venus for Star Kepler-100 distance : 1.178 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-100 distance : 1.528 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-100 distance : 1.558 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-100 distance : 2.667 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-100 distance : 2.773 AU

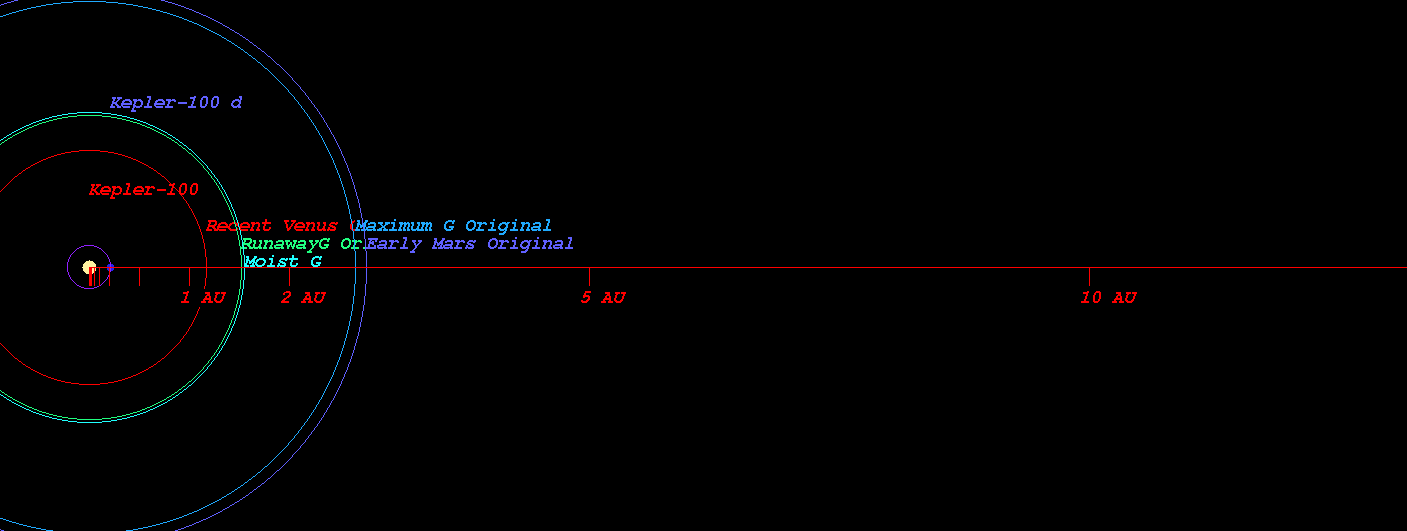

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-100)



    (Position in Stellar Map of star Kepler-100 and its Exoplanet Kepler-100 d)

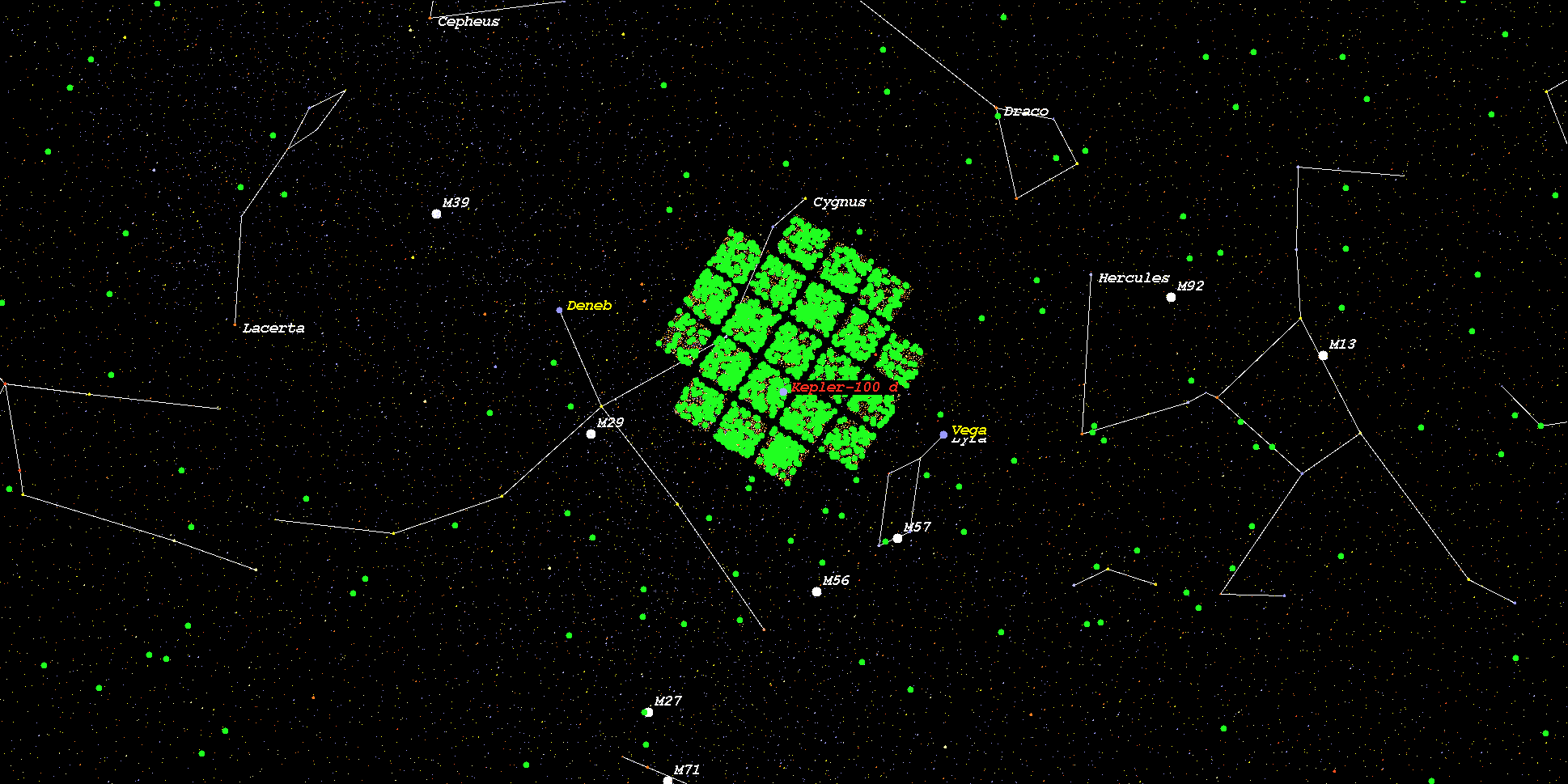

    (Zoomed position in Stellar Map of star Kepler-100 and its Exoplanet Kepler-100 d (zoom level 3))

    (Synthetic Spectrum of star Kepler-100*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
