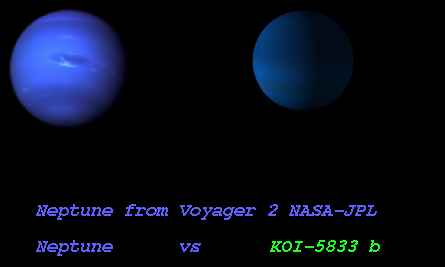

Imaginary Picture of KOI-5833 b

Display orbital revolution of KOI-5833 b around the hoststar KOI-5833
/
Exoplanet Name : KOI-5833 b
Alternate Name :
Status : Candidate
Radius (Rjup / Re): 0.3100 (Rjup) 3.4748 (Rearth)
Mass (Mjup / Me): 0.0264 (Mjup) 8.4019 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 1.1248 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 1.2051
Orbital Period(Observed/Estimated) 440.17 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 0.6959
Star Radiation at Atmospheric Boundary: 1504.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 278.0 (K)
Blackbody T 0.3(K) 261.0 (K)
Blackbody T 0.7(K) 211.2 (K)
Tidally Locked Blackbody T 0.1(K) 330.6 (K)
Tidally Locked Blackbody T 0.3(K) 310.4 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Habitable
Habitability by Kopparapu: Not habitable
Star Name : KOI-5833
Alternate Name :
Star Distance(LY) : 0.0
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 6277 (K)
Spectral type : F8
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : -0.5
Absolute Magnitude: 25.0
Apparent Magnitude: 13.4
Right Ascension(RA) 286.5912
Declination (DEC) 48.2203
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=KOI-5833+&submit=SIMBAD+search
Open Exoplanet Database Link 0
KOI-5833 b
KOI-5833 b

  • KOI-5833 b is an exoplanet orbiting the star KOI-5833. Its discovery was publicly announced on 2015.
  • The host star KOI-5833 has apparent magnitude of 13.4, with absolute magnitude of 25.0.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 6277 with its spectral types of F8
  • In this planetary system, the extrasolar planet KOI-5833 b orbits around the star KOI-5833 every 440.2 days with its orbital distance of 1.12 AU ( 168274744.8 km)
  • (Projected orbit of KOI-5833 b around its host star KOI-5833)


  • The Star KOI-5833 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.854 AU ( 127691612.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.180 AU ( 176503177.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.798 AU ( 268951782.7 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.646 AU ( 395774330.2 km)
  • Radiation at Planetary Boundary of KOI-5833 b : 1504.62 W/m2

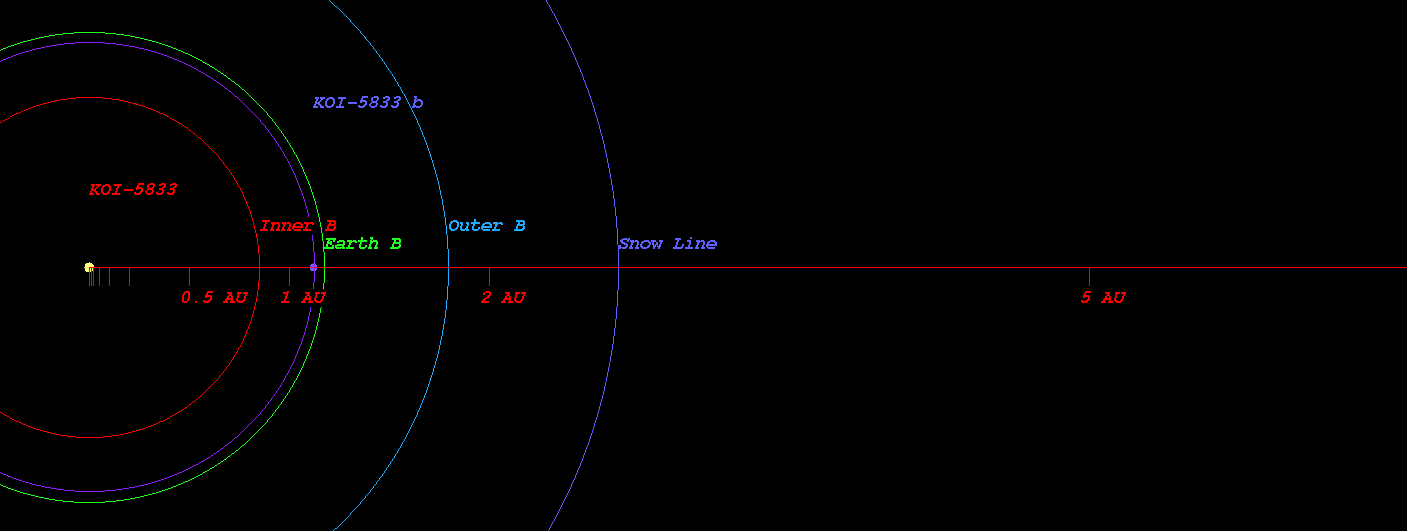

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star KOI-5833)



  • Kopparapu Recent Venus for Star KOI-5833 distance : 0.858 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star KOI-5833 distance : 1.087 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star KOI-5833 distance : 1.050 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star KOI-5833 distance : 1.150 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star KOI-5833 distance : 1.898 AU
  • Kopparapu Outer Boundary for Early Mars for Star KOI-5833 distance : 2.002 AU

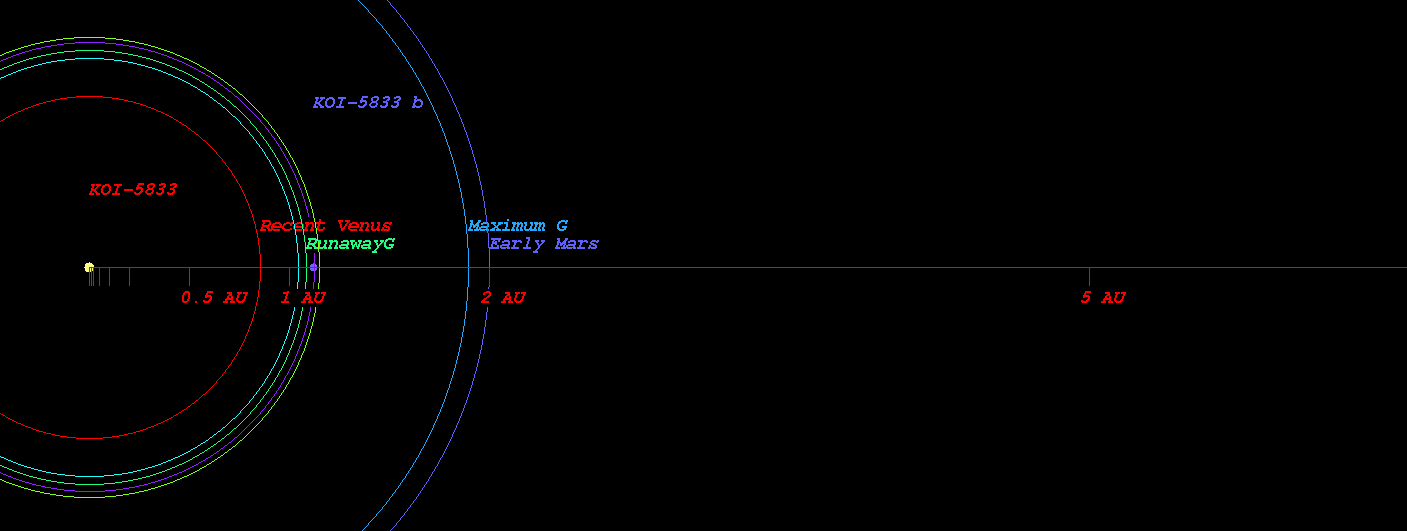

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star KOI-5833)



  • Original Kopparapu Recent Venus for Star KOI-5833 distance : 0.869 AU
  • Original Kopparapu Runaway Greenhouse for Star KOI-5833 distance : 1.115 AU
  • Original Kopparapu Moist Greenhouse for Star KOI-5833 distance : 1.149 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star KOI-5833 distance : 1.932 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star KOI-5833 distance : 2.009 AU

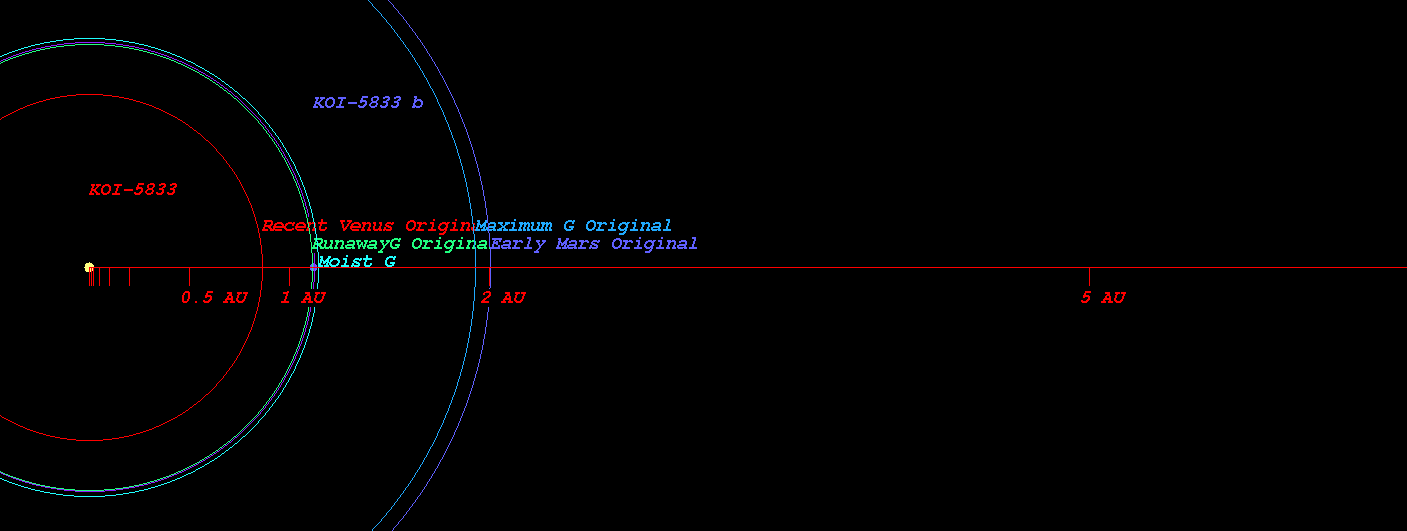

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star KOI-5833)

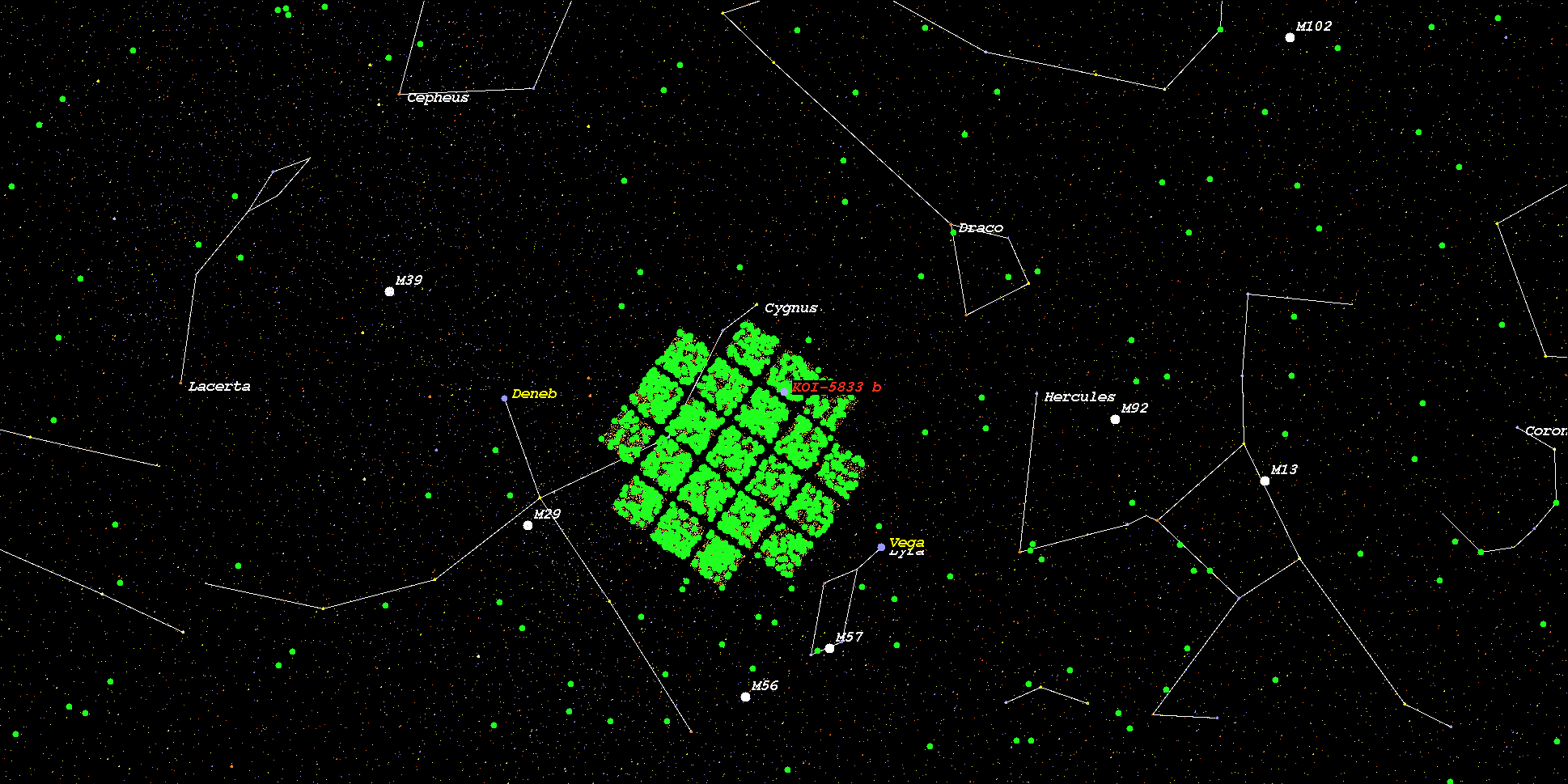

    (Position in Stellar Map of star KOI-5833 and its Exoplanet KOI-5833 b)



    (Zoomed position in Stellar Map of star KOI-5833 and its Exoplanet KOI-5833 b (zoom level 3))

    (Synthetic Spectrum of star KOI-5833*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
