Imaginary Picture of KOI-192 b

Display orbital revolution of KOI-192 b around the hoststar KOI-192
/
Exoplanet Name : KOI-192 b
Alternate Name : Kepler-4ee b
Radius (Rjup / Re): 1.2300 (Rjup) 13.7871 (Rearth)
Mass (Mjup / Me): 0.2900 (Mjup) 92.2020 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0910 (AU) 0.0910 (AU Est.)
Eccentricity : 0.5700
Orbital Period(Yrs) 0.0282
Orbital Period(Observed/Estimated) 10.29 (Days Obs.) 10.23 (Days Est.)
Star Radiation at Atmospheric Boundary: 305422.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1049.2 (K)
Blackbody T 0.3(K) 985.3 (K)
Blackbody T 0.7(K) 797.2 (K)
Tidally Locked Blackbody T 0.1(K) 1247.7 (K)
Tidally Locked Blackbody T 0.3(K) 1171.8 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : KOI-192
Alternate Name :
Star Distance(LY) : 3587.7
Stellar Radius(Rsun) : 1.4 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 7.0 (GY)
Temperature : 5800 (K)
Spectral type : G2V
Metalicity : -0.2
Absolute Magnitude: 4.3
Apparent Magnitude: 14.5
Right Ascension(RA) 288.2546
Declination (DEC) 43.7050
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "G. Hebrard, A. Santerne, G. Montagnier, G. Bruno, M. Deleuil, M. Havel, J.-M. Almenara, C. Damiani, S.C.C. Barros, A.S. Bonomo, F. Bouchy, R.F. Diaz, C. Moutou"
Discovery Paper - Title "Characterization of the four new transiting planets KOI-188b, KOI-195b, KOI-192b, and KOI-830b"
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=KOI-192+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/KOI-192%20b/
KOI-192 b
KOI-192 b

  • KOI-192 b is an exoplanet orbiting the star KOI-192, located about 3587.7 light-years (1100.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star KOI-192 has apparent magnitude of 14.5, with absolute magnitude of 4.3.
  • It is 1.0 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 5800 with its spectral types of G2V
  • In this planetary system, the extrasolar planet KOI-192 b orbits around the star KOI-192 every 10.3 days with its orbital distance of 0.09 AU ( 13613406.2 km)

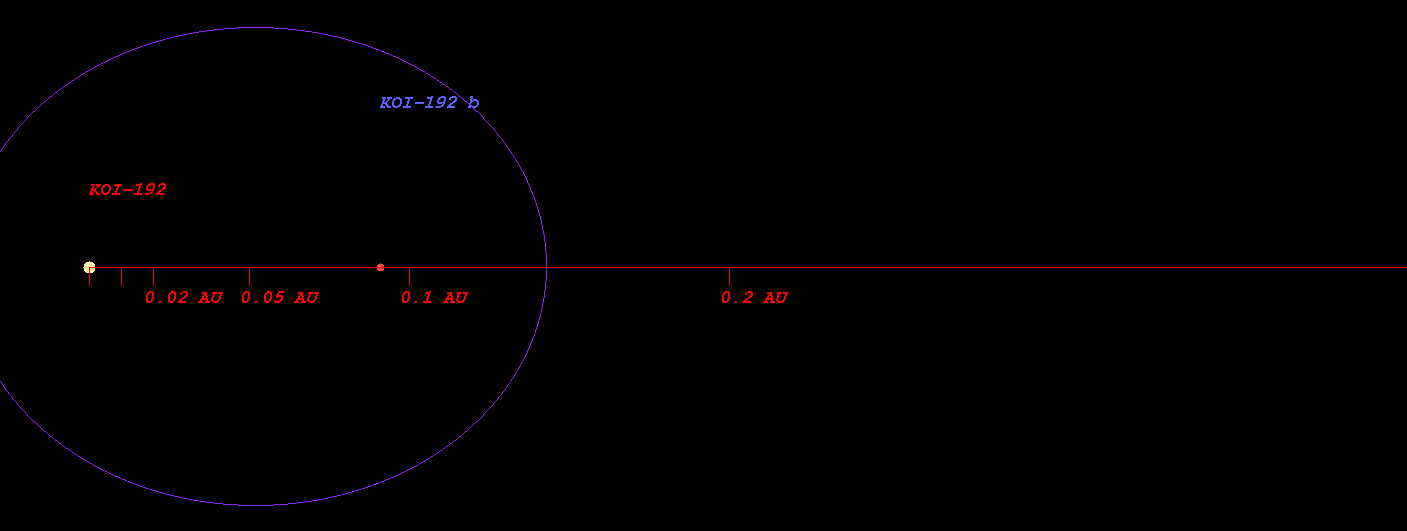

  • (Projected orbit of KOI-192 b around its host star KOI-192)


  • The Star KOI-192 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.984 AU ( 147179684.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.360 AU ( 203440786.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.072 AU ( 309998737.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.049 AU ( 456176722.9 km)
  • Radiation at Planetary Boundary of KOI-192 b : 305422.86 W/m2

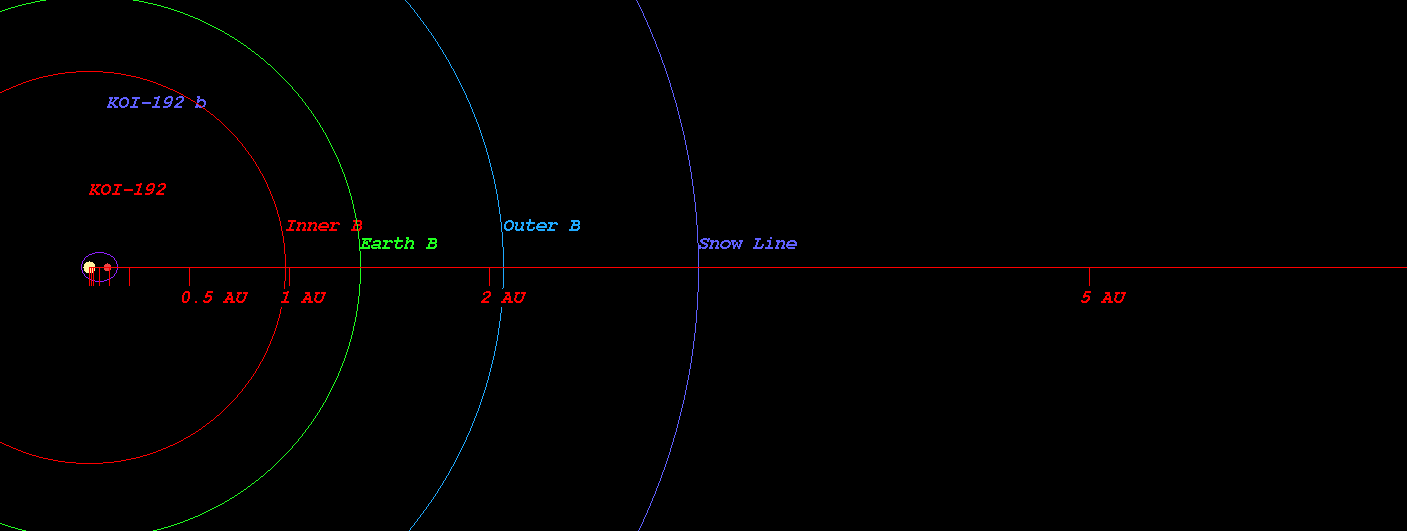

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star KOI-192)



  • Kopparapu Recent Venus for Star KOI-192 distance : 1.018 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star KOI-192 distance : 1.290 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star KOI-192 distance : 1.245 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star KOI-192 distance : 1.365 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star KOI-192 distance : 2.276 AU
  • Kopparapu Outer Boundary for Early Mars for Star KOI-192 distance : 2.401 AU

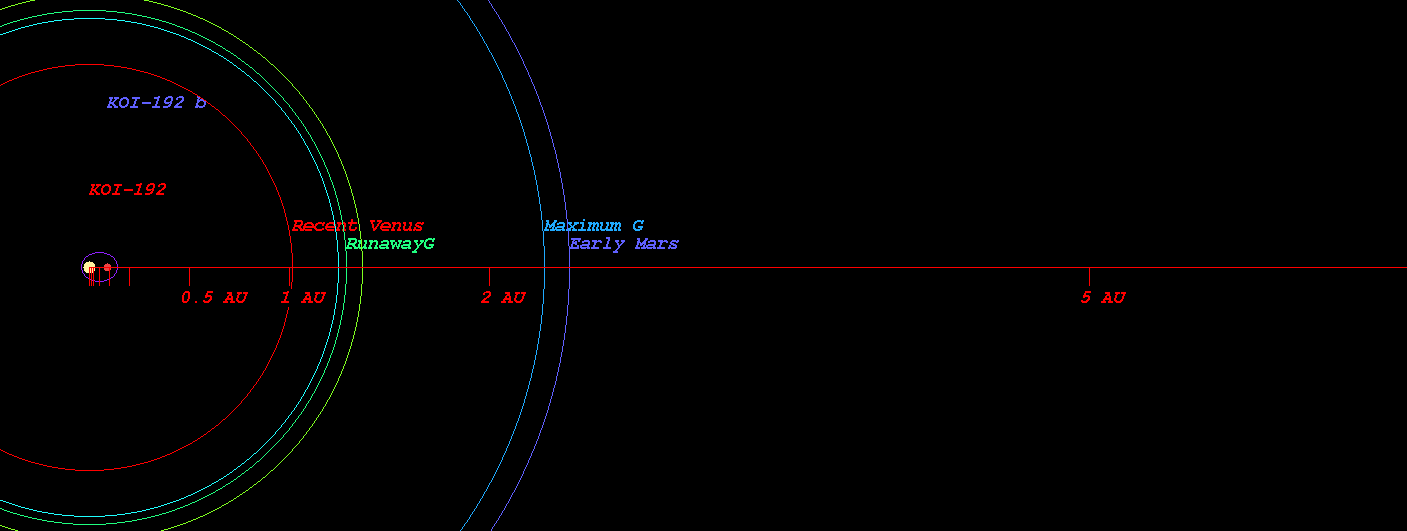

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star KOI-192)



  • Original Kopparapu Recent Venus for Star KOI-192 distance : 1.020 AU
  • Original Kopparapu Runaway Greenhouse for Star KOI-192 distance : 1.325 AU
  • Original Kopparapu Moist Greenhouse for Star KOI-192 distance : 1.350 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star KOI-192 distance : 2.316 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star KOI-192 distance : 2.408 AU

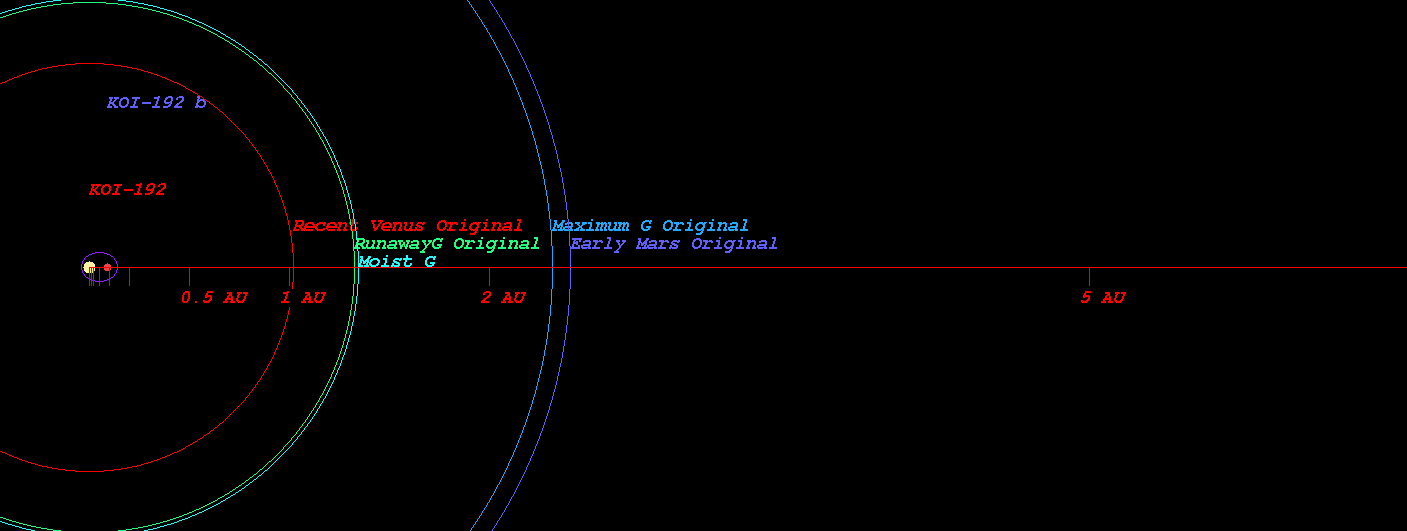

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star KOI-192)

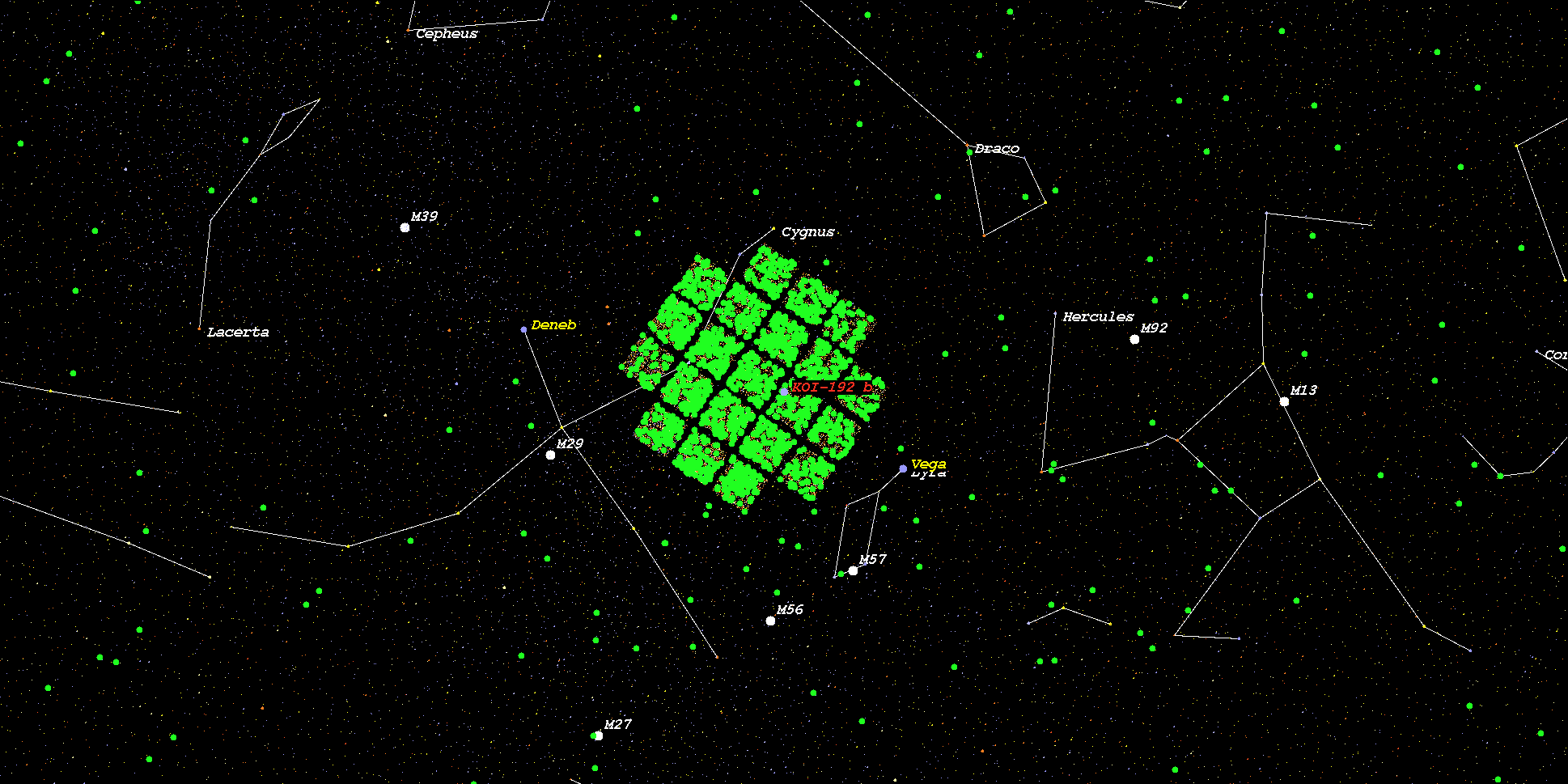

    (Position in Stellar Map of star KOI-192 and its Exoplanet KOI-192 b)



    (Zoomed position in Stellar Map of star KOI-192 and its Exoplanet KOI-192 b (zoom level 3))
