Imaginary Picture of KIC 9662267 b

Display orbital revolution of KIC 9662267 b around the hoststar KIC 9662267
/
Exoplanet Name : KIC 9662267 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.3400 (Rjup) 3.8111 (Rearth)
Mass (Mjup / Me): 0.0288 (Mjup) 9.1556 (Mearth)
Semi Major Axis / Orbital Distance Calculated 1.1200 (AU) 1.1200 (AU Est.)
Eccentricity : 0.1100
Orbital Period(Yrs) 1.2764
Orbital Period(Observed/Estimated) 466.20 (Days Obs.) 466.84 (Days Est.)
Surface Gravity (G Earth) 0.6304
Star Radiation at Atmospheric Boundary: 762.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 234.5 (K)
Blackbody T 0.3(K) 220.3 (K)
Blackbody T 0.7(K) 178.2 (K)
Tidally Locked Blackbody T 0.1(K) 278.9 (K)
Tidally Locked Blackbody T 0.3(K) 261.9 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Habitable
Habitability by Kopparapu: Not habitable
Star Name : KIC 9662267
Alternate Name :
Star Distance(LY) : 3715.2
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5602 (K)
Spectral type : G6
UV portion[%]: 7.3
Visible portion[%]: 43.9
IR portion[%]: 48.8
Metalicity : -0.0
Absolute Magnitude: 5.0
Apparent Magnitude: 15.3
Right Ascension(RA) 296.7928
Declination (DEC) 46.3500
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=KIC+9662267+&submit=SIMBAD+search
Open Exoplanet Database Link 0
KIC 9662267 b
KIC 9662267 b

  • KIC 9662267 b is an exoplanet orbiting the star KIC 9662267, located about 3715.2 light-years (1139.1 pc) away from Solar System. Its discovery was publicly announced on 2013.
  • The host star KIC 9662267 has apparent magnitude of 15.3, with absolute magnitude of 5.0.
  • It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5602 with its spectral types of G6
  • In this planetary system, the extrasolar planet KIC 9662267 b orbits around the star KIC 9662267 every 466.2 days with its orbital distance of 1.12 AU ( 167549615.2 km)
  • (Projected orbit of KIC 9662267 b around its host star KIC 9662267)


  • The Star KIC 9662267 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.605 AU ( 90517870.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.836 AU ( 125119352.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.274 AU ( 190654203.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.875 AU ( 280556012.9 km)
  • Radiation at Planetary Boundary of KIC 9662267 b : 762.64 W/m2

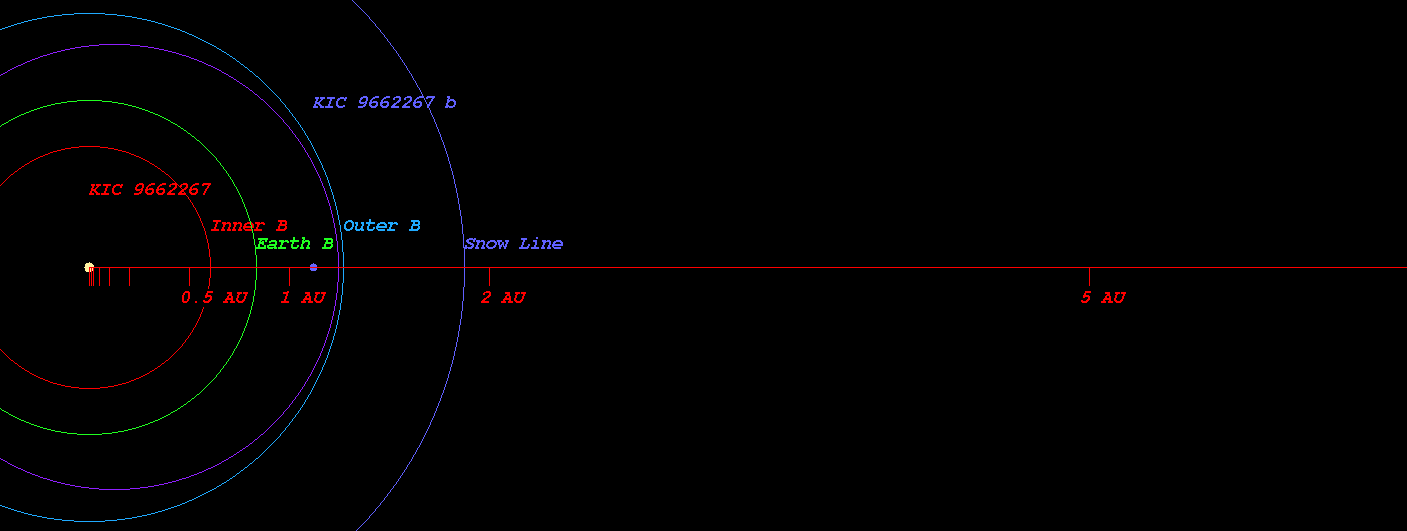

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star KIC 9662267)



  • Kopparapu Recent Venus for Star KIC 9662267 distance : 0.634 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star KIC 9662267 distance : 0.802 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star KIC 9662267 distance : 0.775 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star KIC 9662267 distance : 0.850 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star KIC 9662267 distance : 1.424 AU
  • Kopparapu Outer Boundary for Early Mars for Star KIC 9662267 distance : 1.502 AU

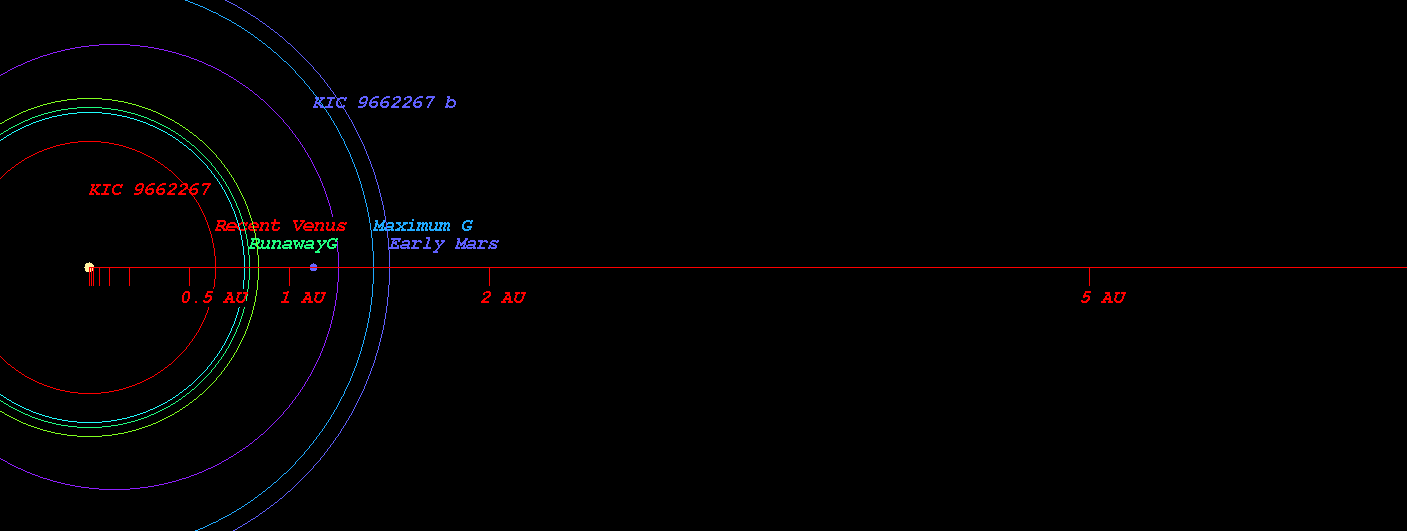

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star KIC 9662267)



  • Original Kopparapu Recent Venus for Star KIC 9662267 distance : 0.632 AU
  • Original Kopparapu Runaway Greenhouse for Star KIC 9662267 distance : 0.825 AU
  • Original Kopparapu Moist Greenhouse for Star KIC 9662267 distance : 0.837 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star KIC 9662267 distance : 1.449 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star KIC 9662267 distance : 1.507 AU

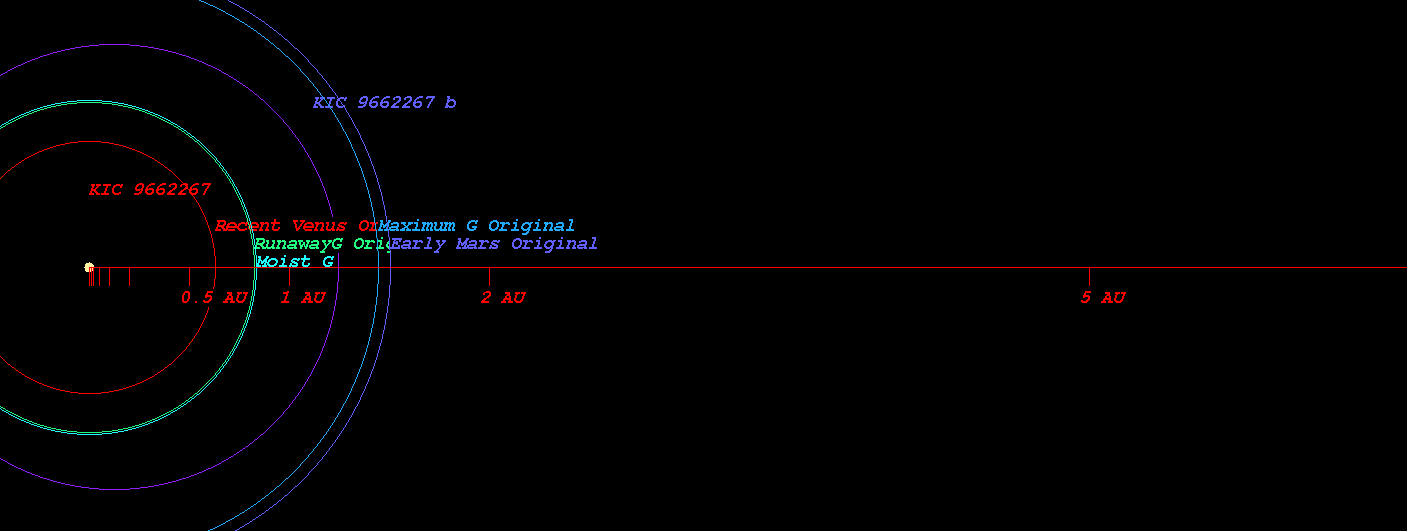

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star KIC 9662267)

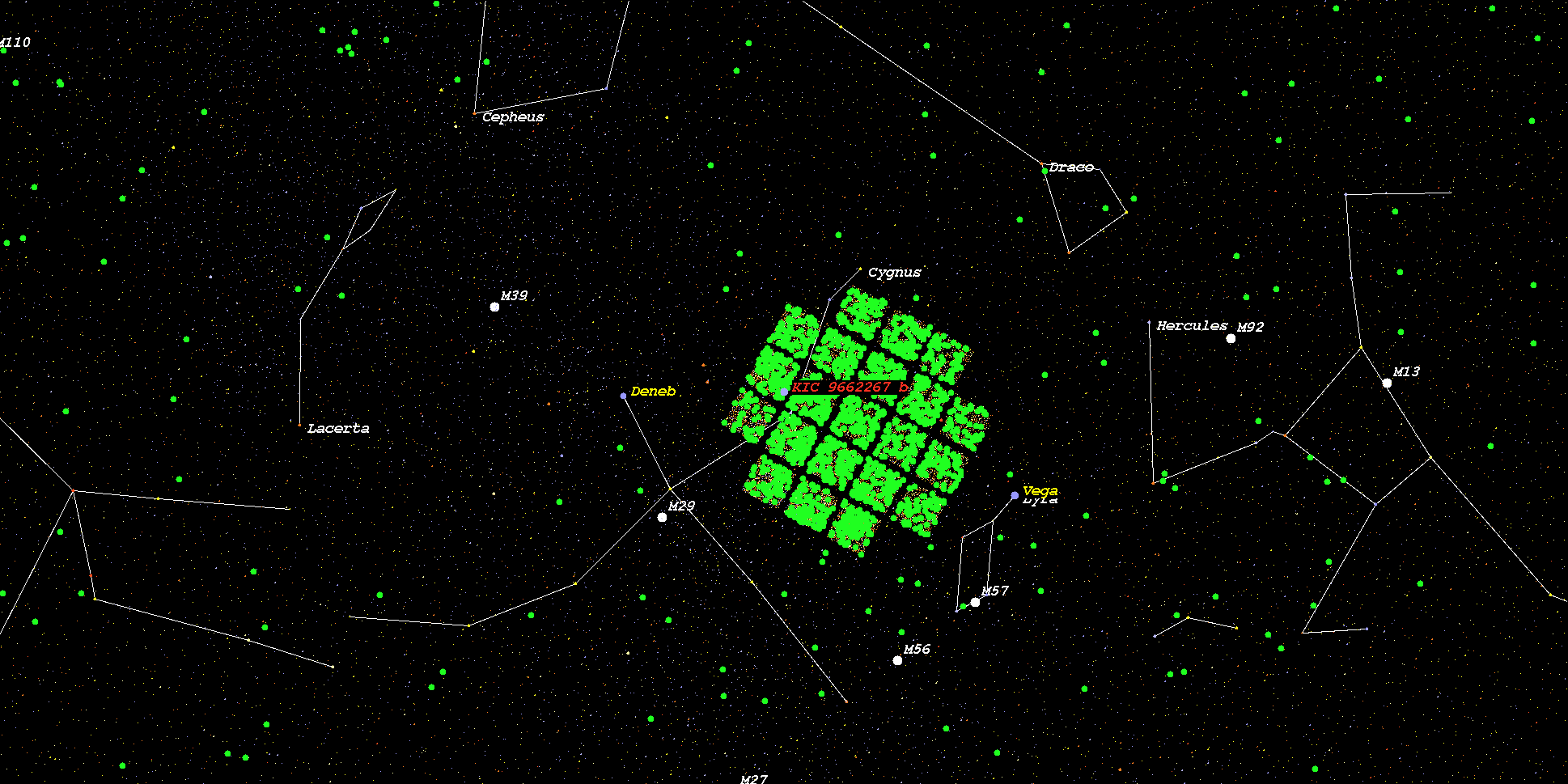

    (Position in Stellar Map of star KIC 9662267 and its Exoplanet KIC 9662267 b)



    (Zoomed position in Stellar Map of star KIC 9662267 and its Exoplanet KIC 9662267 b (zoom level 3))

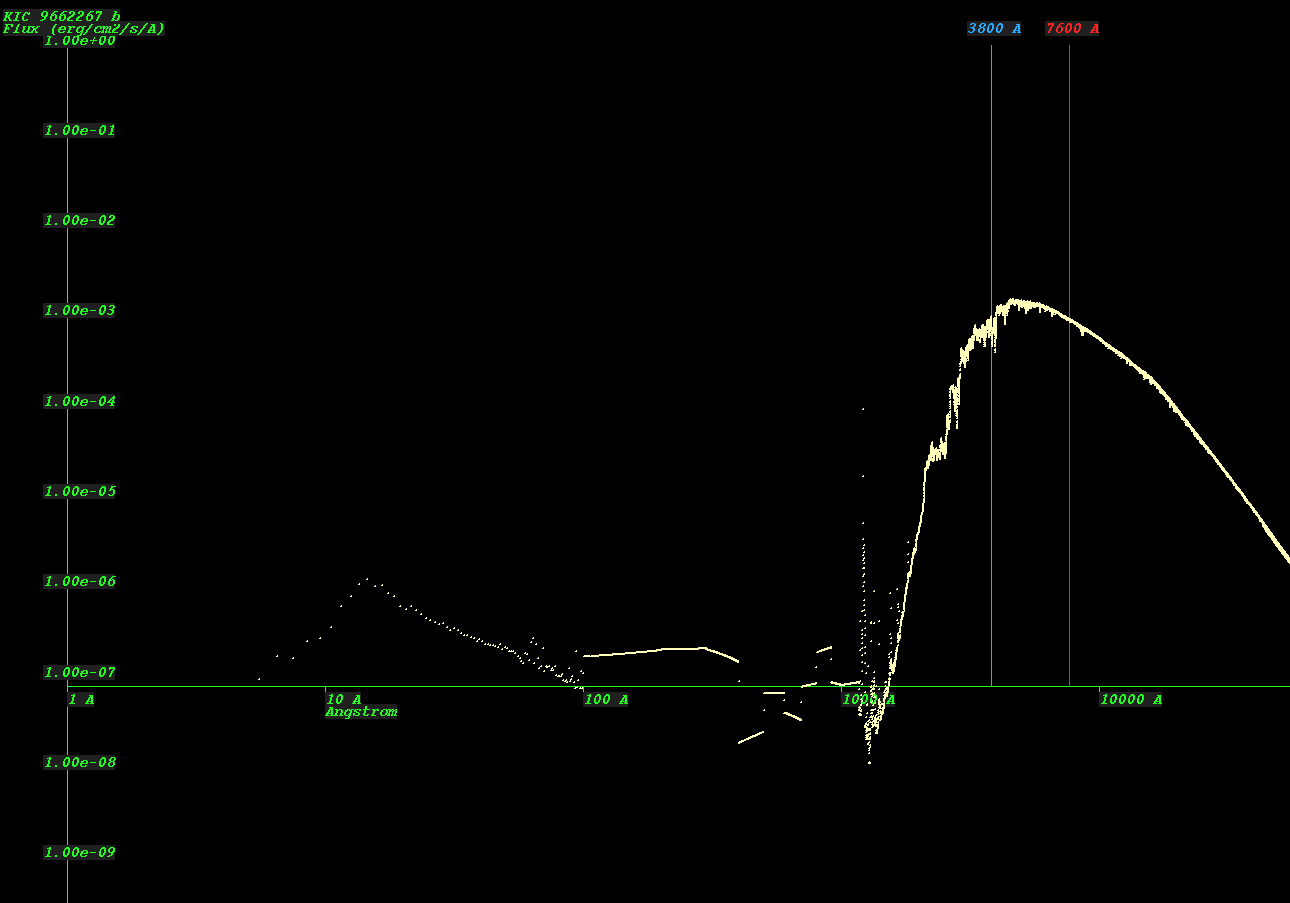

    (Synthetic Spectrum of star KIC 9662267*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
