Imaginary Picture of K2-136 d

Display orbital revolution of K2-136 d around the hoststar K2-136
/
Exoplanet Name : K2-136 d
Alternate Name : "EPIC 247589423 d, LP 358-348 d, K2-136 d, 2MASS J04293897+2252579 d, K2-136 A d, WISE J042939.05+225257.4 d"
Status : Confirmed
Radius (Rjup / Re): 0.1290 (Rjup) 1.4460 (Rearth)
Mass (Mjup / Me): 0.0117 (Mjup) 3.7201 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.1537 (AU Est.)
Eccentricity : 0.1400
Orbital Period(Yrs) 0.0700
Orbital Period(Observed/Estimated) 25.58 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.7793
Star Radiation at Atmospheric Boundary: 9269.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 437.9 (K)
Blackbody T 0.3(K) 411.3 (K)
Blackbody T 0.7(K) 332.8 (K)
Tidally Locked Blackbody T 0.1(K) 520.8 (K)
Tidally Locked Blackbody T 0.3(K) 489.1 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : K2-136
Alternate Name : "EPIC 247589423, LP 358-348, K2-136, 2MASS J04293897+2252579, EPIC 247589423 A, K2-136 A, LP 358-348 A, WISE J042939.05+
Star Distance(LY) : 193.6
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.7 (Msun Measured) 0.7 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 4499 (K)
Spectral type : K5.5
UV portion[%]: 1.6
Visible portion[%]: 31.1
IR portion[%]: 67.3
Metalicity : 0.1
Absolute Magnitude: 7.3
Apparent Magnitude: 11.2
Right Ascension(RA) 67.4125
Declination (DEC) 22.8827
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK
Open Exoplanet Database Link
K2-136 d
K2-136 d

  • K2-136 d is an exoplanet orbiting the star K2-136, located about 193.6 light-years (59.4 pc) away from Solar System. Its discovery was publicly announced on 2017.
  • The host star K2-136 has apparent magnitude of 11.2, with absolute magnitude of 7.3.
  • It is 0.7 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4499 with its spectral types of K5.5
  • In this planetary system, the extrasolar planet K2-136 d orbits around the star K2-136 every 25.6 days with its orbital distance of 0.15 AU ( 22987249.0 km)

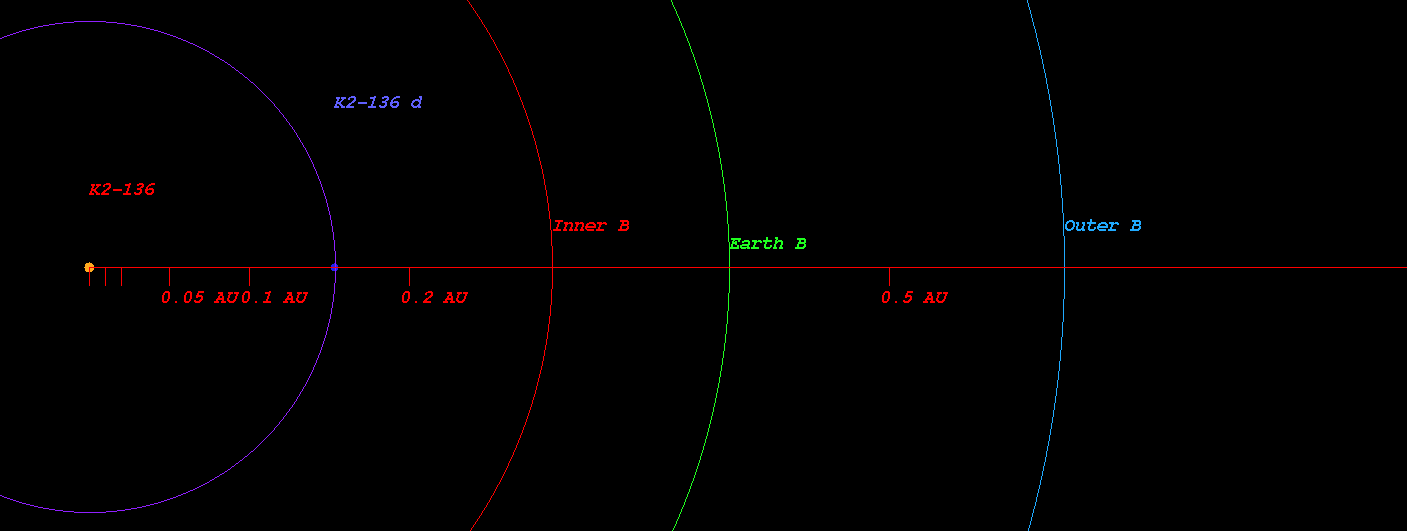

  • (Projected orbit of K2-136 d around its host star K2-136)


  • The Star K2-136 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.289 AU ( 43294630.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.400 AU ( 59844493.2 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.610 AU ( 91189764.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.897 AU ( 134189732.5 km)
  • Radiation at Planetary Boundary of K2-136 d : 9269.01 W/m2

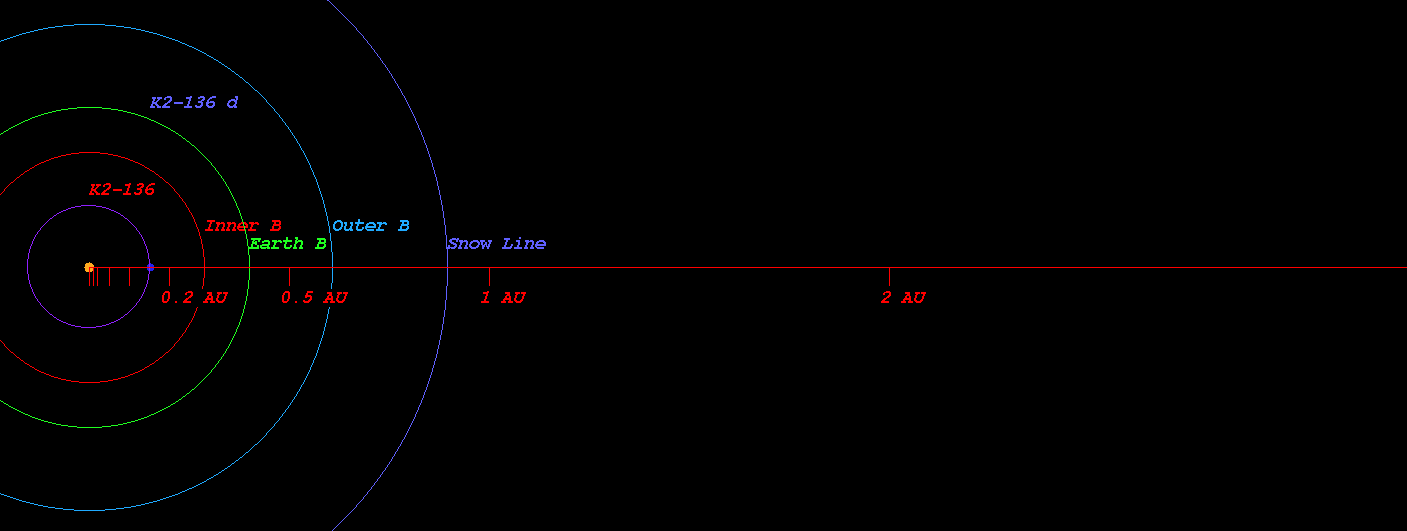

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star K2-136)



  • Kopparapu Recent Venus for Star K2-136 distance : 0.320 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star K2-136 distance : 0.405 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star K2-136 distance : 0.391 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star K2-136 distance : 0.429 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star K2-136 distance : 0.750 AU
  • Kopparapu Outer Boundary for Early Mars for Star K2-136 distance : 0.791 AU

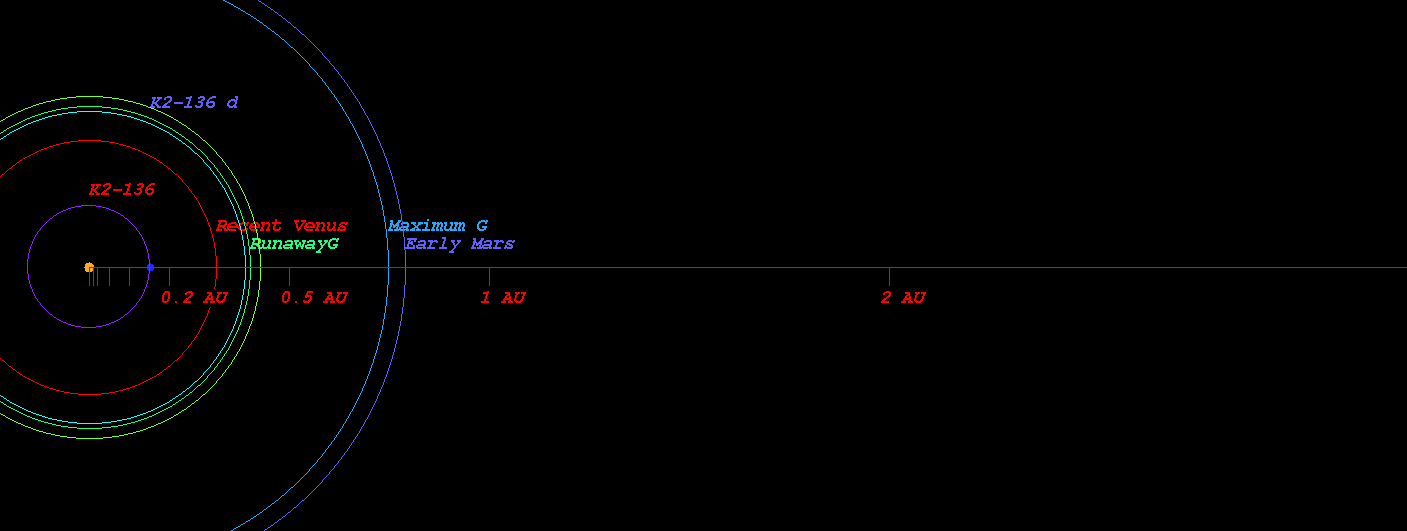

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star K2-136)



  • Original Kopparapu Recent Venus for Star K2-136 distance : 0.315 AU
  • Original Kopparapu Runaway Greenhouse for Star K2-136 distance : 0.418 AU
  • Original Kopparapu Moist Greenhouse for Star K2-136 distance : 0.417 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star K2-136 distance : 0.762 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star K2-136 distance : 0.792 AU

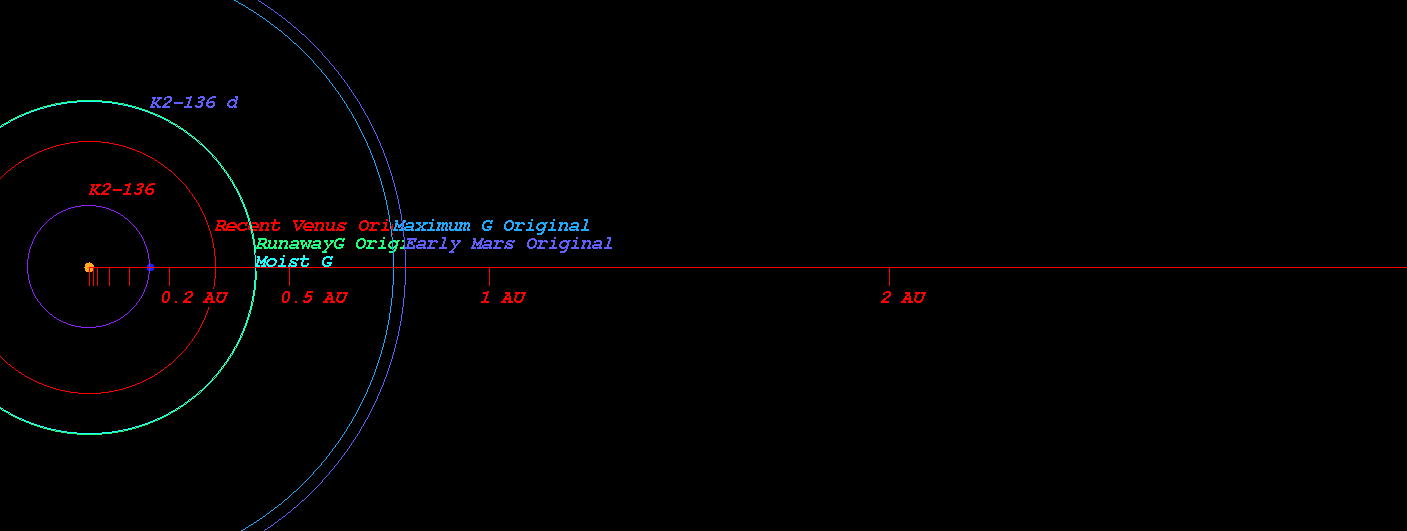

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star K2-136)

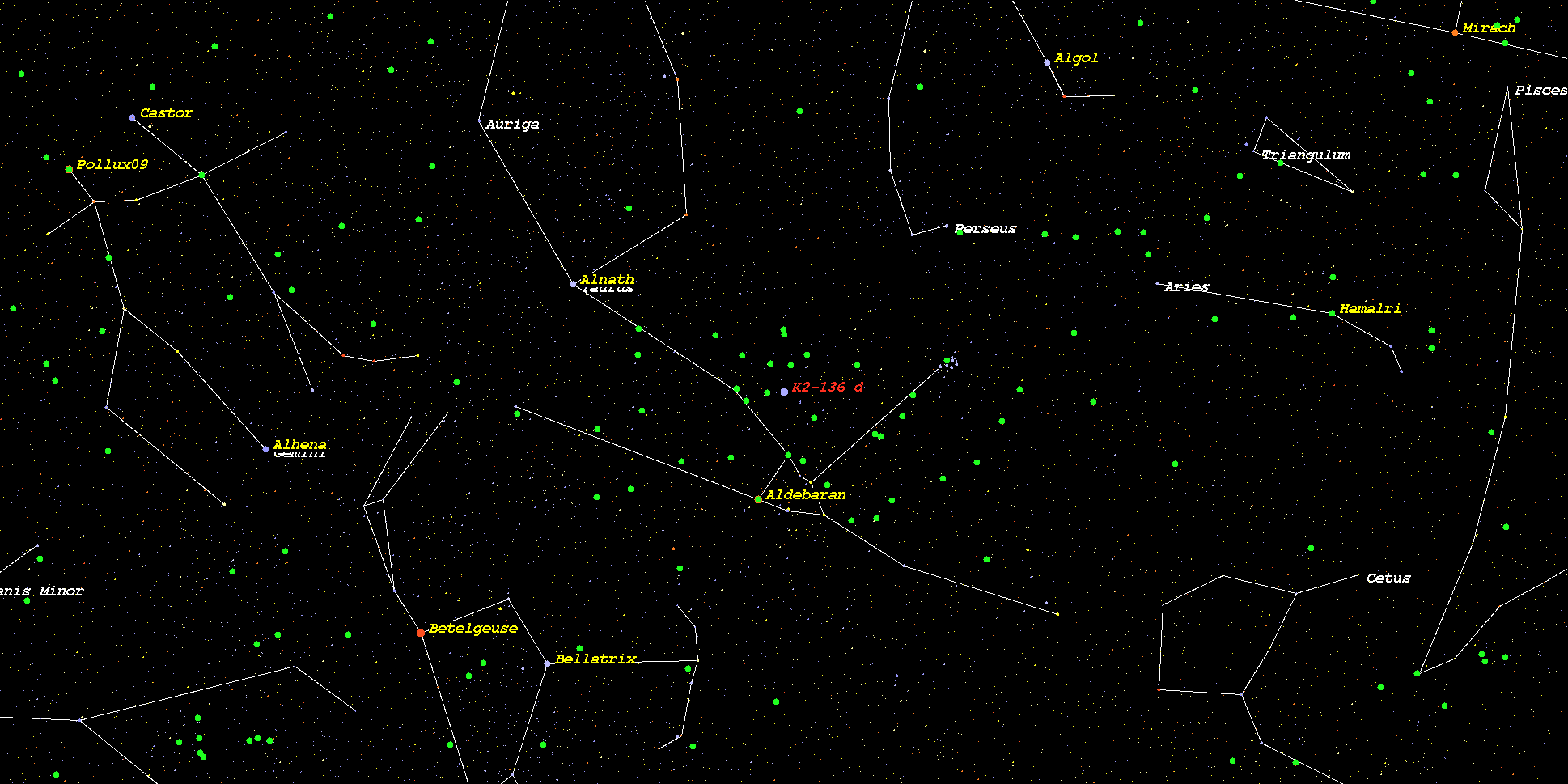

    (Position in Stellar Map of star K2-136 and its Exoplanet K2-136 d)



    (Zoomed position in Stellar Map of star K2-136 and its Exoplanet K2-136 d (zoom level 3))

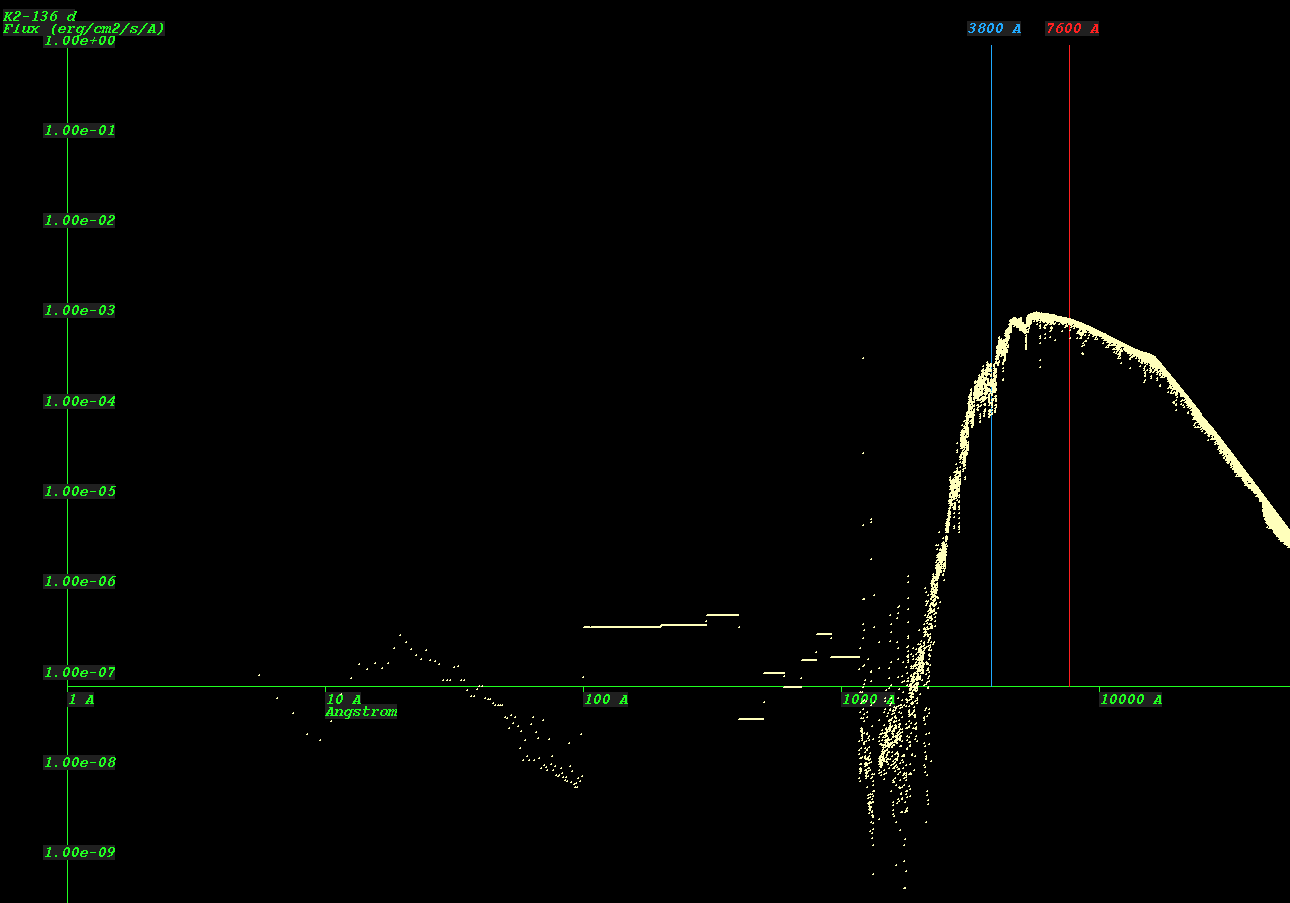

    (Synthetic Spectrum of star K2-136*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
