Exoplanet Name : |
HD 231701 b |
|
Alternate Name : |
|
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
0.9078 |
(Rjup) |
10.1759 |
(Rearth) |
|
Mass (Mjup / Me): |
1.0800 |
(Mjup) |
343.3730 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
0.5300 |
(AU) |
0.5300 |
(AU Est.) |
|
Eccentricity : |
0.0960 |
|
Orbital Period(Yrs) |
0.3885 |
|
Orbital Period(Observed/Estimated) |
141.89 |
(Days Obs.) |
131.99 |
(Days Est.) |
|
Surface Gravity (G Earth) |
3.3161 |
|
Star Radiation at Atmospheric Boundary: |
11817.5 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
465.3 |
(K) |
|
Blackbody T 0.3(K) |
437.0 |
(K) |
|
Blackbody T 0.7(K) |
353.6 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
553.4 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
519.7 |
(K) |
|
Size Class: |
Jupiter-size |
|
Mass Class: |
|
|
Detection Type : |
Radial Velocity |
|
Mass Detection : |
|
|
Radius Detection : |
|
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
HD 231701 |
|
Alternate Name : |
|
|
Star Distance(LY) : |
358.8 |
|
Stellar Radius(Rsun) : |
1.4 |
(Rsun Measured) |
|
Stellar Mass(Msun) : |
1.1 |
(Msun Measured) |
1.0 |
(Msun Estimated) |
|
Star Age : |
4.9 |
(GY) |
|
Temperature : |
6208 |
(K) |
|
Spectral type : |
F8V |
|
UV portion[%]: |
7.8 |
|
Visible portion[%]: |
44.8 |
|
IR portion[%]: |
47.4 |
|
Metalicity : |
0.1 |
|
Absolute Magnitude: |
3.8 |
|
Apparent Magnitude: |
9.0 |
|
Right Ascension(RA) |
293.0173 |
|
Declination (DEC) |
16.4742 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
01601-01129 |
|
Discovered by |
|
|
Discovery Paper - Authors |
0 |
|
Discovery Paper - Title |
|
|
Discovery Paper - Journal |
0 |
|
Discovery Paper - URL |
0 |
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+231701+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
http://www.openexoplanetcatalogue.com/planet/HD%20231701%20b/ |
 |
 |
 |
 |
/
HD 231701 b
HD 231701 b
HD 231701 b is an exoplanet orbiting the star HD 231701, located about 358.8 light-years (110.0 pc) away from Solar System. Its discovery was publicly announced on 2007.
The host star HD 231701 has apparent magnitude of 9.0, with absolute magnitude of 3.8. It is 1.1 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 6208 with its spectral types of F8V
In this planetary system, the extrasolar planet HD 231701 b orbits around the star HD 231701 every 141.9 days with its orbital distance of 0.53 AU ( 79286871.5 km)

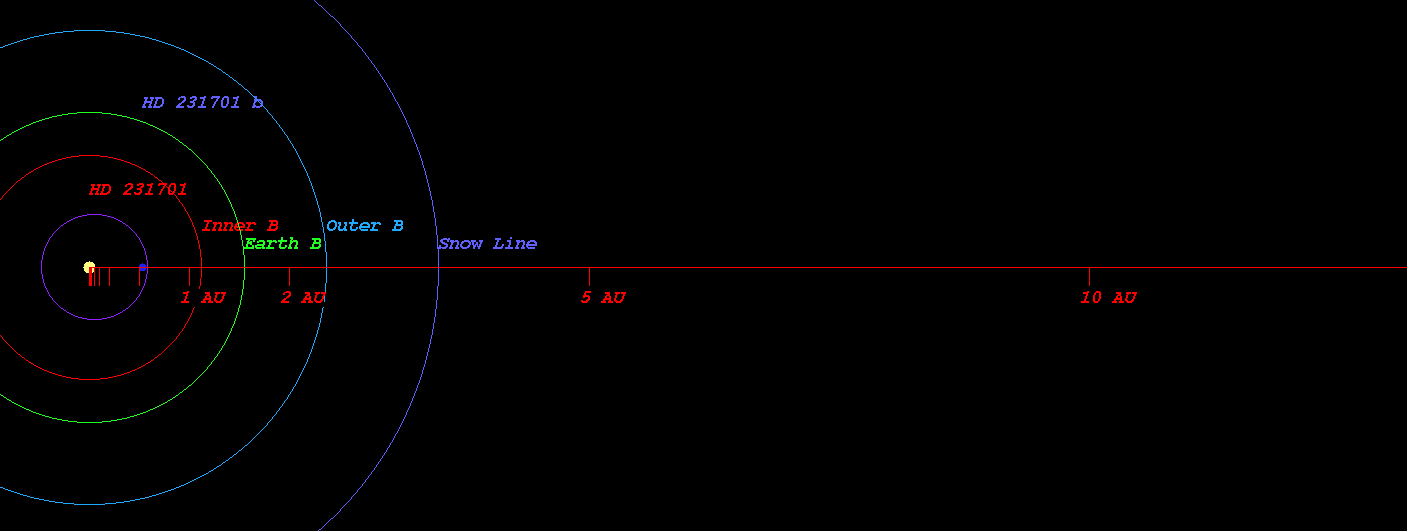

(Projected orbit of HD 231701 b around its host star HD 231701)
The Star HD 231701 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 1.127 AU ( 168614646.9 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 1.558 AU ( 233069506.3 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 2.374 AU ( 355146349.5 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 3.493 AU ( 522613411.2 km)
Radiation at Planetary Boundary of HD 231701 b : 11817.55 W/m2

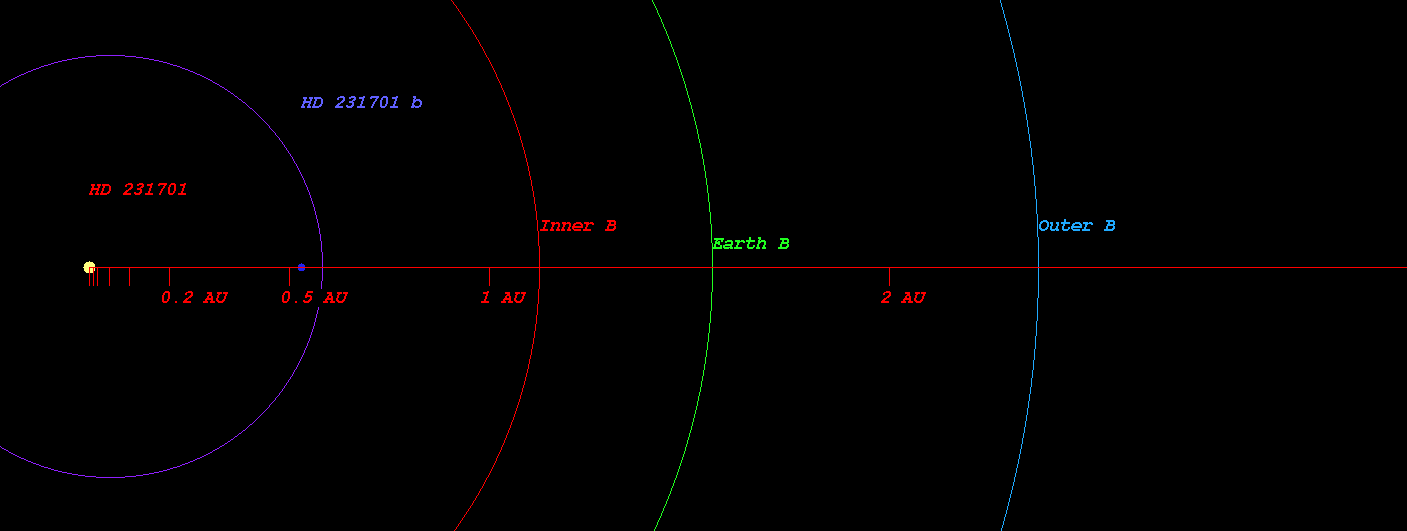

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 231701)
Kopparapu Recent Venus for Star HD 231701 distance : 1.138 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 231701 distance : 1.441 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 231701 distance : 1.392 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 231701 distance : 1.525 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 231701 distance : 2.520 AU
Kopparapu Outer Boundary for Early Mars for Star HD 231701 distance : 2.658 AU

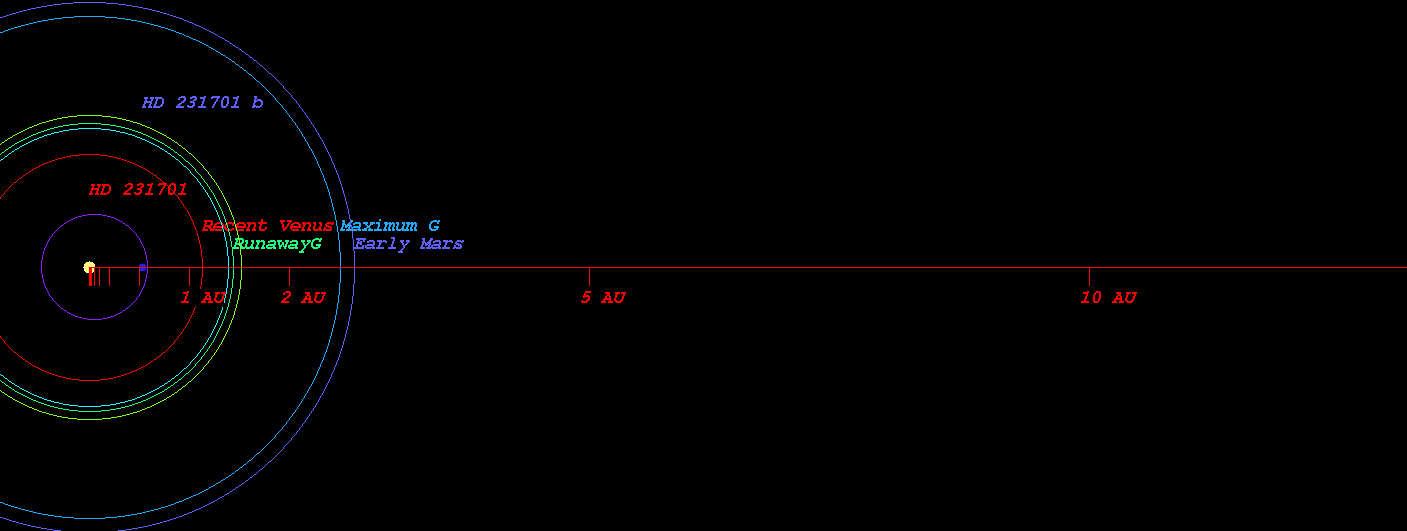

(Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 231701)
Original Kopparapu Recent Venus for Star HD 231701 distance : 1.150 AU
Original Kopparapu Runaway Greenhouse for Star HD 231701 distance : 1.479 AU
Original Kopparapu Moist Greenhouse for Star HD 231701 distance : 1.522 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 231701 distance : 2.565 AU
Original Kopparapu Outer Boundary for Early Mars for Star HD 231701 distance : 2.668 AU

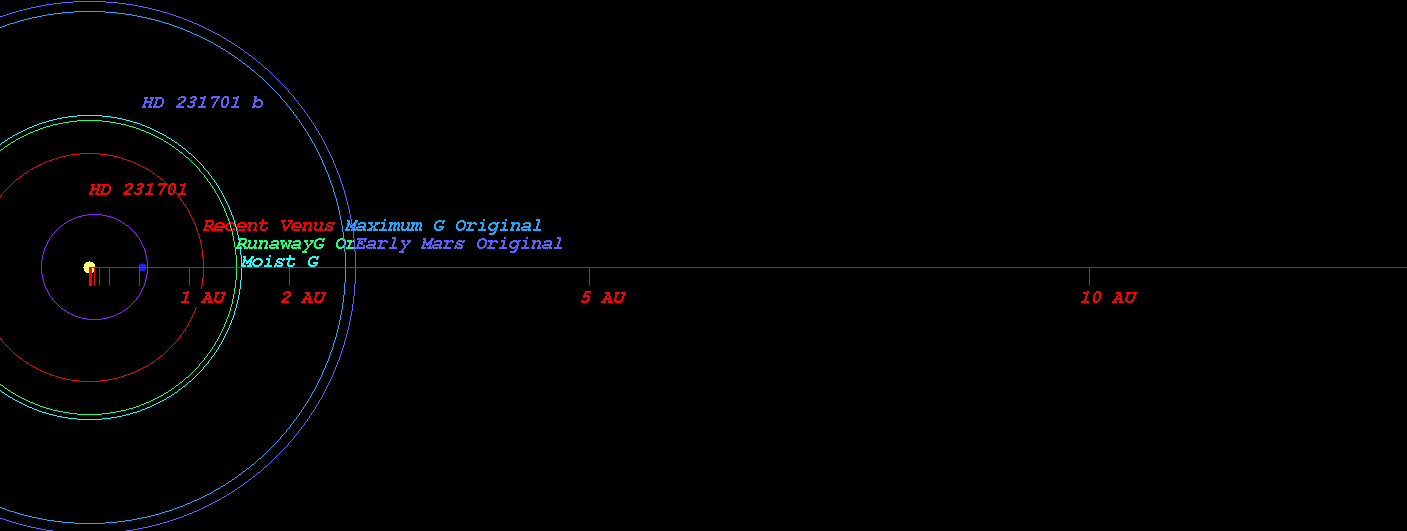

(Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 231701)
(Position in Stellar Map of star HD 231701 and its Exoplanet HD 231701 b)

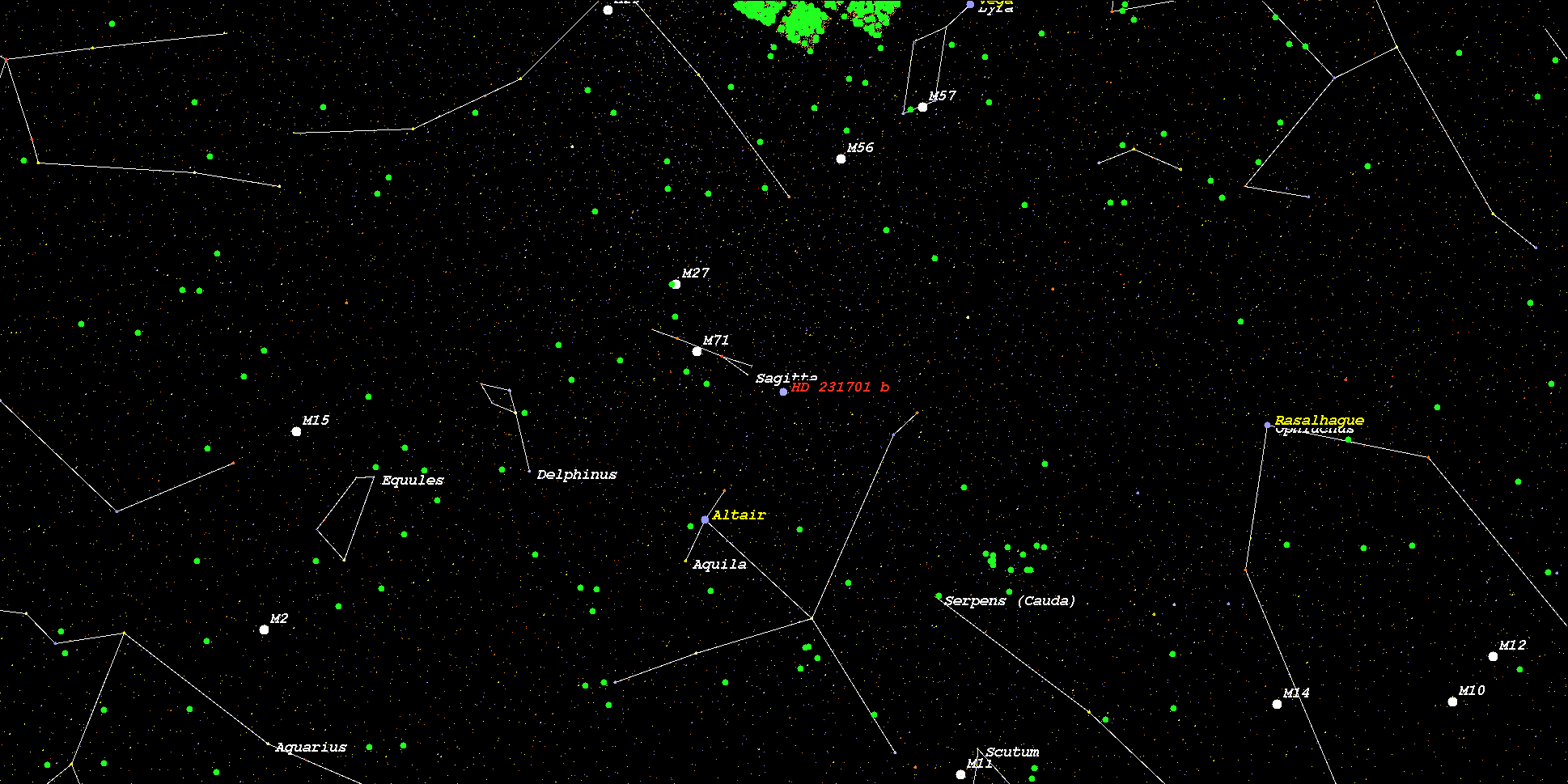

(Zoomed position in Stellar Map of star HD 231701 and its Exoplanet HD 231701 b (zoom level 3))
(Synthetic Spectrum of star HD 231701*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
