Imaginary Picture of HD 202696 c

Display orbital revolution of HD 202696 c around the hoststar HD 202696
/
Exoplanet Name : HD 202696 c
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 1.9170 (Mjup) 609.4871 (Mearth)
Semi Major Axis / Orbital Distance Calculated 2.3600 (AU) 2.3600 (AU Est.)
Eccentricity : 0.2650
Orbital Period(Yrs) 2.6228
Orbital Period(Observed/Estimated) 958.00 (Days Obs.) 958.17 (Days Est.)
Surface Gravity (G Earth) 5.8860
Star Radiation at Atmospheric Boundary: 5131.6 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 377.8 (K)
Blackbody T 0.3(K) 354.7 (K)
Blackbody T 0.7(K) 287.0 (K)
Tidally Locked Blackbody T 0.1(K) 449.2 (K)
Tidally Locked Blackbody T 0.3(K) 421.9 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection : Radial Velocity
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 202696
Alternate Name :
Star Distance(LY) : 614.8
Stellar Radius(Rsun) : 6.0 (Rsun Measured)
Stellar Mass(Msun) : 1.9 (Msun Measured) 1.9 (Msun Estimated)
Star Age : 1.3 (GY)
Temperature : 5040 (K)
Spectral type : KOIII
UV portion[%]: 3.5
Visible portion[%]: 37.6
IR portion[%]: 58.9
Metalicity : 0.0
Absolute Magnitude: 1.9
Apparent Magnitude: 8.2
Right Ascension(RA) 319.2250
Declination (DEC) 27.2581
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK
Open Exoplanet Database Link
HD 202696 c
HD 202696 c

  • HD 202696 c is an exoplanet orbiting the star HD 202696, located about 614.8 light-years (188.5 pc) away from Solar System. Its discovery was publicly announced on 2018.
  • The host star HD 202696 has apparent magnitude of 8.2, with absolute magnitude of 1.9.
  • It is 1.9 times more massive and 6.0 times bigger compared with our Sun. The surface temperature is 5040 with its spectral types of KOIII
  • In this planetary system, the extrasolar planet HD 202696 c orbits around the star HD 202696 every 958.0 days with its orbital distance of 2.36 AU ( 353050974.9 km)

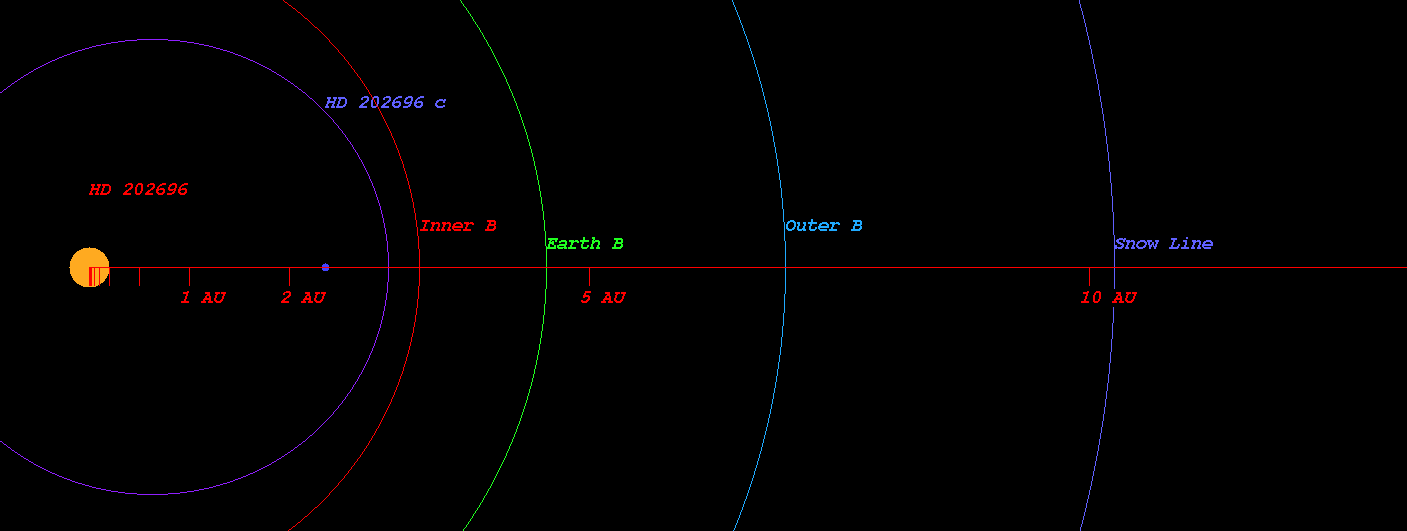

  • (Projected orbit of HD 202696 c around its host star HD 202696)


  • The Star HD 202696 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 3.307 AU ( 494758947.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 4.571 AU ( 683886162.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 6.966 AU ( 1042091167.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 10.251 AU ( 1533482803.7 km)
  • Radiation at Planetary Boundary of HD 202696 c : 5131.59 W/m2

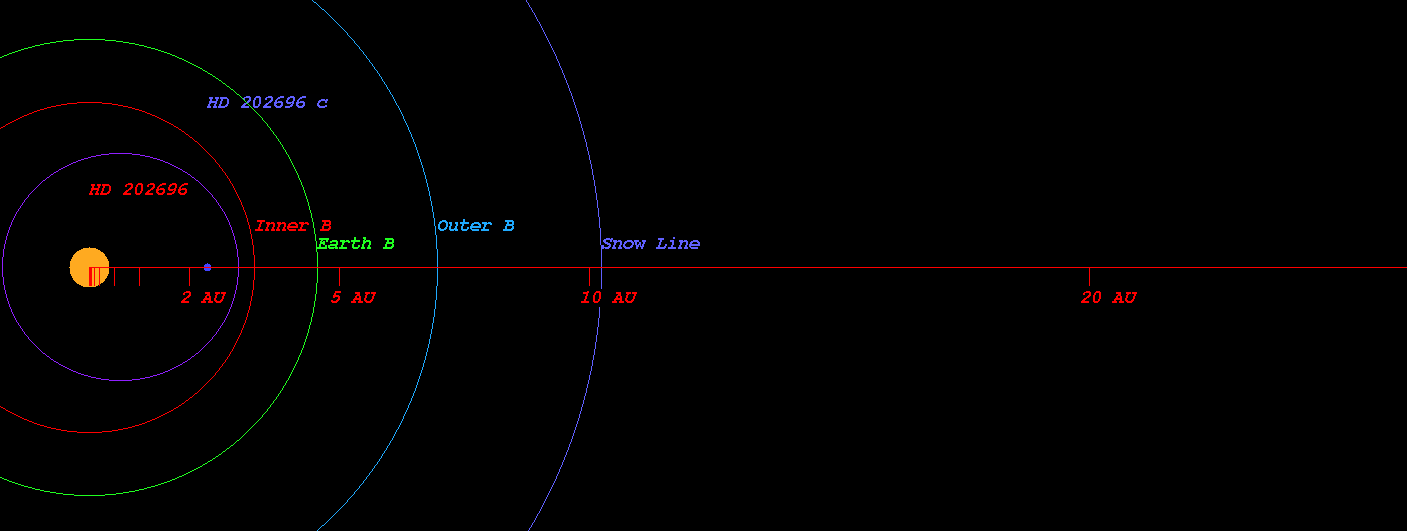

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 202696)



  • Kopparapu Recent Venus for Star HD 202696 distance : 3.571 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 202696 distance : 4.521 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 202696 distance : 4.367 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 202696 distance : 4.792 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 202696 distance : 8.181 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 202696 distance : 8.630 AU

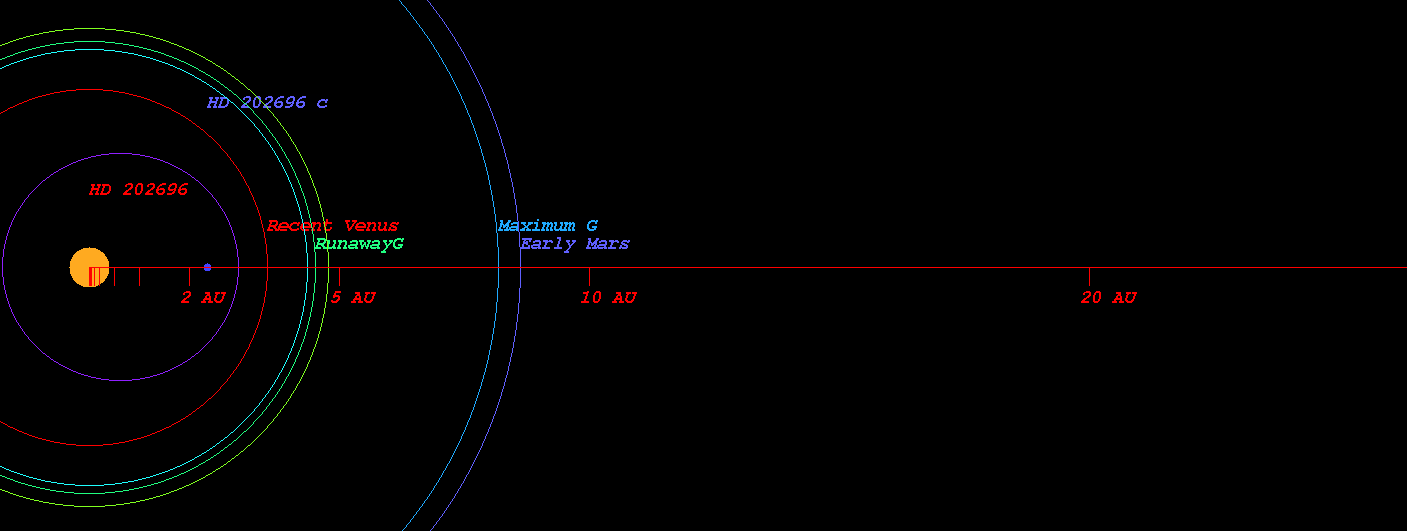

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 202696)



  • Original Kopparapu Recent Venus for Star HD 202696 distance : 3.535 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 202696 distance : 4.658 AU
  • Original Kopparapu Moist Greenhouse for Star HD 202696 distance : 4.677 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 202696 distance : 8.319 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 202696 distance : 8.651 AU

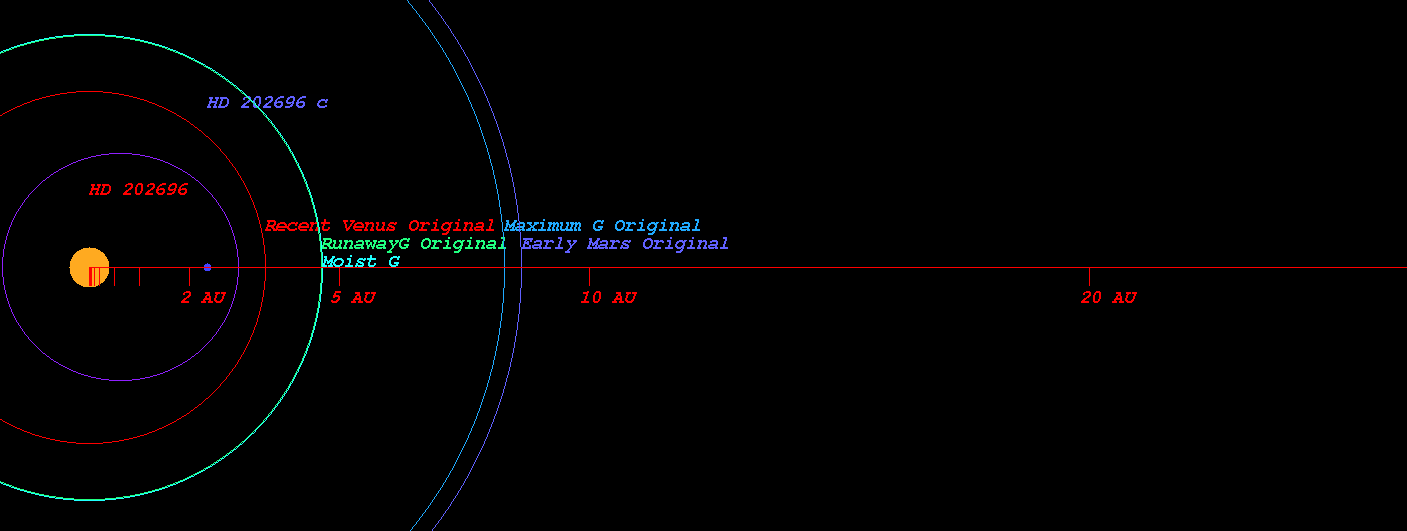

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 202696)

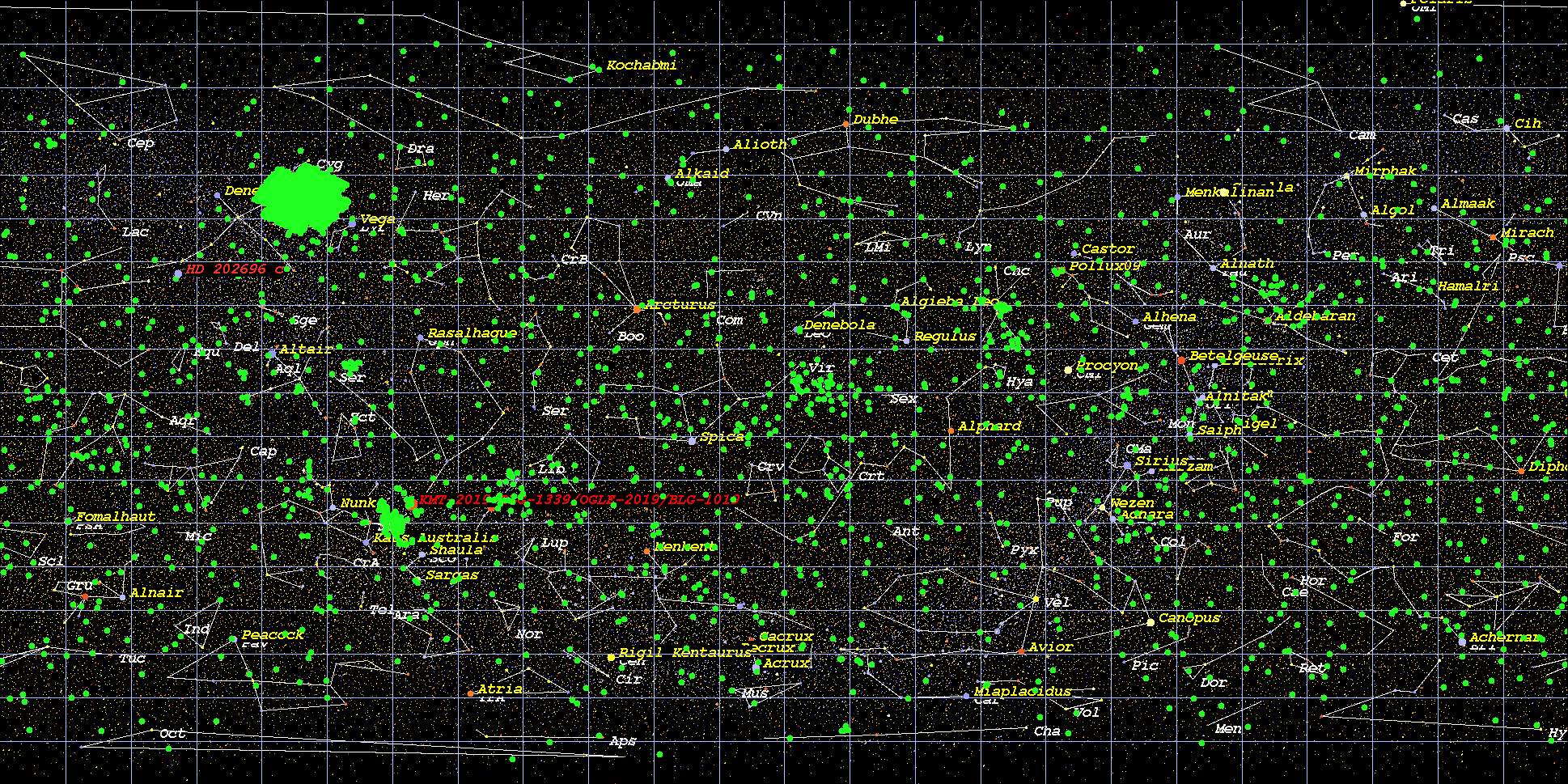

    (Position in Stellar Map of star HD 202696 and its Exoplanet HD 202696 c)

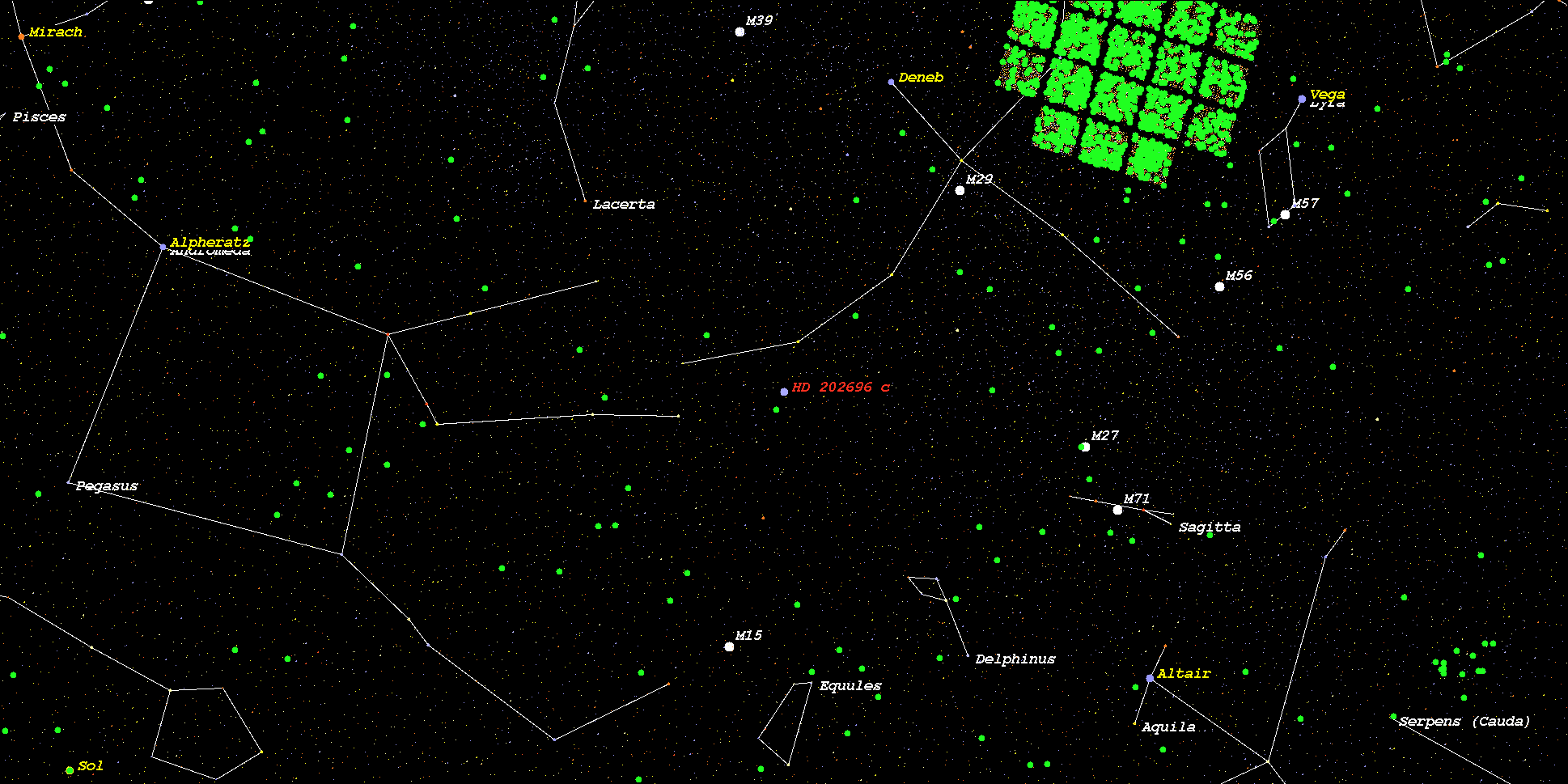

    (Zoomed position in Stellar Map of star HD 202696 and its Exoplanet HD 202696 c (zoom level 3))

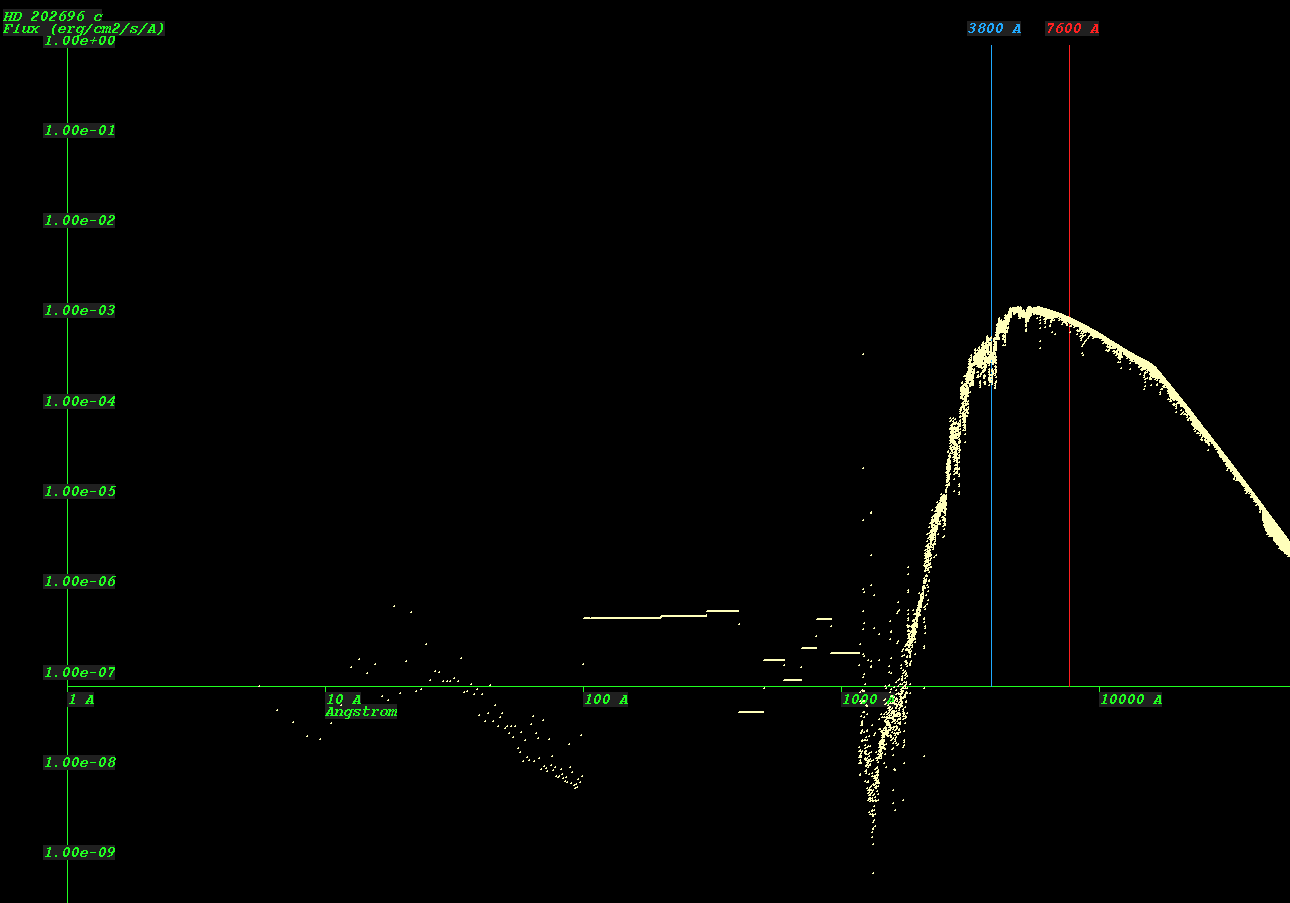

    (Synthetic Spectrum of star HD 202696*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
