Exoplanet Name : |
HD 13931 b |
|
Alternate Name : |
|
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
0.9078 |
(Rjup) |
10.1759 |
(Rearth) |
|
Mass (Mjup / Me): |
1.8800 |
(Mjup) |
597.7234 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
5.1500 |
(AU) |
5.1500 |
(AU Est.) |
|
Eccentricity : |
0.0200 |
|
Orbital Period(Yrs) |
11.5479 |
|
Orbital Period(Observed/Estimated) |
4218.00 |
(Days Obs.) |
4226.70 |
(Days Est.) |
|
Surface Gravity (G Earth) |
5.7724 |
|
Star Radiation at Atmospheric Boundary: |
80.8 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
133.8 |
(K) |
|
Blackbody T 0.3(K) |
125.6 |
(K) |
|
Blackbody T 0.7(K) |
101.7 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
159.1 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
149.4 |
(K) |
|
Size Class: |
Jupiter-size |
|
Mass Class: |
|
|
Detection Type : |
Radial Velocity |
|
Mass Detection : |
|
|
Radius Detection : |
|
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
HD 13931 |
|
Alternate Name : |
|
|
Star Distance(LY) : |
152.5 |
|
Stellar Radius(Rsun) : |
1.2 |
(Rsun Measured) |
|
Stellar Mass(Msun) : |
1.0 |
(Msun Measured) |
1.0 |
(Msun Estimated) |
|
Star Age : |
8.4 |
(GY) |
|
Temperature : |
5829 |
(K) |
|
Spectral type : |
G0 |
|
UV portion[%]: |
7.8 |
|
Visible portion[%]: |
44.8 |
|
IR portion[%]: |
47.4 |
|
Metalicity : |
0.0 |
|
Absolute Magnitude: |
4.3 |
|
Apparent Magnitude: |
7.6 |
|
Right Ascension(RA) |
34.1974 |
|
Declination (DEC) |
43.7731 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
|
|
Discovered by |
|
|
Discovery Paper - Authors |
"Howard,ndrew.; Johnson,ohnsher; Marcy,eoffrey.; Fischer,ebra.; Wright,ason.; Bernat,avid; Henry,regory.; Peek,athryn..; Isaacson,oward; Apps,evin; Endl,ichael; Cochran,illiam.; Valenti,eff.; Anderson,ay; Piskunov,ikolai." |
|
Discovery Paper - Title |
The California Planet Survey. I. Four New Giant Exoplanets |
|
Discovery Paper - Journal |
0 |
|
Discovery Paper - URL |
0 |
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+13931+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
http://www.openexoplanetcatalogue.com/planet/HD%2013931%20b/ |
 |
 |
 |
 |
/
HD 13931 b
HD 13931 b
HD 13931 b is an exoplanet orbiting the star HD 13931, located about 152.5 light-years (46.8 pc) away from Solar System. Its discovery was publicly announced on 2010.
The host star HD 13931 has apparent magnitude of 7.6, with absolute magnitude of 4.3. It is 1.0 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 5829 with its spectral types of G0
In this planetary system, the extrasolar planet HD 13931 b orbits around the star HD 13931 every 4218.0 days with its orbital distance of 5.15 AU ( 770429034.1 km)

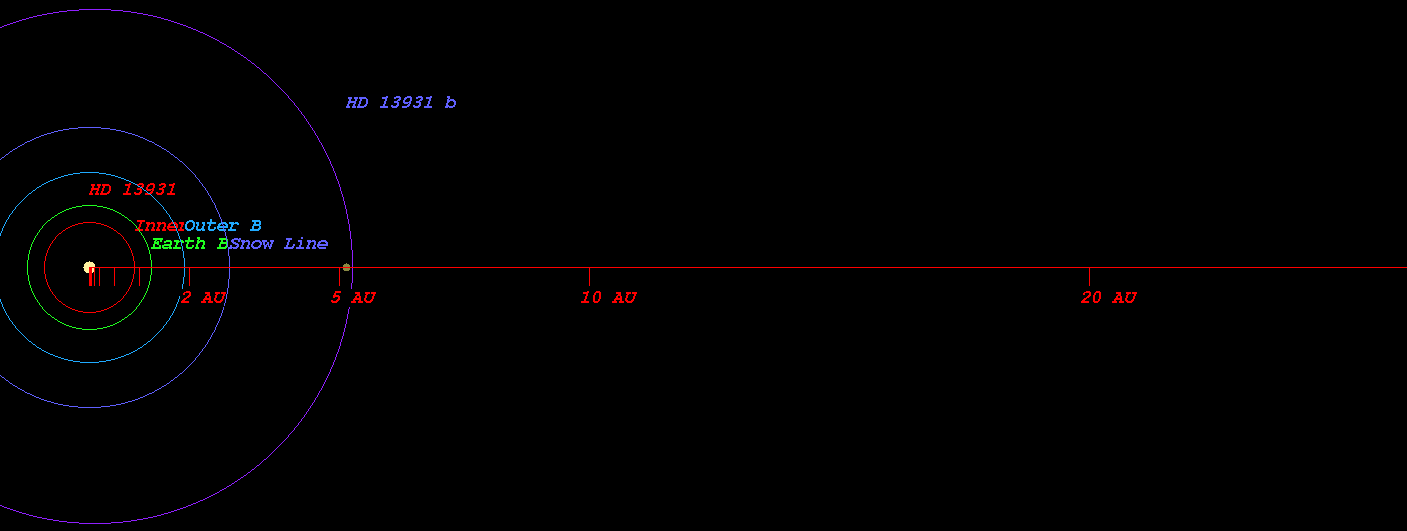

(Projected orbit of HD 13931 b around its host star HD 13931)
The Star HD 13931 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 0.905 AU ( 135441368.9 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 1.251 AU ( 187215366.9 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 1.907 AU ( 285274788.5 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 2.806 AU ( 419794348.3 km)
Radiation at Planetary Boundary of HD 13931 b : 80.76 W/m2
(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 13931)
Kopparapu Recent Venus for Star HD 13931 distance : 0.936 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 13931 distance : 1.185 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 13931 distance : 1.144 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 13931 distance : 1.254 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 13931 distance : 2.089 AU
Kopparapu Outer Boundary for Early Mars for Star HD 13931 distance : 2.204 AU
(Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 13931)
Original Kopparapu Recent Venus for Star HD 13931 distance : 0.938 AU
Original Kopparapu Runaway Greenhouse for Star HD 13931 distance : 1.217 AU
Original Kopparapu Moist Greenhouse for Star HD 13931 distance : 1.241 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 13931 distance : 2.126 AU
Original Kopparapu Outer Boundary for Early Mars for Star HD 13931 distance : 2.211 AU

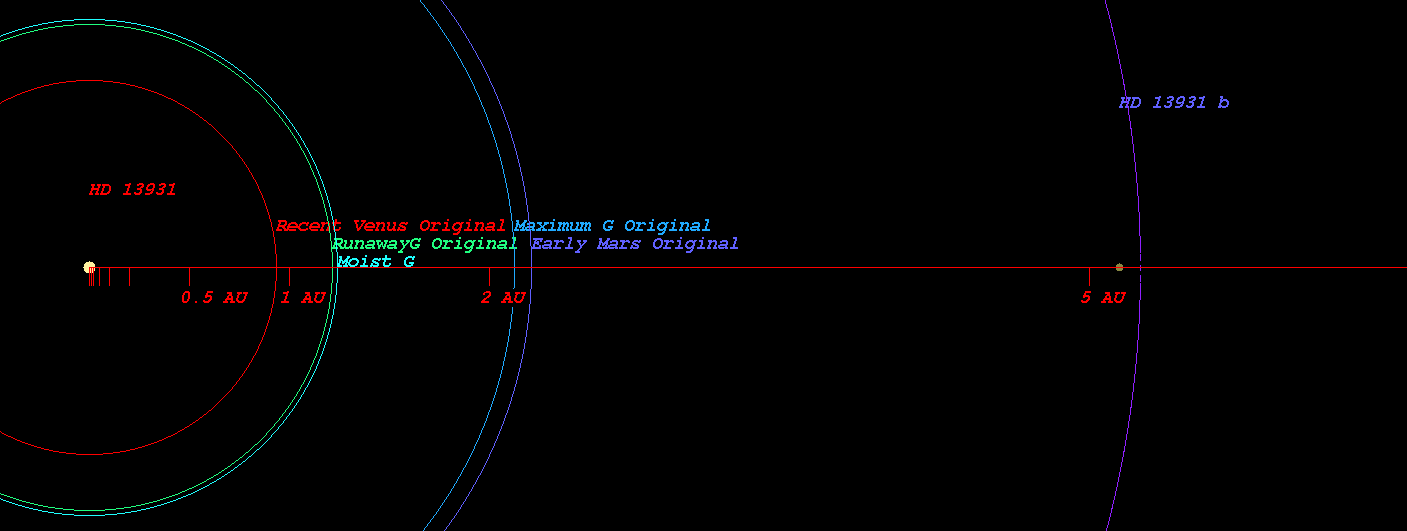

(Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 13931)
(Position in Stellar Map of star HD 13931 and its Exoplanet HD 13931 b)

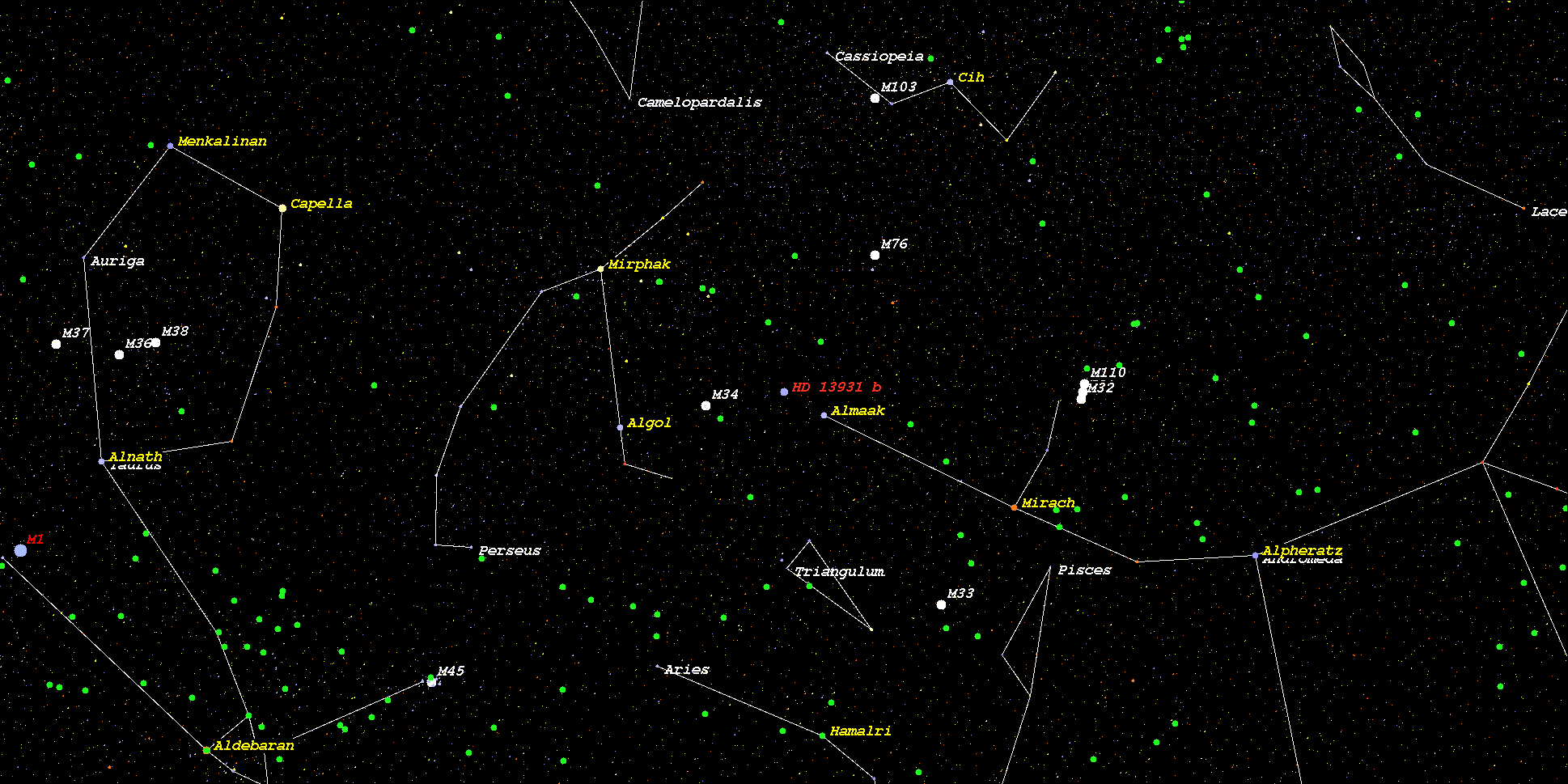

(Zoomed position in Stellar Map of star HD 13931 and its Exoplanet HD 13931 b (zoom level 3))
(Synthetic Spectrum of star HD 13931*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
