Exoplanet Name : |
HD 132563 B b |
|
Alternate Name : |
|
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
0.9078 |
(Rjup) |
10.1759 |
(Rearth) |
|
Mass (Mjup / Me): |
1.4900 |
(Mjup) |
473.7276 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
2.6200 |
(AU) |
2.6200 |
(AU Est.) |
|
Eccentricity : |
0.2200 |
|
Orbital Period(Yrs) |
4.2271 |
|
Orbital Period(Observed/Estimated) |
1544.00 |
(Days Obs.) |
1541.28 |
(Days Est.) |
|
Surface Gravity (G Earth) |
4.5749 |
|
Star Radiation at Atmospheric Boundary: |
232.3 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
174.2 |
(K) |
|
Blackbody T 0.3(K) |
163.6 |
(K) |
|
Blackbody T 0.7(K) |
132.4 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
207.2 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
194.6 |
(K) |
|
Size Class: |
Jupiter-size |
|
Mass Class: |
|
|
Detection Type : |
Radial Velocity |
|
Mass Detection : |
|
|
Radius Detection : |
|
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
HD 132563B |
|
Alternate Name : |
|
|
Star Distance(LY) : |
313.1 |
|
Stellar Radius(Rsun) : |
1.0 |
(Rsun Estimated) |
|
Stellar Mass(Msun) : |
1.0 |
(Msun Measured) |
1.0 |
(Msun Estimated) |
|
Star Age : |
5.0 |
(GY) |
|
Temperature : |
5985 |
(K) |
|
Spectral type : |
G1 |
|
UV portion[%]: |
7.8 |
|
Visible portion[%]: |
44.8 |
|
IR portion[%]: |
47.4 |
|
Metalicity : |
-0.2 |
|
Absolute Magnitude: |
4.6 |
|
Apparent Magnitude: |
9.5 |
|
Right Ascension(RA) |
224.5882 |
|
Declination (DEC) |
44.0433 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
|
|
Discovered by |
|
|
Discovery Paper - Authors |
"Desidera,.; Carolo,.; Gratton,.; Martineziorenzano,..; Endl,.; Mesa,.; Barbieri,.; Bonavita,.; Cecconi,.; Claudi,..; Cosentino,.; Marzari,.; Scuderi,." |
|
Discovery Paper - Title |
A giant planet in the triple system HD 132563 |
|
Discovery Paper - Journal |
0 |
|
Discovery Paper - URL |
0 |
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+132563+B+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
http://www.openexoplanetcatalogue.com/planet/HD%20132563%20B%20b/ |
 |
 |
 |
 |
/
HD 132563 B b
HD 132563 B b
HD 132563 B b is an exoplanet orbiting the star HD 132563B, located about 313.1 light-years (96.0 pc) away from Solar System. Its discovery was publicly announced on 2011.
The host star HD 132563B has apparent magnitude of 9.5, with absolute magnitude of 4.6. It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5985 with its spectral types of G1
In this planetary system, the extrasolar planet HD 132563 B b orbits around the star HD 132563B every 1544.0 days with its orbital distance of 2.62 AU ( 391946421.2 km)

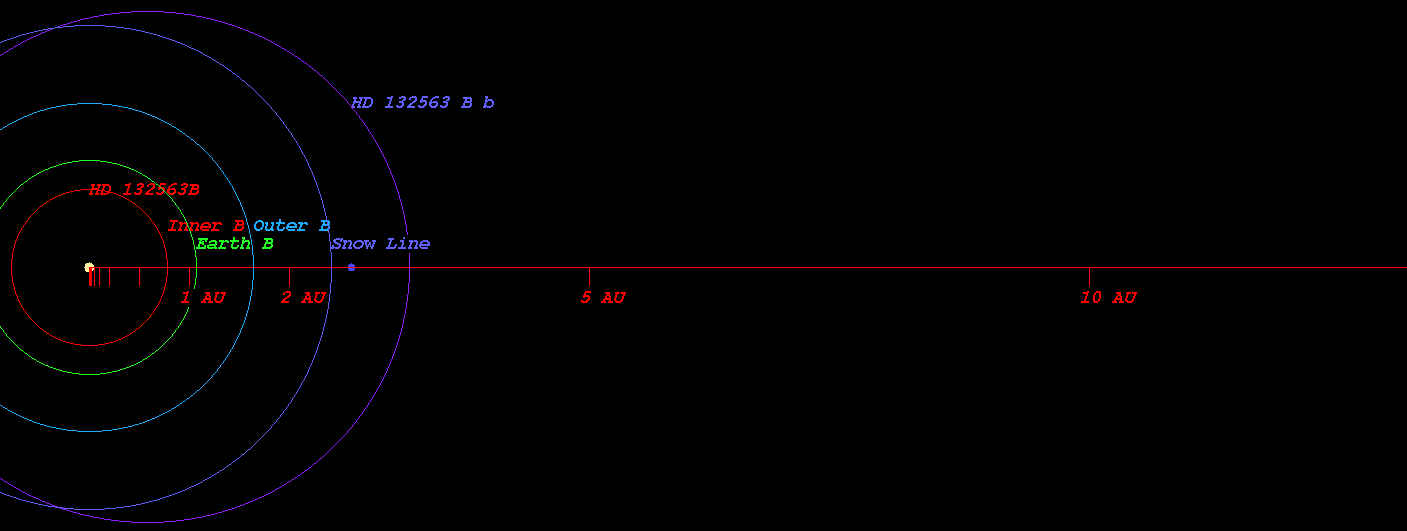

(Projected orbit of HD 132563 B b around its host star HD 132563B)
The Star HD 132563B 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 0.781 AU ( 116871975.4 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 1.080 AU ( 161547612.3 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 1.645 AU ( 246162810.7 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 2.421 AU ( 362239359.6 km)
Radiation at Planetary Boundary of HD 132563 B b : 232.33 W/m2

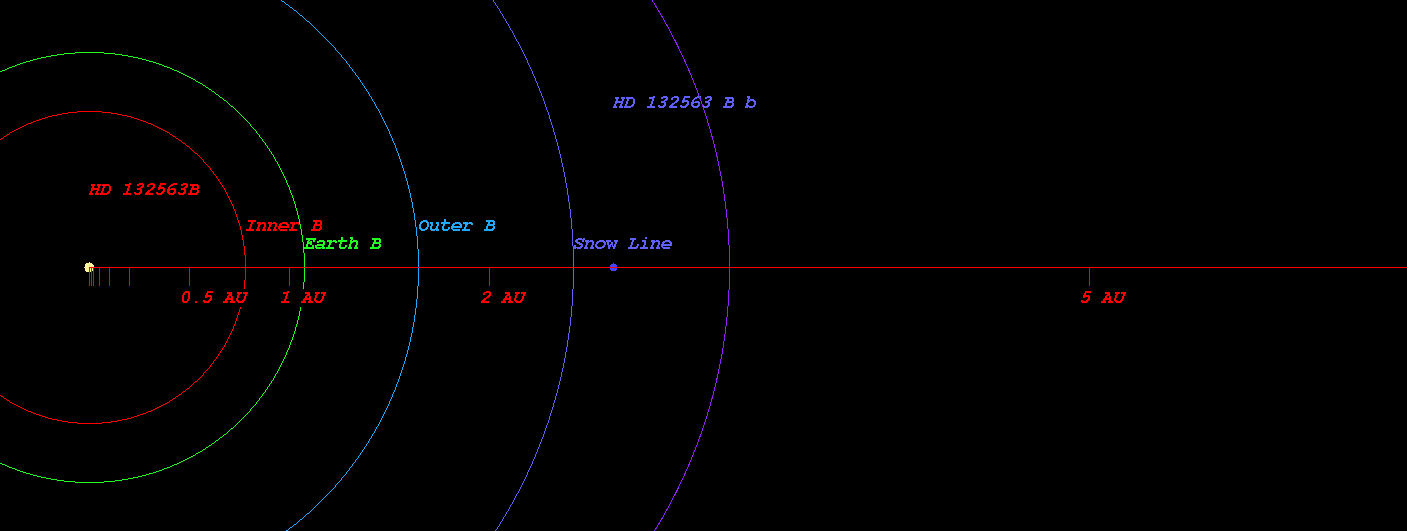

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 132563B)
Kopparapu Recent Venus for Star HD 132563B distance : 0.800 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 132563B distance : 1.013 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 132563B distance : 0.978 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 132563B distance : 1.072 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 132563B distance : 1.779 AU
Kopparapu Outer Boundary for Early Mars for Star HD 132563B distance : 1.876 AU

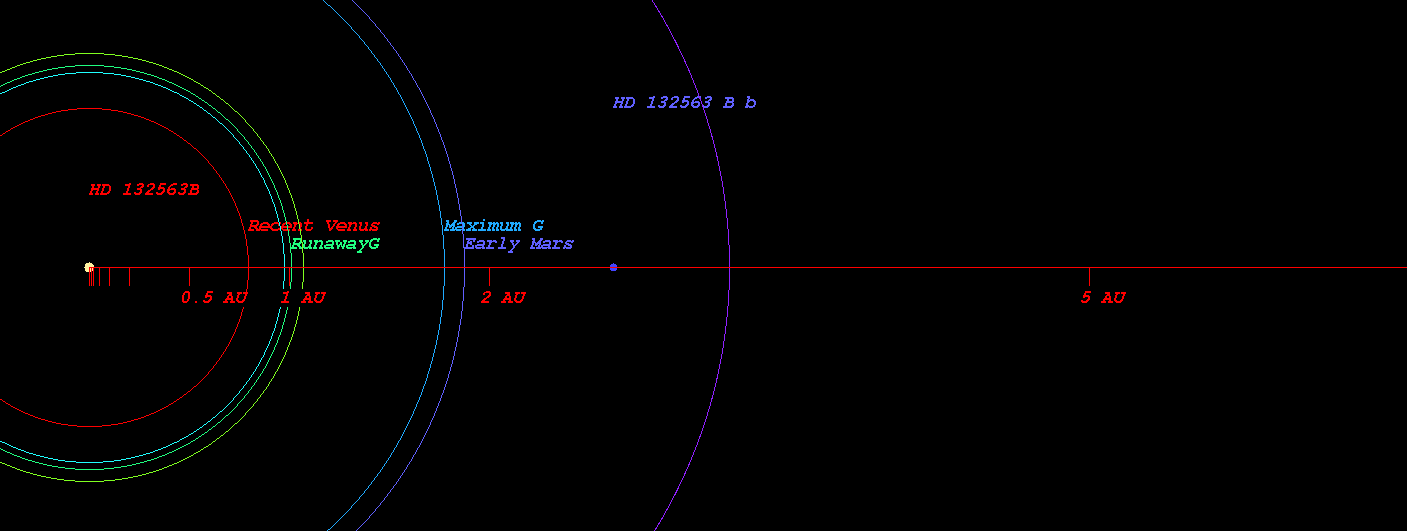

(Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 132563B)
Original Kopparapu Recent Venus for Star HD 132563B distance : 0.804 AU
Original Kopparapu Runaway Greenhouse for Star HD 132563B distance : 1.040 AU
Original Kopparapu Moist Greenhouse for Star HD 132563B distance : 1.064 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 132563B distance : 1.811 AU
Original Kopparapu Outer Boundary for Early Mars for Star HD 132563B distance : 1.883 AU

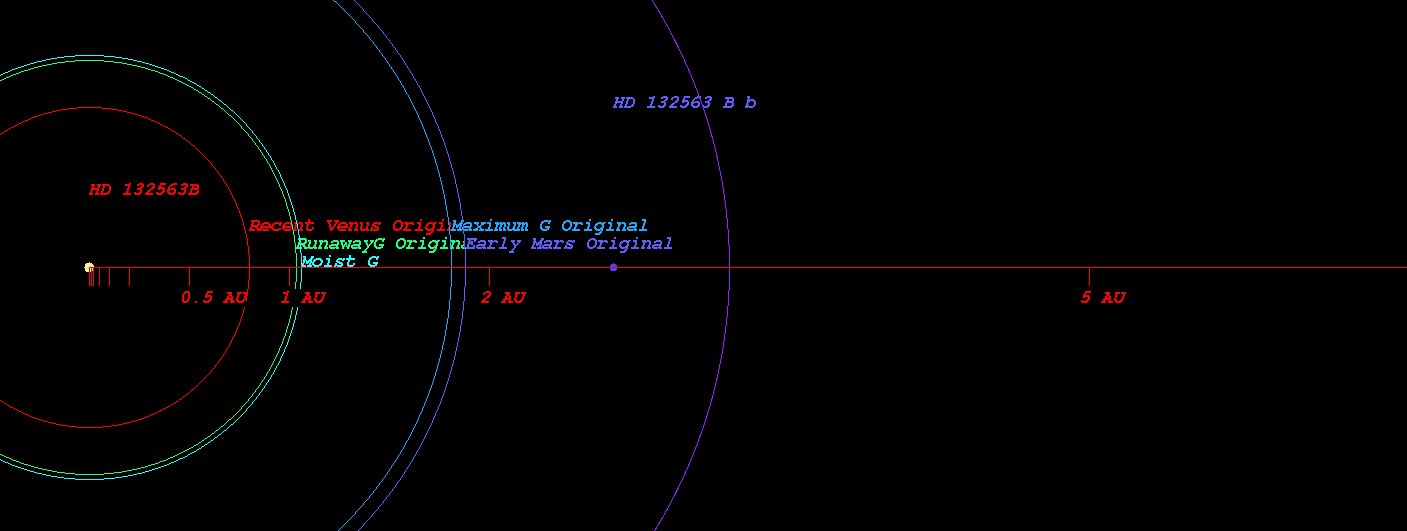

(Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 132563B)
(Position in Stellar Map of star HD 132563B and its Exoplanet HD 132563 B b)

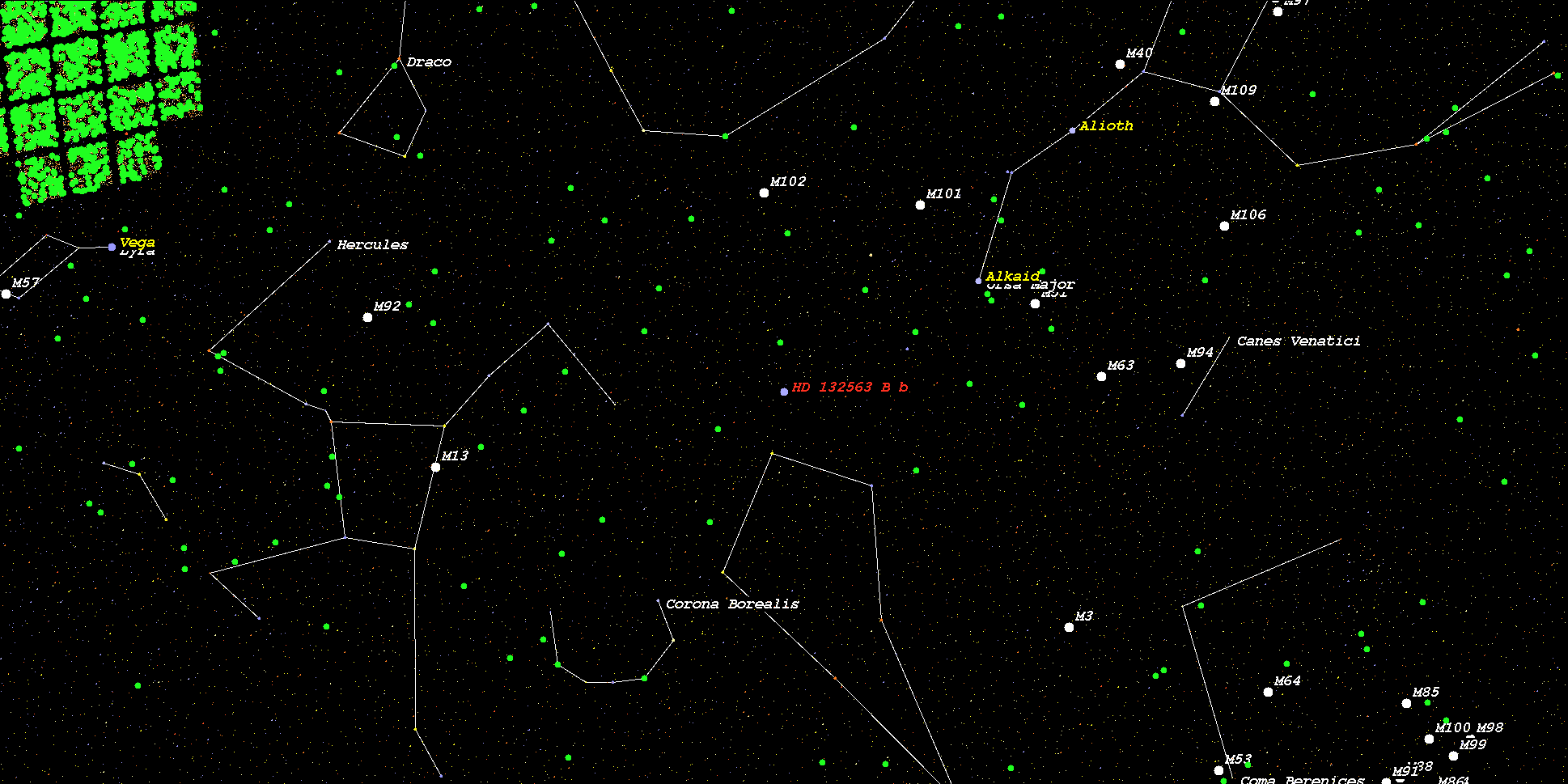

(Zoomed position in Stellar Map of star HD 132563B and its Exoplanet HD 132563 B b (zoom level 3))
(Synthetic Spectrum of star HD 132563B*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
