Imaginary Picture of HD 114613 b

Display orbital revolution of HD 114613 b around the hoststar HD 114613
/
Exoplanet Name : HD 114613 b
Alternate Name :
Radius (Rjup / Re): 1.1820 (Rjup) 13.2490 (Rearth)
Mass (Mjup / Me): 0.3570 (Mjup) 113.5039 (Mearth)
Semi Major Axis / Orbital Distance Calculated 5.3400 (AU) 5.3400 (AU Est.)
Eccentricity : 0.4580
Orbital Period(Yrs) 10.9511
Orbital Period(Observed/Estimated) 4000.00 (Days Obs.) 3999.45 (Days Est.)
Star Radiation at Atmospheric Boundary: 199.4 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 167.7 (K)
Blackbody T 0.3(K) 157.5 (K)
Blackbody T 0.7(K) 127.4 (K)
Tidally Locked Blackbody T 0.1(K) 199.5 (K)
Tidally Locked Blackbody T 0.3(K) 187.3 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection : Radial Velocity
Radius Detection : Theoretical
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 114613
Alternate Name :
Star Distance(LY) : 67.4
Stellar Radius(Rsun) : 2.1 (Rsun Measured)
Stellar Mass(Msun) : 1.3 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5641 (K)
Spectral type : G3 V
Metalicity : 0.2
Absolute Magnitude: 3.3
Apparent Magnitude: 4.8
Right Ascension(RA) 198.0133
Declination (DEC) -37.8030
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Robert A. Wittenmyer, Jonathan Horner, C.G. Tinney, R.P. Butler, H.R.A. Jones, Mikko Tuomi, G.S. Salter, B.D. Carter, F. Elliott Koch, S.J. O'Toole, J. Bailey, D. Wright"
Discovery Paper - Title The Anglo-Australian Planet Search. XXIII. Two New Jupiter Analogs
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+114613+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/HD%20114613%20b/
HD 114613 b
HD 114613 b

  • HD 114613 b is an exoplanet orbiting the star HD 114613, located about 67.4 light-years (20.7 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star HD 114613 has apparent magnitude of 4.8, with absolute magnitude of 3.3.
  • It is 1.3 times more massive and 2.1 times bigger compared with our Sun. The surface temperature is 5641 with its spectral types of G3 V
  • In this planetary system, the extrasolar planet HD 114613 b orbits around the star HD 114613 every 4000.0 days with its orbital distance of 5.34 AU ( 798852629.5 km)

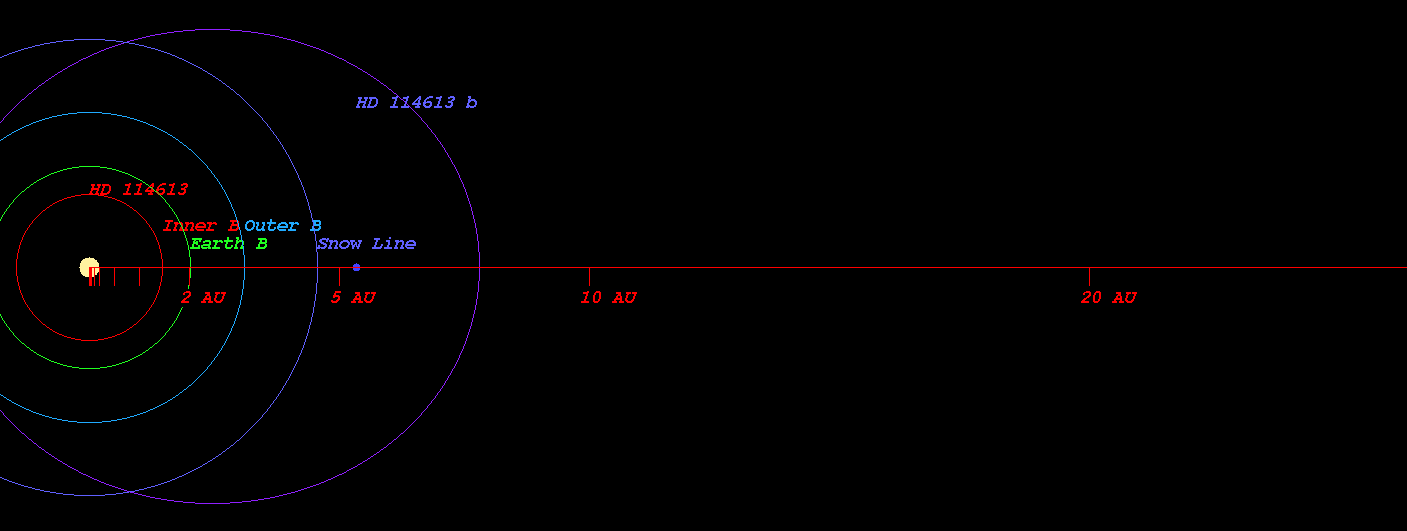

  • (Projected orbit of HD 114613 b around its host star HD 114613)


  • The Star HD 114613 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.475 AU ( 220690727.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 2.039 AU ( 305052258.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 3.107 AU ( 464832133.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.572 AU ( 684020847.2 km)
  • Radiation at Planetary Boundary of HD 114613 b : 199.42 W/m2

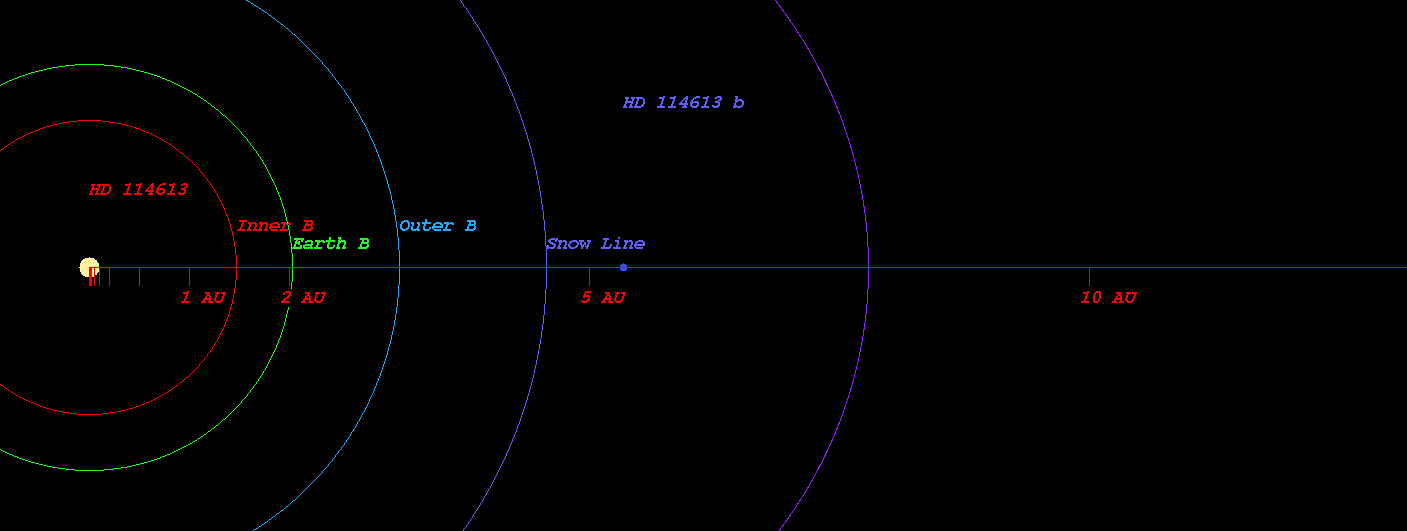

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 114613)



  • Kopparapu Recent Venus for Star HD 114613 distance : 1.542 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 114613 distance : 1.952 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 114613 distance : 1.885 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 114613 distance : 2.067 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 114613 distance : 3.460 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 114613 distance : 3.650 AU

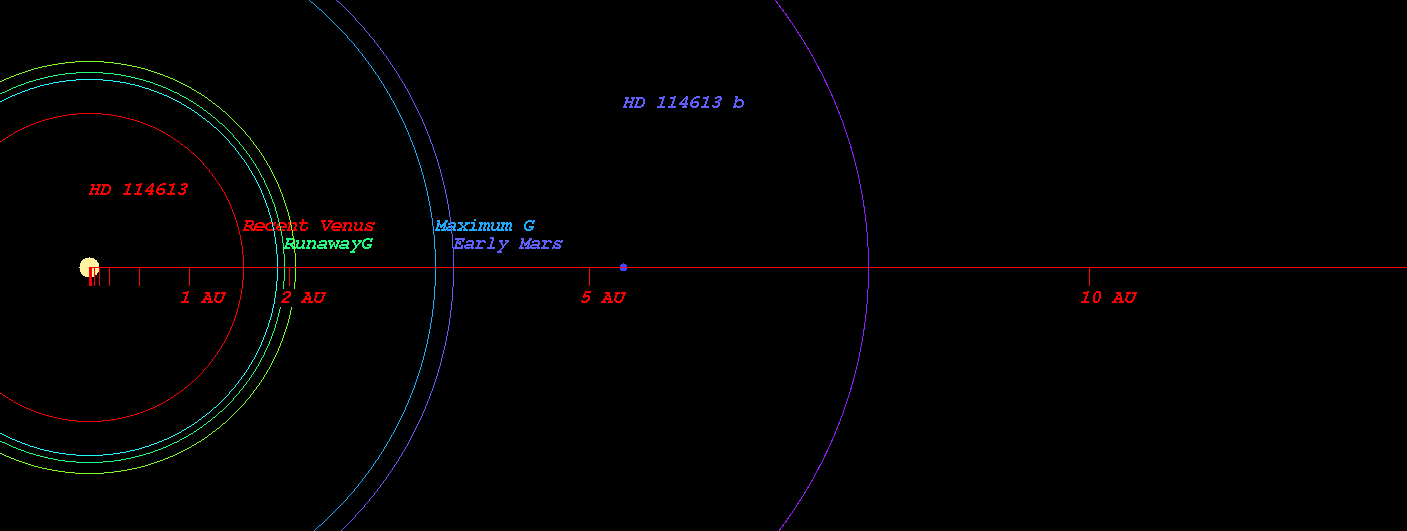

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 114613)



  • Original Kopparapu Recent Venus for Star HD 114613 distance : 1.539 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 114613 distance : 2.007 AU
  • Original Kopparapu Moist Greenhouse for Star HD 114613 distance : 2.037 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 114613 distance : 3.521 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 114613 distance : 3.661 AU

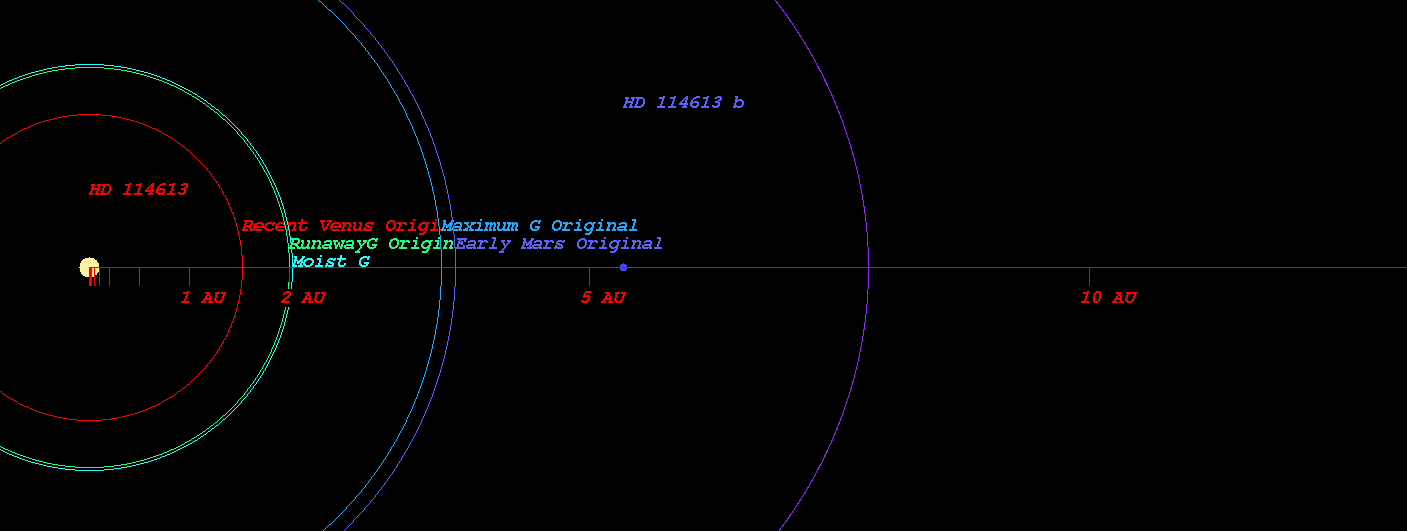

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 114613)

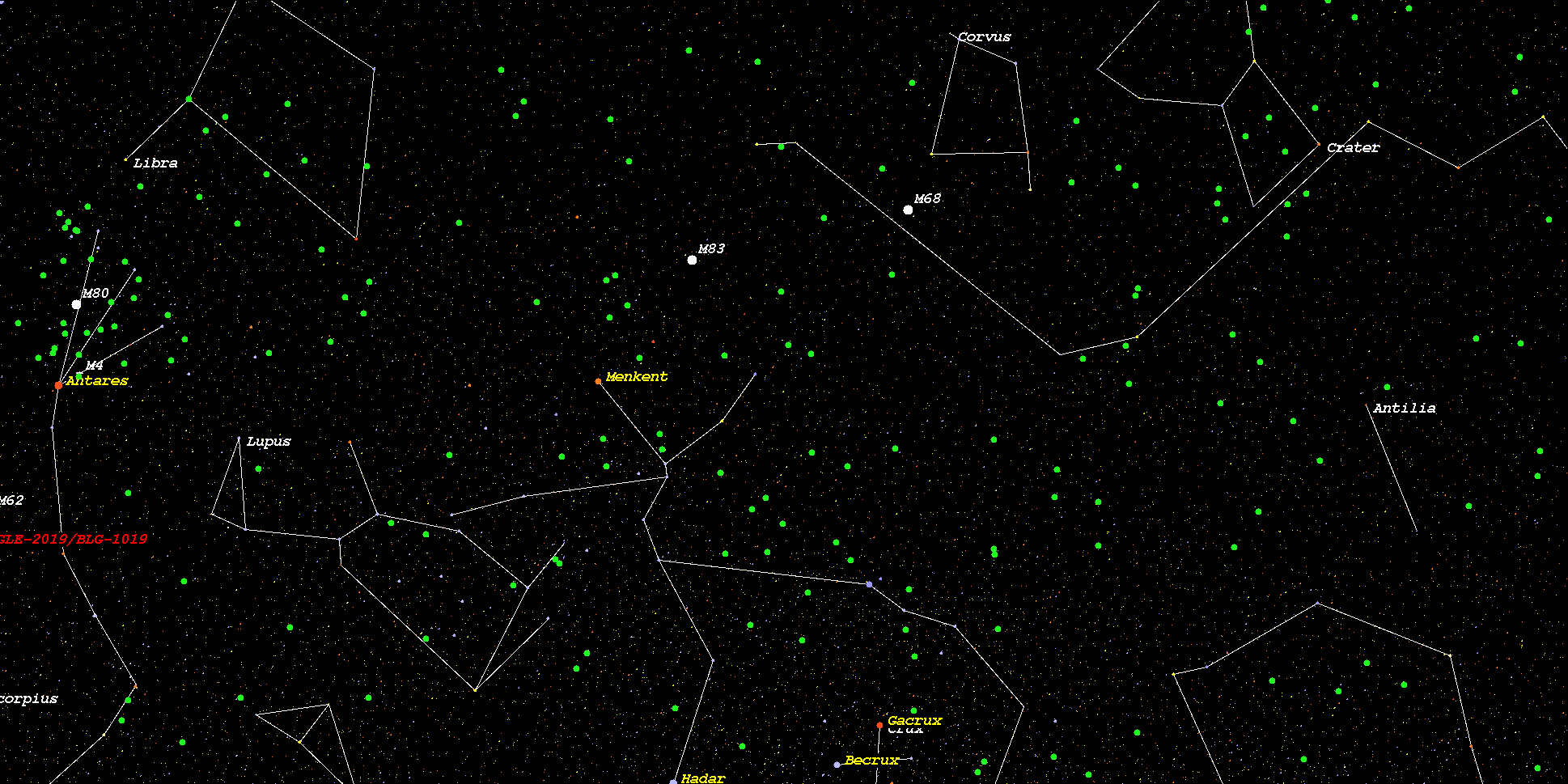

    (Position in Stellar Map of star HD 114613 and its Exoplanet HD 114613 b)



    (Zoomed position in Stellar Map of star HD 114613 and its Exoplanet HD 114613 b (zoom level 3))
