Imaginary Picture of HD 113337 c

Display orbital revolution of HD 113337 c around the hoststar HD 113337
/
Exoplanet Name : HD 113337 c
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 7.2000 (Mjup) 2289.1536 (Mearth)
Semi Major Axis / Orbital Distance Calculated 4.8000 (AU) 4.8000 (AU Est.)
Eccentricity : 0.1800
Orbital Period(Yrs) 8.9380
Orbital Period(Observed/Estimated) 3264.70 (Days Obs.) 3246.30 (Days Est.)
Surface Gravity (G Earth) 22.1071
Star Radiation at Atmospheric Boundary: 224.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 172.7 (K)
Blackbody T 0.3(K) 162.2 (K)
Blackbody T 0.7(K) 131.2 (K)
Tidally Locked Blackbody T 0.1(K) 205.4 (K)
Tidally Locked Blackbody T 0.3(K) 192.8 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection : Radial Velocity
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HD 113337
Alternate Name :
Star Distance(LY) : 120.3
Stellar Radius(Rsun) : 1.5 (Rsun Measured)
Stellar Mass(Msun) : 1.4 (Msun Measured) 1.4 (Msun Estimated)
Star Age : 0.1 (GY)
Temperature : 6577 (K)
Spectral type : F6
UV portion[%]: 7.8
Visible portion[%]: 44.8
IR portion[%]: 47.4
Metalicity : 0.1
Absolute Magnitude: 3.2
Apparent Magnitude: 6.0
Right Ascension(RA) 195.4455
Declination (DEC) 63.6103
Hubble Space Telescope Guide Star Catalog (GSC) ID 04166-00541
Discovered by
Discovery Paper - Authors "S. Borgniet, I. Boisse, A.-M. Lagrange, F. Bouchy, L. Arnold, R. F. D_az, F. Galland, P. Delorme, G. H_brard, A. Santerne, D. Ehrenreich, D. S_gransan, X. Bonfils, X. Delfosse, N. C. Santos, T. Forveille, C. Moutou, S. Udry, A. Eggenberger, F. Pepe, N. Astudillo, G. Montagnier"
Discovery Paper - Title Extrasolar planets and brown dwarfs around A--F type stars. VIII. A giant planet orbiting the young star HD113337
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HD+113337+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/HD%20113337%20b/
HD 113337 c
HD 113337 c

  • HD 113337 c is an exoplanet orbiting the star HD 113337, located about 120.3 light-years (36.9 pc) away from Solar System. Its discovery was publicly announced on 2018.
  • The host star HD 113337 has apparent magnitude of 6.0, with absolute magnitude of 3.2.
  • It is 1.4 times more massive and 1.5 times bigger compared with our Sun. The surface temperature is 6577 with its spectral types of F6
  • In this planetary system, the extrasolar planet HD 113337 c orbits around the star HD 113337 every 3264.7 days with its orbital distance of 4.80 AU ( 718069779.4 km)

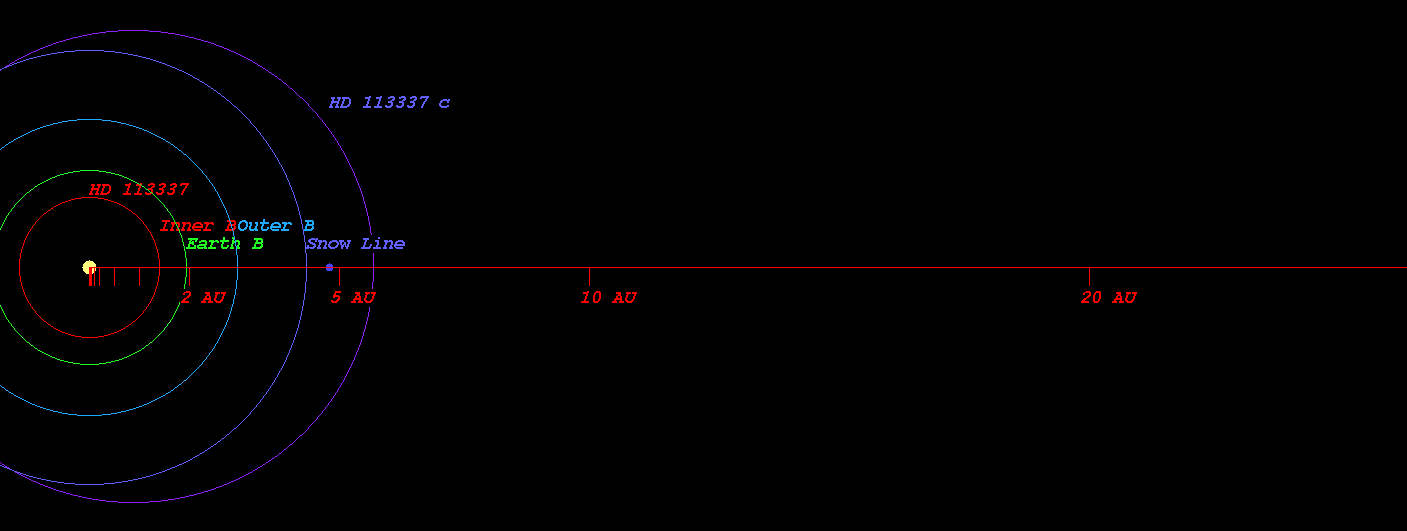

  • (Projected orbit of HD 113337 c around its host star HD 113337)


  • The Star HD 113337 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.406 AU ( 210283431.4 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.943 AU ( 290666655.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.961 AU ( 442911659.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 4.357 AU ( 651763909.1 km)
  • Radiation at Planetary Boundary of HD 113337 c : 224.09 W/m2

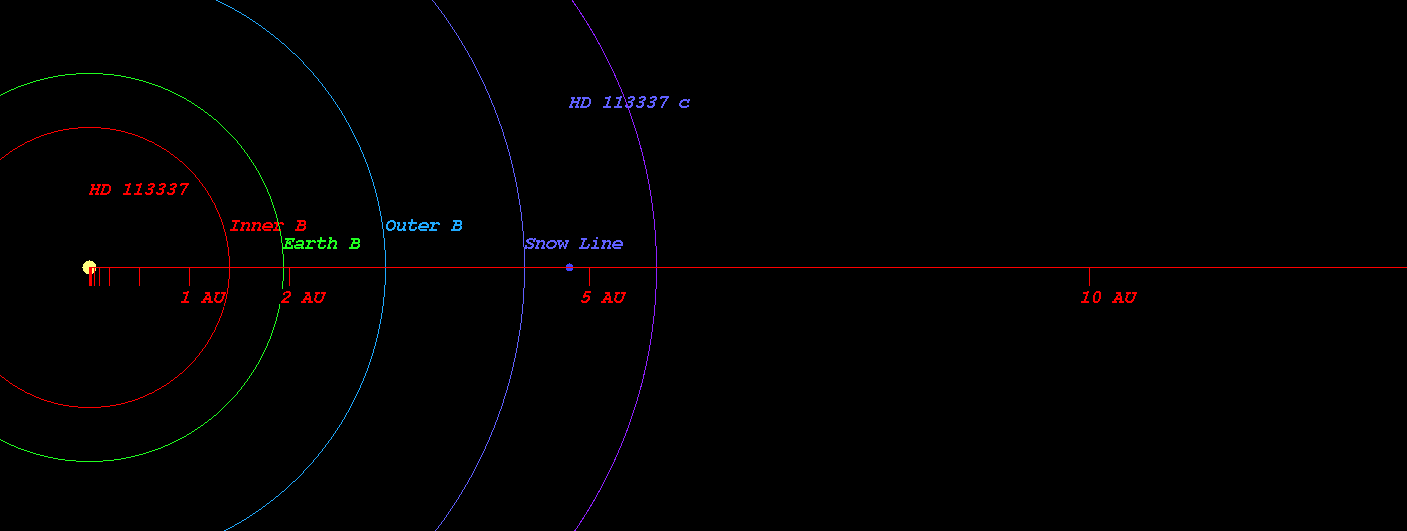

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HD 113337)



  • Kopparapu Recent Venus for Star HD 113337 distance : 1.389 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HD 113337 distance : 1.759 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HD 113337 distance : 1.698 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HD 113337 distance : 1.861 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 113337 distance : 3.056 AU
  • Kopparapu Outer Boundary for Early Mars for Star HD 113337 distance : 3.223 AU

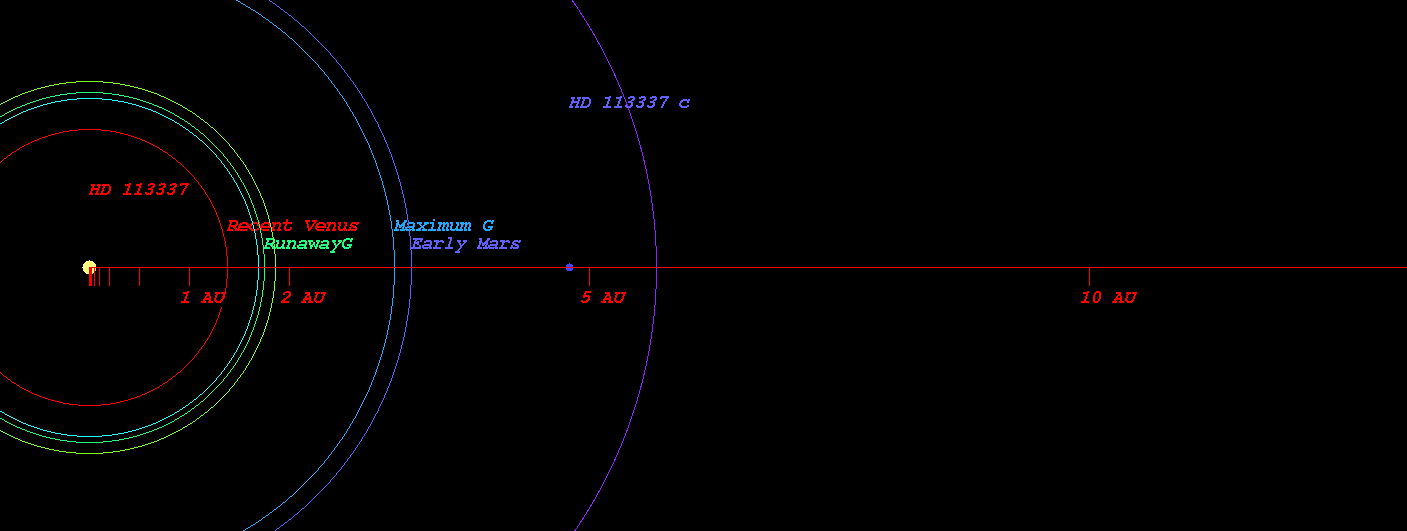

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HD 113337)



  • Original Kopparapu Recent Venus for Star HD 113337 distance : 1.415 AU
  • Original Kopparapu Runaway Greenhouse for Star HD 113337 distance : 1.803 AU
  • Original Kopparapu Moist Greenhouse for Star HD 113337 distance : 1.872 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HD 113337 distance : 3.112 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HD 113337 distance : 3.236 AU

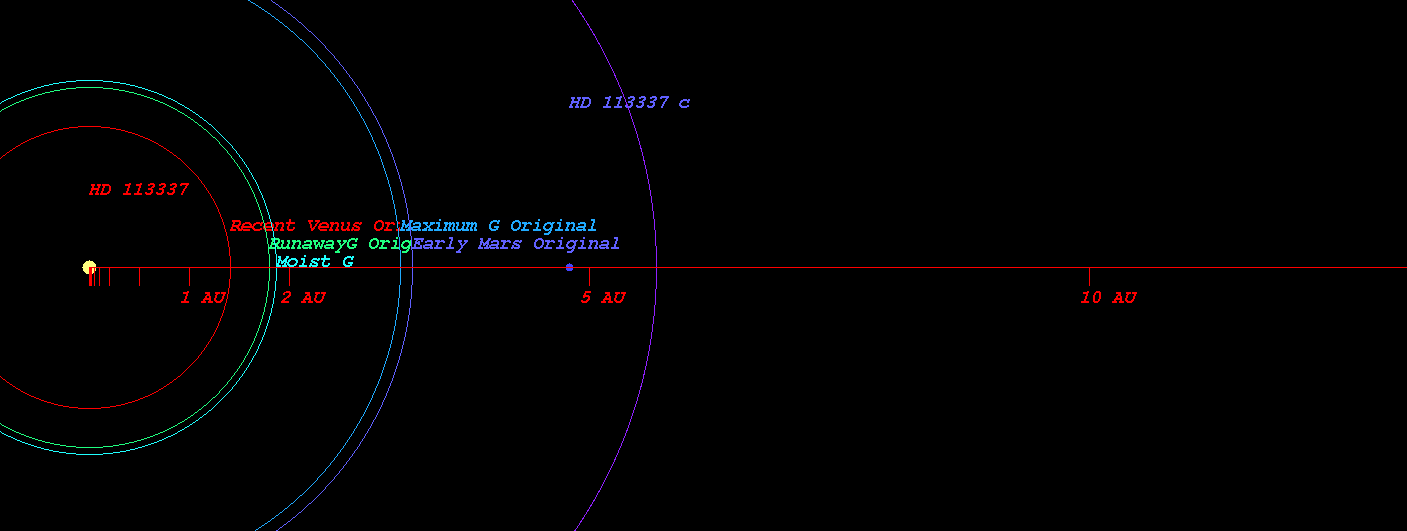

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HD 113337)



    (Position in Stellar Map of star HD 113337 and its Exoplanet HD 113337 c)

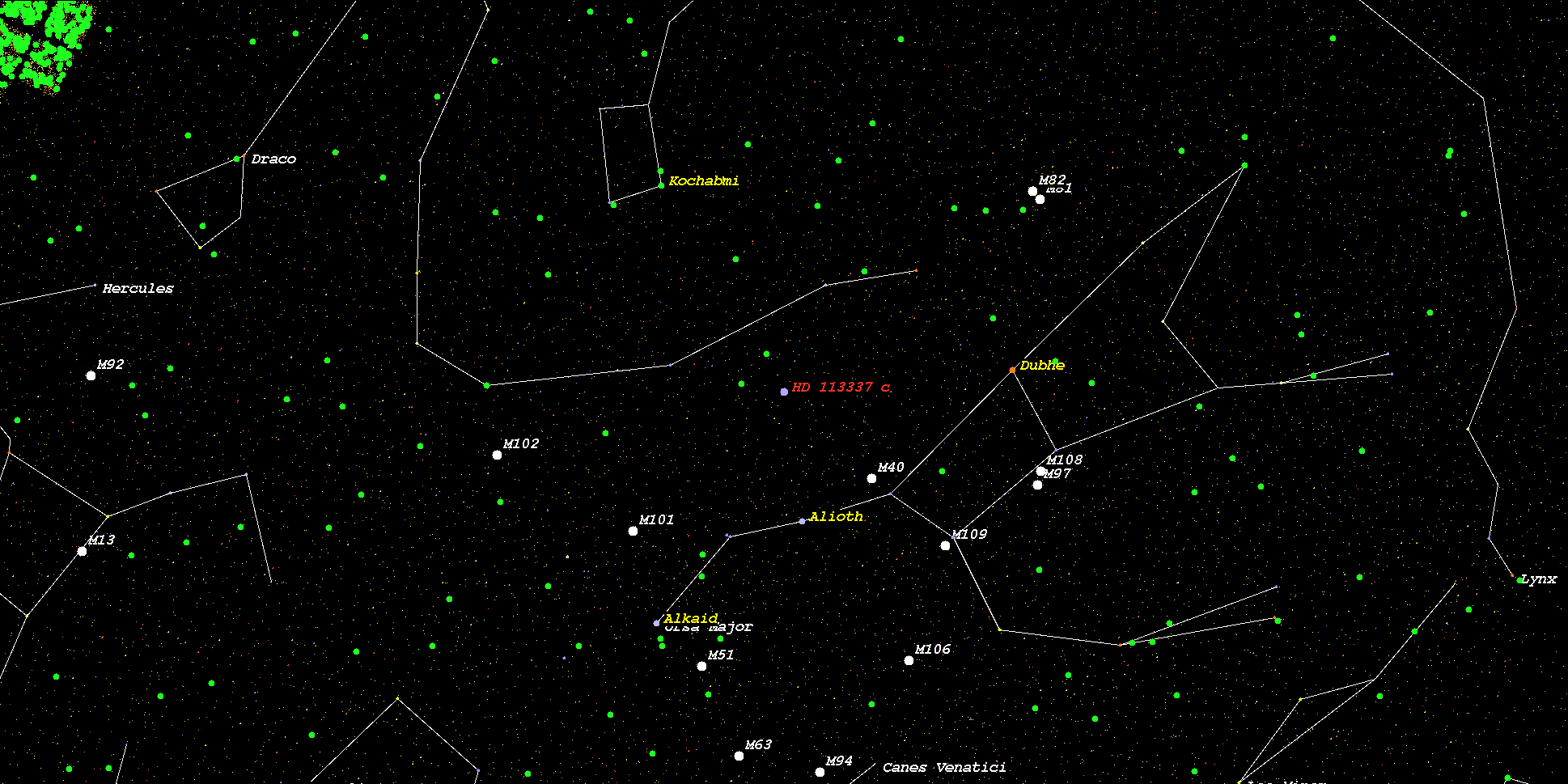

    (Zoomed position in Stellar Map of star HD 113337 and its Exoplanet HD 113337 c (zoom level 3))

    (Synthetic Spectrum of star HD 113337*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
