Imaginary Picture of HATS-36 b
/
Exoplanet Name : HATS-36 b
Alternate Name : EPIC 215969174 b
Radius (Rjup / Re): 1.2630 (Rjup) 14.1570 (Rearth)
Mass (Mjup / Me): 2.7900 (Mjup) 887.0470 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0529 (AU) 0.0529 (AU Est.)
Eccentricity : 0.2940
Orbital Period(Yrs) 0.0114
Orbital Period(Observed/Estimated) 4.18 (Days Obs.) 4.17 (Days Est.)
Star Radiation at Atmospheric Boundary: 782997.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1327.6 (K)
Blackbody T 0.3(K) 1246.8 (K)
Blackbody T 0.7(K) 1008.8 (K)
Tidally Locked Blackbody T 0.1(K) 1578.8 (K)
Tidally Locked Blackbody T 0.3(K) 1482.7 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HATS-36
Alternate Name : "EPIC 215969174, 2MASS 19255488-2312100"
Star Distance(LY) : 3186.5
Stellar Radius(Rsun) : 1.2 (Rsun Measured)
Stellar Mass(Msun) : 1.1 (Msun Measured) 1.1 (Msun Estimated)
Star Age : 3.4 (GY)
Temperature : 5970 (K)
Spectral type : G0V
Metalicity : 0.1
Absolute Magnitude: 4.4
Apparent Magnitude: 14.4
Right Ascension(RA) 291.4787
Declination (DEC) -23.2028
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HATS-36+&submit=SIMBAD+search
Open Exoplanet Database Link
HATS-36 b
HATS-36 b

  • HATS-36 b is an exoplanet orbiting the star HATS-36, located about 3186.5 light-years (977.0 pc) away from Solar System. Its discovery was publicly announced on 2017.
  • The host star HATS-36 has apparent magnitude of 14.4, with absolute magnitude of 4.4.
  • It is 1.1 times more massive and 1.2 times bigger compared with our Sun. The surface temperature is 5970 with its spectral types of G0V
  • In this planetary system, the extrasolar planet HATS-36 b orbits around the star HATS-36 every 4.2 days with its orbital distance of 0.05 AU ( 7913727.4 km)

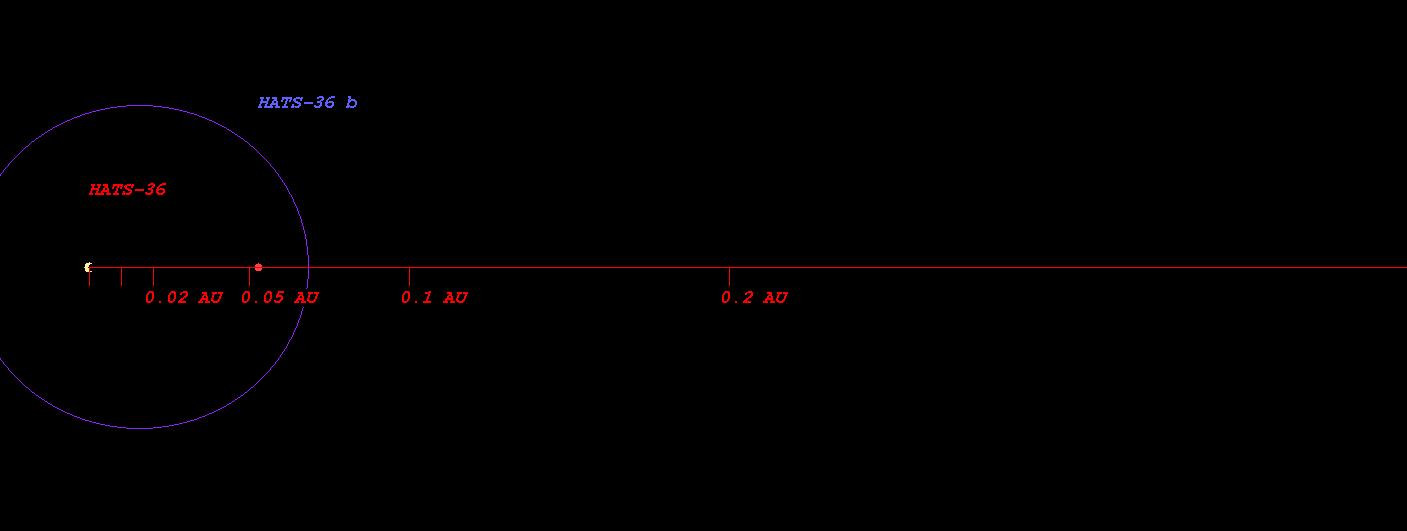

  • (Projected orbit of HATS-36 b around its host star HATS-36)


  • The Star HATS-36 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.916 AU ( 136990819.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.266 AU ( 189357112.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.929 AU ( 288538334.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.838 AU ( 424596799.8 km)
  • Radiation at Planetary Boundary of HATS-36 b : 782997.13 W/m2

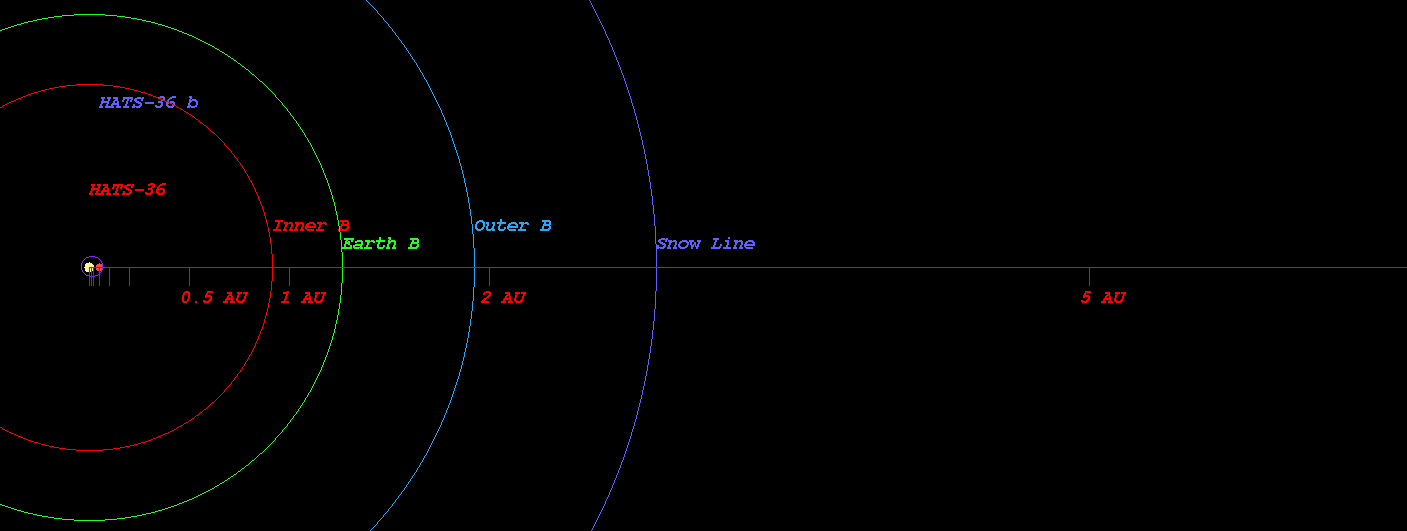

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HATS-36)



  • Kopparapu Recent Venus for Star HATS-36 distance : 0.938 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HATS-36 distance : 1.188 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HATS-36 distance : 1.147 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HATS-36 distance : 1.258 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-36 distance : 2.088 AU
  • Kopparapu Outer Boundary for Early Mars for Star HATS-36 distance : 2.202 AU

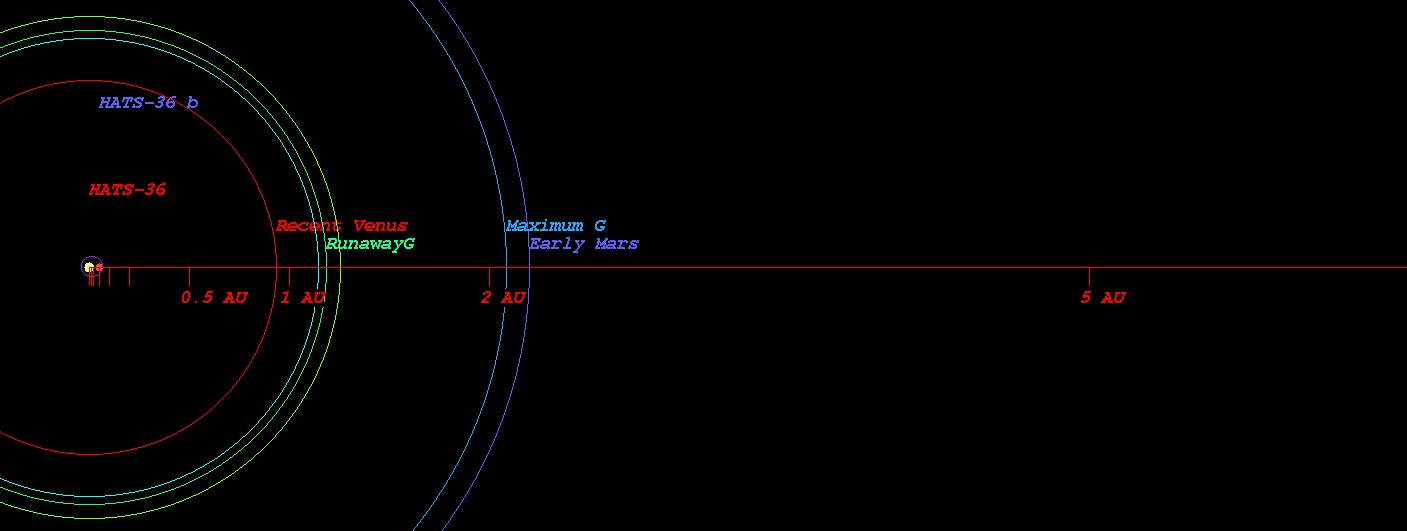

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HATS-36)



  • Original Kopparapu Recent Venus for Star HATS-36 distance : 0.943 AU
  • Original Kopparapu Runaway Greenhouse for Star HATS-36 distance : 1.220 AU
  • Original Kopparapu Moist Greenhouse for Star HATS-36 distance : 1.248 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-36 distance : 2.125 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HATS-36 distance : 2.210 AU

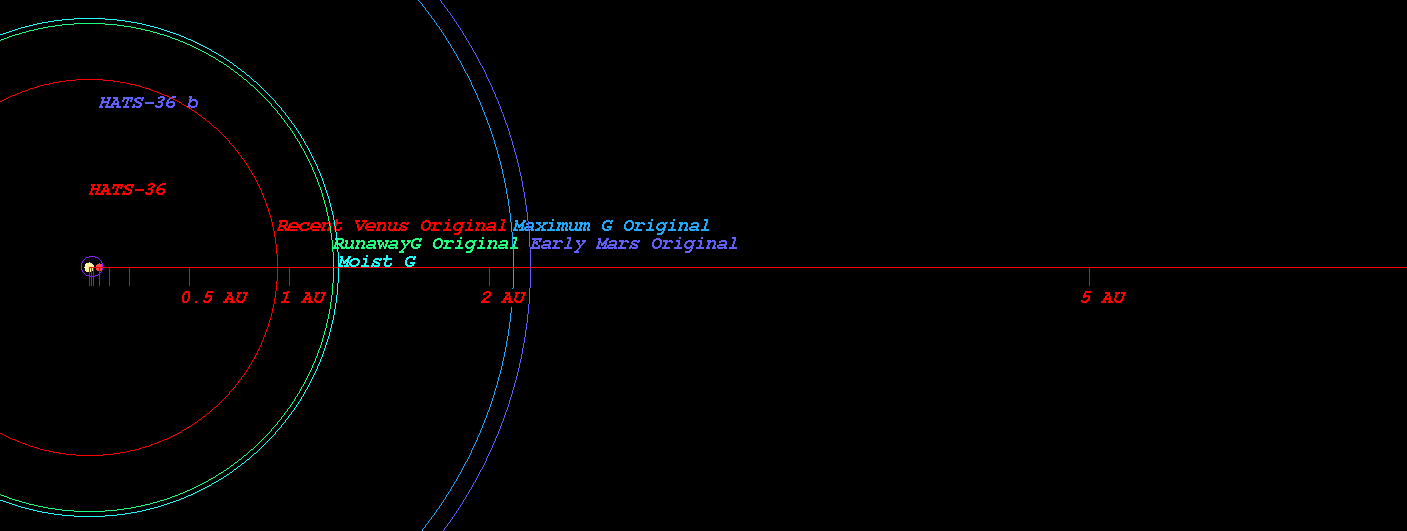

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HATS-36)

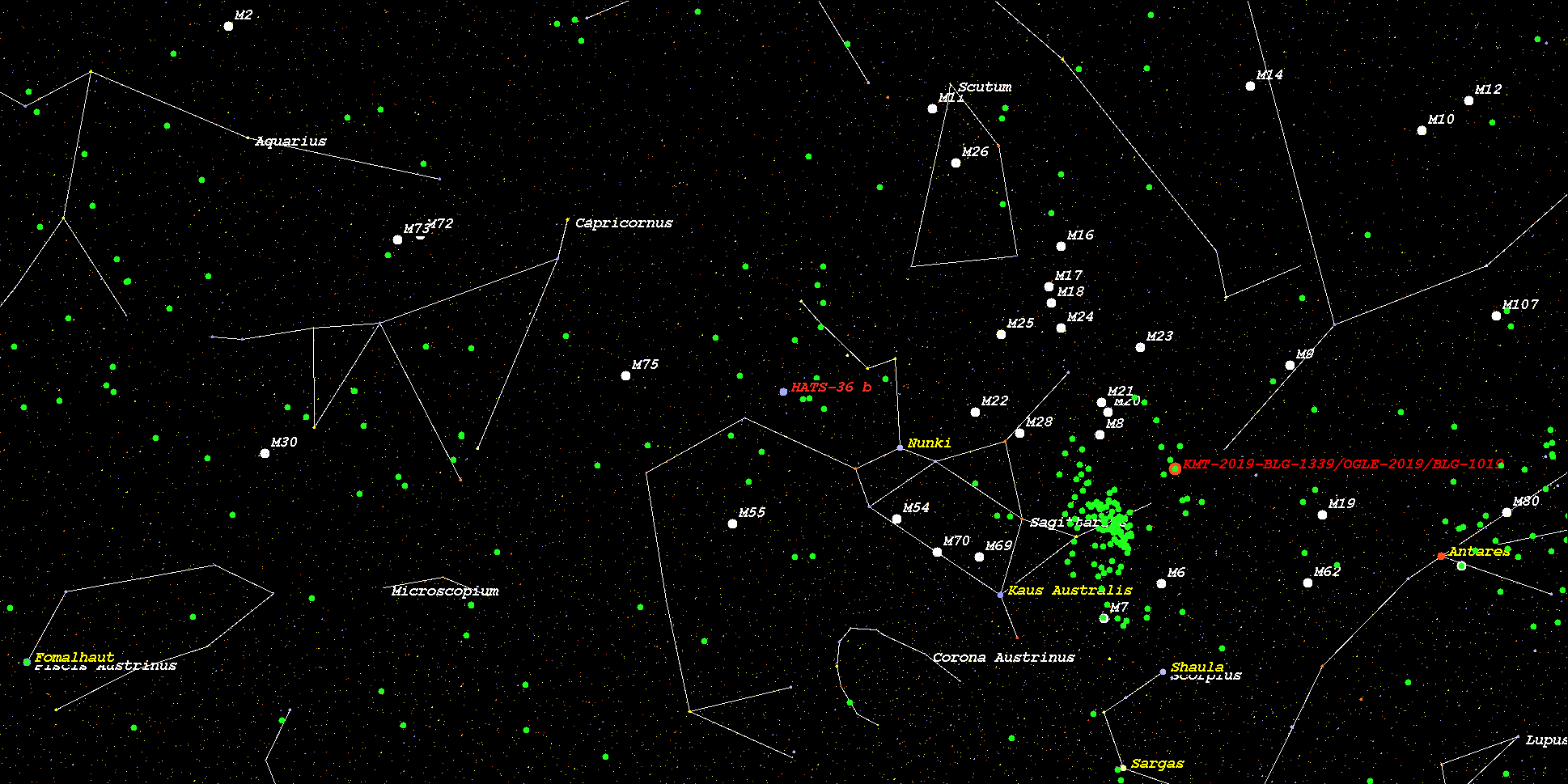

    (Position in Stellar Map of star HATS-36 and its Exoplanet HATS-36 b)



    (Zoomed position in Stellar Map of star HATS-36 and its Exoplanet HATS-36 b (zoom level 3))
