Imaginary Picture of HATS-29 b

Display orbital revolution of HATS-29 b around the hoststar HATS-29
/
Exoplanet Name : HATS-29 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 1.2510 (Rjup) 14.0225 (Rearth)
Mass (Mjup / Me): 0.6530 (Mjup) 207.6135 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0548 (AU) 0.0548 (AU Est.)
Eccentricity : 0.0790
Orbital Period(Yrs) 0.0126
Orbital Period(Observed/Estimated) 4.61 (Days Obs.) 4.61 (Days Est.)
Surface Gravity (G Earth) 1.0559
Star Radiation at Atmospheric Boundary: 486819.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1178.9 (K)
Blackbody T 0.3(K) 1107.1 (K)
Blackbody T 0.7(K) 895.8 (K)
Tidally Locked Blackbody T 0.1(K) 1402.0 (K)
Tidally Locked Blackbody T 0.3(K) 1316.6 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HATS-29
Alternate Name : "2MASS 19002314-5453354, GSC 8763-00475"
Star Distance(LY) : 1144.8
Stellar Radius(Rsun) : 1.1 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 5.5 (GY)
Temperature : 5670 (K)
Spectral type : G
UV portion[%]: 7.5
Visible portion[%]: 44.3
IR portion[%]: 48.2
Metalicity : 0.2
Absolute Magnitude: 4.9
Apparent Magnitude: 12.6
Right Ascension(RA) 135.0960
Declination (DEC) -54.8932
Hubble Space Telescope Guide Star Catalog (GSC) ID 08763-00475
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HATS-29+&submit=SIMBAD+search
Open Exoplanet Database Link
HATS-29 b
HATS-29 b

  • HATS-29 b is an exoplanet orbiting the star HATS-29, located about 1144.8 light-years (351.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star HATS-29 has apparent magnitude of 12.6, with absolute magnitude of 4.9.
  • It is 1.0 times more massive and 1.1 times bigger compared with our Sun. The surface temperature is 5670 with its spectral types of G
  • In this planetary system, the extrasolar planet HATS-29 b orbits around the star HATS-29 every 4.6 days with its orbital distance of 0.05 AU ( 8190483.4 km)

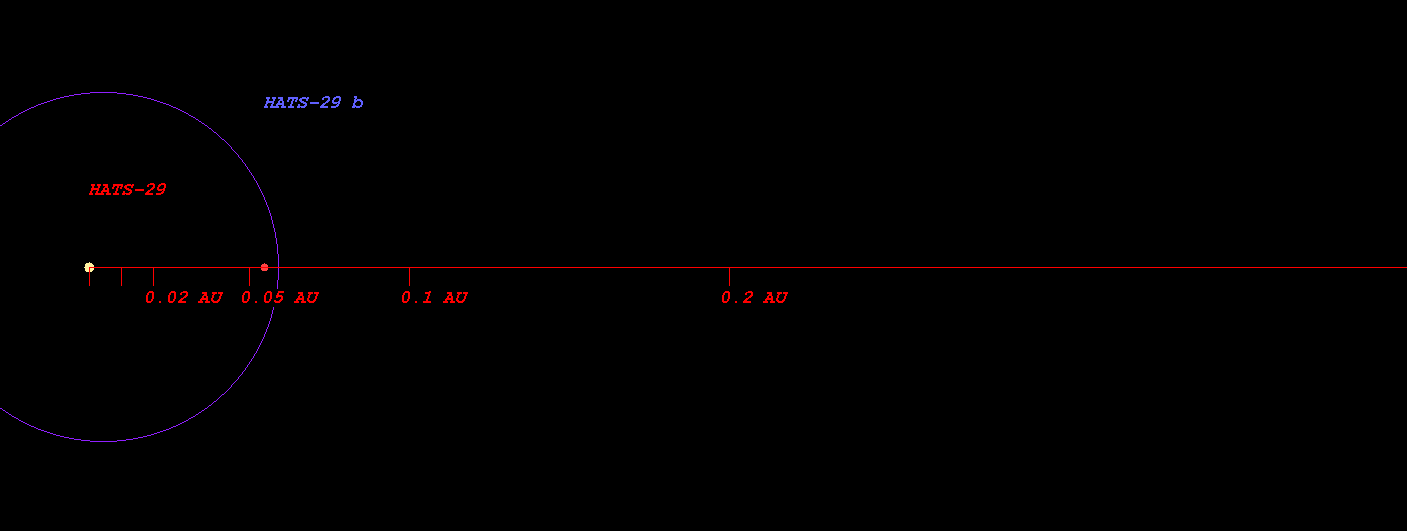

  • (Projected orbit of HATS-29 b around its host star HATS-29)


  • The Star HATS-29 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.747 AU ( 111795404.6 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.033 AU ( 154530464.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.574 AU ( 235470230.9 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.316 AU ( 346504760.1 km)
  • Radiation at Planetary Boundary of HATS-29 b : 486819.81 W/m2

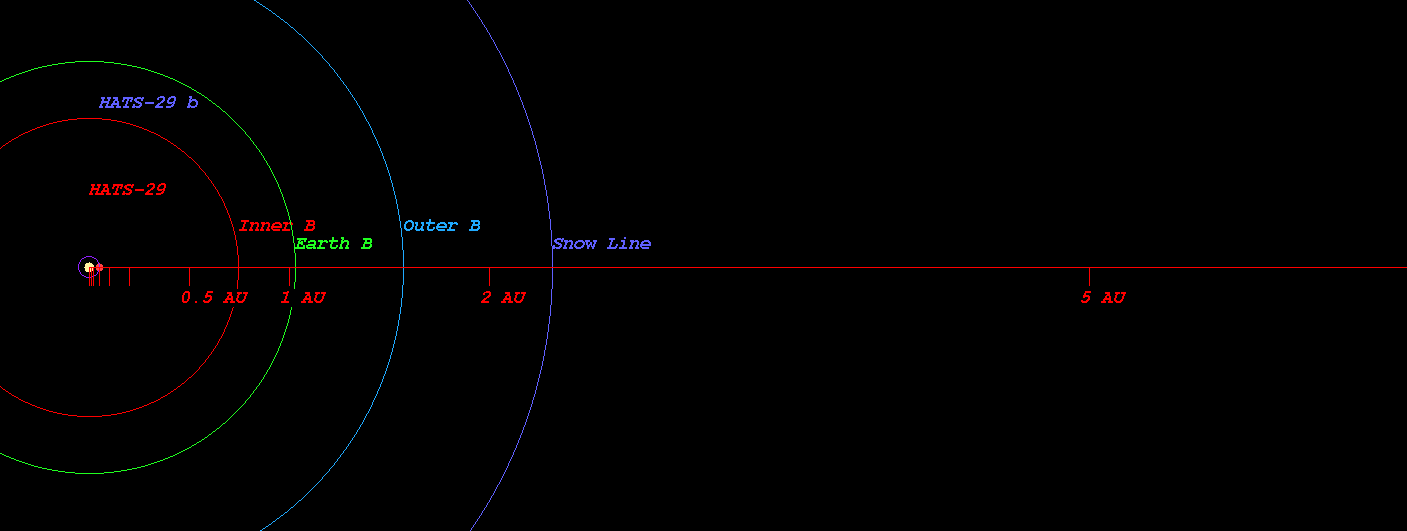

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HATS-29)



  • Kopparapu Recent Venus for Star HATS-29 distance : 0.780 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HATS-29 distance : 0.987 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HATS-29 distance : 0.953 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HATS-29 distance : 1.045 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-29 distance : 1.748 AU
  • Kopparapu Outer Boundary for Early Mars for Star HATS-29 distance : 1.844 AU

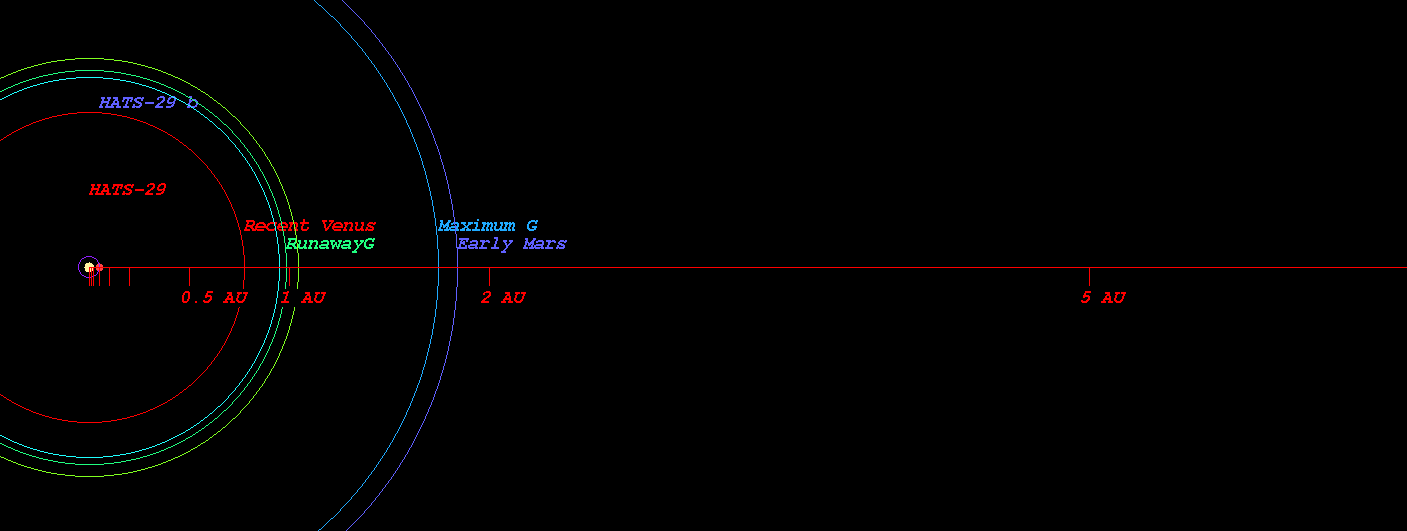

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HATS-29)



  • Original Kopparapu Recent Venus for Star HATS-29 distance : 0.779 AU
  • Original Kopparapu Runaway Greenhouse for Star HATS-29 distance : 1.015 AU
  • Original Kopparapu Moist Greenhouse for Star HATS-29 distance : 1.031 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-29 distance : 1.779 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HATS-29 distance : 1.850 AU

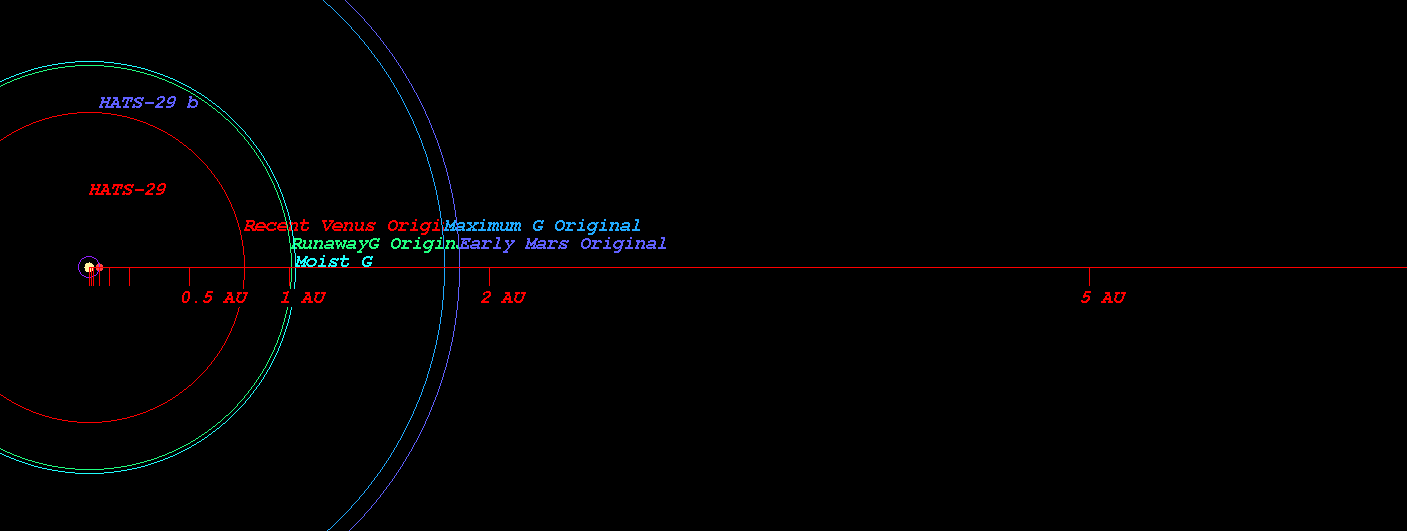

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HATS-29)

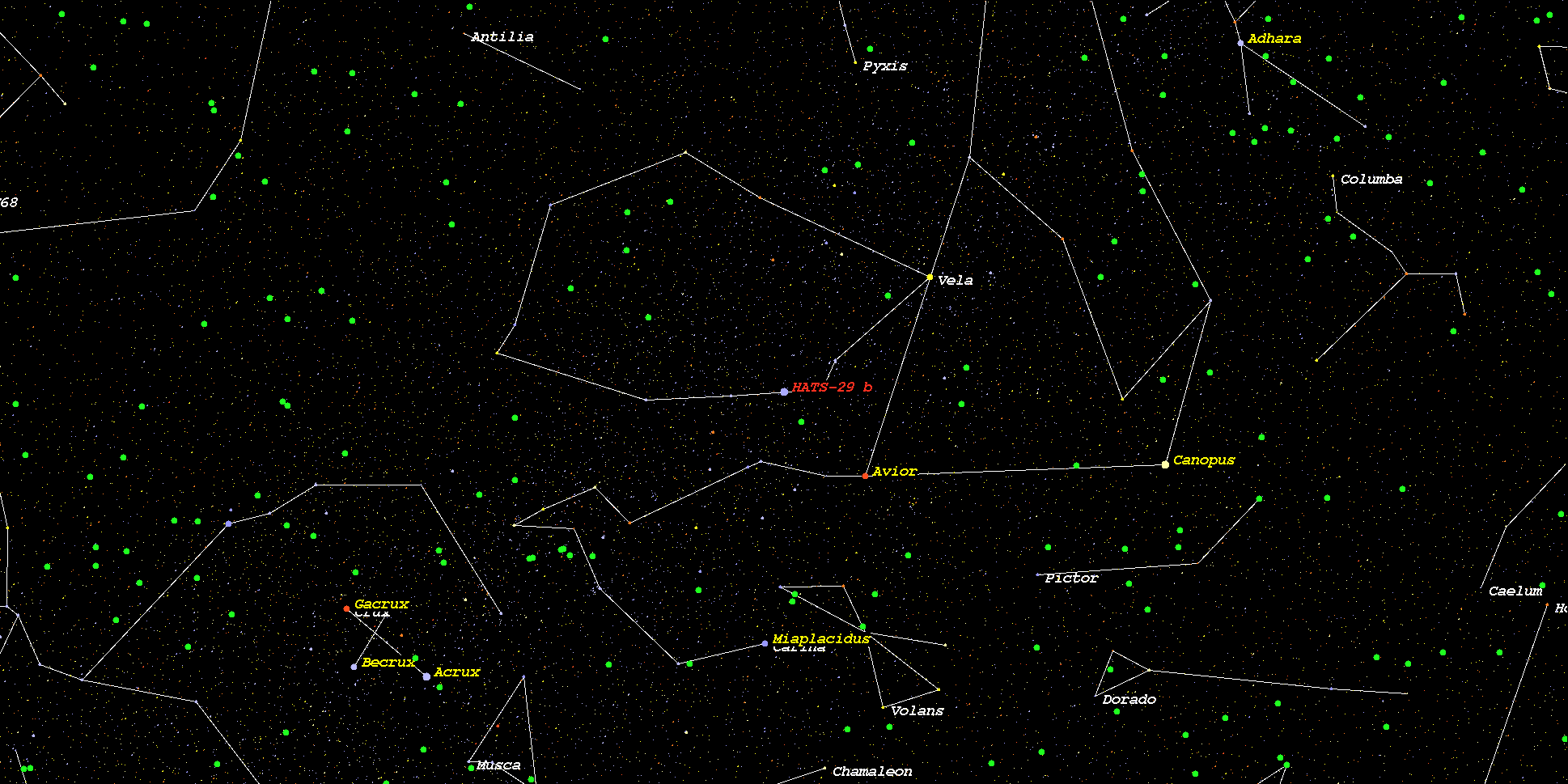

    (Position in Stellar Map of star HATS-29 and its Exoplanet HATS-29 b)



    (Zoomed position in Stellar Map of star HATS-29 and its Exoplanet HATS-29 b (zoom level 3))

    (Synthetic Spectrum of star HATS-29*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
