Imaginary Picture of HATS-1 b

Display orbital revolution of HATS-1 b around the hoststar HATS-1
/
Exoplanet Name : HATS-1 b
Alternate Name :
Radius (Rjup / Re): 1.3020 (Rjup) 14.5941 (Rearth)
Mass (Mjup / Me): 1.8550 (Mjup) 589.7750 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0444 (AU) 0.0444 (AU Est.)
Eccentricity : 0.1200
Orbital Period(Yrs) 0.0094
Orbital Period(Observed/Estimated) 3.45 (Days Obs.) 3.44 (Days Est.)
Surface Gravity (G Earth) 2.7690
Star Radiation at Atmospheric Boundary: 795767.1 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1333.0 (K)
Blackbody T 0.3(K) 1251.9 (K)
Blackbody T 0.7(K) 1012.9 (K)
Tidally Locked Blackbody T 0.1(K) 1585.2 (K)
Tidally Locked Blackbody T 0.3(K) 1488.7 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : HATS-1
Alternate Name :
Star Distance(LY) : 988.3
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 6.0 (GY)
Temperature : 5870 (K)
Spectral type : G1
Metalicity : -0.1
Absolute Magnitude: 4.6
Apparent Magnitude: 12.1
Right Ascension(RA) 175.5253
Declination (DEC) -23.3547
Hubble Space Telescope Guide Star Catalog (GSC) ID 06652-00186
Discovered by
Discovery Paper - Authors PENEV K.; BAKOS G.A.; BAYLISS D.; JORDAN A.; MOHLER M.; ZHOU G.; SUC V.; RABUS M.; HARTMAN J.D.; MANCINI L.; BEKY B.; CSUBRY Z.; BUCHHAVE L.; HENNING T.; NIKOLOV N.; CSAK B.; BRAHM R.; ESPINOZA N.; CONROY P.; NOYES R.W.; SASSELOV D.D.; SCHMIDT B.; WRIGHT D.J.; TINNEY C.G.; ADDISON B.C.; LAZAR J.; PAPP I.; SARI P.
Discovery Paper - Title HATS-1b: the first transiting planet discovered by the HATSouth survey.
Discovery Paper - Journal "The Astronomical Journal,olume 145,umber 1"
Discovery Paper - URL http://iopscience.iop.org/article/10.1088/0004-6256/145/1/5/meta
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=HATS-1+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/HATS-1%20b/
HATS-1 b
HATS-1 b

  • HATS-1 b is an exoplanet orbiting the star HATS-1, located about 988.3 light-years (303.0 pc) away from Solar System. Its discovery was publicly announced on 2012.
  • The host star HATS-1 has apparent magnitude of 12.1, with absolute magnitude of 4.6.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5870 with its spectral types of G1
  • In this planetary system, the extrasolar planet HATS-1 b orbits around the star HATS-1 every 3.4 days with its orbital distance of 0.04 AU ( 6642145.5 km)

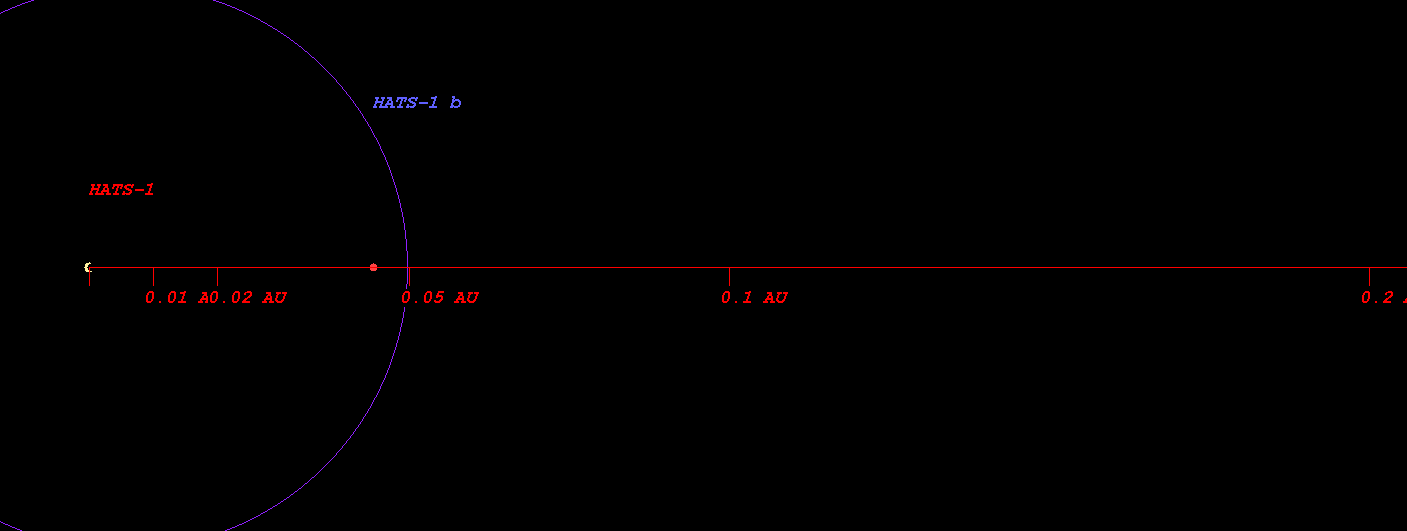

  • (Projected orbit of HATS-1 b around its host star HATS-1)


  • The Star HATS-1 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.775 AU ( 115912872.5 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.071 AU ( 160221881.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.632 AU ( 244142690.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.402 AU ( 359266664.0 km)
  • Radiation at Planetary Boundary of HATS-1 b : 795767.10 W/m2

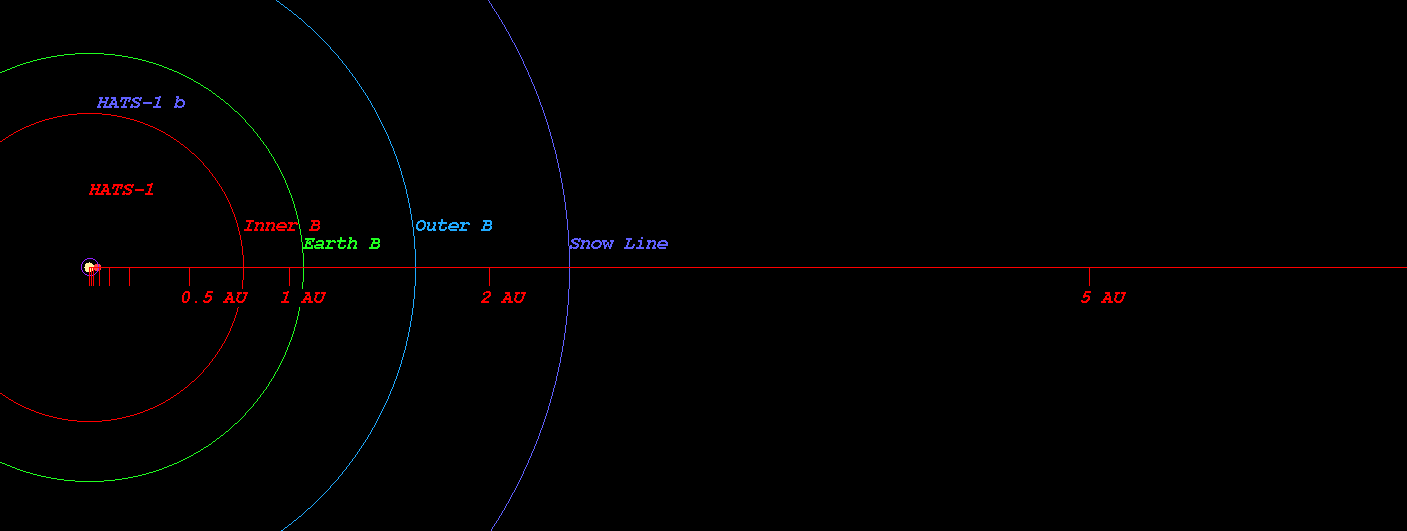

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star HATS-1)



  • Kopparapu Recent Venus for Star HATS-1 distance : 0.799 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star HATS-1 distance : 1.011 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star HATS-1 distance : 0.977 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star HATS-1 distance : 1.071 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-1 distance : 1.782 AU
  • Kopparapu Outer Boundary for Early Mars for Star HATS-1 distance : 1.879 AU

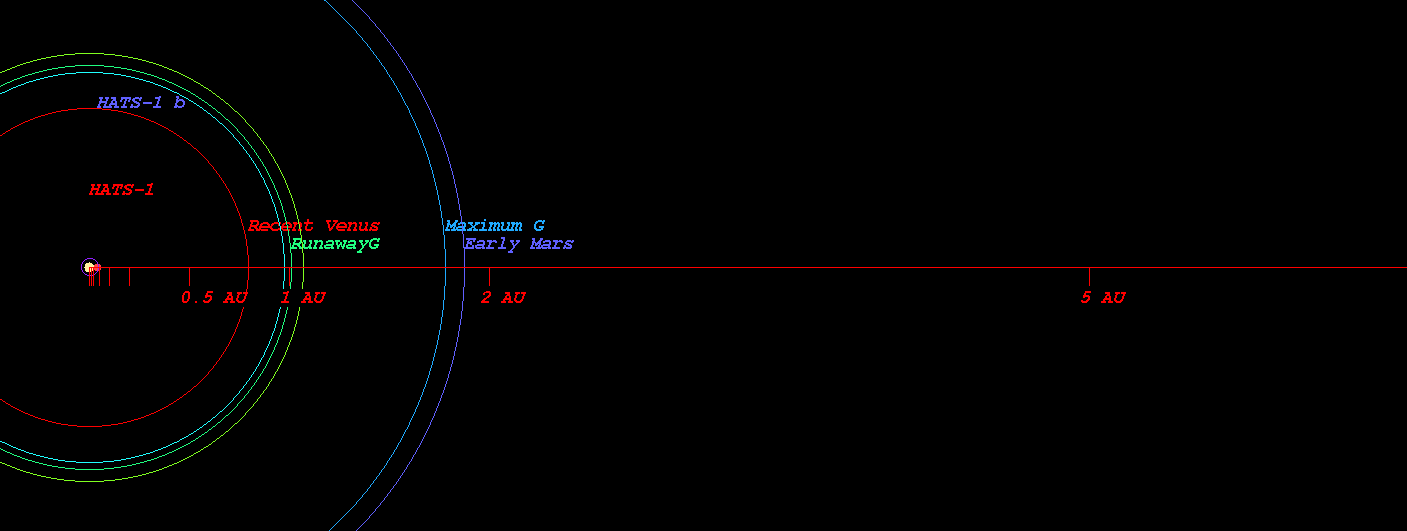

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star HATS-1)



  • Original Kopparapu Recent Venus for Star HATS-1 distance : 0.801 AU
  • Original Kopparapu Runaway Greenhouse for Star HATS-1 distance : 1.039 AU
  • Original Kopparapu Moist Greenhouse for Star HATS-1 distance : 1.060 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star HATS-1 distance : 1.813 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star HATS-1 distance : 1.886 AU

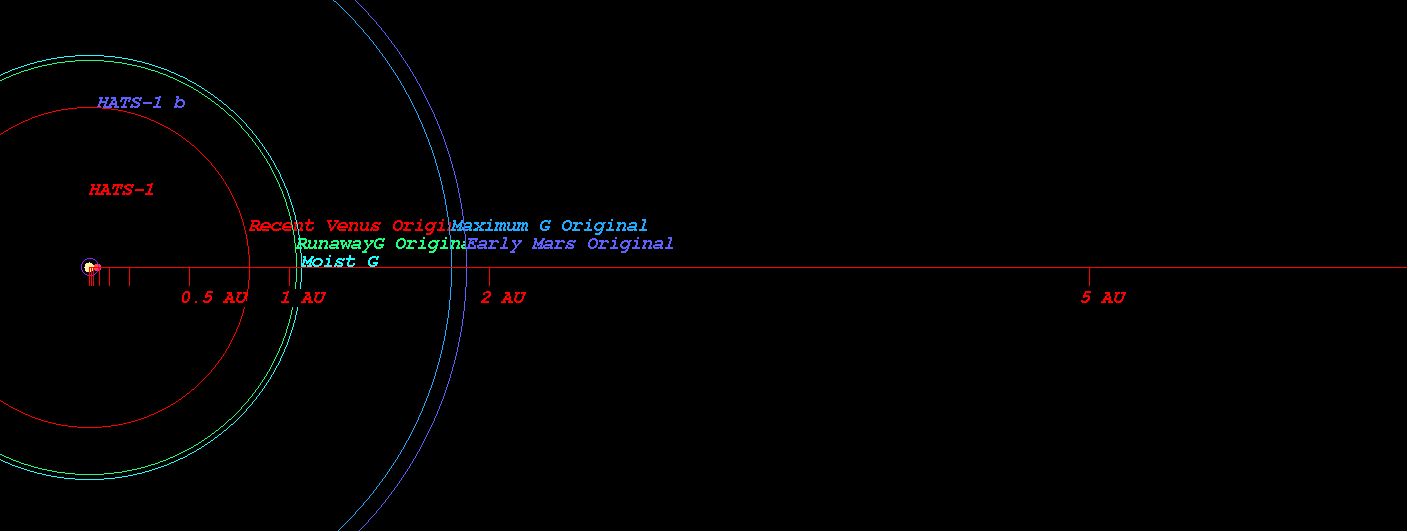

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star HATS-1)

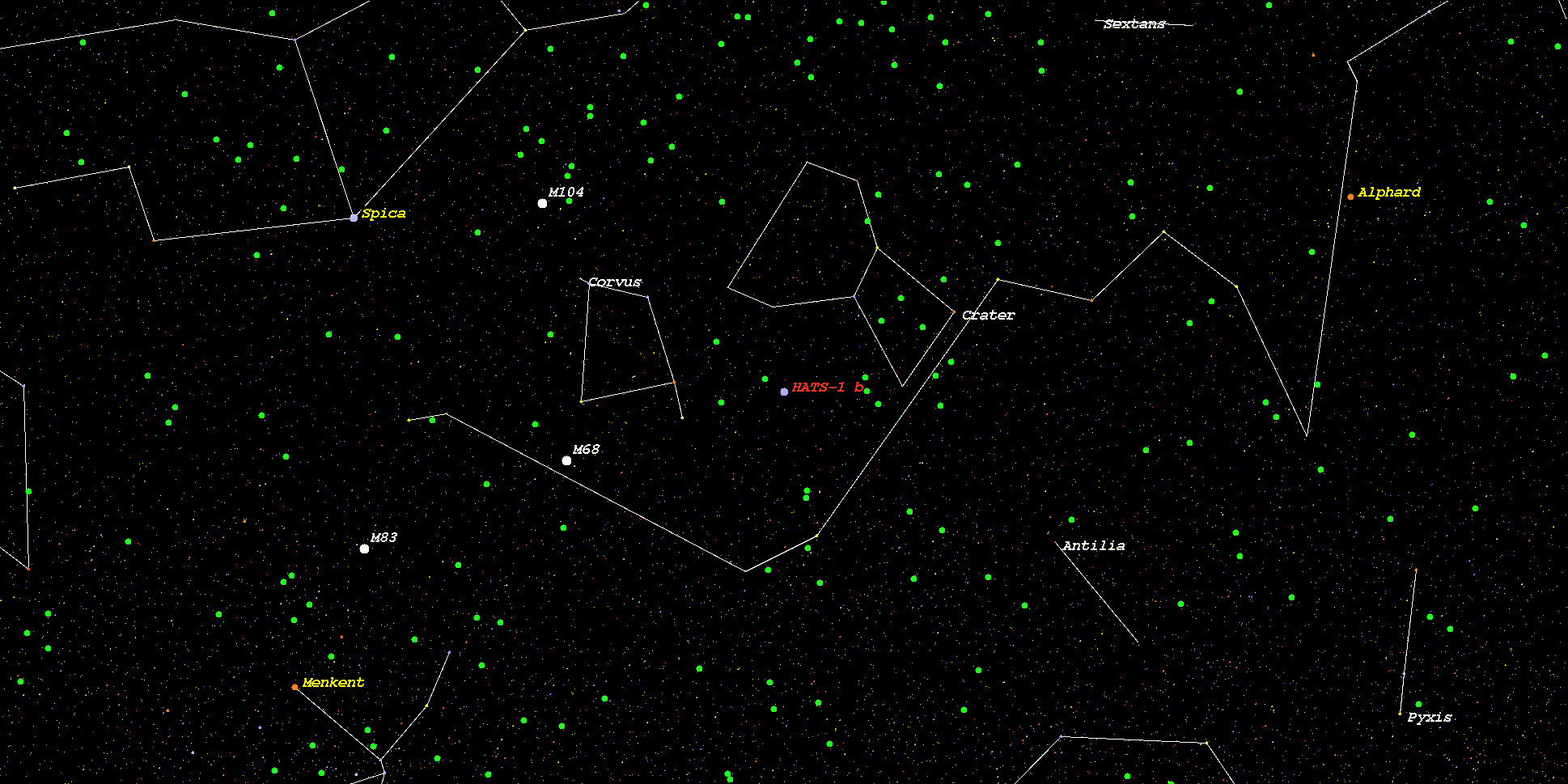

    (Position in Stellar Map of star HATS-1 and its Exoplanet HATS-1 b)



    (Zoomed position in Stellar Map of star HATS-1 and its Exoplanet HATS-1 b (zoom level 3))
